SpeedyBee F405 WING Mini Fixed Wing Flight Controller

£39.90 Inc. VAT

The F405 Mini is a lighter, more compact version of the original SB Wing F405 FC we all love.

In stock

0 People watching this product now!

Description

The F405 Mini is a lighter more compact version of the F405 Wing APP we all love and yet it doesn’t sacrifice on functionality. It is built on the same STM32 F405 chipset, using the ICM-42688-P gyro and a SPL006 barometer. This versatile flight controller works with both iNav and Ardupilot, making it suitable for a variety of fixed-wing models. The flight controller supports up to 11 PWM outputs for motor and servo control. There are 6 UARTs for connection to accessories like GPS, airspeed sensor etc. The FC accepts power supply by 2-6S LiPo batteries and it has both voltage and current sensors. 2 independent BECs are available too. The first 5V/2A for powering the flight controller, RC receiver, GPS module and other accessories. The second adjustable 5/6V – 4A to power the servos. One of the standout features of SpeedyBee controllers is their built-in wireless capability and this controller is no different. It also features built-in wireless capability which allows users to connect the FC to the SpeedyBee smartphone App via WiFi or Bluetooth. It also benefits from SpeedyBee’s new wireless tuning V2 function for a smoother, more reliable tuning experience. Other features, includes OSD and dual camera switching for analogue cameras. There is also an SD card slot on the board to log flight data. When it comes to setup, it’s made easy thanks to plug and play connectivity. For those who prefer to use permanent soldered connections, classic pads are also available as well.

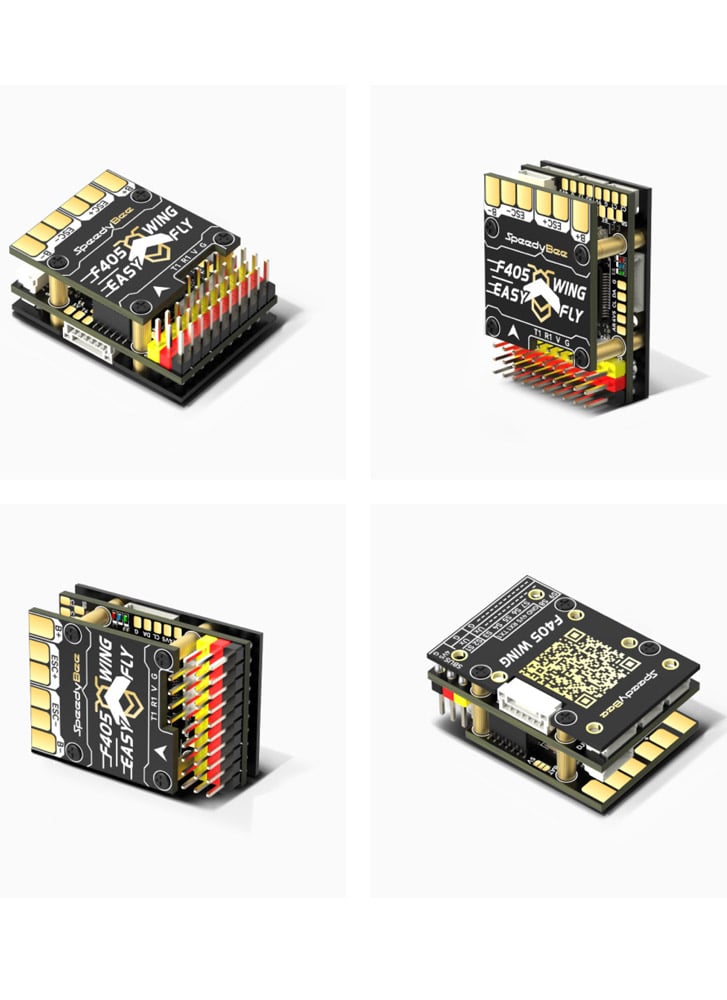

F405 WING Mini
The flight controller uses a reliable STM32 F405 chipset and works with both iNav and Ardupilot. This makes the F405 Wing Mini an excellent choice for a variety of fixed-wing models.

ICM-42688-P gyro
This FC has a high quality ICM-42688-P gyro on board. The FC also has a built-in barometer (SPL006-001).

Wireless configuration
Thanks to the built-in WiFi and Bluetooth functionalities, it is possible to connect wirelessly to the flight controller. You can then easily configure the FC via the SpeedyBee and QGroundcontrol apps.

Wireless Firmware Flasher
With the SpeedyBee F405 WING Mini Flight Controller you can easily and wirelessly flash firmware.

Plug and Play

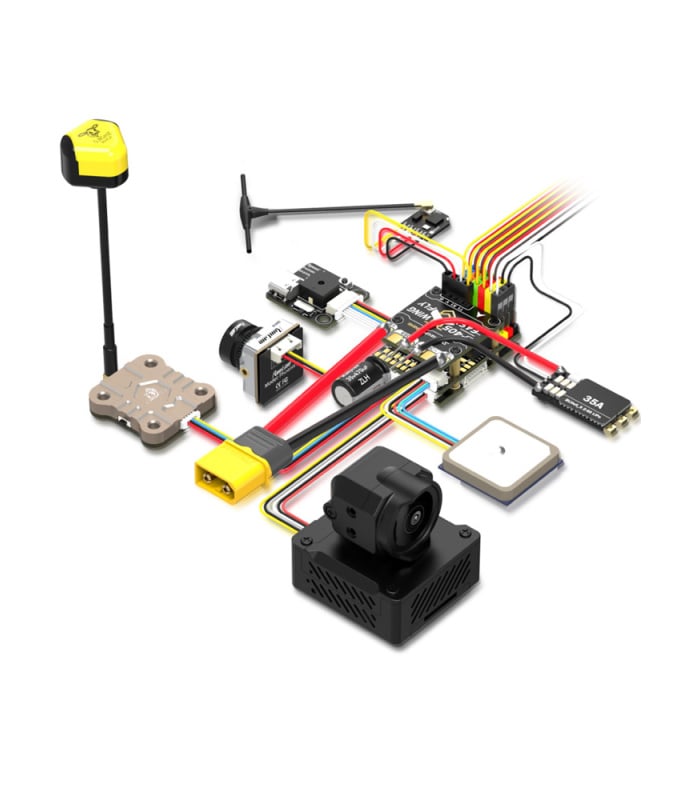

This SpeedyBee FC is equipped with plug for connecting a digital VTX, analog VTX, receiver, camera and GPS to make your build in no time. While SpeedyBee have designed this controller to minimise soldering, for those who prefer to, soldering is still possible via pads on the bottom of the board.

PWM outputs
Up to 11 PWM outputs are available for controlling the servos and motors.

VTOL Support
This FC supports Vertical Take Off and Landing (VTOL). Ardupilot’s QStabilize, QLoiter and QRTL modes allow vertical takeoff and landing.

SD card slot

The Blackbox Flash Memory of this SpeedyBee FC can be expanded as desired via the SD card slot.

Specification

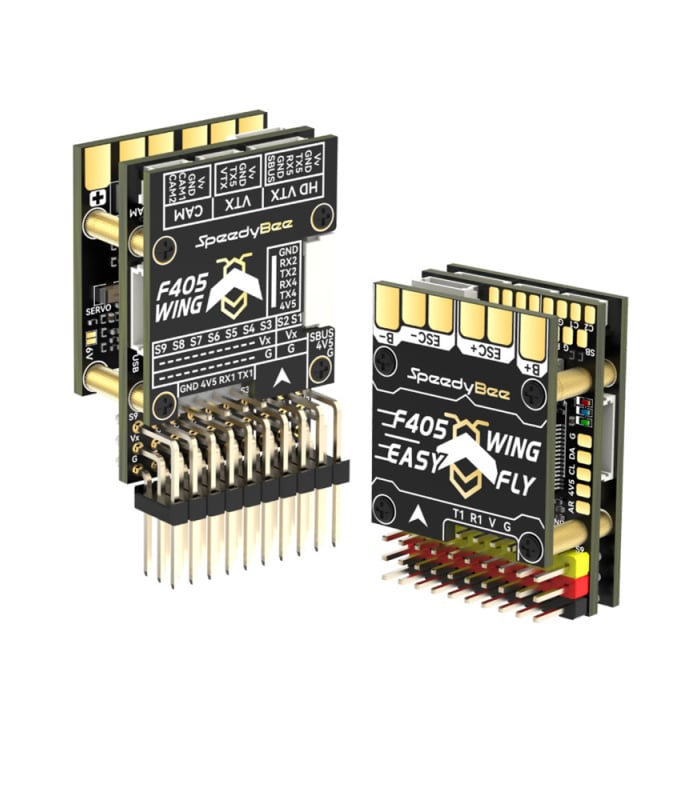

SpeedyBee F405 WING Mini FC board:

MCU: STM32F405, 168MHz, 1MB Flash
IMU(Gyro&Accelerometer): ICM-42688-P
Barometer: SPL006-001
OSD Chip: AT7456E
Blackbox: MicroSD Card Slot
UART: 6 sets (USART1, USART2, USART3, UART4, UART5. UART6: Dedicated for Wireless board Telemetry connection)
I2C: 1x Used for magnetometer, digital airspeed sensor
ADC: 4x (VBAT, Current, Analog RSSI, Analog AirSpeed)
PWM: 12x (9x pin headers + 2x solder pads + 1x “LED” pad)
ELRS/CRSF Receiver: Supported, connected to UART1
SBUS: Built-in inverter for SBUS input (UART2-RX)
LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
Analog RSSI: Supported, Named as “RS”
Dual Analog Camera Switching: Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot – Relay or INAV Modes/USER. Both cameras should have the same video format, either PAL or NTSC.
Supported FC Firmware:
- INAV SpeedyBeeF405WING (default)
- ArduPilot: SpeedyBeeF405WING
Weight: 5.6g

SpeedyBee F405 WING Mini PDB board:

Input voltage range: 7~26V (2~6S LiPo)
Battery Voltage Sensor: Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
Battery Current Sensor: 80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot)
TVS Protective diode: Yes
FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module
VTX & Camera power supply : The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage). By default, it is set to battery voltage. Ensure the VTX and camera input voltage range is compatible). Switching to 5V power supply is possible via pad jumper (using Servo BEC output) (If using this method, ensure the current requirements for both servo and VTX are sufficient)
Servo BEC output: Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos.
Weight: 5.5g

SpeedyBee F405 WING Wireless board:

Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
USB Port Type: Type-C
Buzzer: 5V Active Buzzer
Weight: 3.2g

Includes:

1x SpeedyBee F405 WING Mini Flight Controller
