ATOMRC F405 NAVI Fixed Wing Flight Controller
£44.90 Inc. VAT
Advanced flight control made easy for fixed-wing and VTOL aircraft.
In stock|Next shipping: 21/05/2026
A compact, feature-rich flight controller optimised for fixed-wing aircraft. With ArduPilot and INAV support, advanced sensors, multiple UARTs, onboard power management, and a clean wiring layout, the F405 NAVI offers a reliable and capable core for serious wing builds.
The ATOMRC F405 NAVI is a high-performance flight controller designed specifically for fixed-wing and VTOL aircraft. It combines powerful processing with advanced sensors and extensive connectivity, making it ideal for FPV and autonomous flight setups using ArduPilot or INAV.

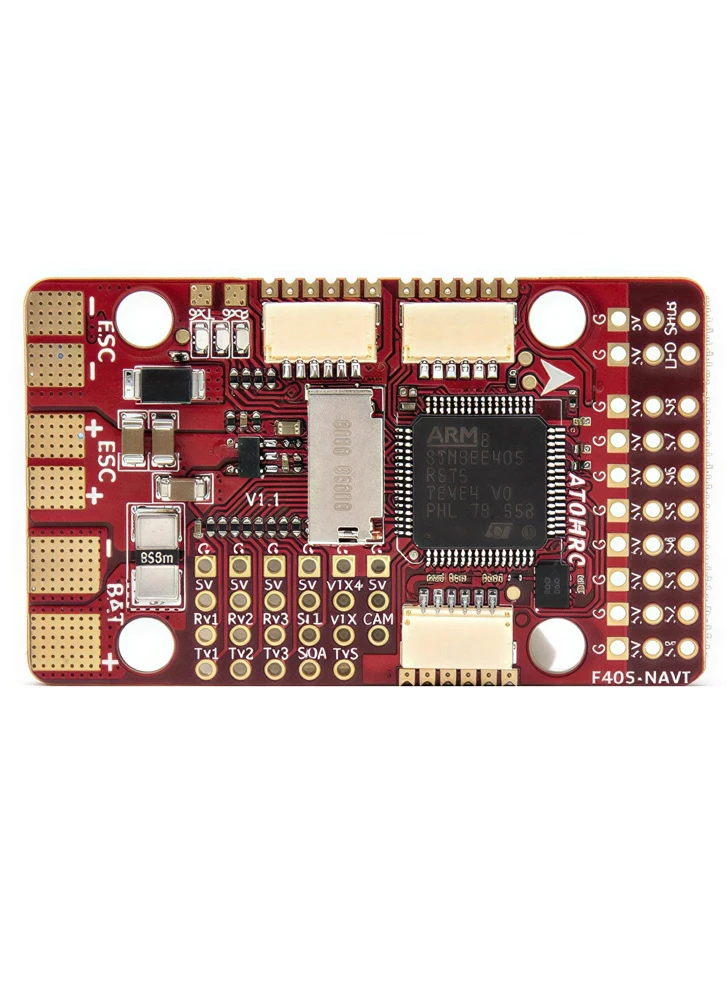

Powered by an STM32F405 168 MHz MCU, the controller offers fast response and reliable performance. It features a BMI270 IMU, SPL06-001 barometer, and AT7456E OSD chip for precise flight data and clear on-screen telemetry. With 5 UART ports, 8 PWM outputs, I2C support, and an SD card slot for black-box logging, it provides ample connectivity for GPS, telemetry, servos, and accessories.
The F405 NAVI includes integrated 5 V/5 A and 9 V/2 A BECs, supporting direct power for servos, cameras, and video transmitters. It also features a built-in 120 A current sensor, simplifying battery monitoring and power management.

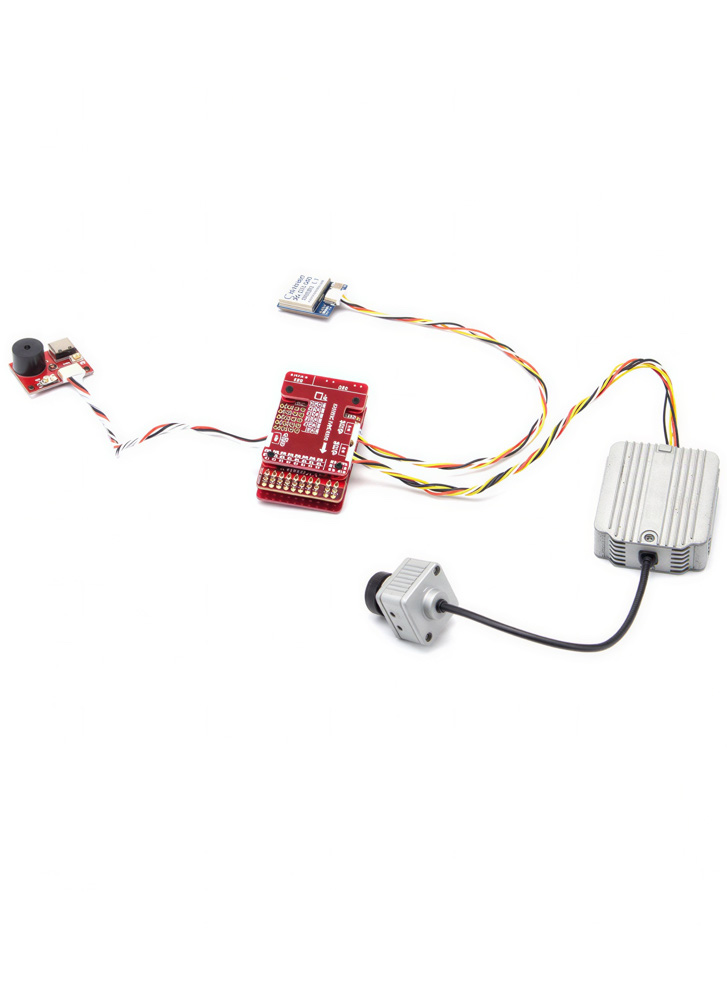

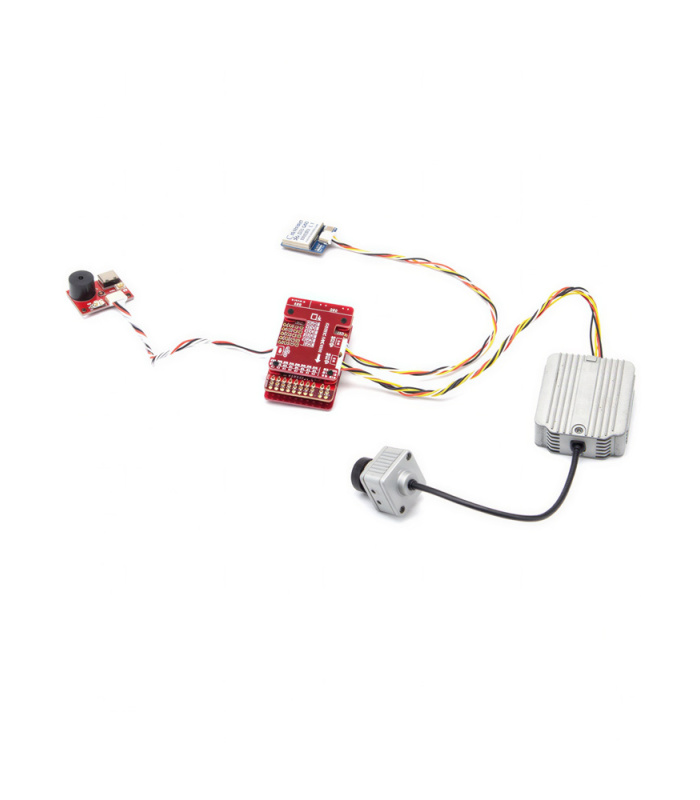

Compact and lightweight at just 21 g, this controller is perfect for wings, gliders, and other aircraft where space and efficiency matter. External USB-C and buzzer modules make installation flexible and easy, while JST-GH connectors keep wiring neat and secure.
Fully supported by both ArduPilot (Plane/VTOL) and INAV (5.0+), the ATOMRC F405 NAVI delivers the precision and capability needed for modern fixed-wing builds.
Note: Supplied with header pins unsoldered.
Specifications:
- MCU: STM32F405RGT6, 168MHz , 1MB Flash
- IMU: BMI270
- Baro: SPL06-001
- OSD: AT7456E
- Blackbox: SD card Slot
- 5x UARTs,
- 8x PWM outputs
- 1x I2C
- 3x ADC (VBAT, Current, RSSI)
- External Type-C port and Buzzer
- Inverter on UART2-RX for SBUS
Power:
- 12~30V(3~6s Lipo)
- 120A Current Sensor
- BEC 5V 5A for servos
- 9V 2A BEC for VTX and camera
- FC Firmware
- ArduPilot: ATOMRC F405NAVI
- INAV: ATOMRC F405NAVI (INAV 5.0 or newer)
Physical:
- Dimensions: 30 *50*12mm
- Mounting: 30*24mm, Φ3m
- Weight: 21g

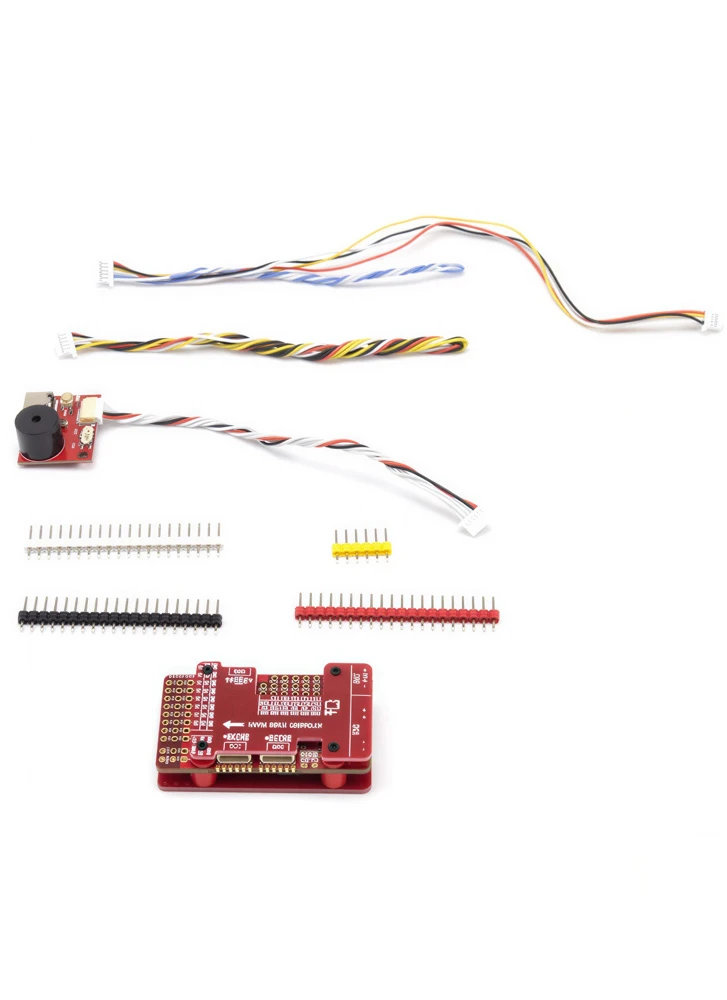

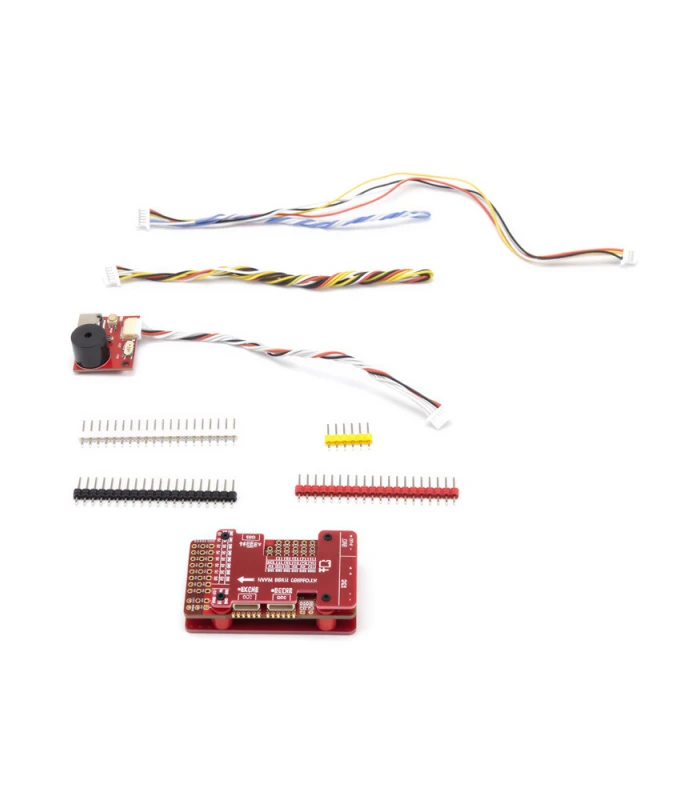

Included:
- 1x F405NAVI
- 1x external USB(Type-C)/buzzer board + 12cm JST-SH-6P to JST-SH-6P cable
- 20cm JST-SH-6P cable* for GPS/ DJI air unit
- 35V 470uf Capacitor
