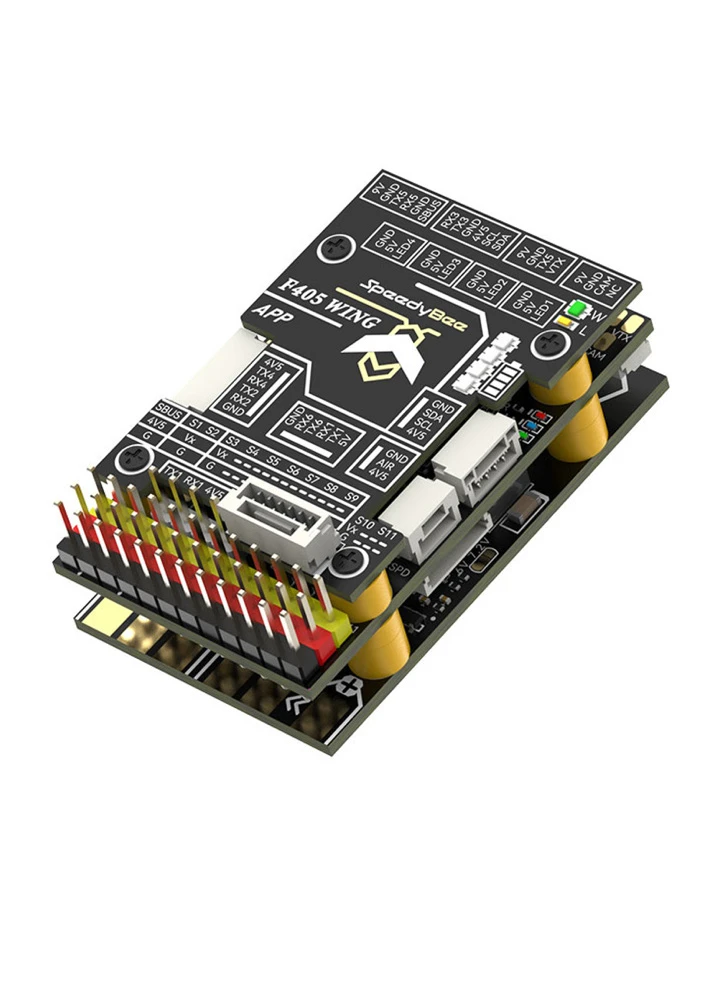

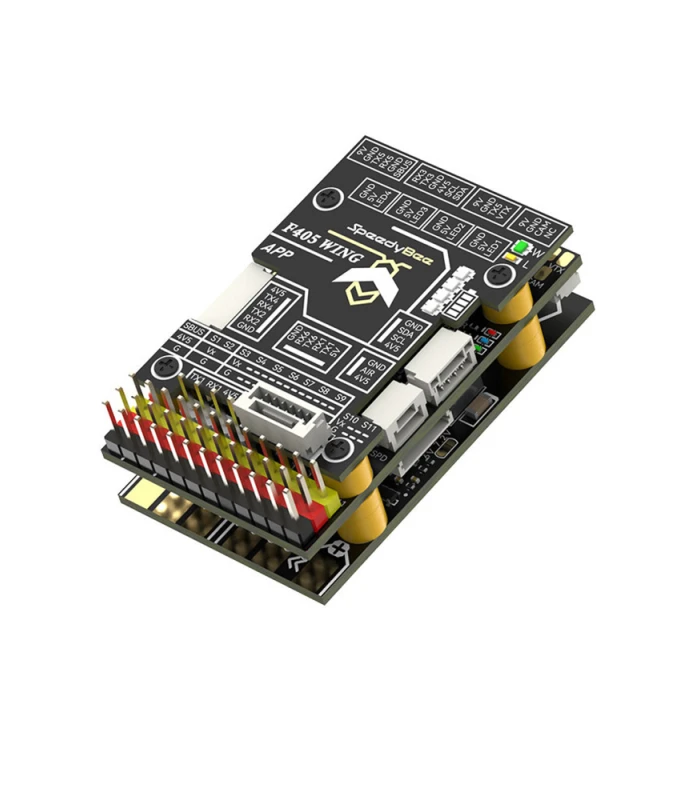

SpeedyBee F405 WING APP Fixed Wing Flight Controller

Original price was: £39.90.Current price is: £35.90. Inc. VAT

Unquestionably the best value wing FC on the market right now. It also one of the easiest to get setup.

Only 3 left in stock

0 People watching this product now!
Description

Experience the convenience of the SpeedyBee F405 WING APP.ย This Flight Controller is specially designed for Fixed Wing aircraft and best of all purchasing itย won’t break the bank. It’s unquestionably the best value wing FC on the market right now.ย It is built on the STM32 F405 chipset and 1MB of storage.ย The flight controller supports up to 11 PWM outputs for motor and servo control and 6 UARTs for connection to accessories like GPS, airspeed sensor etc.ย There’sย 3 high power BECs for powering the FC, VTX and Servo power as well as a wide 7-36V input (2-6S LiPo). This versatile flight controller works with both iNav and Ardupilot, making it suitable for a variety of fixed-wing models.ย One of the standout features of SpeedyBee controllers is their built-in wireless capability and this controller is no different. Itย also featuresย built-in wireless capability whichย allows you to connect the FC to the SpeedyBee App on your smartphone via WiFi or Bluetooth. Otherย unique features, includesย an onboard LiPo battery checker display andย four separate LED ports with an inbuilt LED driver.

F405 WING APP
The flight controller uses a reliable STM32 F405 chipset and works with both iNav and Ardupilot.ย This makes the F405 Wing App an excellent choice forย a variety of fixed-wing models.

ICM-42688-P gyro
This FC has a high quality ICM-42688-P gyro on board.ย The FC also has a built-in barometer (SPL006-001).

Wireless configuration
Thanks to the built-in WiFi and Bluetooth functionalities, it is possible to connect wirelessly to the flight controller.ย You can then easily configure the FC via the SpeedyBee and QGroundcontrol apps.

Wireless Firmware Flasher
With the SpeedyBee F405 WING APP Flight Controller you can easily and wirelessly flash firmware.

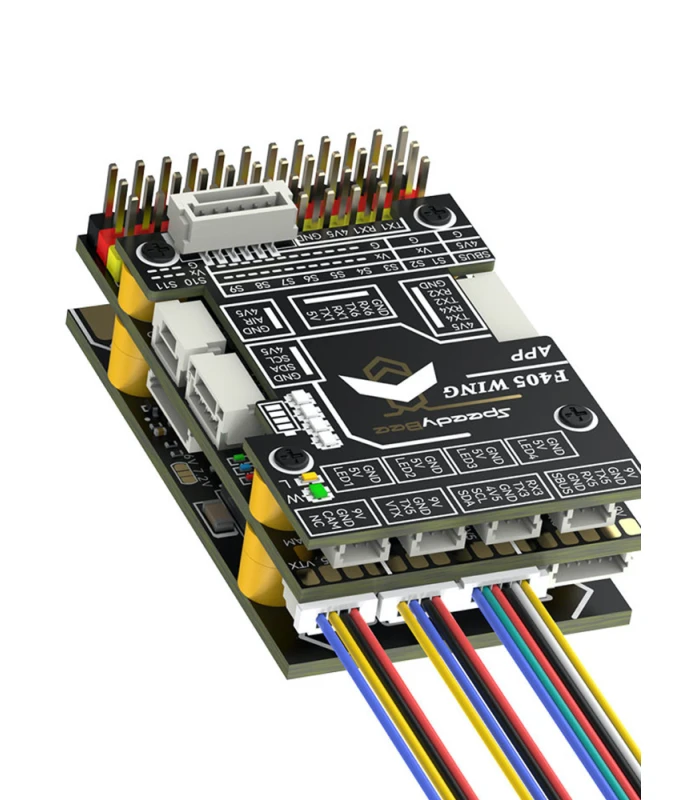

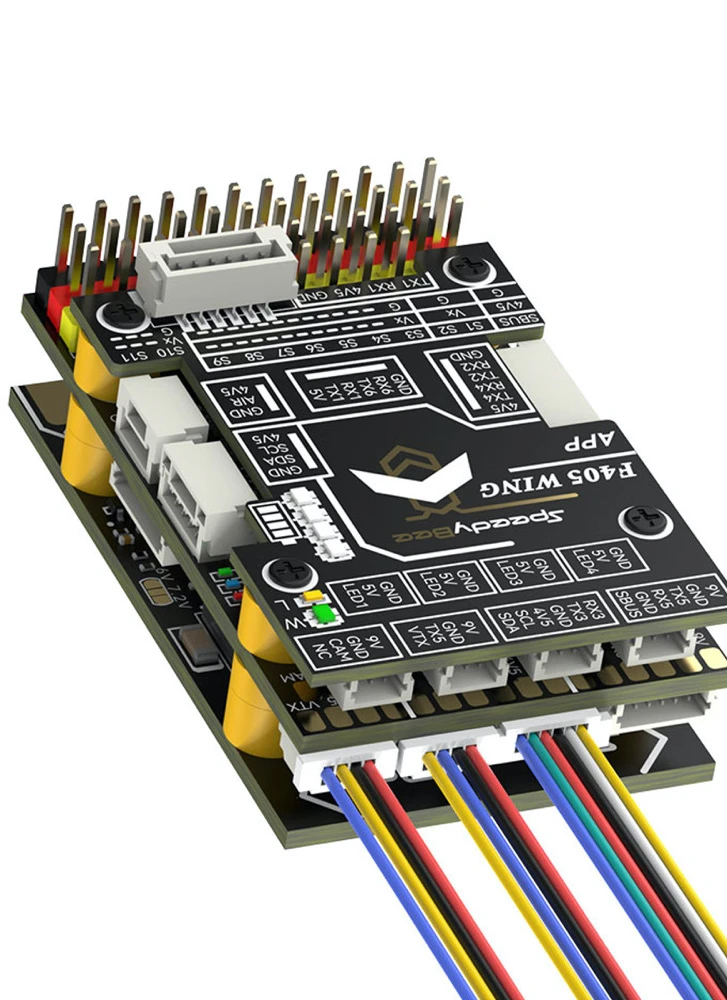

Plug and Play
This SpeedyBee FC is equipped with plugย for connecting a digital VTX, analog VTX, receiver, camera and GPS to make your build in no time.ย While SpeedyBee have designed this controller to minimise soldering, for those who prefer to, soldering is still possible via pads on the bottom of the board.

PWM outputs
Up to 11 PWM outputs are available for controlling the servos and motors.

LiPo checker
This FC is equipped with a built-in LiPo checker.ย It allows you to easily and quickly check the battery status.

VTOL Support
This FC supports Vertical Take Off and Landing (VTOL).ย Ardupilot’s QStabilize, QLoiter and QRTL modes allow vertical takeoff and landing.

Includes LED strips
Fly in style and light up the skies with the LED stripsย (not included).ย These are plug and play, so no soldering is required.

SD card slotย
The Blackbox Flash Memory of this SpeedyBee FC can be expanded as desired via the SD card slot.

Dimensions
The SpeedyBee F405 V3 FC has dimensions of 15 x 32 x 19 mm.ย The weight of the FC is 24.5 grams.

FC F405WING 01FC F405WING 02FC F405WING 03FC F405WING 04FC F405WING 05 0406FC F405WING 06FC F405WING 07FC F405WING 08FC F405WING 09FC F405WING 10FC F405WING 11FC F405WING 12FC F405WING 13FC F405WING 14FC F405WING 15

Specification

SpeedyBee F405 WING APP FC Stack:

  • Supports Wireless configuration
  • Supports RGB LED strip
  • Supports Battery level indicator
  • Compatible FC Firmware: INAV / Ardupilot
  • Power Input: 2-6S LiPo
  • Dimension: 52๏ผˆL๏ผ‰ x 32๏ผˆW๏ผ‰ x 19๏ผˆH๏ผ‰ mm
  • Weight: 35g๏ผˆwith USB extender๏ผ‰

SpeedyBee F405 WING FC board:

  • MCU: STM32F405,168MHz,1MB Flash
  • IMU(Gyro&Accelerometer): ICM-42688-P
  • Barometer: SPL006-001
  • OSD Chip: AT7456E
  • Blackbox: MicroSD Card Slot
  • 6x UARTโ€™s
  • 1x I2C for magnetometer, digital airspeed sensor
  • 4x ADC for VBAT, Current, RSSI, Analog AirSpeed Sensor
  • 12x PWM 12x (11 PWM output + 1 LED pad)

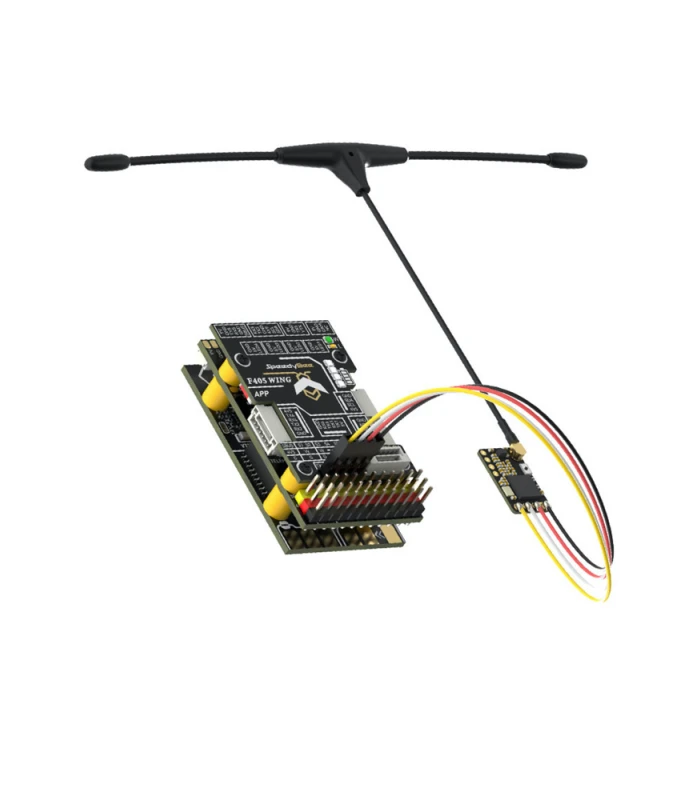

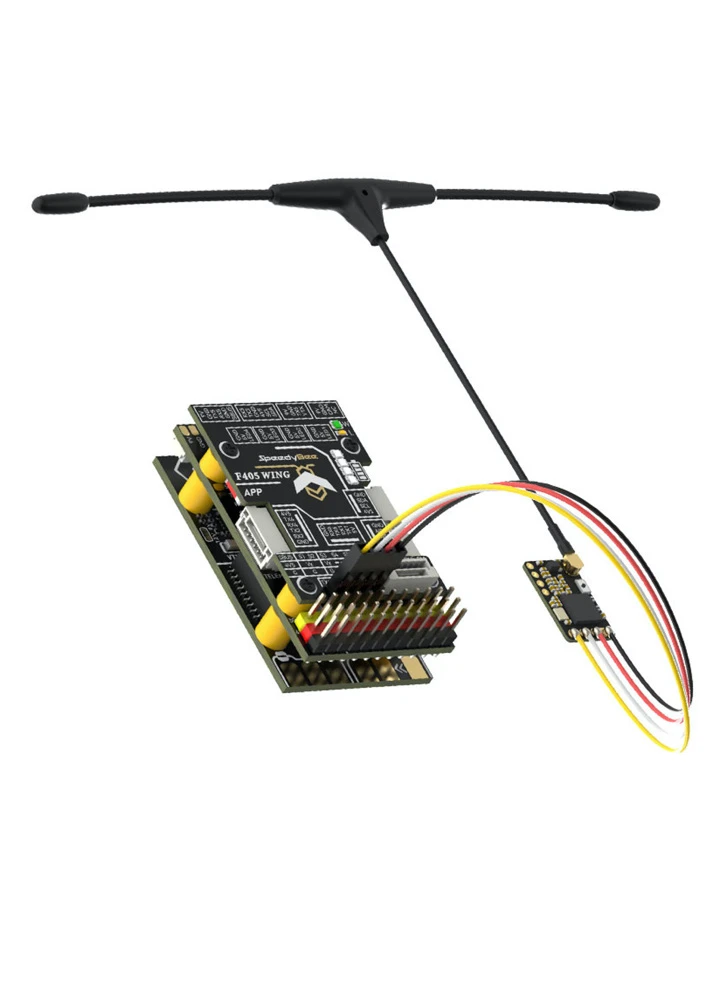

  • ExpressLRS (ELRS) and Crossfire (CRSF) Receivers Supported (UART1)
  • Built in inverter for SBUS input (UART2-RX pad)
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red) 1x RGB
  • RSSI Supported (RS pad)
  • Supported FC Firmware
    • INAV FC target:SpeedyBeeF405WING (default)
    • ArduPilot FC target: SpeedyBeeF405WING

SpeedyBee F405 WING PDB board:

  • Input voltage range 7~36V (2~6S LiPo)
  • Battery Voltage Sensor Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
  • Battery Current Sensor 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
  • TVS Protective diode Yes
  • FC BEC output Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
  • VTX BEC output Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
  • Servo BEC output Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.

SpeedyBee F405 WING Wireless board:

  • Wireless Configuration (long press BOOT button for 6 seconds to switch modes) BLE mode, connect to Speedybee APP
    Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
  • Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
  • LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) 4x WS2812 LED strip connectors, adjustable colors and flashing modes
  • Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
  • On-board battery level indicator 4x RGB indicator LED for battery level display by number of lights
