Detrum iStone-All V2 6-Axis Gyro RC Airplane Stabilizer DSM and S-Bus Compatible

£34.99 Inc. VAT

This iStone-All V2ย is our most popular airplane stabiliser.

In stock

Frequently Bought Together

Detrum 3-in-1 Programming Card for iStone Stabilizer & Tomcat ESCs

Programming Tool for Dynam airplane stabilisers.

0 People watching this product now!
Description

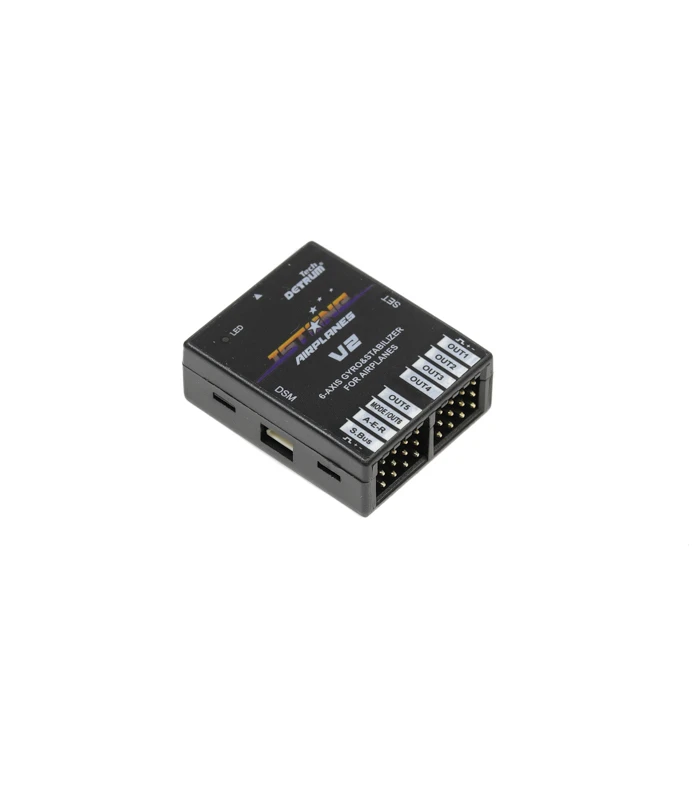

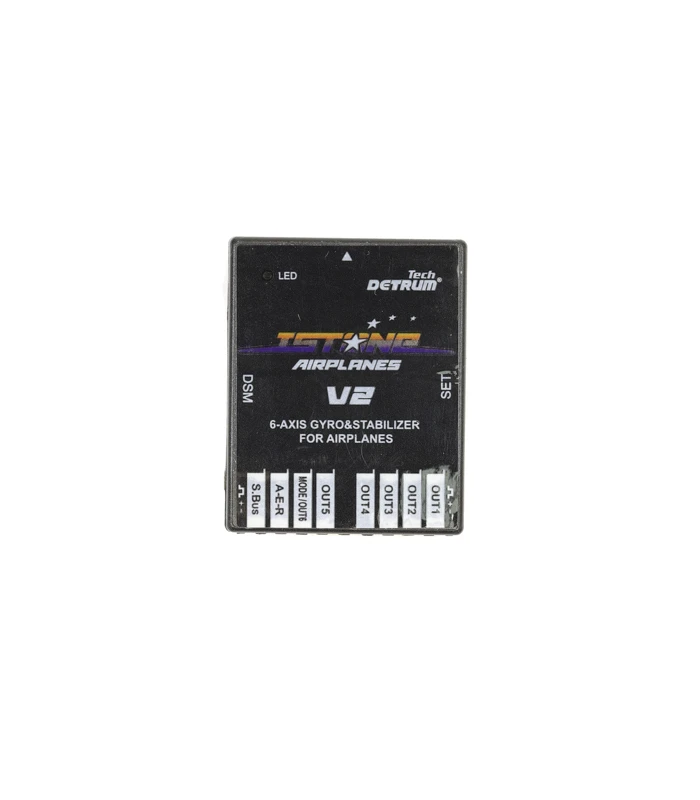

Transform the stability of your aircraft and fly like a Pro with the Detrum iStone-All V2 airplane stabilizer.ย The stabilizer utilises a 6-axis sensor chipset that includes a high performance Gyro and Accelerometer to help control your aircraft and provide true wing leveling capability to aid recovery from lost orientation.

In gusty conditions, the iStone-All V2 will perform thousands of calculations a second to make corrections much quicker than a human pilot can and allow you to fly like it’s a perfectly calm day! If you are a beginner pilot, the iStone-All V2 can help take the fear factor out of the first few flights. If you get into trouble, just let the sticks go and the iStone-All will attempt to quickly bring your model back to straight-and-level flight. If you are flying a plane that is not very stable due to imbalance, poor aerodynamics or high motor torque, the stabilizer can make things much easier. If you are a more experienced pilot, the iStone-All V2 can give you the confidence to practice more risky maneuvers knowing that you have the ability to rescue your aircraft into the Safe Mode at the flick of a switch. It also has a dedicated Aerobatic Mode, which makes your plane snappier for precision maneuvers and can lockย its attitude to simplify complex stunts.

Whether you fly petrol or electric models, wings, foamies, sailplanes, or just about any other fixed wing model, the Detrum iStone-All V2 is for you.ย It weighs only about 10grams, and has a tiny footprint, so it is perfect for most models, from small foamies and up. It supports normal wing, delta wing and V-tail model aircraft and can control up to 6 servos. It’s compatible with most radio control systems, including PWM, SBUS and DSM receivers. Finally, setup is made easy via the portable 3-1 programmer (purchased separately).

The Detrum iStone V2 offers four differentย flight modes:

Gyro Off Mode (OFF): Choose this mode to disable the gyros for all channels. The airplane will be completely under the control of yourย transmitter inputs, acting the same as it wouldย without theย ISTONE-All V2 installed.

Normal Mode (Normal): In this mode, the gyro will sense angular velocity on each axis and make momentary reactions to improve the stability of your airplane. The normal mode is suitable for all types of airplane and useful in windy conditions.

Auto-Recovery Mode (Safe): When operating in this mode, the airplane will maintain level flight automatically. You can switch into this mode in an emergency to restore your aircraft to straight-and-level flight.ย This mode is suitable for the new beginners or the FPV (First Person View) applications.

Aerobatic Mode (Aerobatic): This mode holds and maintains your aircraft at a given attitude set by the last command sent from yourย transmitter,ย helping you to accomplish stunts like prop hanging, inverted flight, knife edges, low speed harriers, etc!

Why use an airplane gyro? –ย Gyros (also called flight stabilizers) help keep your airplane stable during take-off, flight maneuvers, and landings which can be helpful during windy days or when learning how to fly RC planes. Once thought to be for beginners only, Gyros are now common in all classes of aircraft and are utilised by all levels of flyers. Gyros are great for learning, they let pilots practice advanced aerobatics, they give you peace of mind in less than ideal flight conditions, and they can often help you avoid costly crash damage.

IMPORTANT: The Detrumย 3-1 programmerย is required to setup theย iStone-All V2ย Airplane Stabilizer


Detrum 3 in 1 Program Card


FEATURES:

  • 32-bit high-performance ARM MCU, 6-axis sensor chipset
  • Original attitude stabilization algorithm and control algorithm
  • Supports normal wing, delta wing, and V-tail airplanes
  • Supports mode switch via MODE channel, can switch between different modes
  • Four flight modes: Gyro Off Mode, Normal Mode, Aerobatic Mode, and Auto-balance (Safe) Mode
  • Set the programmable items (aileron/roll/rudder gain, level offset, flight mode, etc.) via 3-in-1 program card (not included)
  • Supports DSM, S.BUS and PWM receivers
  • Compact size, supporting different mounting directions (face up, down, left, and right)

Auto-balance (Safe) Modeย to restore aircraft to straight-and-level flight


Detrum iStone V2 ADetrum iStone V2 BDetrum iStone V2 CDetrum iStone V2 DDetrum iStone V2 EDetrum iStone V2 F

Specification
  • Main Controller: 32-bit MCU
  • Sensor: 6-axis gyro
  • Gyro Scale Range: -2000dps ~ +2000dps
  • Accelerometer Scale Range: -4g ~ +4g
  • Input Signal: PWM, Futaba S.BUS, DSM
  • Input Channel: 6 (four for PWM, one for DSM, one for S.BUS)
  • Output Signal: PWM (71.4Hz)
  • Output Channel: up to 6
  • Input Voltage: 4.8V ~ 7.4V
  • Operating Temp: -20โ„ƒ ~ 70โ„ƒ

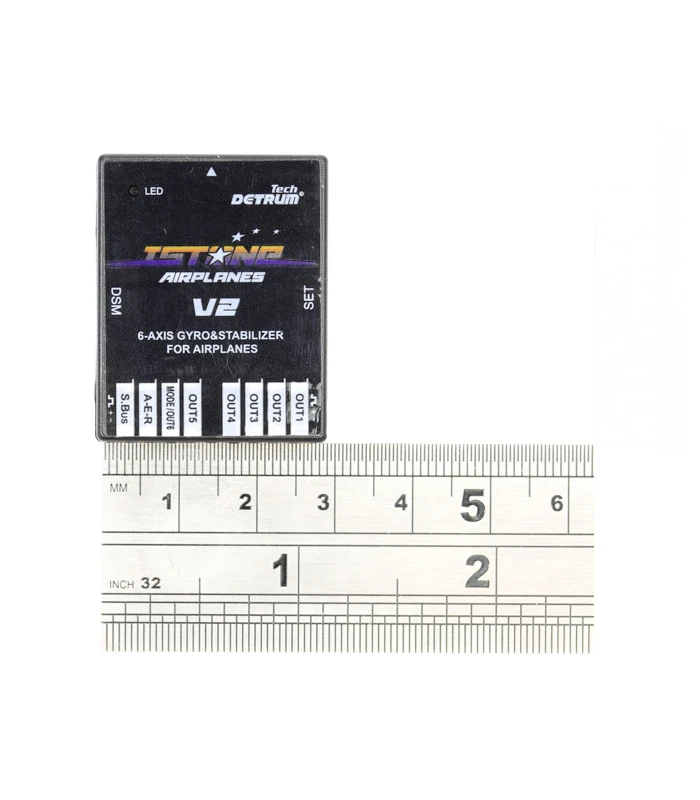

  • Size: 36.5mmx29.4mmx12.6mm
  • Weight: 10g

Included:

  • ISTONE-AII Gyro & Stabilizerย  ร—1
  • 3-signal wire ร—1
  • Anti-shock double sided tape ร—2
  • Single-signal wire ร—2
