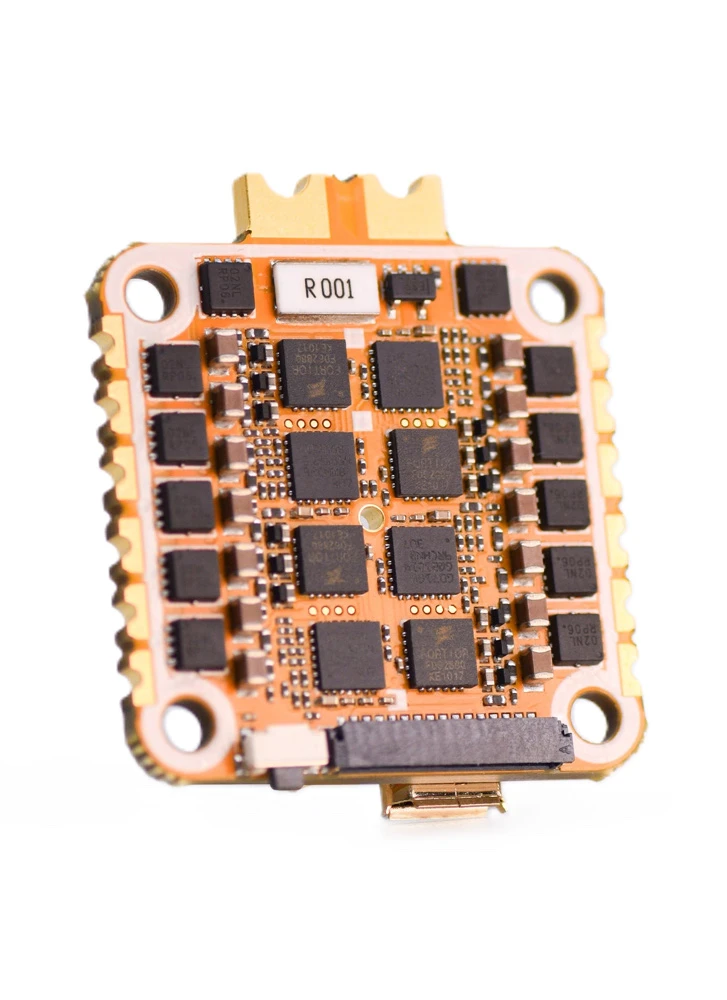

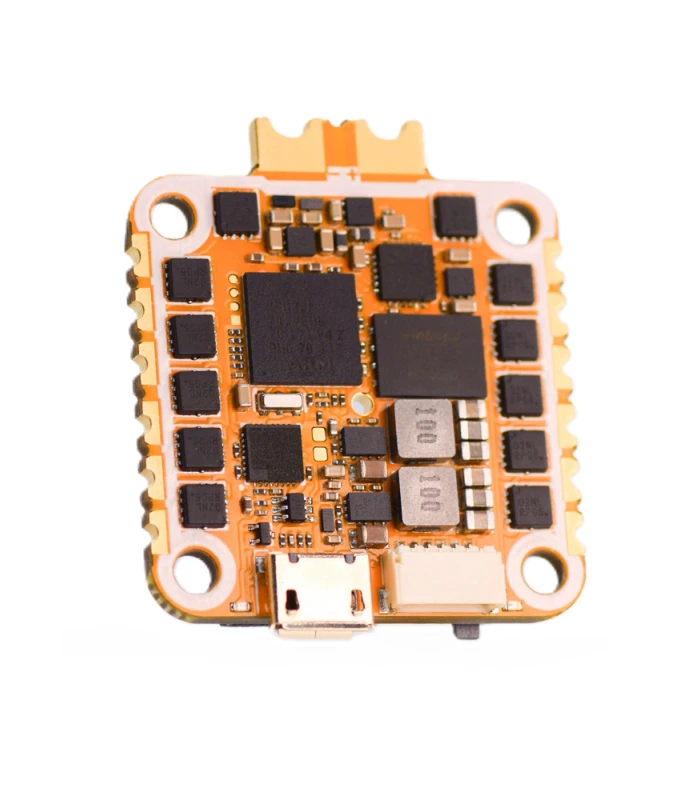

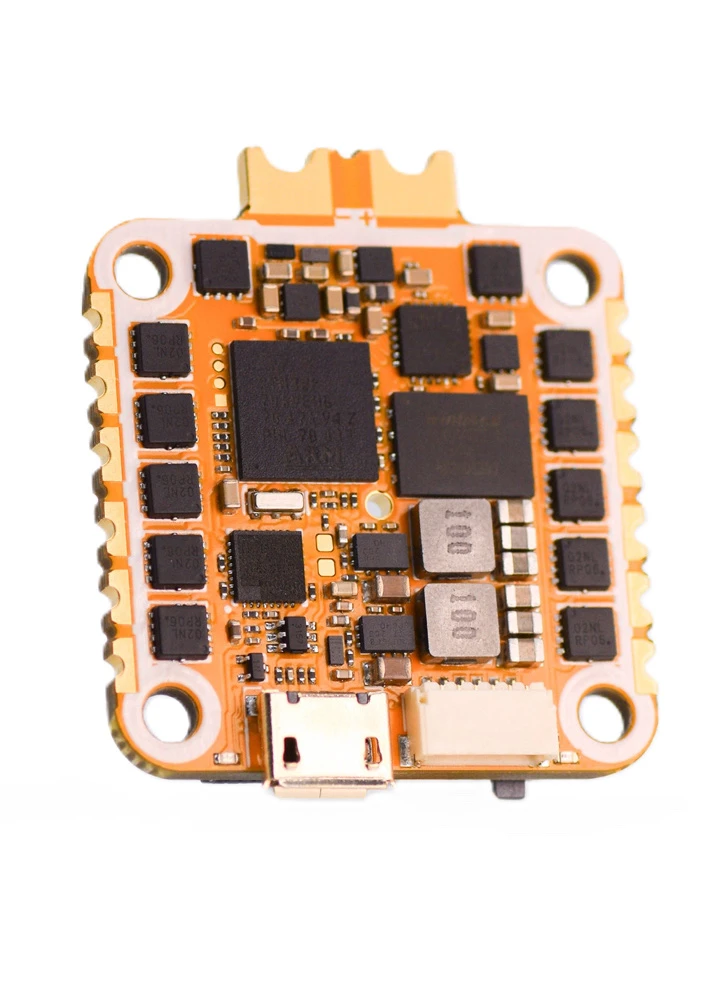

NewBeeDrone Infinity AIO 255 F7 Flight Controller MPU6000 45A 2-6S

Name: NewBeeDrone Infinity AIO 255 F7 Flight Controller MPU6000 45A 2-6S - Flying Tech
Brand: NewBeeDrone
SKU: FC-INFAIO255
Price: 129.99 GBP
Availability: InStock

£129.99 Inc. VAT

This high quality AIO FC + ESC is ideal 3-4 inch lightweight builds.

In stock

Compare

0 People watching this product now!

SKU: FC-INFAIO255 Categories: AIO (All in One), Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers, FC / ESC Flight Stacks Tags: AIO, FC, Flight Controller

Description

Introducing the NewBeeDrone InfinitvAl0 255 F7 Flight Controller MPU6000 45A 2-6S. This all-in-one controller features a 25.5×25.5 mounting base, ideal for 3-4 inch lightweight builds. With motor solder pads on both sides and a traditional layout, it’s perfect for seamless integration into your setup. Plus, its MPU6000 and 45A 2-6S capability ensures superior performance and reliability. Ideal for drone enthusiasts looking for top-notch quality and seamless integration.

Specification

MCU: STM32F745VEH6
Gyro: MPU6000
Blackbox:128MB
6-Pin DJI FPV Air Unit Connector
Micro USB Connector
UART1 – SBUS on DJI Connector (RX only)
UART2 – DJI Connector
UART3 – Free
UART5 – ESC
UART7 – Free
UART8 – Free
4x SMT32G071 AM32 ESC MCU
Continous Current 45A and 55A Burst ESC
3-6S Battery Input
12V 3A 30W Design for DJI FPV Air Unit
37x32mm with 25.5×25.5 Mounting Holes
Weight: 10.2gr. without grommets
Betaflight OSD support Analog build
I2C_SCL I2C_SDA Ready
Buzzer Ready
LED Ready
5V 3A Power supply for external LED or GPS module

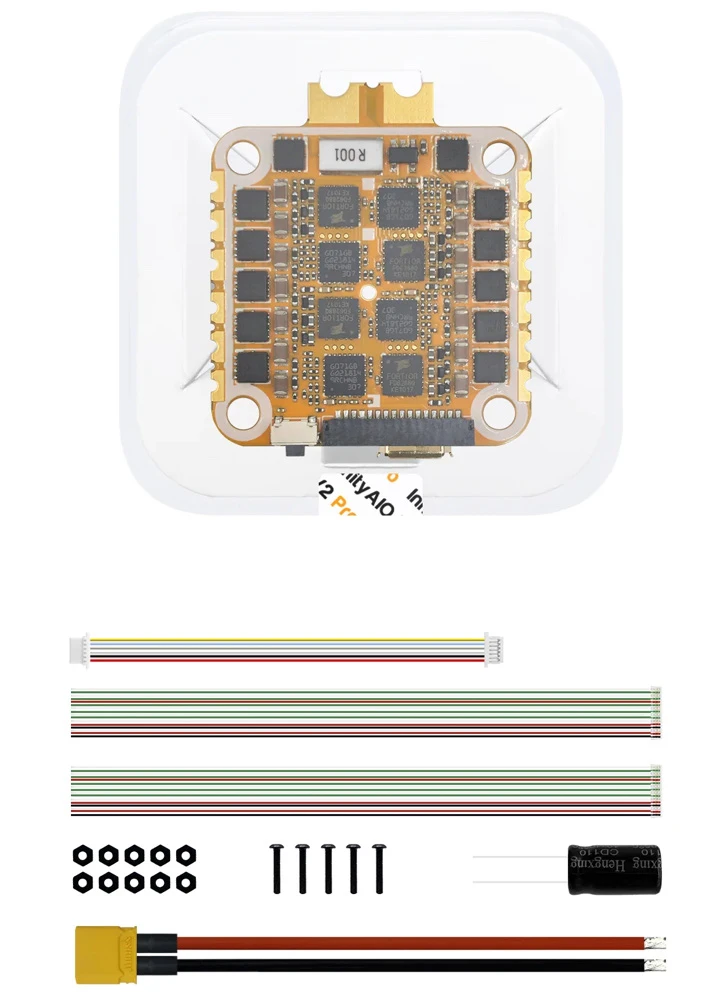

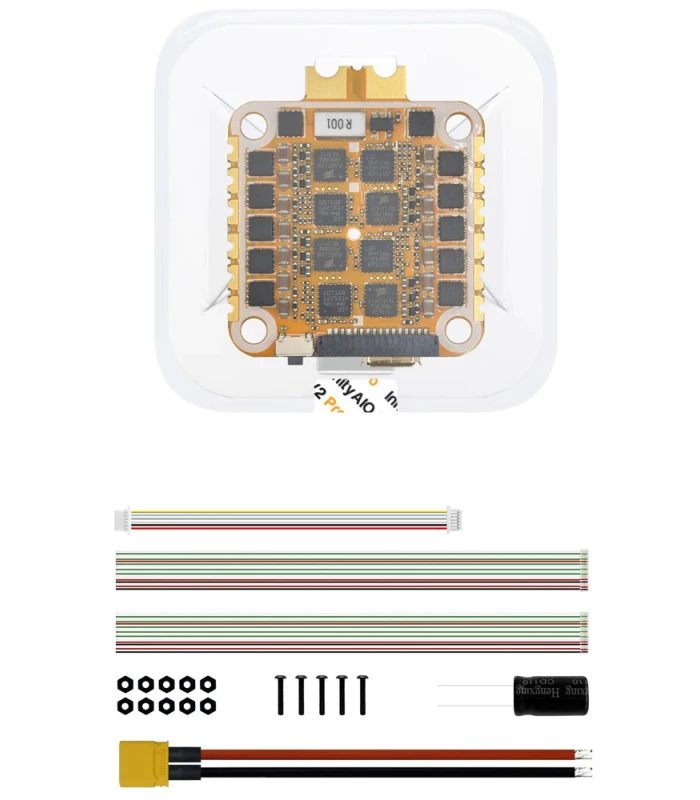

Included:

1x Infinity 255 AIO Flight Controller + ESC
1x DJI O3 Cable 100mm (Silicon wire)
2x 16Pin Cable 150mm (Teflon wire)
13x Nylon Lock Nut
5x Steel Screw M2x14
4x Grommets Short, 4x Grommets Long
1x 470uf 35v Electrolytic Capacitor
1x XT30 Cable
