JHEMCU GHF411AIO-ICM Flight Controller 2-6S 40A 4in1 ESC for Toothpick (25.5 x 25.5)

£49.90 Inc. VAT

This powerful AIO FC has onboard ESCs rated to 40A. It suits lightweight 3-5″ quads and Toothpick class drones.

In stock

0 People watching this product now!
Description

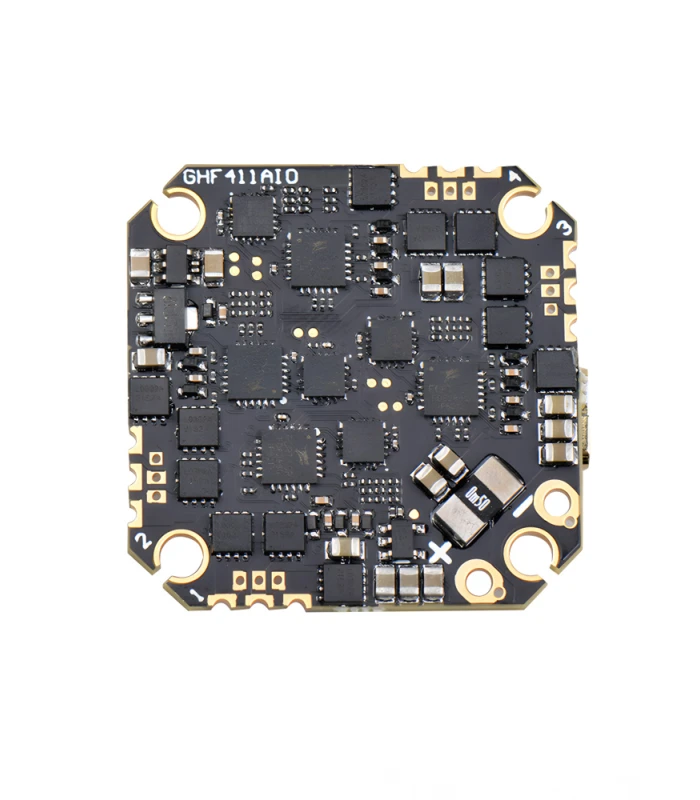

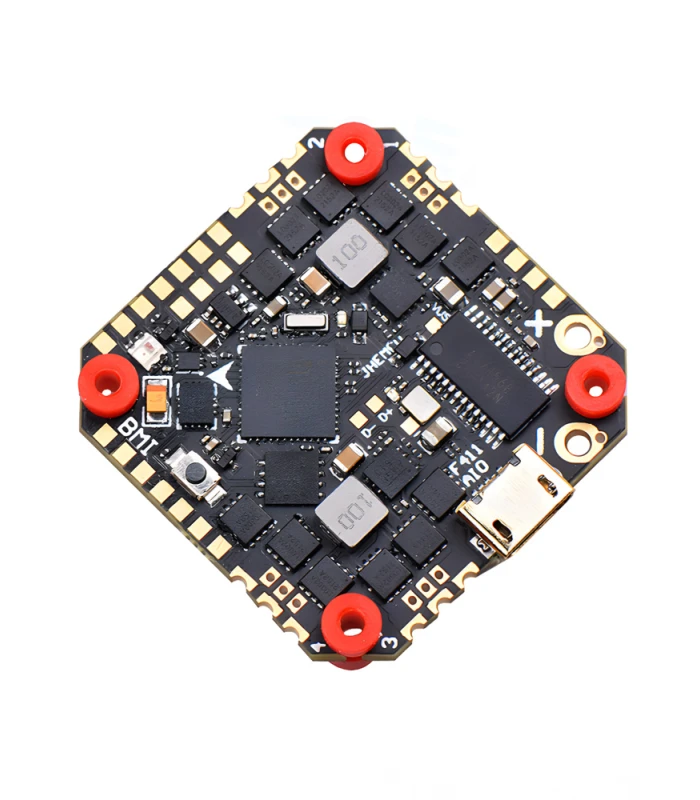

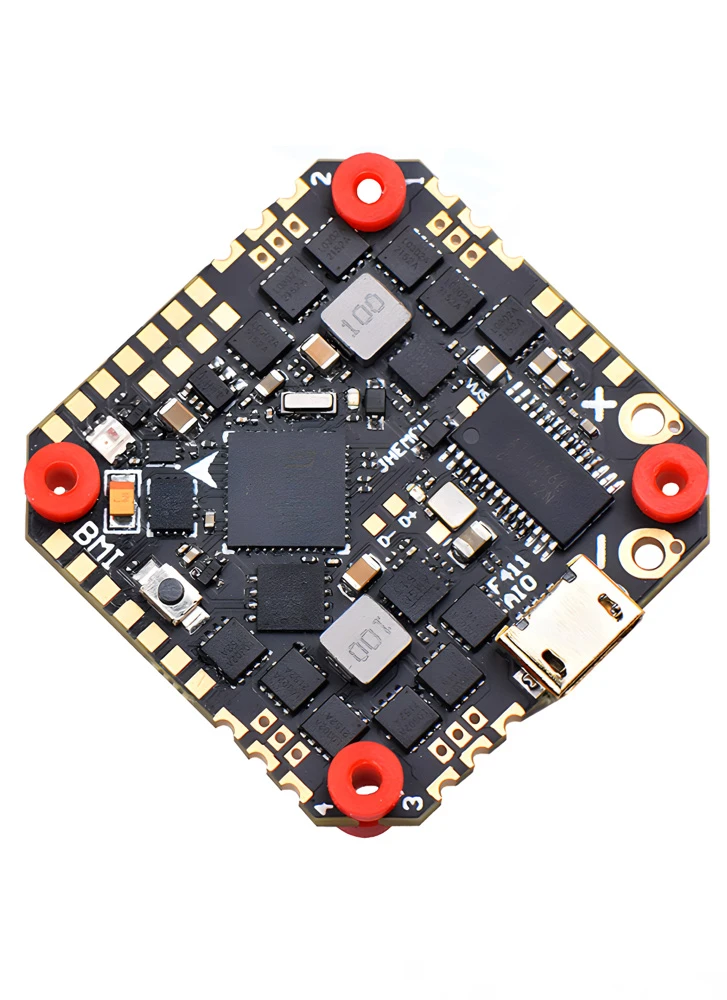

The JHEMCU GHF411AIO-ICM is a high-performance all-in-one (AIO) flight controller designed for 2-6S Toothpick builds and lightweight 3″-5″ configurations.

This model features the advanced ICM42688P gyro sensor, offering improved flight performance and responsiveness compared to its predecessor, the BMI270-equipped GHF411AIO-BMI.

The integrated 40A 4-in-1 ESC ensures smooth and efficient power delivery, making it suitable for demanding setups. It also includes a TVS (Transient Voltage Suppression) board, which protects the electronics from voltage spikes and surges, adding extra reliability during intense flights.

Additionally, the flight controller comes with an external USB-C extension, making it easier to access the USB port for firmware updates, configuration, or troubleshooting without needing to disassemble the drone.

Its compact design allows for easy installation in tight builds. The board suits the standard Whoop 25.5×25.5 hole mounting pattern.

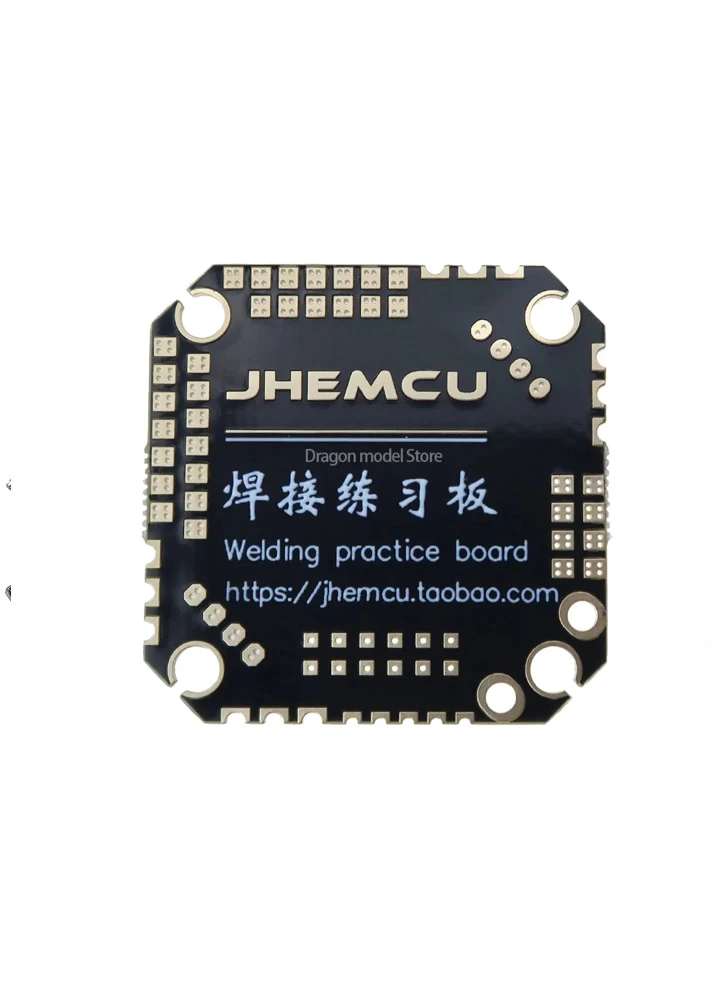

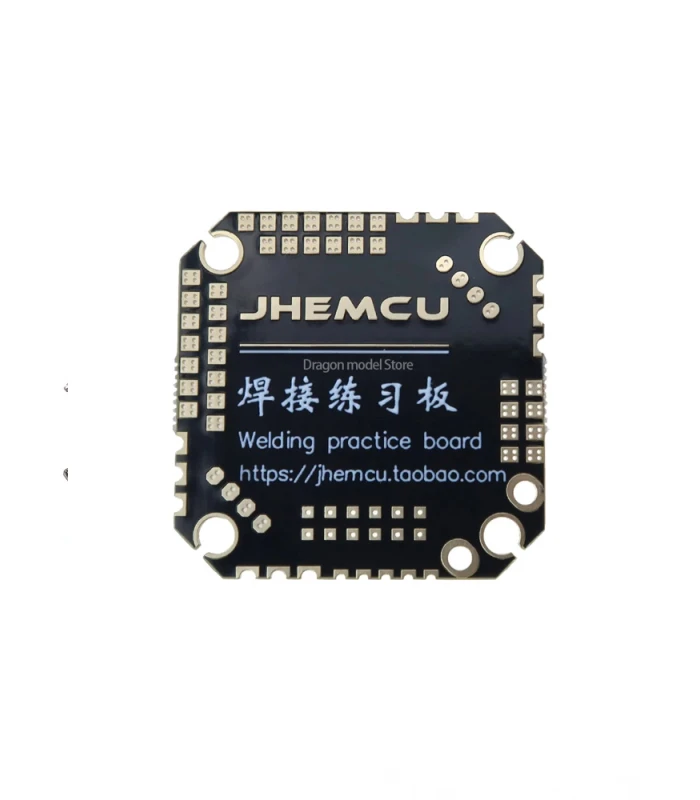

To help users improve their soldering skills, a practice soldering board is also included!



Specification
  • Model: GHF411AIO-ICM
  • MCU: STM32F411CEU/100MHZ
  • IMU: ICM42688P
  • OSD: AT7456E
  • Blackbox: 8MB
  • Input Voltage: 2-6S Lipo(7.4-26V)
  • 5V-BEC: 5V/2.5Aยฑ0.1V
  • 10V-BEC: 10V/2Aยฑ0.1V
  • Receiver: SBUS/IBUS/DSM2/DSMX/TBS/ELRS
  • UART: UART1,UART2
  • IIC:IIC1
  • Led_Strip: Yes
  • Buzzer: 5V
  • ESC Signal: PWM, Oneshort125, Multishot, Dshot150, Dshot300, Dshot600
  • USB: Micro USB / USB C Extensions
  • Current port: Yes
  • Voltage Sensor: Yes
  • DFU button: Yes
  • Firmware: betaflight_4.3.0 JHEF411.HEX
  • ESC Current: 40A*4
  • Firmware: G_H_30_REV16_7.HEX
  • Size(mm): 33 x 33
  • Mounting Hole(mm): 25.5x 25.5
  • Weight (g): 7.g

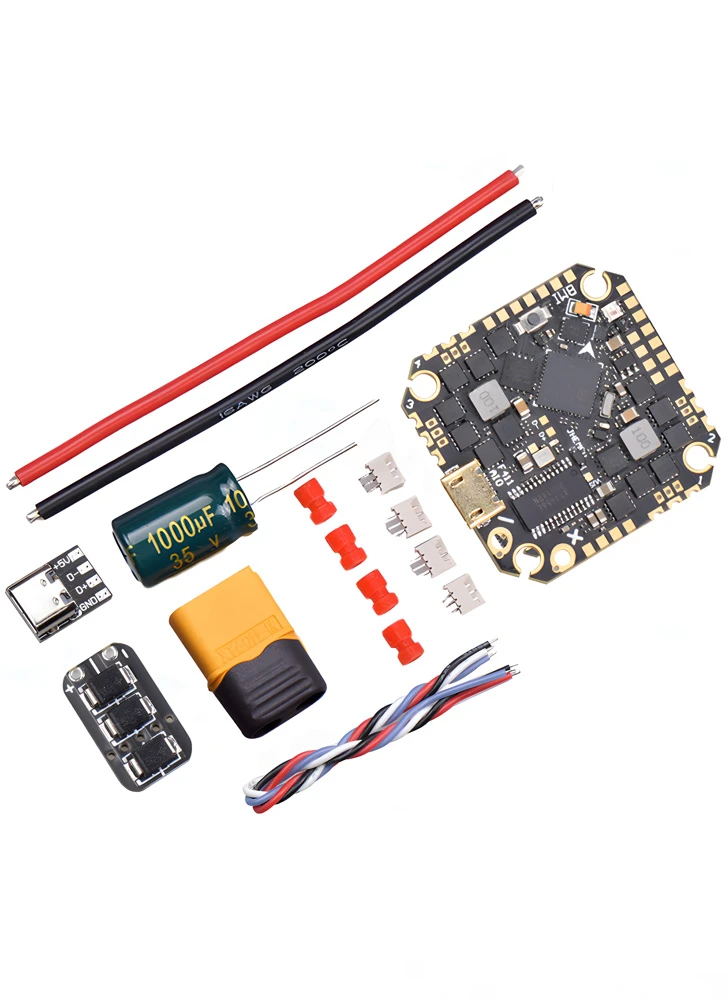

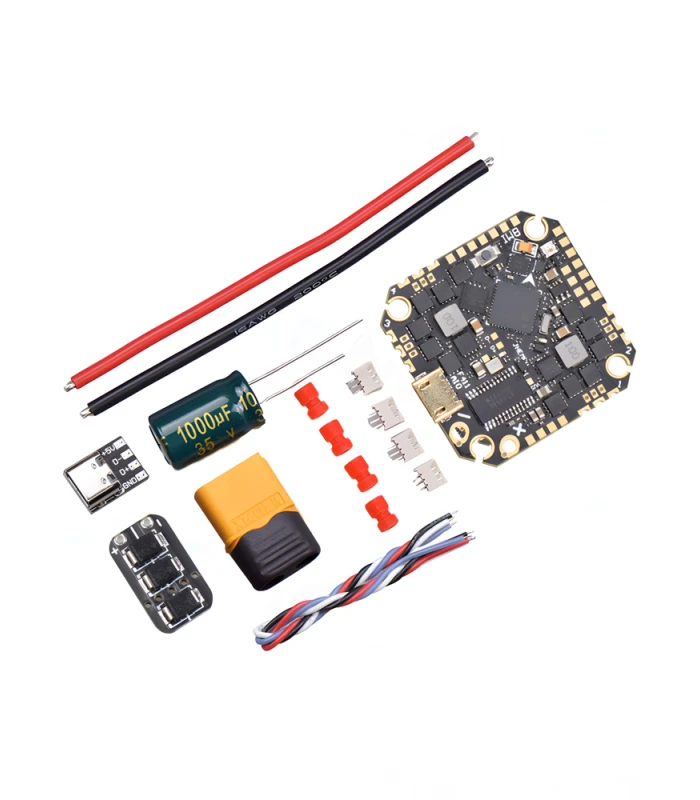

Included:

  • 1 x GHF411 AIO-ICM
  • 1 x Welding Pratice Board
  • 1 x 470ยตF/35V
  • 1 x 1000ยตF/35V
  • 1 x XT60-M with Housing
  • 4 x M2*6.5mm
  • 4 x Connectors (3P*1.25mm)
  • 1 x TVs
  • 1 x Extrenal USB C Port
  • 2 x 16AWG
