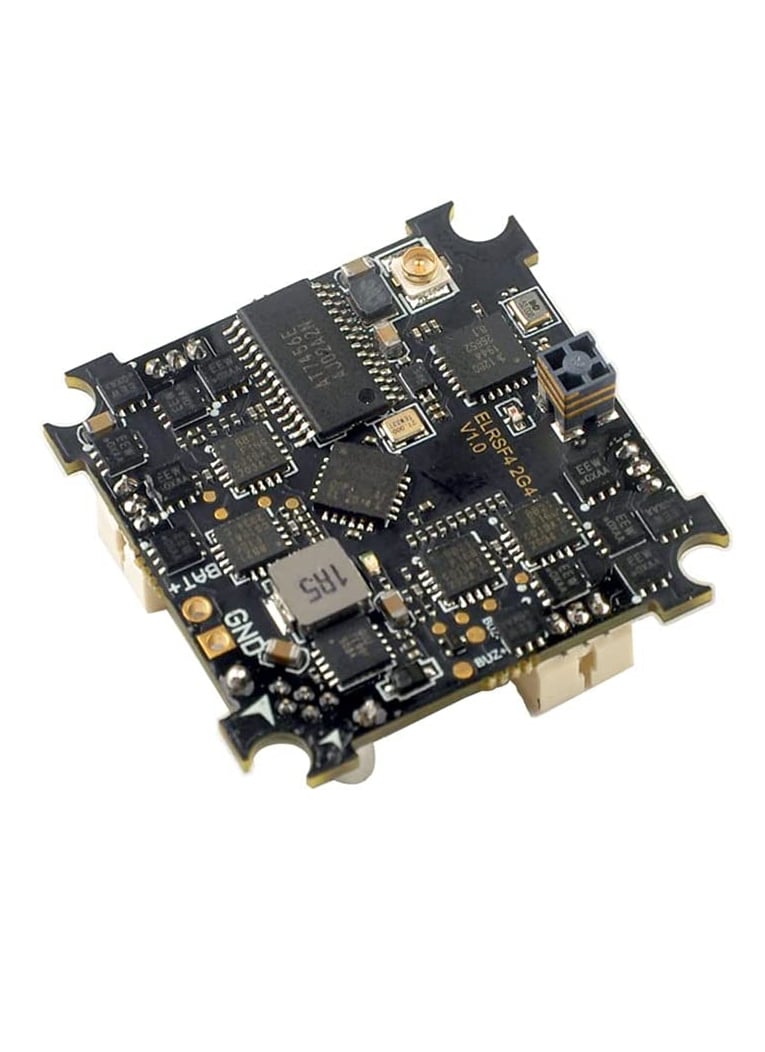

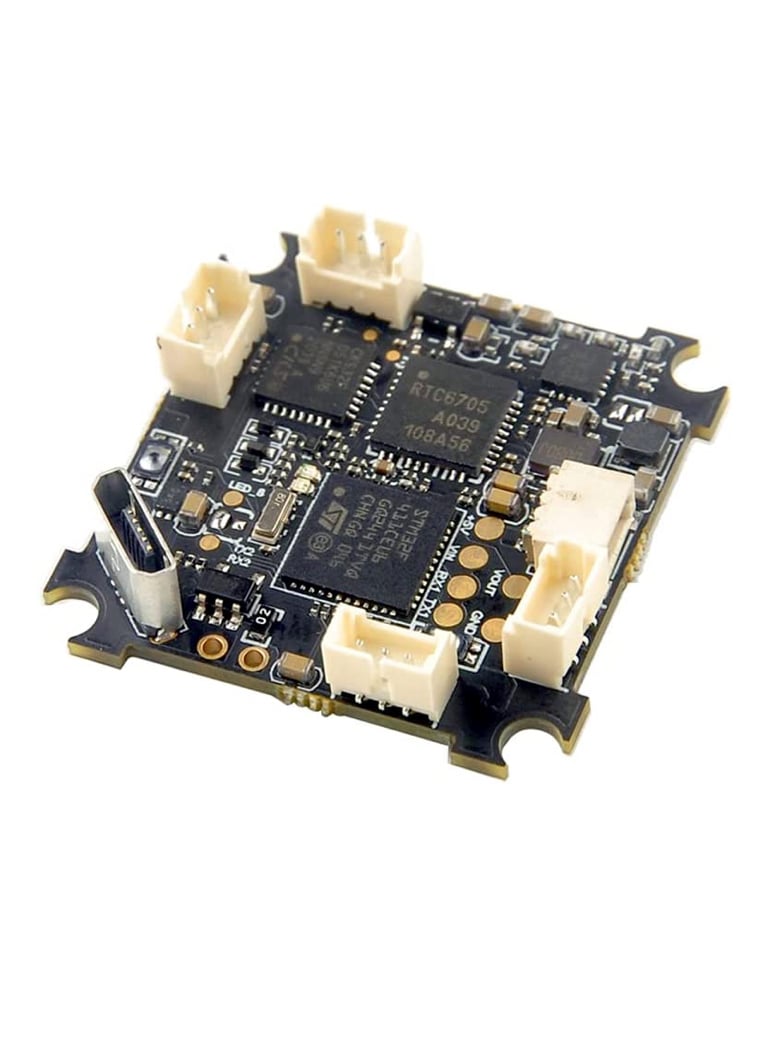

Happymodel ExpressLRS ELRS F4 5A 5-in-1 AIO FC w/ 2.4G Rx

Name: Happymodel ExpressLRS ELRS F4 5A 5-in-1 AIO FC w/ 2.4G Rx - Flying Tech
Brand: Happymodel
SKU: FC-HM-ELRSF45IN1
Price: 52.90 GBP
Availability: OutOfStock

£52.90 Inc. VAT

The first AIO 5-in-1 whoop flight controller with a built-in 2.4GHz ELRS receiver.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the Privacy policy

Compare

0 People watching this product now!

SKU: FC-HM-ELRSF45IN1 Categories: AIO (All in One), Radio Control, Long Range RC, ExpressLRS, ELRS Receivers, Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers Tags: AIO, ELRS, ExpressLRS, FC, Flight Controller, Whoop

Description

The Happymodel ExpressLRS F4 is the world’s first AIO 5-in-1 whoop flight controller with a built-in high-performance 2.4GHz ELRS receiver. This F4 flight controller has a built-in 5A ESC, 5.8GHz VTX, and OSD. It is made for 1S long-range and tiny whoops.

This FC integrates an SPI-controlled 2.4GHz ExpressLRS receiver, Dshot protocol 4-in-1 ESC, 5.8GHz 40ch video transmitter, and Betaflight OSD. Ultra-small size and ultra-stable remote control range can improve the range of the original SPI receiver. The 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate, and low latency, making this flight controller the one that all Race/Freestyle pilots need! Suitable for use in Tiny Whoop or Toothpick Freestyle, and can also be used in 1S ultra-lightweight Nano Long Range platform.

Features:

2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate, and low latency
Onboard SPI-controlled 2.4GHz ExpressLRS receiver
Ultra-small size and ultra-stable remote control range
Onboard Voltage and Amperage meters
World’s first 5-in1 AIO FC w/ Receiver
5.8GHz 40ch video transmitter
Dshot protocol 4-in-1 ESC
Onboard 4-in-1 ESC
F4 Flight Controller
Betaflight OSD

More Info HERE

Note: Do not allow the antenna plug to touch the Motor soldering pins, as it may burn the ESC.

Specification

ELRS 2.4GHZ RECEIVER

Bind with: Happymodel ES24TX, ES24TX Lite, ES24TX Slim, and DIY 2.4GHz ELRS TX module(need to flash the same version ELRS firmware)
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
Receiver protocol: SPI ExpressLRS
Telemetry output Power: <12dBm
Antenna: SMD antenna
RF Frequency: 2.4GHz

F4 FC

Built-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in SPI ExpressLRS 2.4GHz receiver
Sensor: MPU-6000(SPI connection)
Built-in Betaflight OSD(SPI Control)
Original whoop size compatible
Built-in 5.8G VTX

VTX

Frequency: 5.8GHz 5bands 40 channels (include Race band) Smart audio ready
Output power: 25mw~200mw switchable
Current consumption: 300mA(type)
Input voltage: 3.3V 5.5V
Frequency: 40CH

ESC

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Factory firmware: O_H_5_REV16_8.HEX
Support BLHeliSuite programmable
MCU upgraded to EFM8BB21
Default protocol: DSHOT600

VOLTAGE METERS

Amperage meter scale setting 1175
Voltage meter scale setting 110

Included:

1x Happymodel ExpressLRS F4 5A 5-in-1 AIO FC w/ Built-in 2.4GHz Rx
1x Connecting Wire
1x Dipole Antenna
4x Damping Balls
1x 3-Pin Wire
5x Screws
