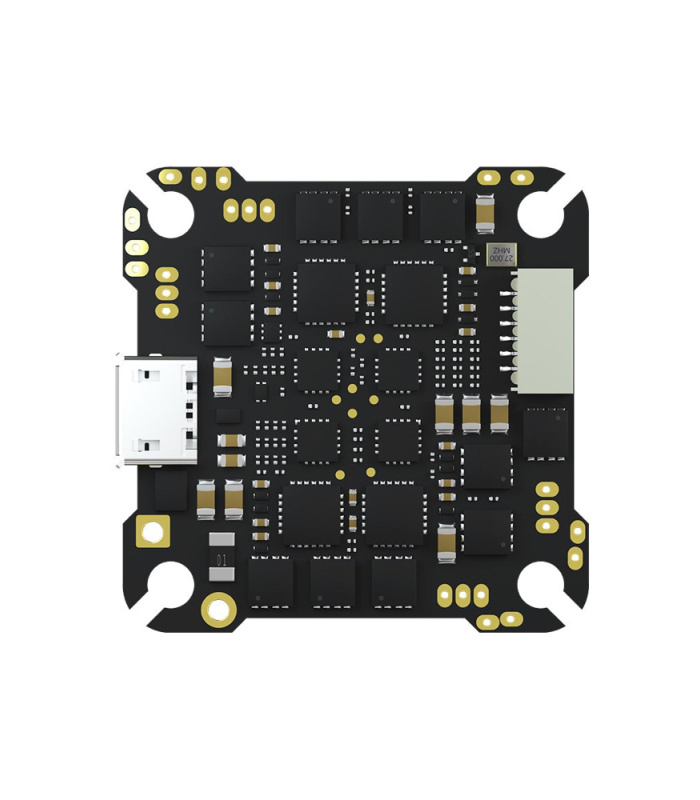

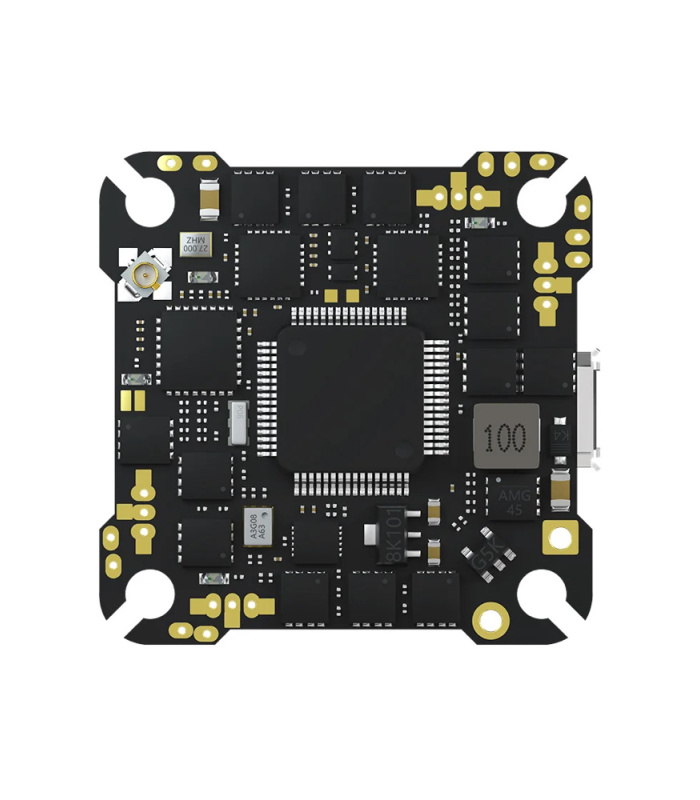

CaddxFPV Super F405 HD ELRS AIO Flight Controller for GoFilm20

Name: CaddxFPV Super F405 HD ELRS AIO Flight Controller for GoFilm20 - Flying Tech
Brand: CaddxFPV
SKU: FC-C0PJ-FK002
Price: 65.90 GBP
Availability: InStock

£65.90 Inc. VAT

All-in-one flight controller with built-in ELRS, 20A ESCs, and digital FPV compatibility—perfect for lightweight builds or the GoFilm 20 cinewhoop.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: FC-C0PJ-FK002 Categories: AIO (All in One), Electronics, ELRS Receivers, ExpressLRS, Flight Controllers / Autopilots, Long Range RC, Racing Drone Flight Controllers, Radio Control Tags: AIO, ELRS, ExpressLRS, FC, Flight Controller, Gofilm 20

Description

The Super F405 HD is an all-in-one (AIO) flight controller, simplifying builds by reducing wiring. In addition to functioning as a flight controller, it includes ESCs rated for 20A with 2-4S input and features a built-in 2.4GHz ELRS receiver connected via UART.

The controller is powered by an STM32F405 processor, paired with an ICM42688P gyro supporting refresh rates up to 8KHz, and a BMP280 barometer for height measurement. Additional features include 8MB of memory for blackbox logging and an integrated current sensor. It is digital FPV ready, with a 6-pin socket compatible with DJI FPV or Walksnail systems.

Designed for the GoFilm 20 cinewhoop, it serves as a perfect spare for that model or an excellent choice for custom 2-3 inch lightweight builds. The board suits the 25.5×25.5mm mounting pattern.

Specification

MCU: STM32F405RGT6
Number of UARTs: 3 (1x for ELRS)
Voltage Sensor Scale: 110
Current Sensor Scale: 470
GYRO and IMU: ICM42688
Barometer: BMP280
ExpressLRS receiver: ELRS V3.0
Blackbox memory: 8MB
ESC Current: 20A (x4)
ESC Firmeware: Bluejay firmware
Support Power: 2~4S Lipo/Lihv
Mounting hole Distance: 25.5×25.5mm (M2)
Firmware target: CADDXF4_AIO_ELRS

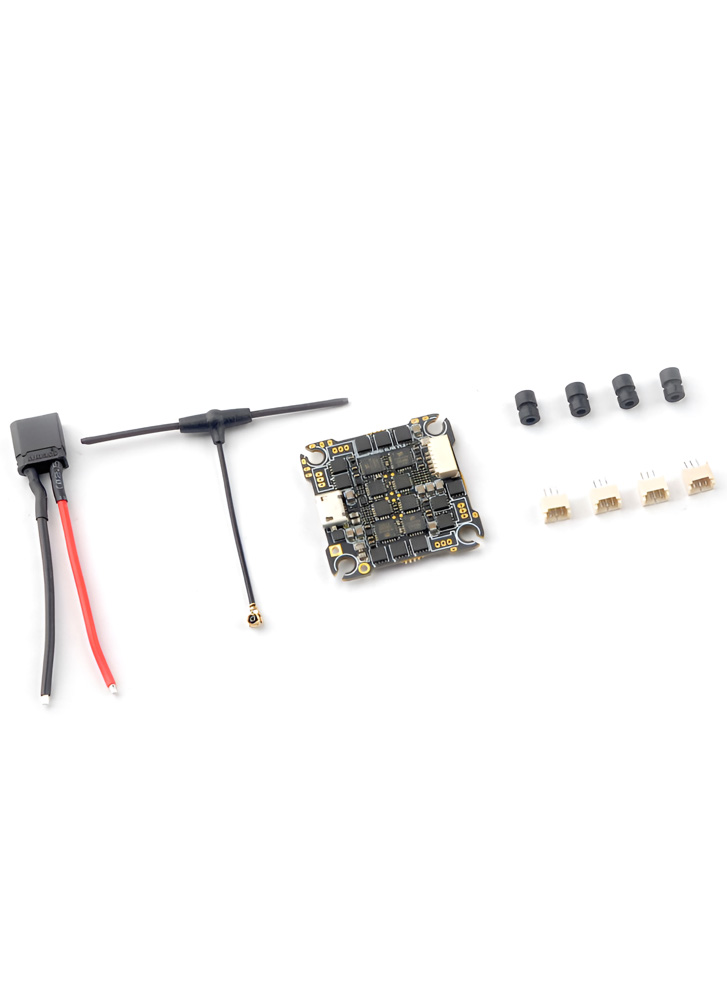

Included:

1x CaddxFPV Super F405 HD ELRS GoFilm20 AIO Flight Controller
1x ELRS T antenna
1x XT30 connector with cable
1x Accessories
