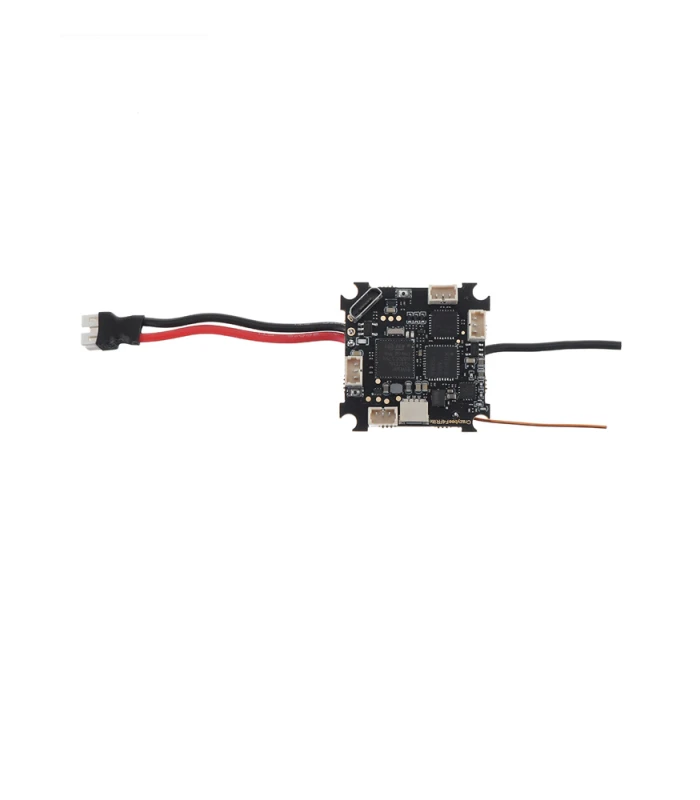

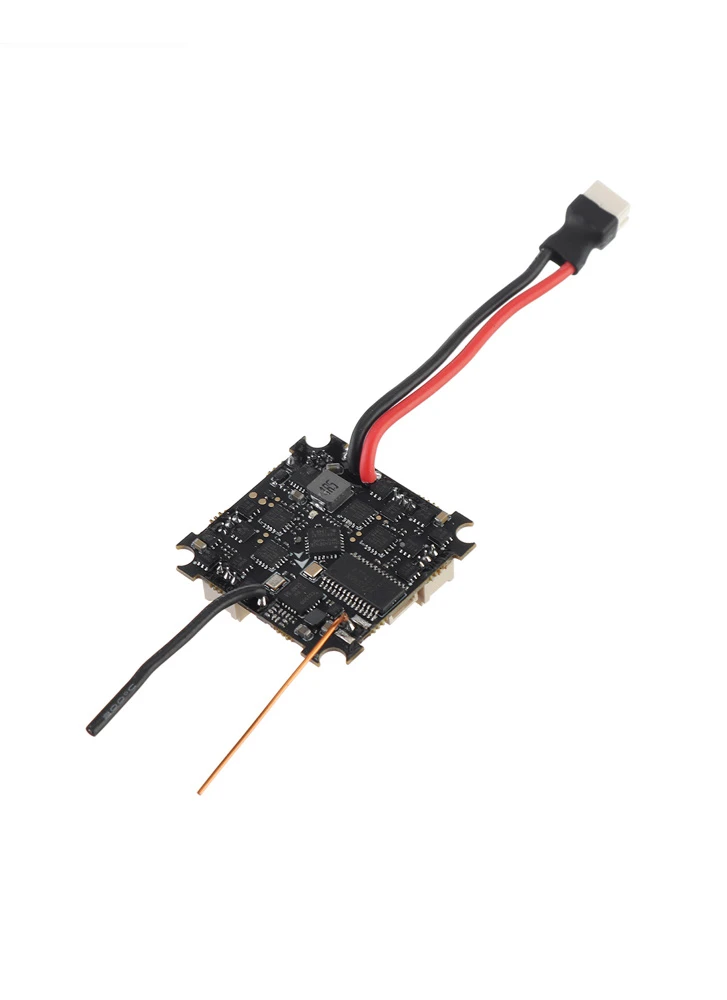

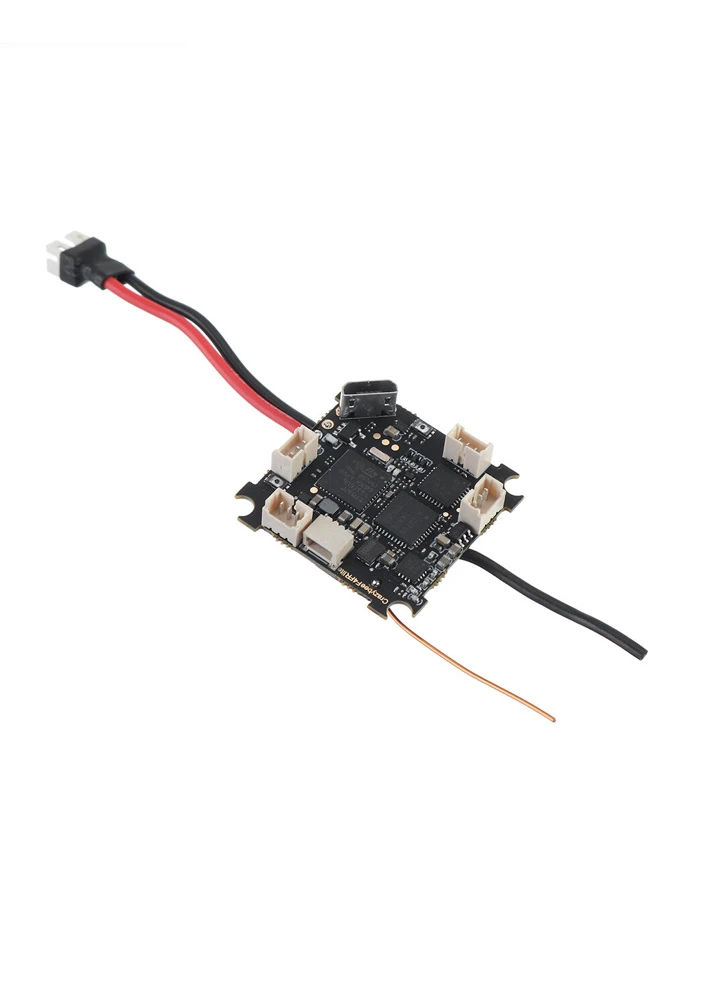

Happymodel Crazybee F4 Lite 1S Whoop Flight Controller

£42.00 Inc. VAT

A feature packed FC for whoops. Its the all-in-one type so everything, including ESCs and VTX are on a single board.

Protocol

Clear

Compare

0 People watching this product now!

SKU: N/A Categories: AIO (All in One), Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers, Spare Parts, HappyModel Tags: AIO, FC, Flight Controller, Mobula6, Whoop

Description

The Crazybee F4 lite is a feature packed micro flight controller used by the HappyModel Mobula6 drone, but it would suit any 1S Whoop build too. The FC is a 4-in-1, so everything is on a single board. It comes with an integrated SPI receiver (FrSky or FlySky), ESC, and 5.8GHz VTX (with support for BetaFlight OSD)! There’s no soldering required as it uses plug connections for connecting motors and a camera.

Options:

We sell the FC with a choice of a SPI receivers – FrSky or FlySky. The FrSky version is pre-set to D8, but can be set to FCC D8 or D16 / D16 EU LBT in BetaFlight.

Notes

R1(RX1) Pad is used for IBUS/DSM2/DSMX signal input
IR1(IRX1) Pad is used for SBUS signal input (Already inverted)
R1 and IR1 Cannot be used simultaneously

Specification

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5×28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8

SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard FlySky SPI

SPI BUS receiver FlySky
Compatible AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8GHz VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smart audio ready

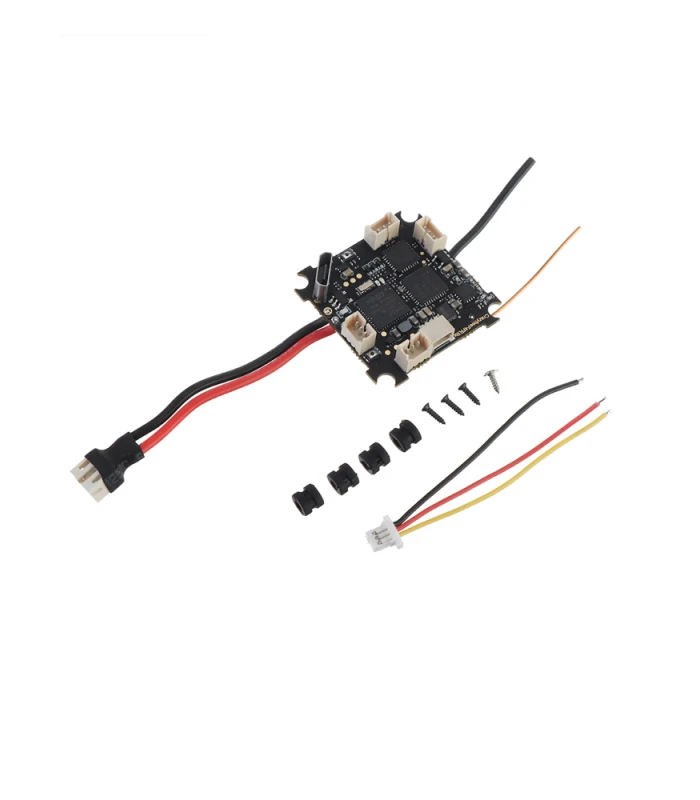

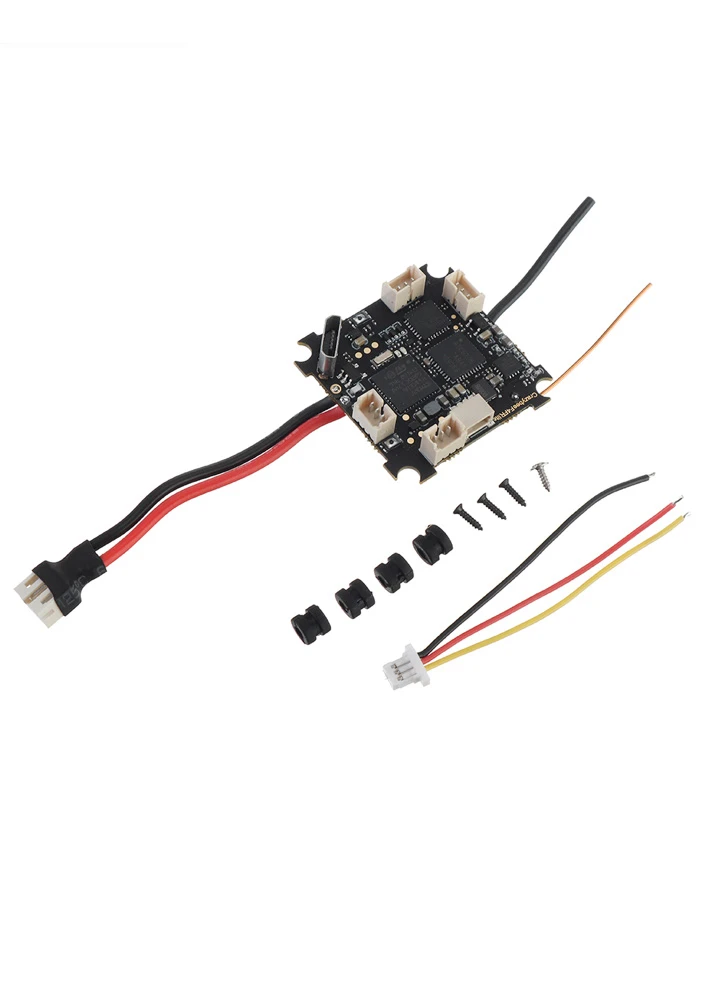

Included:

1 x Happymodel CrazyBee F4 Lite 1S Whoop Flight Controller
4x Anti-Vibration Ball
4x Screws
