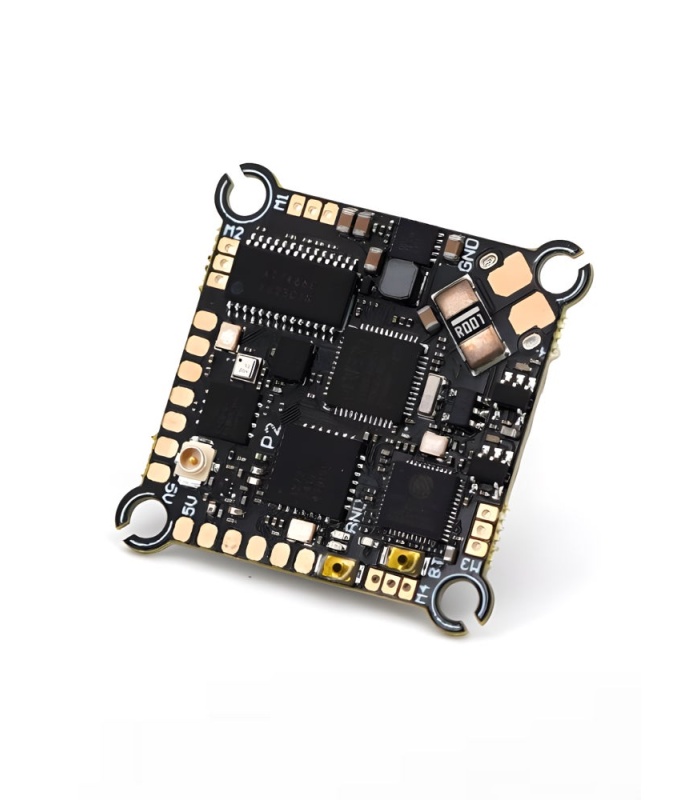

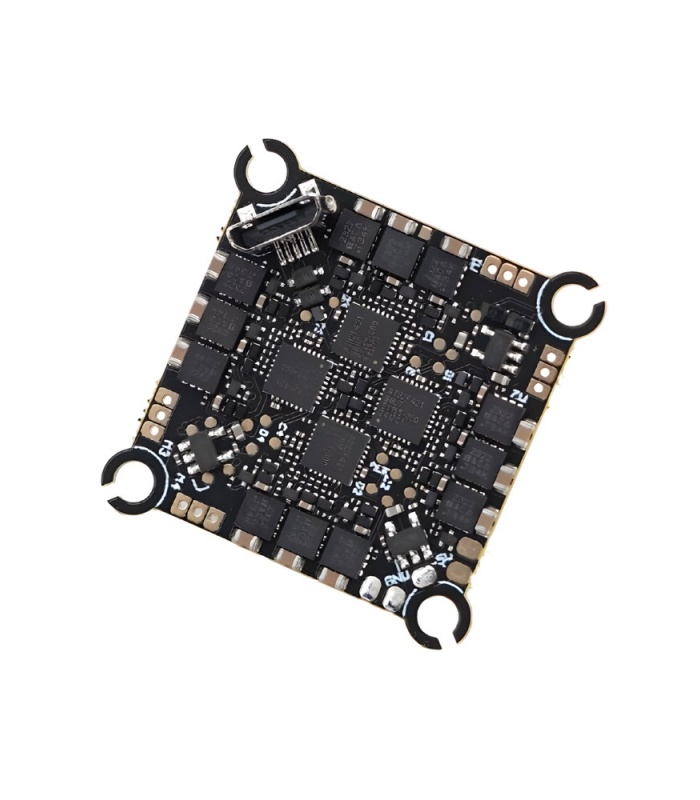

TBS Lucid AIO 1-2S Whoop Flight Controller with Onboard Crossfire RX

£59.90 Inc. VAT

The last whoop flight controller that you will ever need. It’s compatible with 1-2S and supports long range R/C protocols.

In stock

0 People watching this product now!
Description

The TBS Lucid AIO 1-2S was engineered to tick a lot of boxes for long range 1S/2S drone pilots as well as whoop pilots that don’t enjoy radio link limitations and need a bit of extra power from their stack.

Built to a 25×25 “Whoop” form factor, it is the only board that has the necessary grunt to run 2S boards without burning out, while also being capable of running 1S batteries down so low you will hear them beg for mercy.

The “AIO” stands for all in one, or a 3-in-1 specifically. Included is an Flight controller, 4in1 ESC and Crossfire Receiver. It also comes with an OSD chip for analog video.

It hopefully goes without saying that each TBS Lucid AIO is tested out of the factory and has been put through the wringer by some of the most seasoned whoop pilots before being offered for sale, which further distinguishes the board from some of the incumbents.

Default/recommended port assignment:

  • UART1: Spare
  • UART2: Smart Audio
  • UART3: DJI O3 Air Unit
  • UART5: CRSF Rx (included on the board)
Specification
  • MCU: AT32F435RMT7, 288MHz
  • Gyro: ICM-42688P
  • ESC: 4 x 7A (24A total max)
    with telemetry and current sensor
  • BEC: 5V 2A
  • OSD: AT7456E
  • Blackbox: 8M
  • UARTs: 3 (UART1/UART3/UART5)
  • Input: 1S-2S
  • Size: 28mm x 28mm (30mm x 30mm outer dimensions)
  • Mounting: 25mm*25mm
  • Weight: 4g

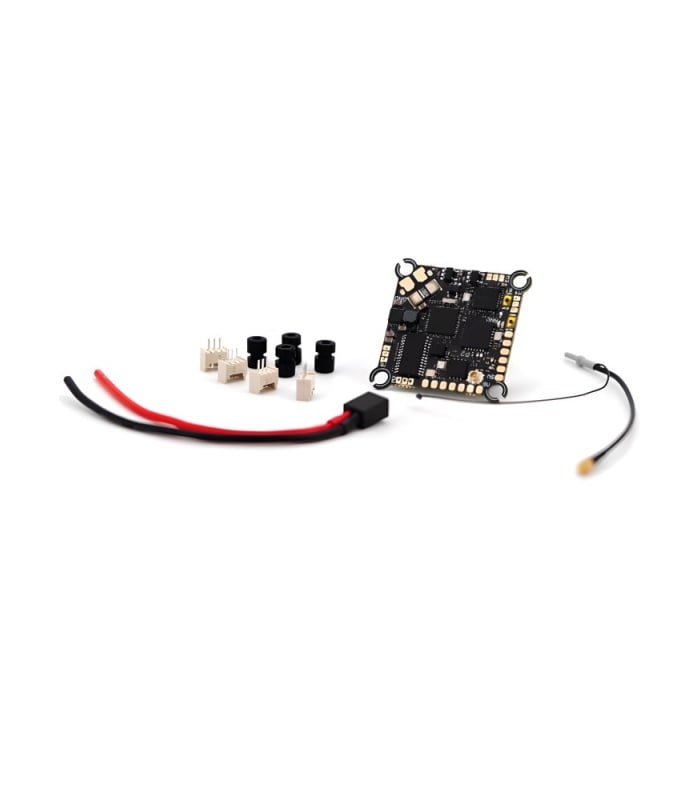

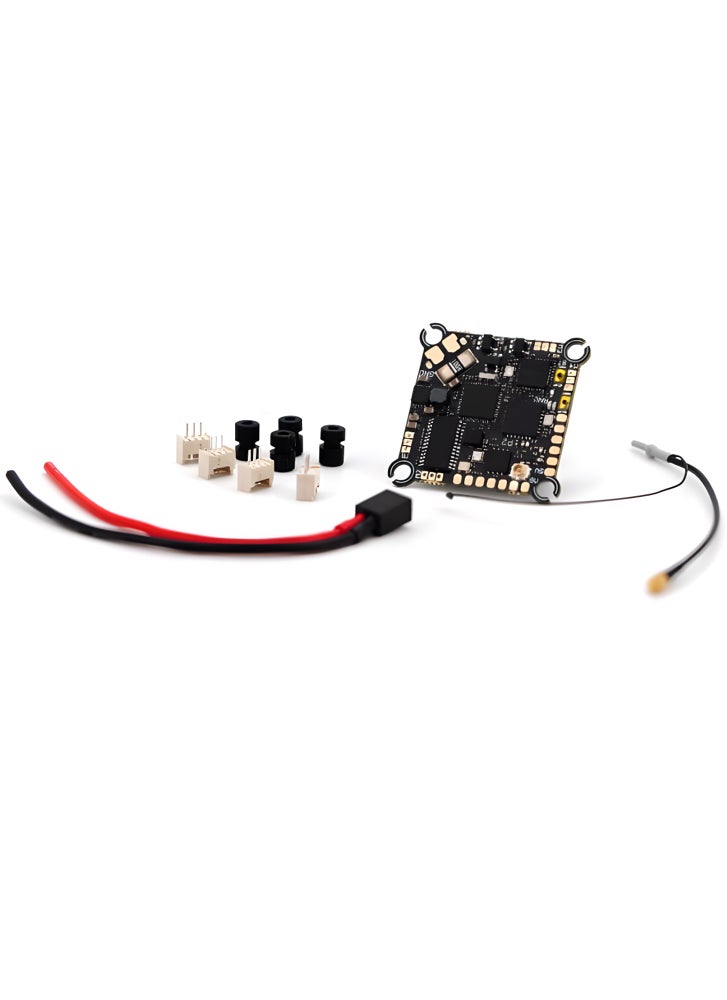

Included:

  • TBS Lucid AIO
  • TBS Crossfire “Micro RX” antenna
  • 4pcs rubber grommets
  • 4pcs motor sockets separate (for plug & play)
