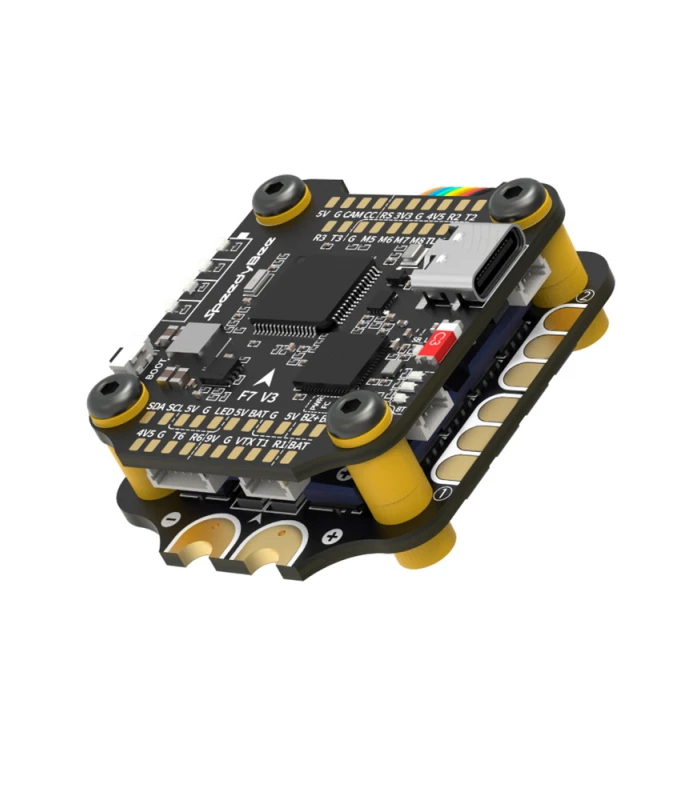

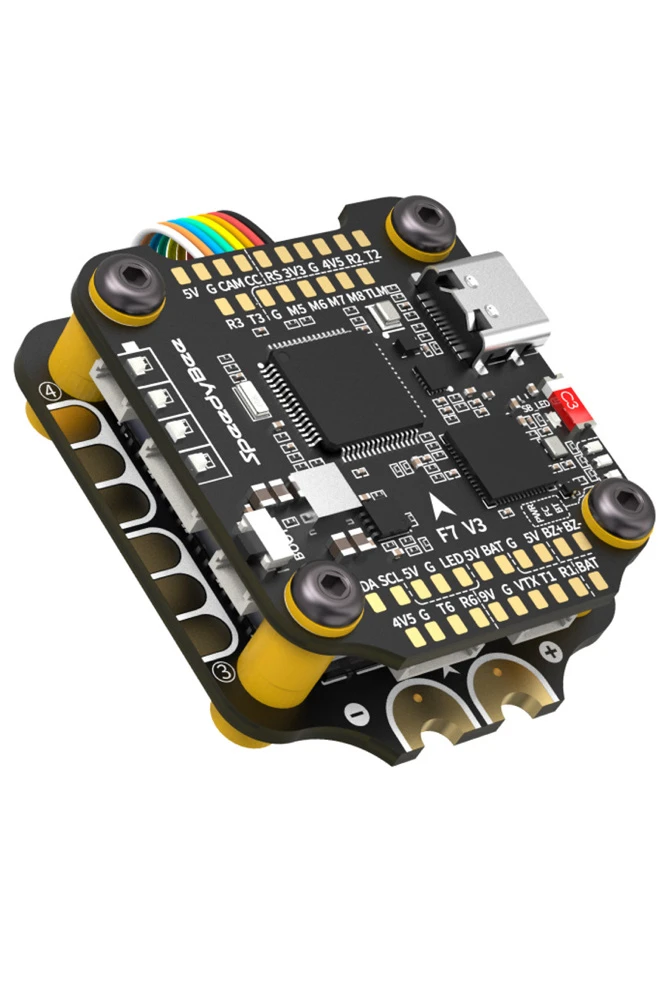

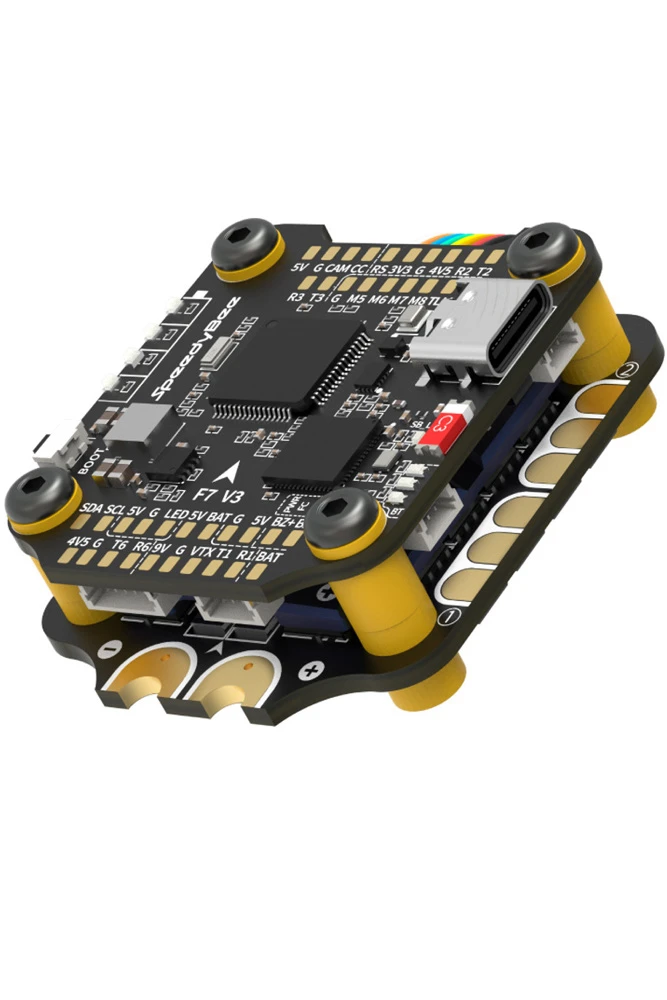

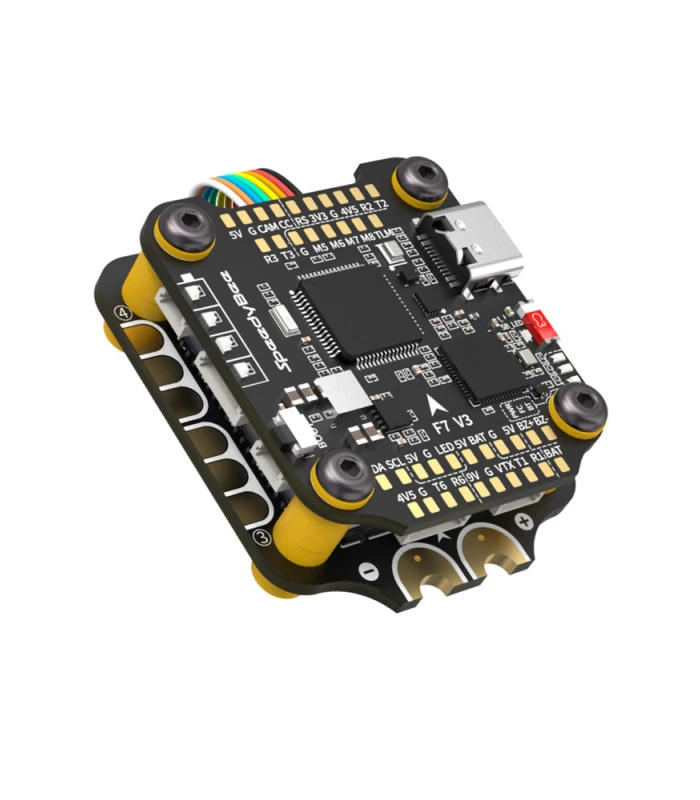

SpeedyBee F7 V3 Flight Controller / Stack with 50A ESC

£59.50 – £117.90 Inc. VAT

SpeedyBee’s flagship racing drone flight controller. Available in Stack format with a 4-in-1 50A ESC.

Version	Clear

0 People watching this product now!

Description

We sell the flight stack (FC+ESC) and the FC on its own – please select as required.

Here is SpeedyBee’s flagship flight controller / ESC. Surely the most modern and connected stack available on the market to date.

It consists of the F7 V3 flight controller and the BL32 50A 4in1 ESC. The FC benefits from a STM32F722 processor, the BMI270 gyroscope, BMP280 barometer, a 500Mb Blackbox, 2 BECs (3.3V, 4.5V, 5V and 9V BEC) and 5 UARTs. Regarding the ESC, it features a striking CNC machined heatsink and it can withstand a continuous current of 50A and 55A peak for 5 seconds. With an F4 MCU, you can set the PWM frequency up to 128KHz. It operates under the Dshot 300/600 protocol. The ESC is built with a TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. SpeedyBee also provide a humongous 1500uF low ESR capacitor, ensuring clean data from the gyro to the FC.

As with previous SpeedyBee FCs, it has integrated Bluetooth & WiFi. So you can carry out the complete configuration of your quad, including firmware flashing (Betaflight, INAV, or Emuflight), directly from your smartphone using the SpeedyBee App on the go. As it happens, this new V3 version of SpeedyBee’s flight controller comes with onboard 2-in-1 Bluetooth / WiFi which boasts 33% faster wireless data transfer than its predecessor. In addition, you will be able to retrieve Blackbox data directly in the field in just a few seconds. In short, no need for a computer! With 500MB of onboard memory, you never need to worry about running out of space on the Blackbox either. For purists, there is still a USB-C port present on the FC for setup via a computer.

As if that weren’t enough, this FC can support up to 8 motors for big X8 cinelifters. It also has solder-free plugs for your VTX, RX, camera, GPS, and 4x LED strips (available here), enabling more rapid builds. If you hate soldering, this is the flight controller for you! If you are old school and prefer soldered connections, no bother, just flip the PCB over and start working on it.

For DJI digital FPV pilots, there is a connector present for plug and play connection with the DJI Air Unit.

This FC even has an innovative built in LiPo voltage indicator, so you can fly anywhere worry-free, even if you forgot to bring your cell checker! 4 LEDs are integrated into the FC allowing you to know the percentage indication of current battery capacity.

This stack has 30.5×30.5mm mounting holes and can be powered via a 3 to 6S LiPo battery

Features:

1500uF Low ESR Capacitor with TVS Protective Diode
500MB Onboard Blackbox Flash memory
8 Motor output perfect for X8 Cinelifters
30.5 x 30.5mm Mounting Pattern
FC LiPo Monitoring System
SpeedyBee 50A 128K ESC
CNC Heatsink Shield
Built-in Barometer
128KHz PWM
4 LED Plugs
F722 FC
Buzzer

Specification

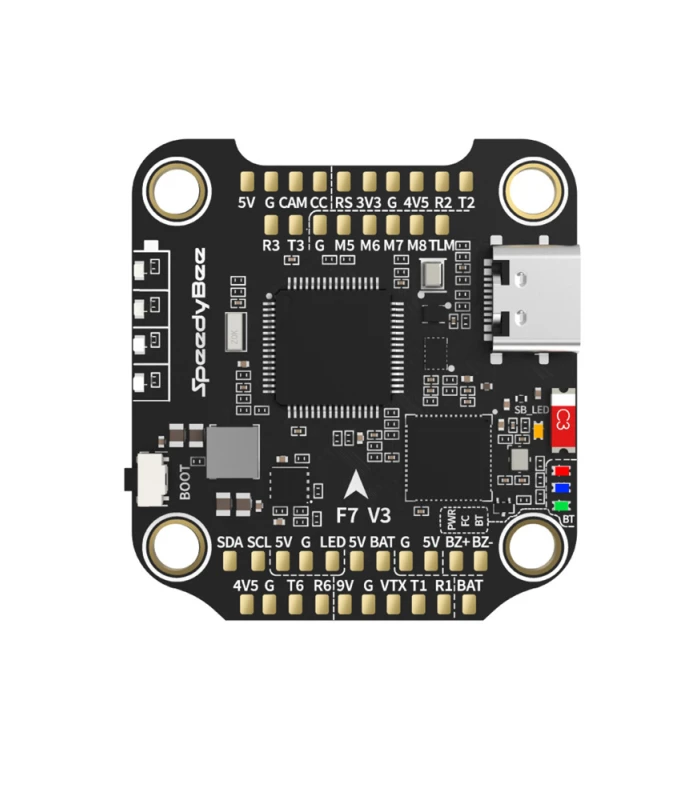

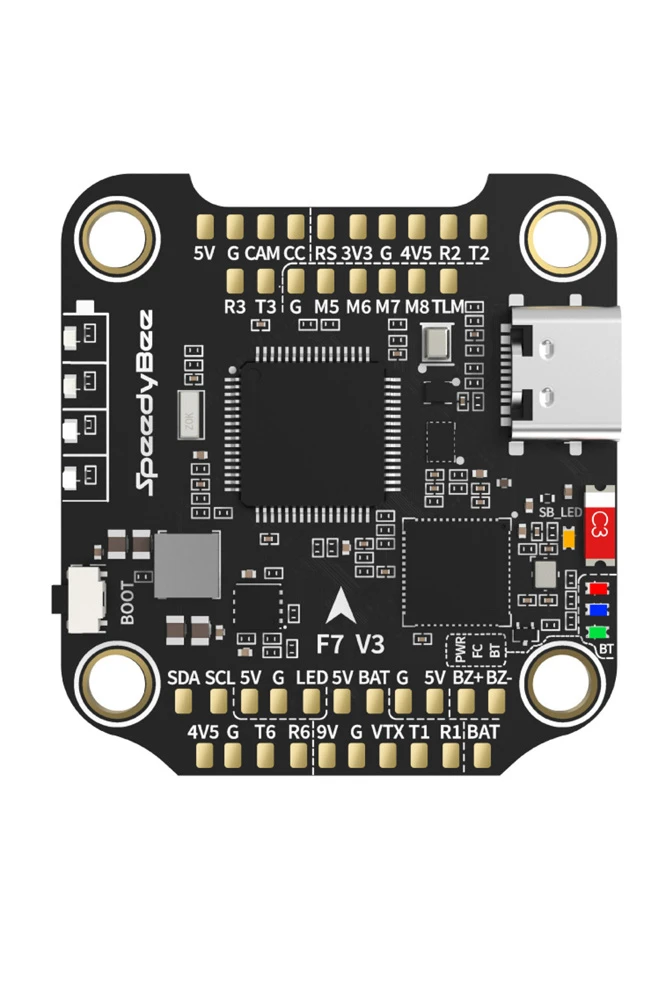

SPEEDYBEE F7 V3 FLIGHT CONTROLLER

Power Output:
1) 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on the front side, and 6 +5V output included in the connectors on the bottom side. The total current load is 2A.
2) 2 groups of 9V output, one +9V pad on the front side and the other included in a connector on the bottom side. The total current load is 4A.
3) Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
I2C: Supported. SDA & SCL pads on the front side. Used for magnetometer, sonar, etc.
Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
ESC signal M1 – M4 on the bottom side and M5-M8 on the front side.
LED: Used for WS2812 LED controlled by Betaflight firmware.
UART: 5 sets (UART1, UART2, UART3, UART4, UART6)
DJI Air Unit plug: A full DJI Air Unit JST slot onboard
BLE Support, used for Flight Controller configuration
Buzzer: BZ+ and BZ- pad used for 5V Buzzer
Mounting: 30.5×30.5mm, 4mm hole size
Dimensions: 41(L) x 38(W) x 8.1(H)mm
OSD: BetaFlight OSD w/ AT7456E chip
BlackBox: 500MB onboard data flash
BetaFlight Camera Control Pad: Yes
ESC Telemetry: UART UART4 RX
Power input: 3S – 6S Lipo
Target: SPEEDYBEEF7V3
SmartPort: Supported
Baro: BMP280 (I2C)
MCU: STM32F722
Boot button: Yes
RSSI input: Yes
IMU: BMI270
USB: Type-C
Weight: 9G

SPEEDYBEE 50A BLHELI_32 128K ESC

Current Sensor: Supported (Scale=490 Offset=0)
Mounting: 30.5×0.5mm, 4mm hole size
Dimension: 45.6(L)x40(W)x8.8mm(H)
Firmware: SpeedyBee BL32 50A
Weight: 19.2g with heat sink
Continuous Current: 50Ax4
Power input: 3S – 6S LiPo
Burst Current: 55A(5S)
Power output: VBAT

Included (stack version):

1x SpeedyBee F7 V3 Flight Controller
1 4-Pin SH1.0 to SH1.0 Analog VTX Cable 60mm – Yellow and Blue
1x 6-Pin SH1.0 GPS module Cable without connector – 100mm
1 4-Pin SH1.0 to 3+ 2-Pin JST1.25 FPV Camera Cable – 30mm
1 4-Pin SH1.0 to 3+ 2-Pin JST1.25 FPV Camera Cable – 60mm
1 4-Pin SH1.0 to 4-Pin JST1.25 FPV Camera Cable – 60mm
1x 6-Pin SH1.0 GPS module Cable with connector
1 4-Pin SH1.0 Radio Receiver Cable – 100mm
1x SH 1.0mm 8-Pin Cable -30mm
5x M3 8mm Silicone Grommets
1x DJI 6-Pin Cable – 80mm
1x SpeedyBee 50A BLHeli_32 128K ESC
1x 35V 1500uF Low ESR Capacitor
1x SH 1.0mm 8-Pin Cable -30mm
5x M3 8.1mm Silicone Grommets
5x M3 Silicone O-Ring
1x XT60 Power Cable

Downloads

Manual

Download File

Q&A

Questions and answers of the customers

Is it possible to buy this flight controller (speedybee f7 V3) and use a different ESC (speedybee 60A)?

0 votes

Q Is it possible to buy this flight controller (speedybee f7 V3) and use a different ESC (speedybee...... Read more answer now

A
Yes you can, and the ESC wouldn't have to be SpeedyBee - just make sure the wire ordering between the FC and the ESC you select matches up. This FC to ESC cable may be of interest and the product description has an image to show what I mean about wire ordering.

You can buy the F7 V3 FC on its own here.

SpeedyBee 60A ESC here.
