SpeedyBee F405 Mini BLS Flight Controller / Stack with 35A V2 ESC

£32.50£59.99 Inc. VAT

A 20×20 F4 flight controller, suited to 2-4inch quads. Available in Stack format with aย 4-in-1 35A ESC.

0 People watching this product now!
Description

Our stock of the stack is now with the V2 edition of the 35A ESC.

This is the mini version of SpeedyBee’s F405 30×30 stack, suited to 2-4inch quads and even lightweight 5-inch drones.

The spec of the FC is impressive for a mini FC at such a great price point. It uses an upgraded F405 flight controller chip with better performance than the F411. It also hasย the ICM42688P gyro, 4 available UART ports,ย onboard 8MB blackbox, built-in barometer, OSD andย a 4-level battery voltage display. There’sย two independent voltage regulators,ย aย 9V 3A output and 5V 2A output,ย making it compatible with all DJI FPV air units and standard analog FPV.

Like their other flight controllers, this one works with their fantastic SpeedyBee App (iOS App Store/Google Play); allowing you to configure your newly built quad, fine-tune PID’s, and configure other parameters without a laptop, simply via your phone or tablet wirelessly.

The FC is compatible with a standard 20×20 mounting pattern, using either M2 or M3 fixings, which are included. Considering the board’s small size, the size of the solder pads is generous and well labelled making for an easier installation.

In stack form,ย it comes with a 4-in-1 ESC thatย provides four synchronized outputs with a continuous current of 35A andย burst of 45A. Itย suits 3-6S input. It also has a current sensor allowing you to monitor power use.ย Equipped with a TVS transient suppression diode onboard, it can better absorb the voltage spike when you plug in the battery, or during crashes that block your props. The ESC operatesย BLHeli_S firmware and via the SpeedyBee Appย you can even configure the ESC settings wirelessly as well.

Features:

  • Compatible with both M2 and M3 installation hole sizes.
  • Supports all FPV systems: DJI, HDZero, Walksnail and analog
  • Battery level indication LEDs.
  • 4x UARTโ€™s.
  • Onboard 5V 2A and 9V 3A BEC.
  • Onboard barometer for real-time altitude sensing
  • 8MB memory for Blackbox.
  • Onboard Tantalum capacitors for noise filtration.
  • Onboard TVS diode on the ESC for added protection.
  • USB-C connector.
  • SDA/SCL connection available.
  • Power your GPS with a USB cable – no battery needed. No extra heat, no worries.
  • 35A BLHeli_S 4in1 ESC, compatible with Bluejay.

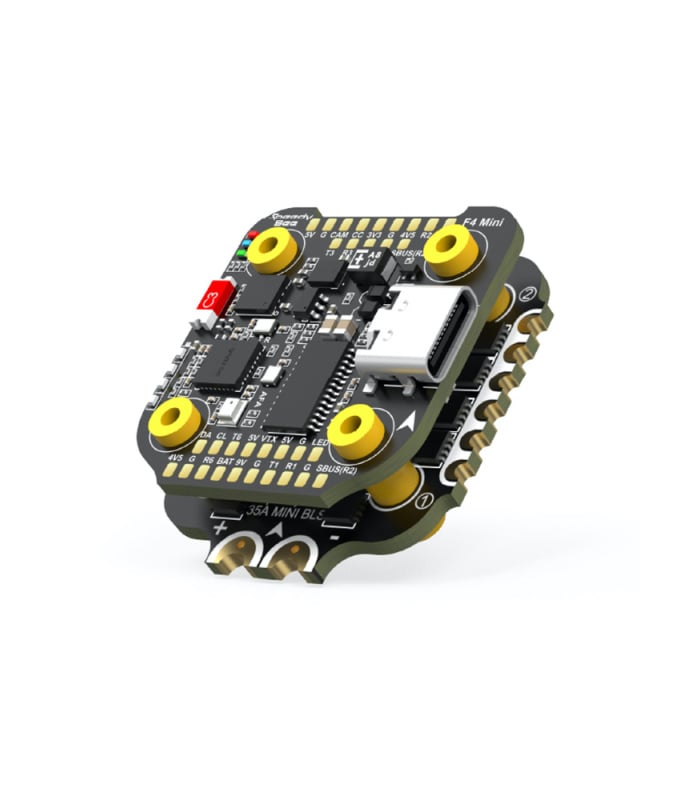

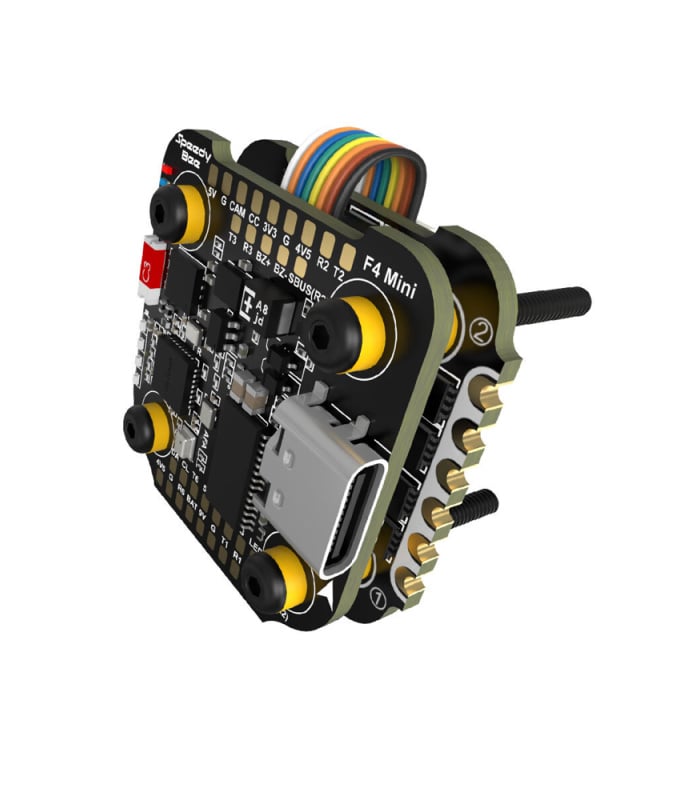

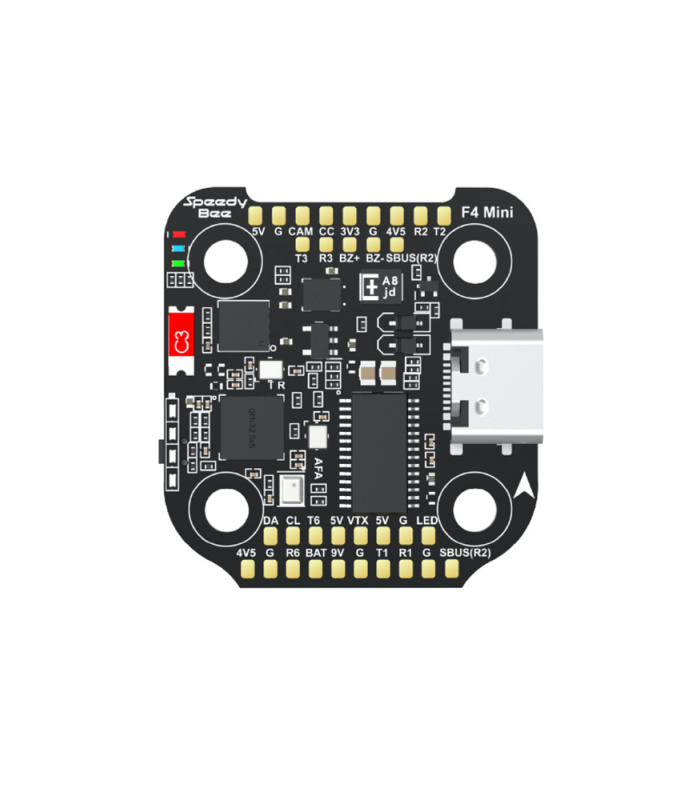

SpeedyBee F405 Mini BLS Stack ASpeedyBee F405 Mini BLS Stack B SpeedyBee F405 Mini BLS Stack C

Specification

SpeedyBee F405 Mini BLS 35A 20×20 Stack

  • Flight Controller:ย SpeedyBee F405 Min
  • ESC:ย SpeedyBee BLS 35A Mini V2 4-in-1 ESC
  • Bluetooth:ย Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration.ย Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
  • WiFi: NOT Supported
  • Wireless FC Firmware Flashing:ย NOT Supported
  • Wireless Blackbox Downloadย & Analysis:ย NOT Supported
  • Power Input:ย 3-6S LiPo
  • Mounting:ย 20 x 20mmย 3.5mm hole size๏ผŒCompatible with M2 and M3ย screws/Silicone grommets
  • Dimension:ย 32mm(L) x 35mm(W) x 14.2mm(H)
  • Weight:ย 13.5g

SpeedyBee F405 V3 30×30 Flight Controller

  • MCU:ย STM32F405
  • IMU(Gyro):ย ICM42688P
  • USB Port Type:ย Type-C
  • Barometer:ย Built-in
  • OSD Chip:ย AT7456E chip
  • BLE Bluetooth:ย Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration.ย Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
  • Wireless FC Firmware Flashing:ย NOT Supported. Please connect to the Betaflight configurator on the PC to do FC firmeare update
  • Wireless Blackbox Dwonload & Analysis:ย NOT Supported. Please connect to the Betaflight configurator on the PC to do blackbox analysis.
  • WIFI:ย Not supported
  • DJI Air Unit Connection Way:ย Direct soldering
  • DJI Air Unit Compatibility:ย Compatible with all DJI Air Units: DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1. Please use the solder pads on the front right corner of the flight controller to make a pin-to-pin connection with the solder pads on the DJI Air Unit.ย UART1(T1, R1) is used for OSDย and SUBS(R2) is used for DJI Air Unitโ€™s internalย SBUS receiver signal input.
  • Blackbox:ย 8MB Onboard Flash
  • BetaFlight Camera Control Pad:ย Yes(CC pad on the front side)
  • Current Sensor Input:ย Supported. For SpeedyBee BLS 35A V2 ESC, please set Scale=250 and Offset=-500.
  • Power Input:ย 3-6S LiPo. The flight controller is powered through the G, V wires of the 8pin harness or G, V pads from the bottom side of the flight controller.
  • 5V Output:ย 4 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side. The total current load is 2A.
  • 9V Output:ย 1 group of 9V output, one +9V pad on front side. The total current load is 3A.
  • 3.3V Output:ย Supported. Soldering pad named โ€˜3V3โ€™ on the front top of the flight controller. Designed for 3.3V input receivers. Up to 500mA current load.
  • 4.5V Output:ย Supported. Designed for radio receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
  • ESC Signal:ย M1 – M4 wires or soldering pads on bottom side.
  • UART:ย 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
  • ESC Telemetry:ย UART R5(UART5)
  • I2C:ย Supported. DA & CL pads on front side. Used for magnetometer, sonar, etc
  • Traditional Betaflight LED Pad:ย Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LEDs controlled by the Betaflight firmware.
  • Buzzer:ย BZ+ and BZ- pad used for 5V Buzzer
  • BOOT Button:ย Supported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
  • RSSI Input:ย Not Supported
  • Smart Port / F.Port:ย Not Supported
  • Supported Flight Controller Firmware:ย BetaFlight(Default), INAV
  • Firmware Target Name:ย SPEEDYBEEF405MINI
  • Mounting:ย 20 x 20mmย 3.5mm hole diameter ๏ผŒCompatible with M2 and M3ย screws/Silicone grommets.
  • Dimension:ย 30(L) x 32(W) x 7.8(H)mm
  • Weight:ย 9.6g

SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC

  • Firmware:ย BLHeli_S J-H-40
  • Continuous Current:ย 35A * 4
  • Burst Current:ย 45A(5seconds)
  • ESC Protocol:ย DSHOT300/600
  • Power Input:ย 3-6S LiPo
  • Power Output:ย VBAT(Battery voltage, used to power the flight controller)
  • Current Sensor:ย Support (Scale=250 Offset=-500)
  • Mounting:ย 20 x 20mmย โˆ…3.5mm hole size๏ผŒcompatible with M2 and M3ย screws/Silicone grommets.
  • Dimension:ย 35 * 35 * 5.5mm
  • Weight:ย 7.2g
