JHEMCU Ruibet 1-2S F4 AIO 12A ESC Whoop Flight Controller w/ OSD 5V BEC

£42.00 Inc. VAT

A Whoop flight controller, compatible with 1-2S LiPo input and built in 12A ESCs.

In stock

0 People watching this product now!
Description

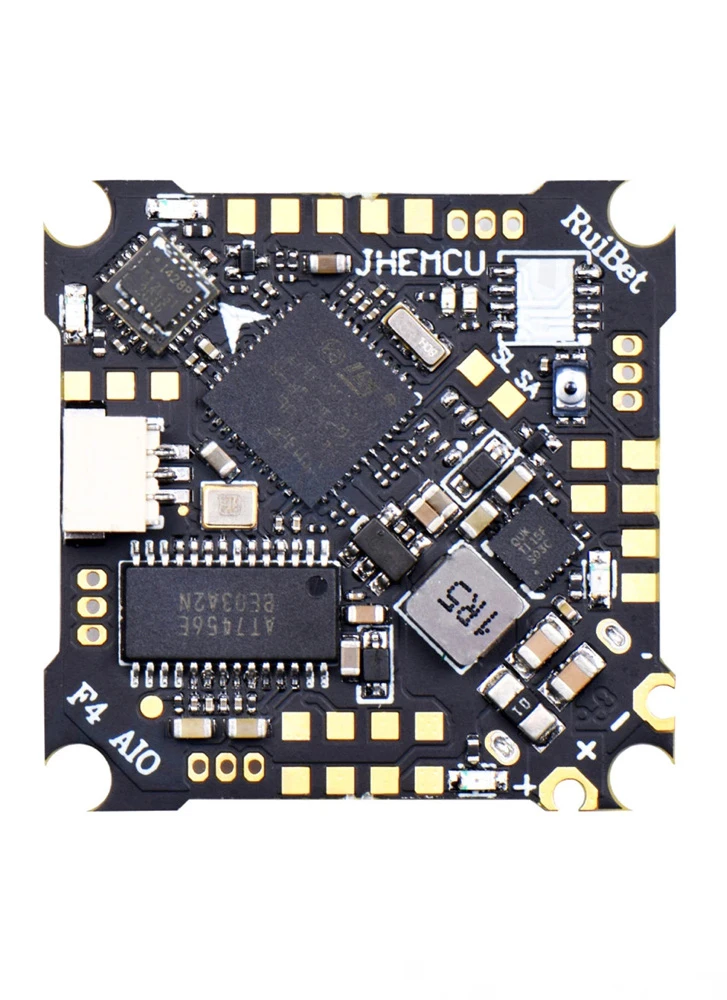

The JHEMCU Ruibet AIO Flight Controller offers an integrated solution for mini drones, known as Whoops. It combines a F4 flight controller with a 1-2S compatible, 12A four-in-one brushless ESC, delivering smooth and responsive flight performance. The controller includes 2 serial ports (UART 1, UART 2), a 12C port, and an SBUS interface (RX2). It also features a reserved WS2812 interface for addressable LEDs, along with a buzzer interface and camera socket interface for added functionality. With its lightweight design and multiple connectivity options, it’s an excellent choice for whoops and other small drones.

Specification
  • Brand: JHEMCU
  • Model: RuiBet F4
  • CPU: STM32F411
  • ICM: ICM42688
  • OSD: AT7456E
  • Barometer: NO
  • Blackbox: NO
  • USB Port: Micro usb
  • BEC: 5V
  • UART: UART1, UART2
  • IIC: Support
  • Mounting Hole: 25.5×25.5mm, M2
  • Weight: 4.4g

ESC parameters:

  • Supports PWM, Oneshot125, Oneshot42, Multi Shot, DShot 150
    DShot 300, Shot 600
  • Input voltage: 1S-2S LIPO
  • Continuous current: 12A
  • Firmware: BLHELI_S Z_H_30_REV 16_7.HEX

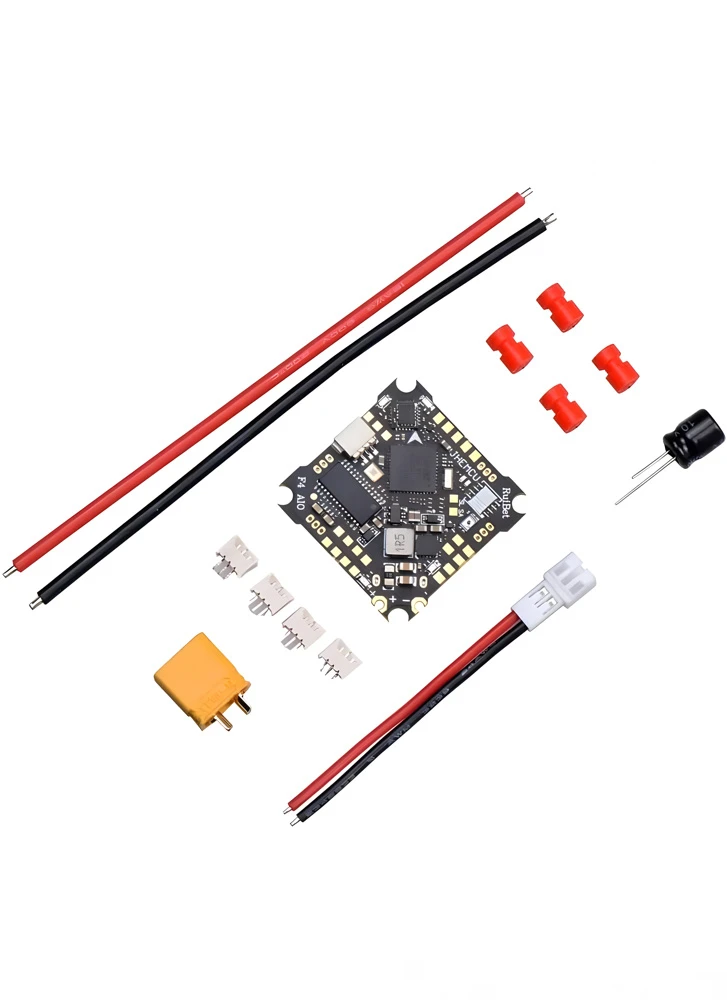

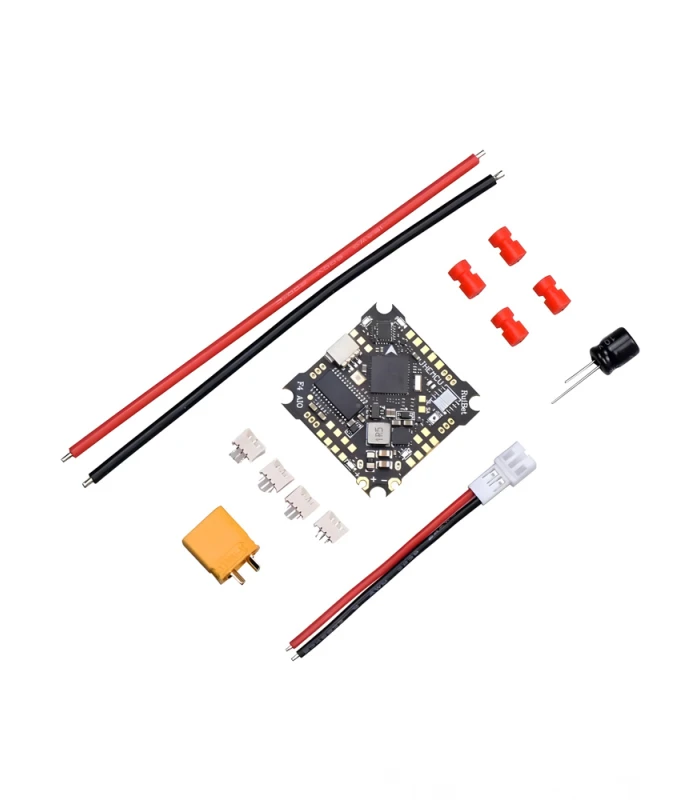

Included:

  • 1x RuiBet F4 AIO
  • 1x Practice Soldering Board
  • 2x 18AWG Cable
  • 1x XT30 Connector
  • 4x M2x6.5 Anti-vibration Ball
  • 1x 10V 470UF Capacitor
  • 1x 2P Cable
Downloads
Wiring Diagram (jpg, 411KB)
