Happymodel Diamond F4 5-in-1 AIO Whoop Flight Controller

Name: Happymodel Diamond F4 5-in-1 AIO Whoop Flight Controller - Flying Tech
Brand: Happymodel
SKU: FC-HMDIAF4-FRY
Price: 42.90 GBP
Availability: OutOfStock

£42.90 Inc. VAT

The Diamond F4 isn’t just a simple flight controller, it’s simply everything.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the Privacy policy

Compare

0 People watching this product now!

SKU: FC-HMDIAF4-FRY Categories: AIO (All in One), Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers, Spare Parts, Holybro Tags: FC, Whoop

Description

This 5-in-1, ultra-light flight controller is inspired by Happymodel’s Official Pilot – Angry Don FPV!

The Happymodel Diamond F4 isn’t just a simple flight controller, it’s simply everything. It has a built-in 25-200mW FPV VTX, ESCs, BetaFlight OSD, and radio receiver, all on one triangle-shaped whoop board – simply amazing! Building a Tiny Whoop has never been easier.

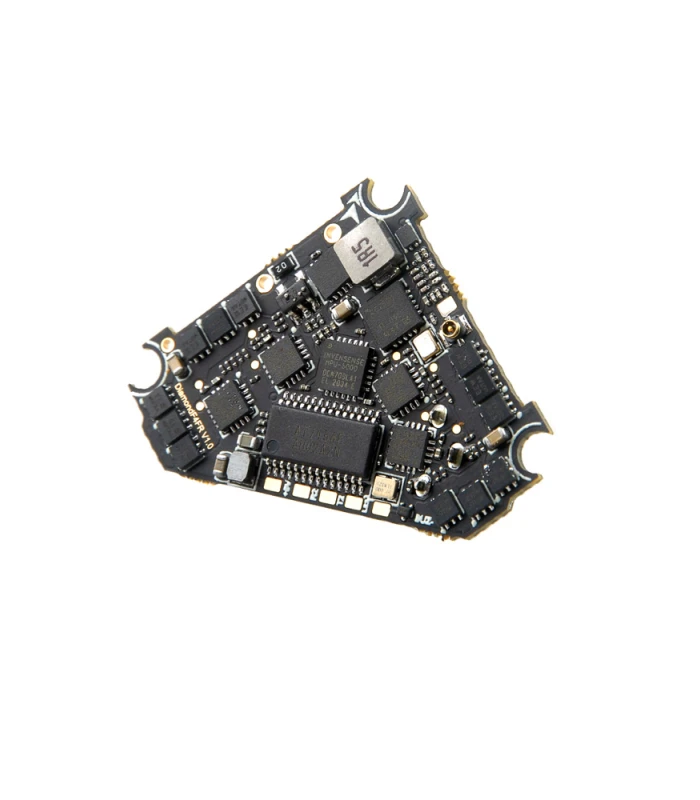

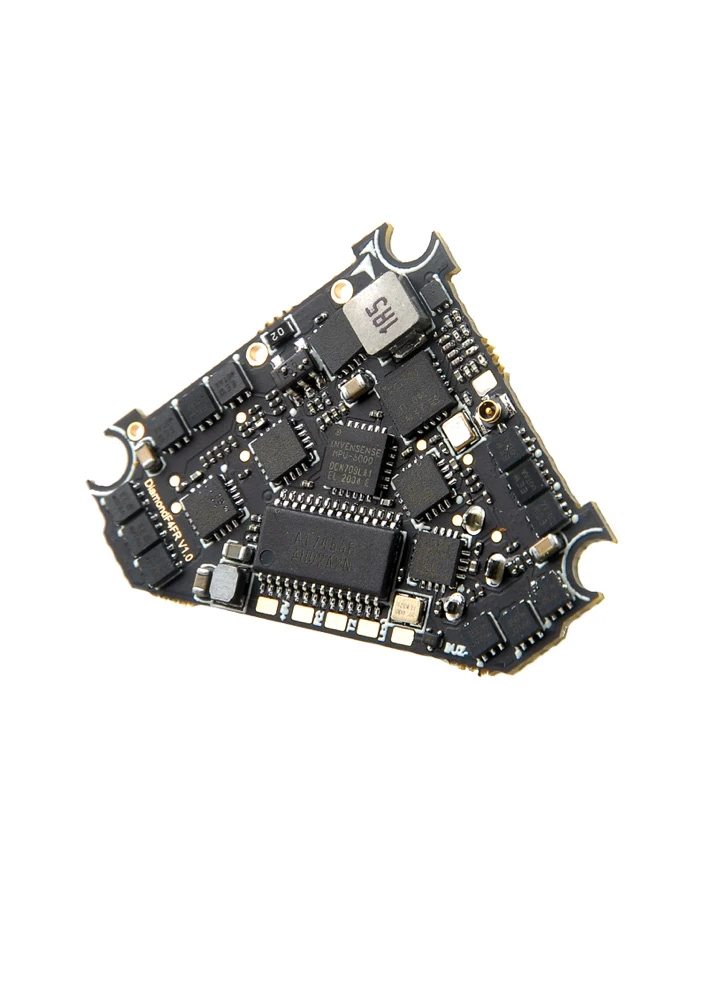

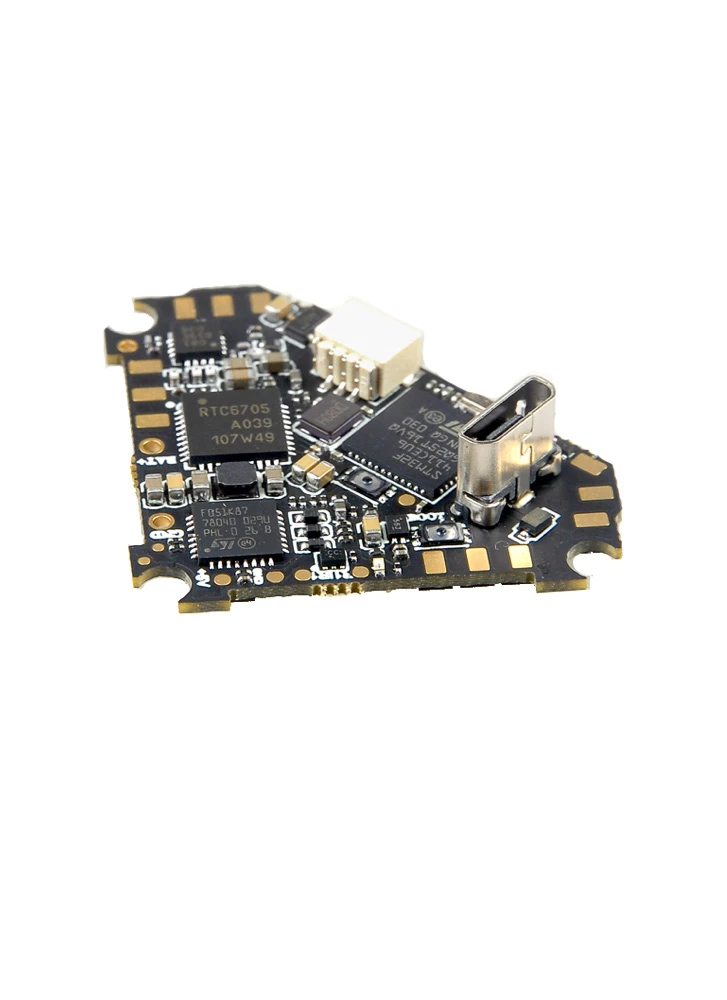

The 3 corners fit 25.5mm whoop mounting spacing. There is a plug for the camera input, the motor wires are to be soldered. There is a connection for a buzzer and RGB LED.

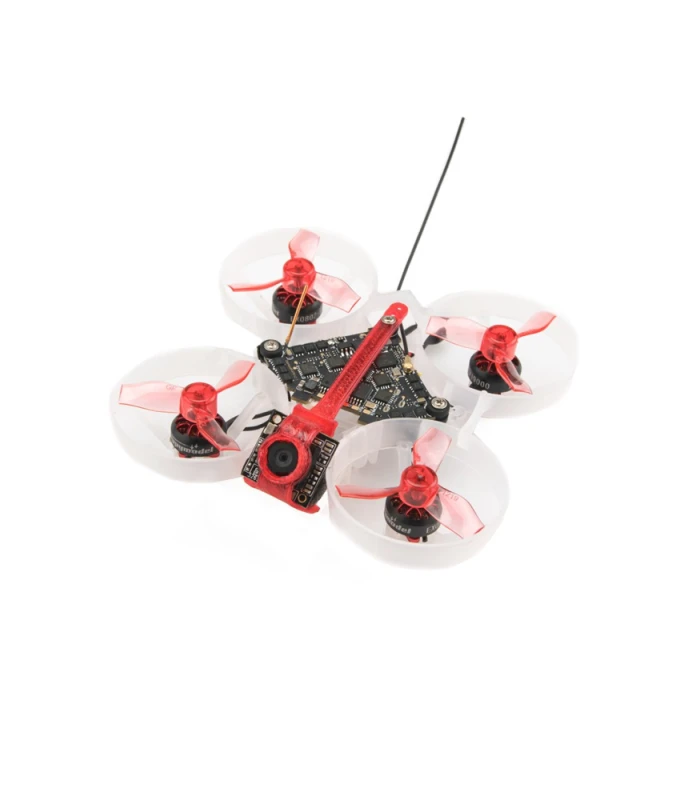

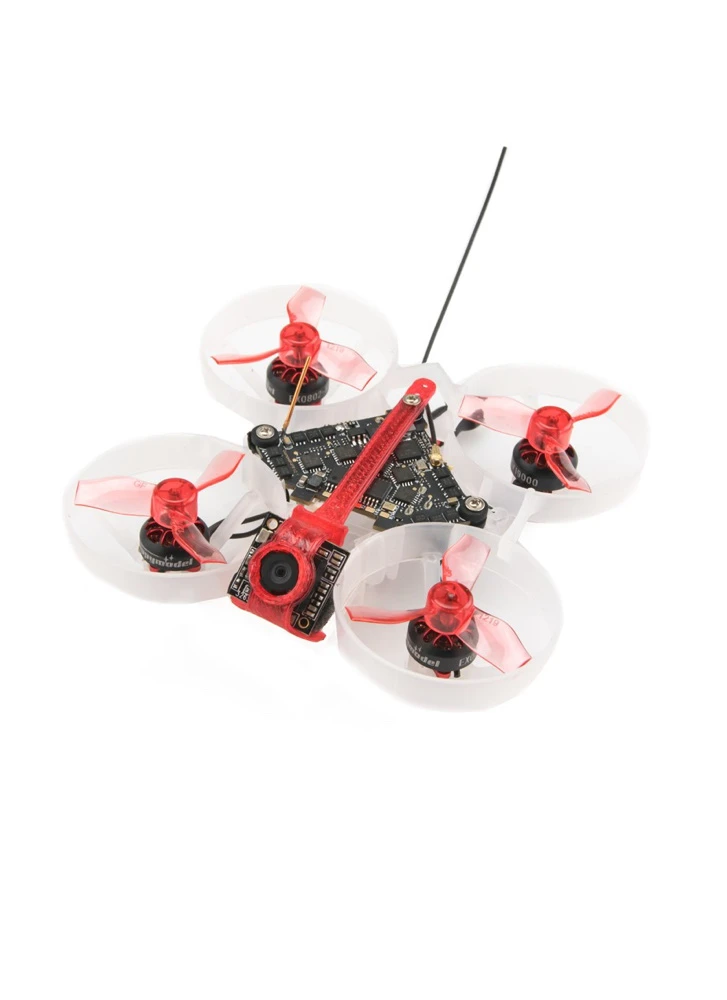

This is the AIO board included on the ultra-light Happymodel Moblite6/7 whoops.

Features

Diamond Mounting Pattern – 22.2×22.2×32.7mm
Built-in 5V/1A BEC
Built-in SPI Frsky Receiver
Built-in Betaflight OSD (SPI Control)
Built-in 5A Blheli_S 4in1 ESC, Dshot600 ready
Built-in 25-200mW 5.8GHz VTX

Specification

Flight controller

(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
(Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 Receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 model Channels: 8ch
Failsafe support
No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m

Onboard Flysky SPI receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8g VTX

Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz – Smart audio ready

Included:

1x HappyModel DiamondF4 FR AIO 5in1 Flight Controller – SPI Frsky
2x Connecting Wire
4x Damping Balls
4x Screws
