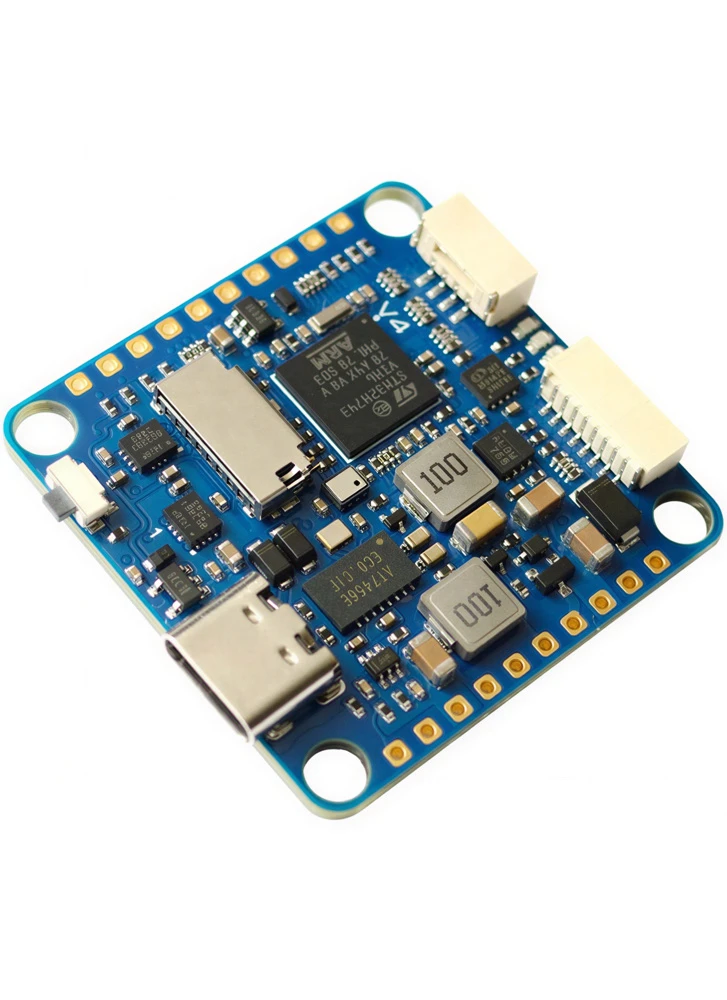

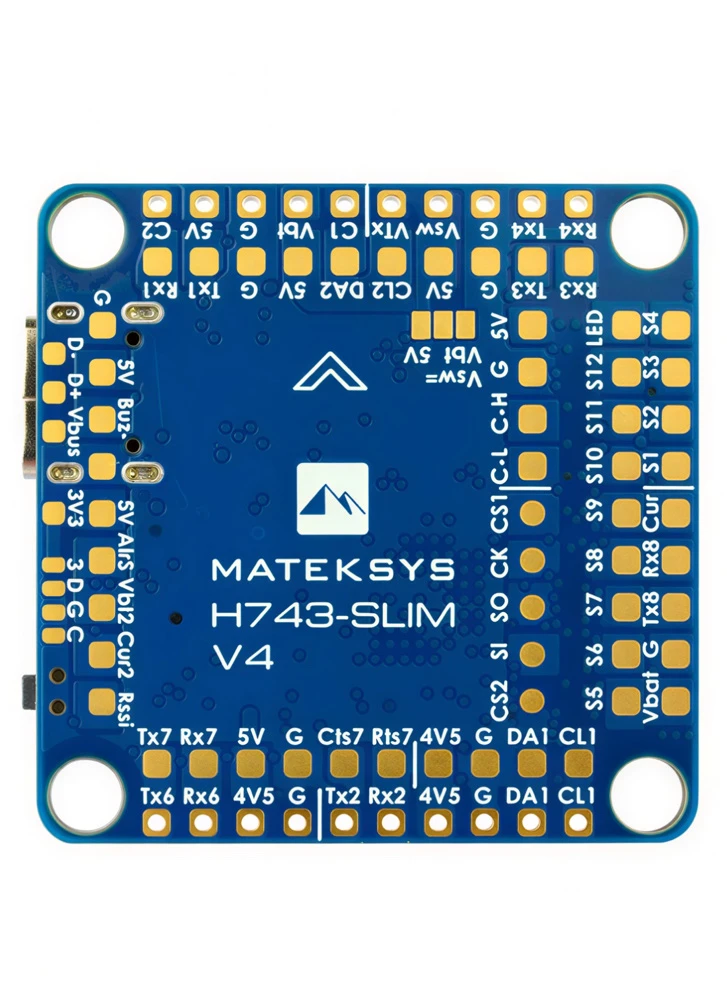

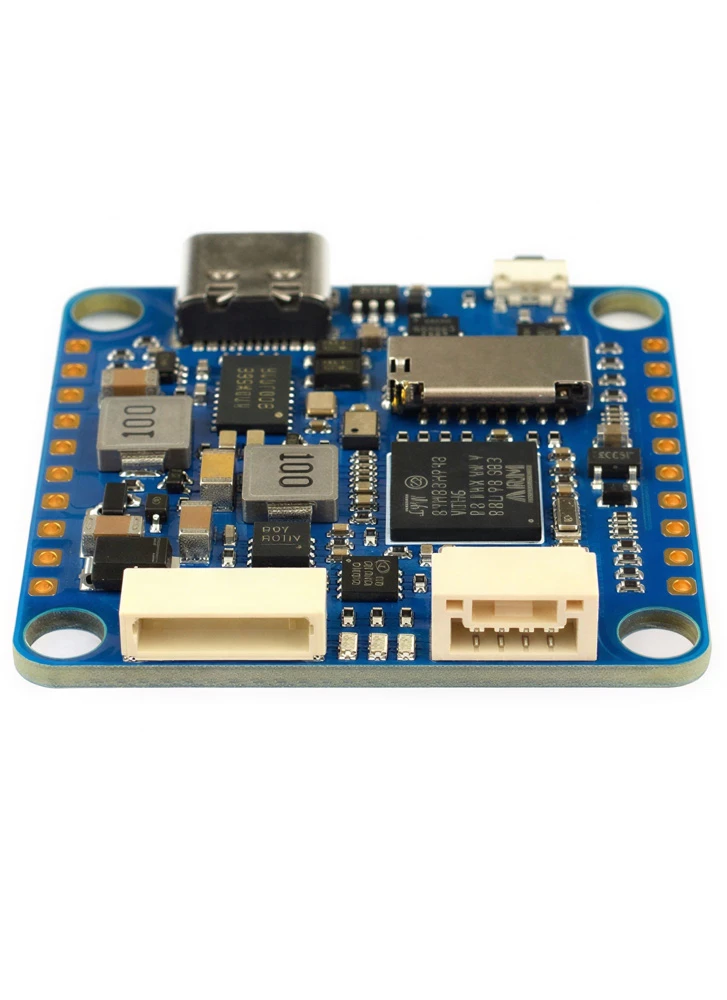

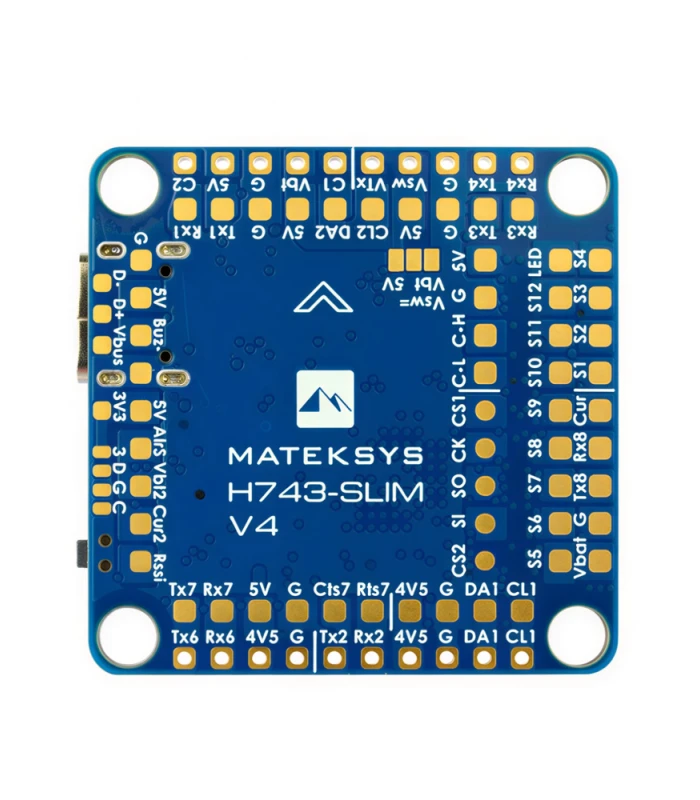

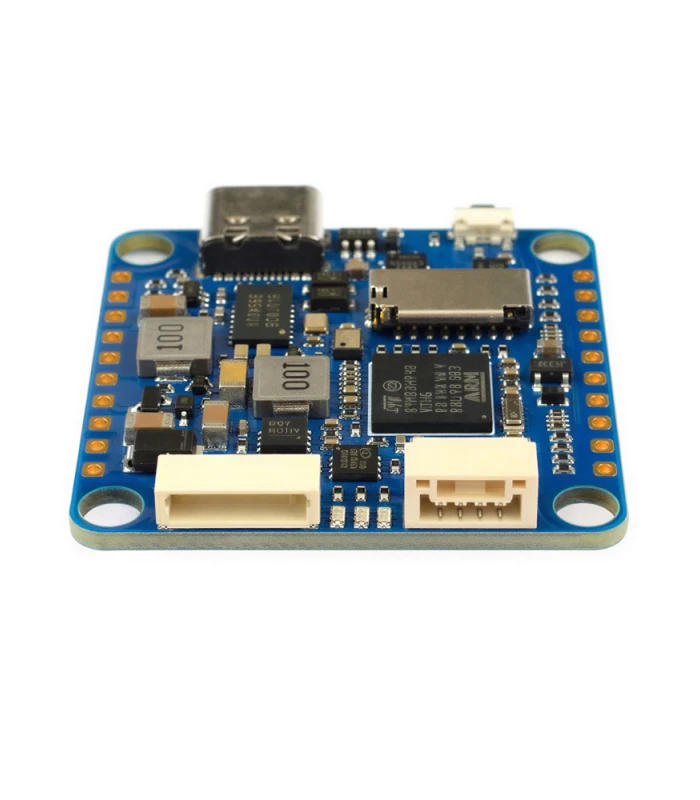

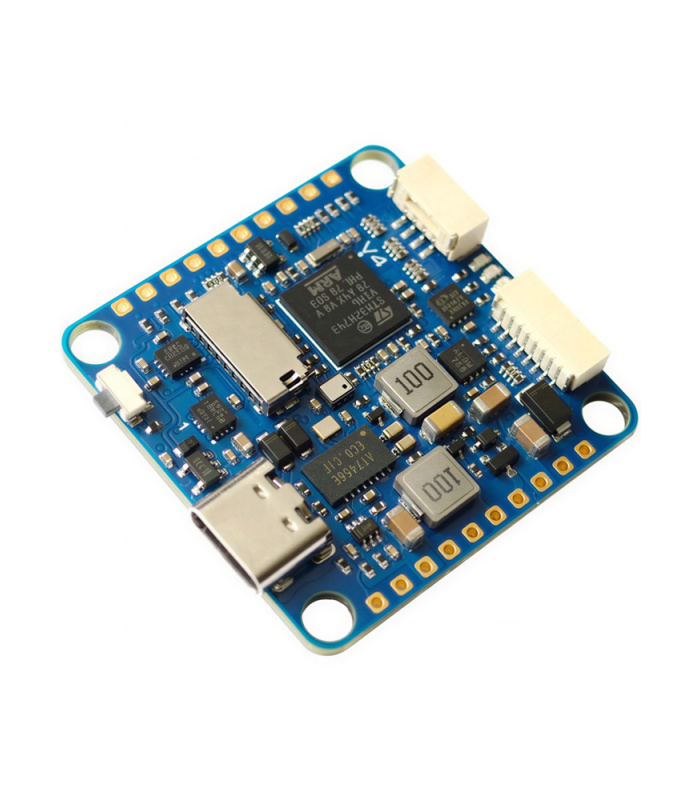

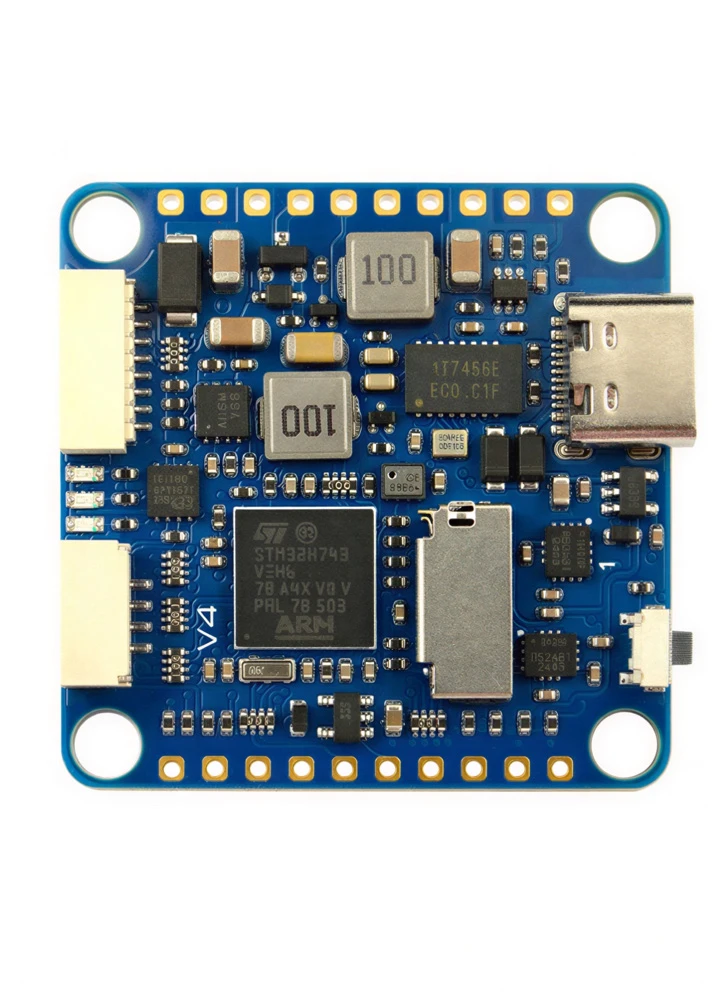

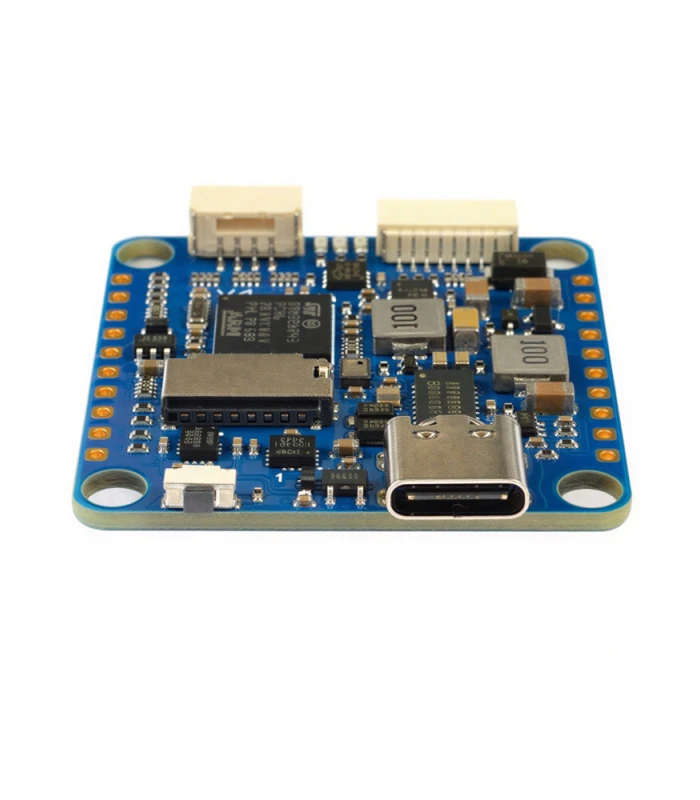

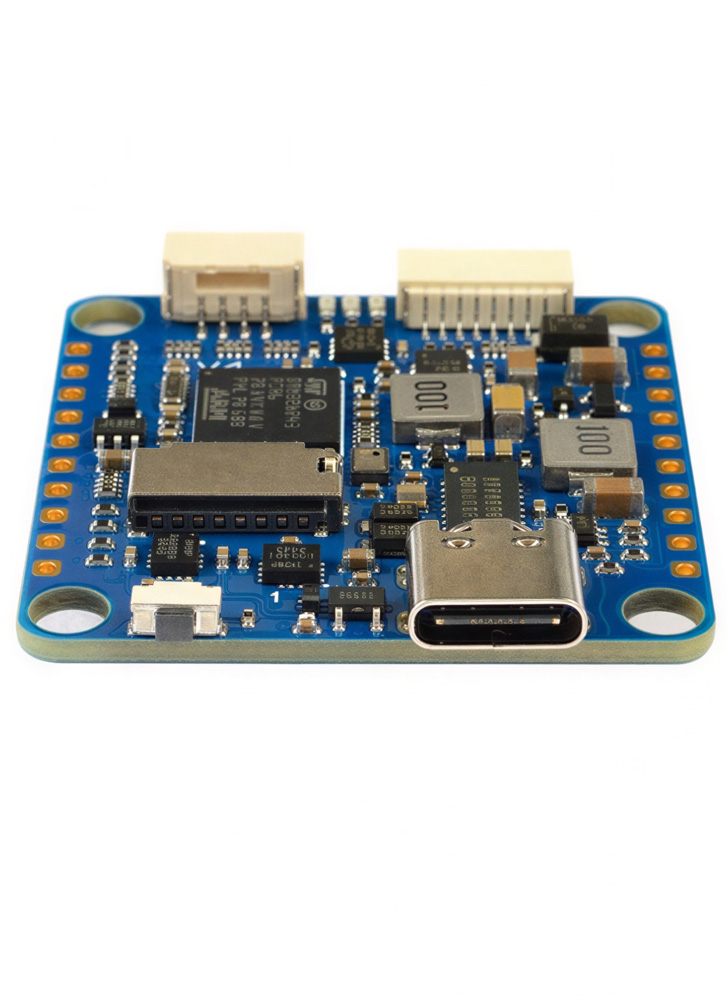

Matek H743 Slim V4 30×30 Flight Controller
£84.90 Inc. VAT
Loaded with an array of features and tons of room for peripherals, this board lets you choose how you want to fly.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
FLIGHT CONTROLLER H743-SLIM V4
STM32H743VIH6, Dual ICM42688P, DPS368, OSD, 7x UARTs, 2x I2C, 1x CAN, 13x PWM outputs, 5V BEC
Loaded with an array of features and plenty of room for peripherals, the Matek H743-SLIM V4 is designed for demanding FPV, long-range, and autonomous builds. It’s compatible with INAV, Betaflight, and ArduPilot, and offers significantly more processing headroom than F4-based flight controllers.
Compared to the previous V3 version, the H743-SLIM V4 introduces several hardware upgrades while keeping the same board layout and pinout. The 5V BEC output has been increased from 2A to 2.5A, the filtered 5V / VBAT output has been increased from 1A to 2A, TVS protection has been added to the main battery input, and additional MCU I/O protection has been implemented. The barometer has also been upgraded from the DPS310 to the more environmentally resistant DPS368.
Alongside its ultra-fast H7 480MHz processor, the specification includes dual ICM42688P IMUs for clean and stable gyro data, a built-in AT7456E OSD, 13 PWM outputs, 7 UARTs with inversion, 2x I2C, 1x CAN, switchable dual camera inputs, and a MicroSD card slot for Blackbox logging. DJI FPV OSD is supported via any spare UART.
Current version is V4.
Versions:
- V1, IMU MPU6000, ICM20602
- V1.5, IMU MPU6000, ICM42605
- V3, IMU ICM42688P, ICM42605
- V4 – IMU: Dual ICM42688P, DPS368 barometer, upgraded power and protection
MCU
STM32H743VIH6, 480MHz, 1MB RAM, 2MB Flash
IMU
Dual ICM42688P (SPI1 & SPI4)
Barometer
Infineon DPS368 (improved environmental resistance)
OSD
AT7456E (SPI2)
Blackbox
MicroSD card socket (SDIO)
UARTs
7x UARTs (1, 2, 3, 4, 6, 7, 8) with built-in inversion
PWM Outputs
13x PWM outputs (including “LED” pad)
I2C
2x I2C
CAN
1x CAN
ADC Inputs
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
LED Indicators
3x LEDs for FC status (Blue, Red) and 3.3V indicator (Red)
SPI
1x SPI3 breakout
USB
USB Type-C (USB 2.0)
Connectors

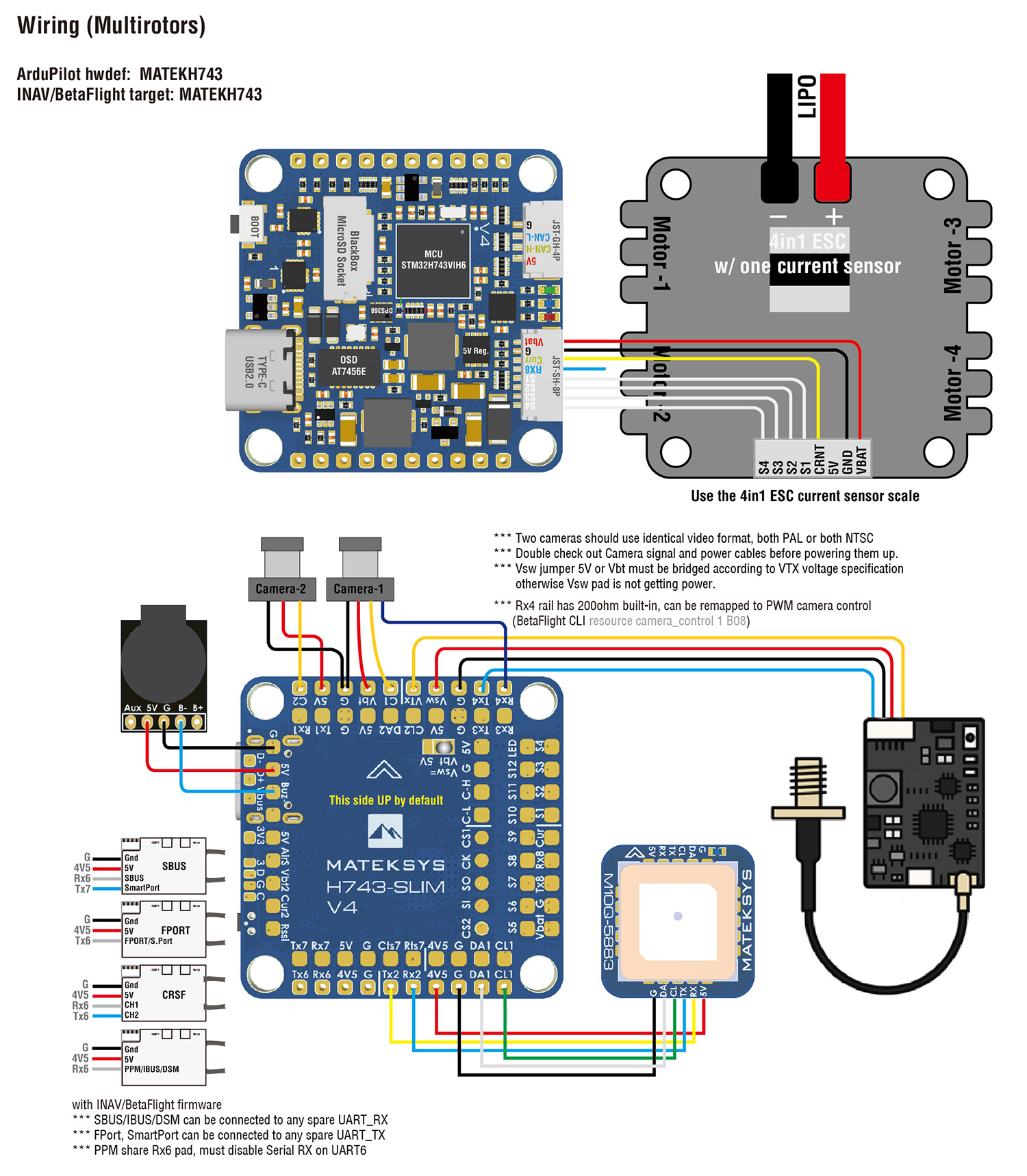

1x JST-SH1.0 8-pin connector (VBAT / G / Curr / RX8 / S1 / S2 / S3 / S4)
1x JST-GH1.25 4-pin connector (5V / CAN-H / CAN-L / G)
Video & Peripherals
Dual analog camera inputs with onboard switching
DJI FPV OSD supported via any spare UART
Power
VBAT Input
6–36V (2–8S LiPo)
BEC
5V 2.5A continuous
Filtered Output
Switchable 5V or VBAT output, up to 2A (for camera / VTX)
3.3V LDO
Max 200mA
Current Sensor
No current sensor built-in
Voltage Monitoring
Vbat2 pad supports up to 69V (voltage divider 1K:20K)
Static Power Consumption
~200mA @ 5V with Betaflight
~150mA @ 5V with ArduPilot
Firmware Support
ArduPilot (ChibiOS): MATEKH743
Betaflight: MATEKH743
INAV: MATEKH743
Physical
Mounting: 30.5 × 30.5mm, Φ4mm (Φ3mm with grommets)
Dimensions: 36 × 36 × 5mm
Weight: 7g
Included
1 × H743-SLIM V4 flight controller
6 × Silicon grommets (M4 to M3)
1 × JST-SH1.0 8-pin cable (5cm)
2 × JST-SH1.0 8-pin connectors
1 × JST-GH-4P to JST-GH-4P CAN cable (20cm)
