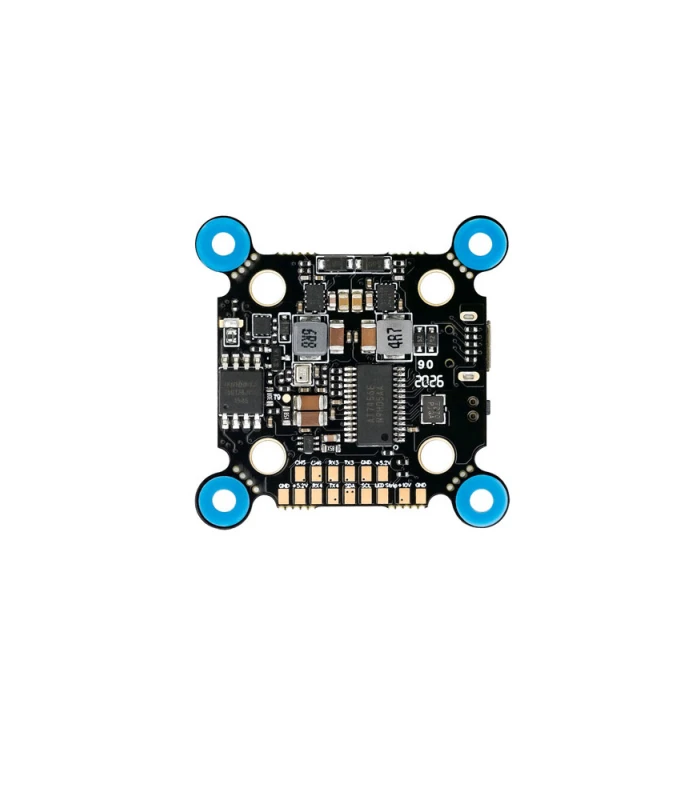

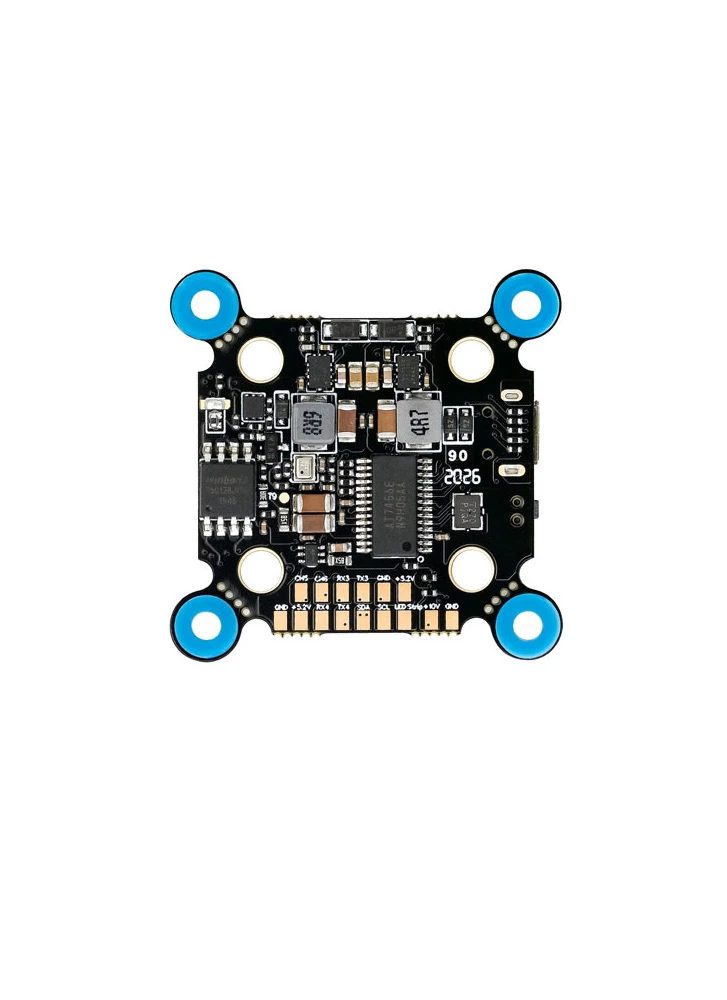

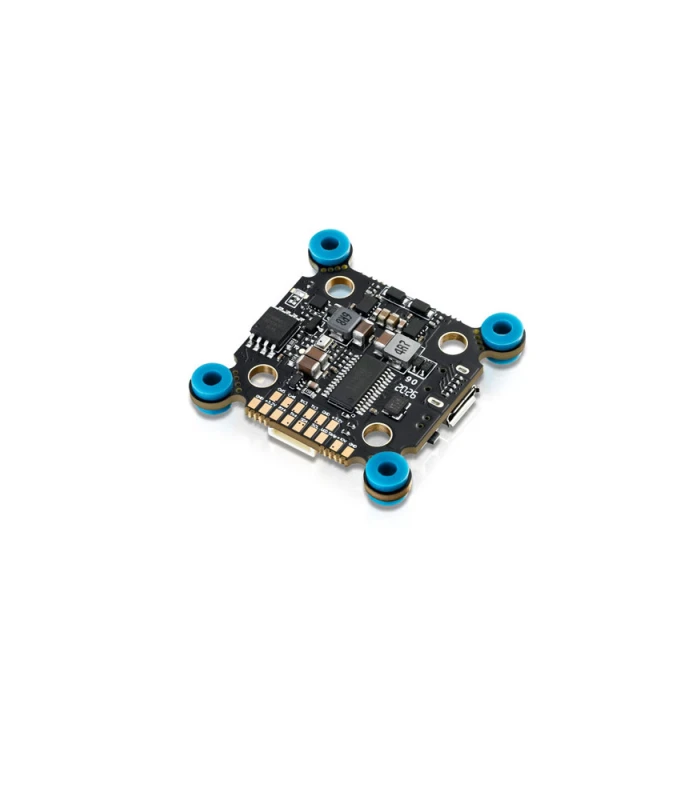

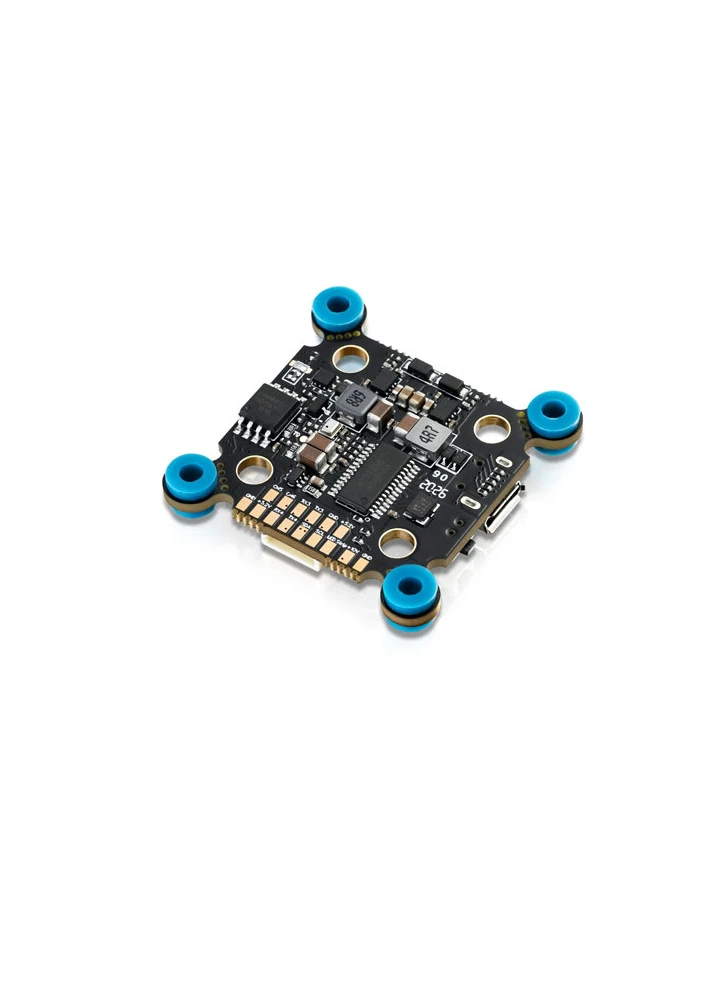

Hobbywing XRotor F7 Convertible Flight Controller

Name: Hobbywing XRotor F7 Convertible Flight Controller - Flying Tech
Brand: Hobbywing
SKU: FC-HWXRF7
Price: 49.90 GBP
Availability: OutOfStock

£49.90 Inc. VAT

This FC works with both 20×20 & 30.5×30.5 mounts. Simply snap off the corners to reduce the board size, clever!

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: FC-HWXRF7 Categories: Racing Drone Flight Controllers, Electronics, Flight Controllers / Autopilots Tags: 20x20, 30x30, FC, Flight Controller, XRotor

Description

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. This is Hobbywing’s first flight controller to implement a super fast F7 MCU and the MPU6500 gyro. It also now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system, allowing support for both analogue and DJI digital FPV video systems. As before, it supports other useful features such the BetaFlight OSD, voltage monitoring and on-board pit switch. You may notice the unusual shape of the FC, well it’s cleverly designed to include a mounting pattern that is convertible between 20×20 and 30.5×30.5 – simply snap off the corners to reduce the board to a 20×20 FC!

Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V & 12V dual BEC circuit.
On-board Pit Switch module.

Specification

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
Programming via: Betaflight/Cleanflight-configurator
Firmware: HOBBYWING_XROTORF7CONV
Voltage Monitoring: Supported
Current Monitoring: Supported
FC Programming: Supported
External Buzzer: Supported
BEC: 5V@1.5: 10V@1.5A
LED Control: Supported
USB Port: MicroUSB
Size: 32x32mm
OSD: Built-in
Weight: 3.3g

Included:

1x Hobbywing XRotor F7 Convertible Flight Controller
1x Soft Mounting Grommets Set
1x Signal Cable

Downloads

Manual (pdf, 3963KB)

Download
