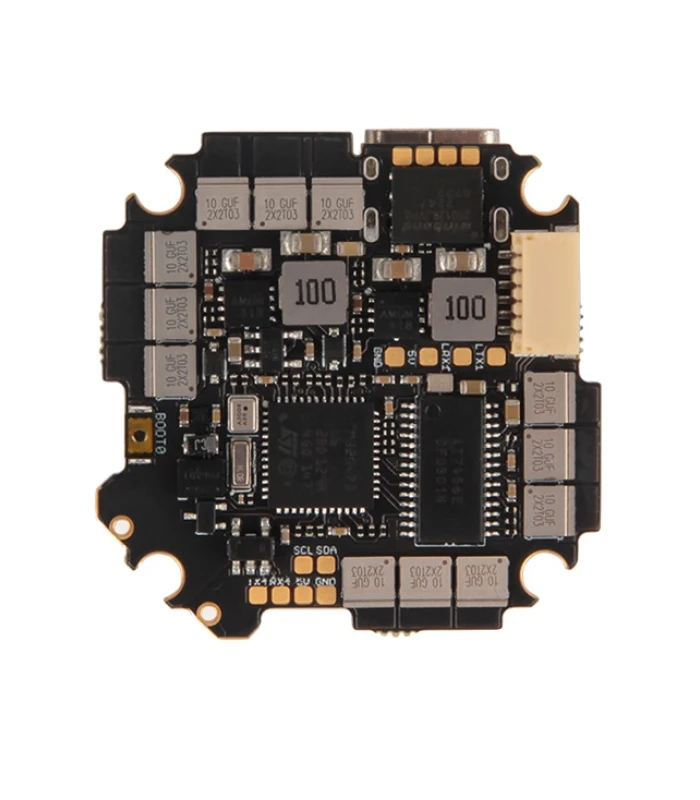

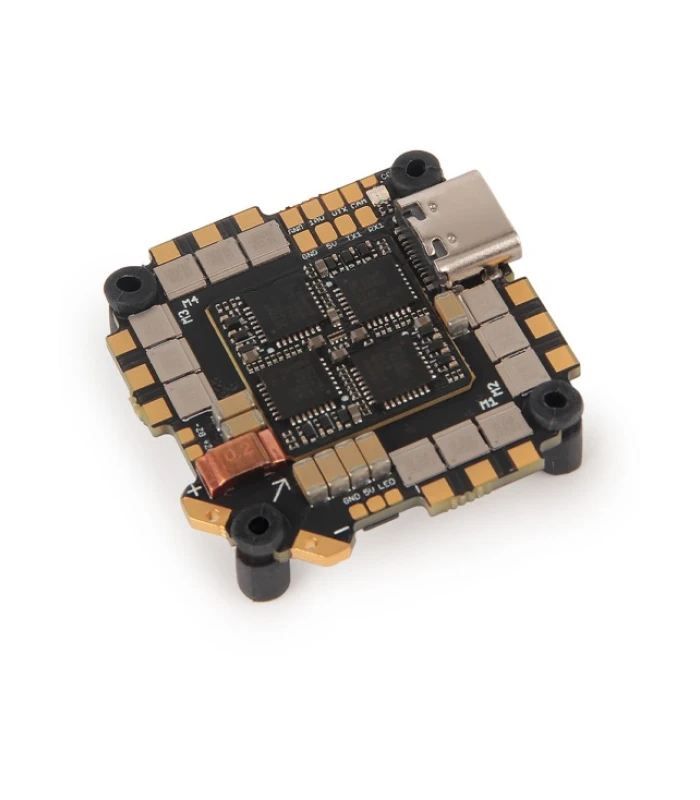

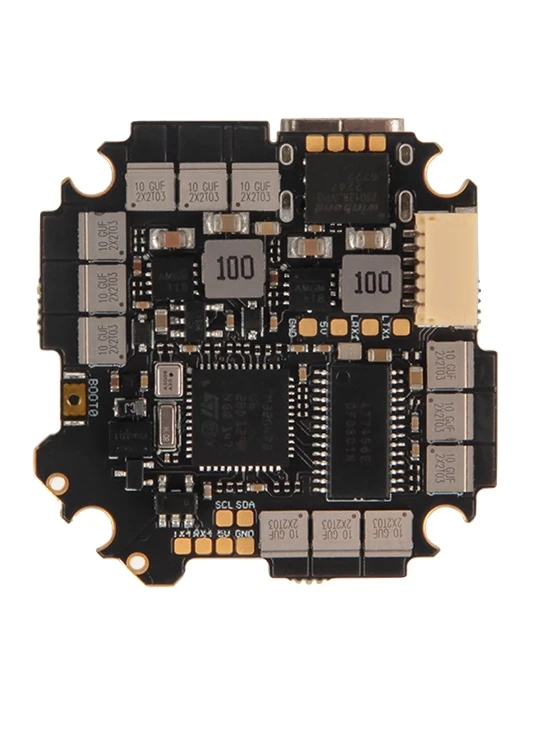

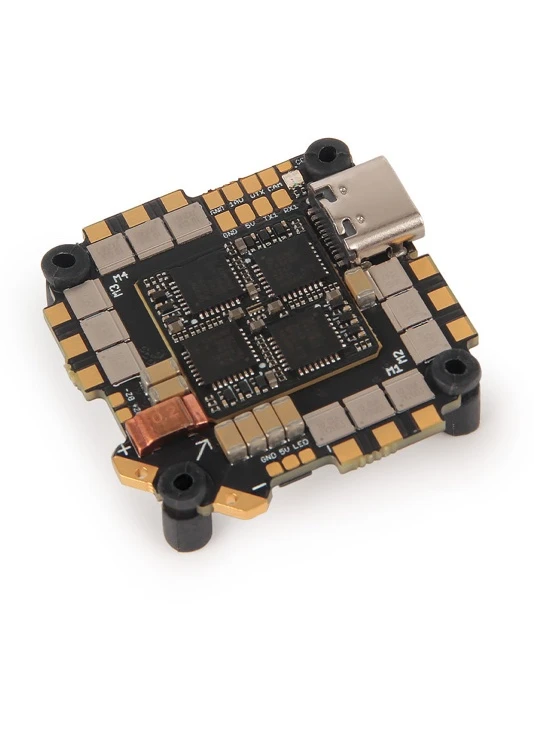

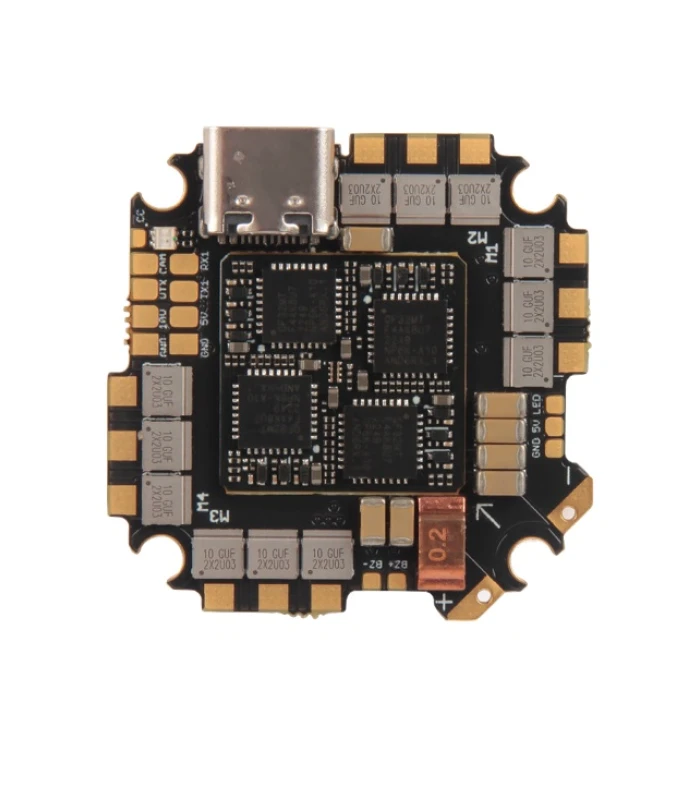

Kakute G4 AIO FC w/ 35A ESC (AM32) Flight Controller

Name: Kakute G4 AIO FC w/ 35A ESC (AM32) Flight Controller - Flying Tech
Brand: Holybro
SKU: FC-HBG4AIO
Price: 89.90 GBP
Availability: InStock

£89.90 Inc. VAT

A powerful and compact fight controller + 4in1 ESC. Plug and play with digital systems such as the DJI O3.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: FC-HBG4AIO Categories: AIO (All in One), Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers Tags: AIO, FC, Flight Controller, Kakute

Description

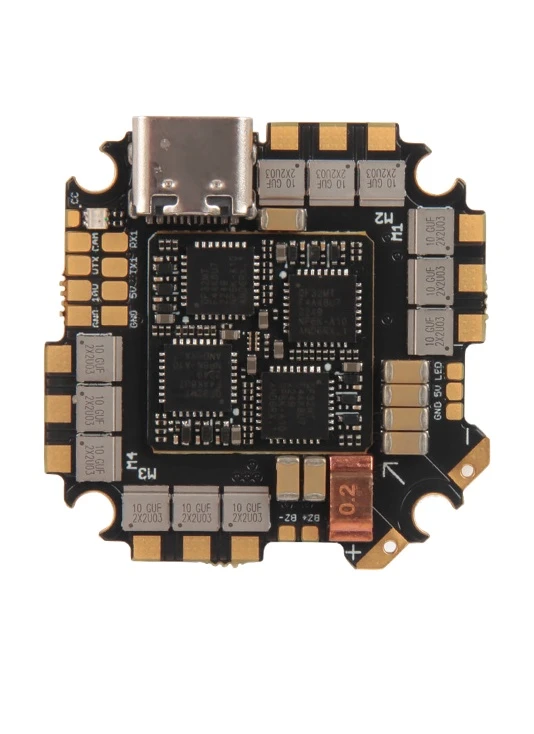

The Holybro Kakute G4 AIO FC w/ 35A ESC is a powerful and compact fight controller + 4in1 ESC All-in-One board that is plug and play with digital systems such as the DJI O3 at full power. It also works with analog systems due to the onboard OSD chip. The FC on this AIO uses a G4 processor, and the 4in1 ESC uses four F4 processors running AM32 firmware.

It has STM32G4 MCUs, ICM-42688p gyro, 5V & 10V BEC, 16MB of flash storage, DSP310 baro, plug & play port for digital VTX, and 35A 4in1 ESC, all in a small form factor weighing only 7.5g.

It also comes in a super-hydrophobic nano-waterproof coating. This coating allows air to pass through while avoiding water, giving extra protection from moisture and other elements.

Features

AIO board with G4 Processor FC & F4 ESC
35A ESC running AM32 firmware, capable of up to 6S
10V/2.5A BEC for DJI O3 Air Unit
Digital VTX port
Superhydrophobic Nano Coating

Specification

Flight Controller

MCU: STM32G473
Gyro: ICM42688
Baro: DPS310
BEC
- 5V/3A
- 10V/2.5A
Blackbox: 128Mbit (16MB) Flash
OSD: AT7456
UART: 5 total
Betaflight firmware target: KAKUTEG4AIO

4in1 ESC:

AM32 firmware with F4 MCU
- Open Source firmware
- Firmware upgradable via Betaflight passthrough (make sure your Betaflight firmware is up to date when you try to use passthrough)
- Article explaining AM32 by Oscar Liang
Input Voltage: 2S-6S
- For input voltage below 4S, 10V BEC output cannot be used
- For input voltage below 3S, both the 10V & 5V BEC output cannot be used
PWM Frequency 8k to 48k
Supports
- DShot 150/300/600/1200
- MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry
Onboard analog current sensor
Metal MOSFETs for better heat dissipation

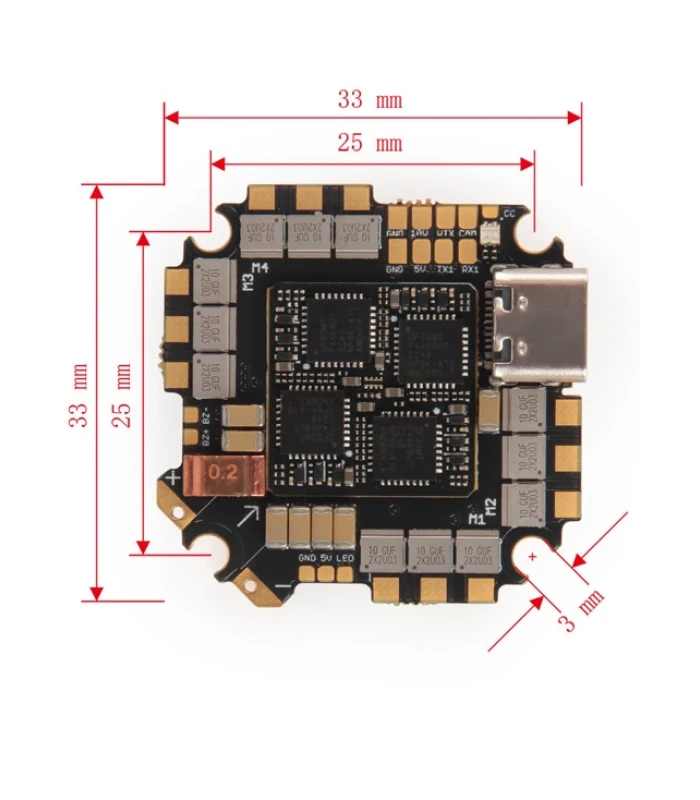

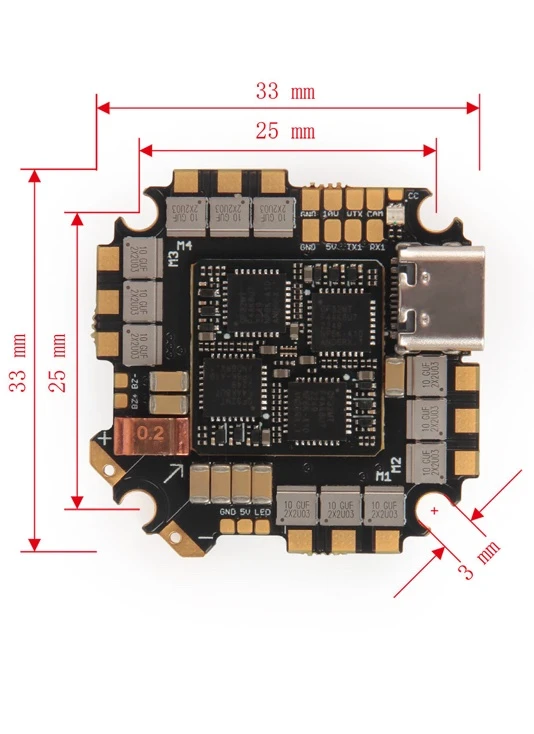

Mechanical Specification

Mounting – 25 x 25mm/Φ3mm hole with Φ2mm Grommets
Dimension – 33x33mm
Weight – 7.5g

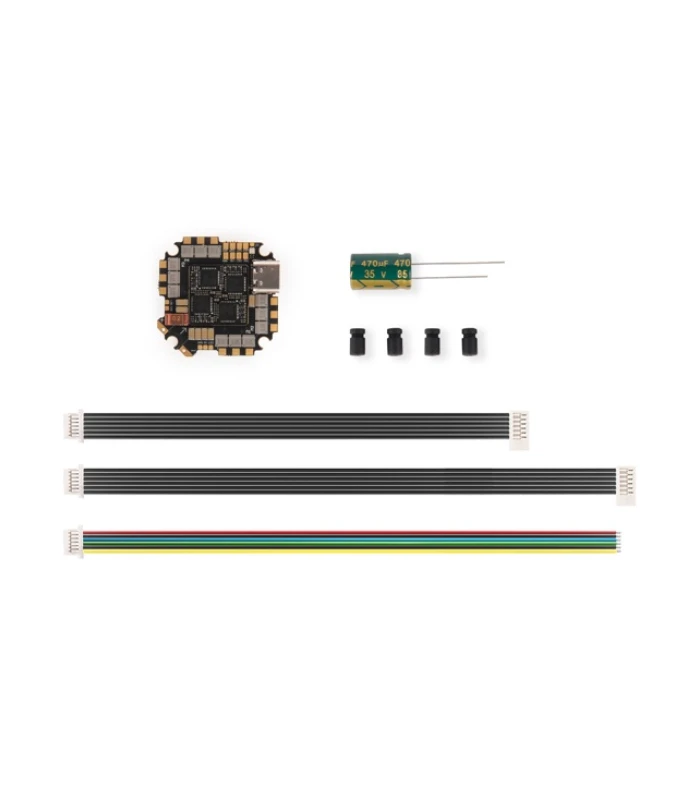

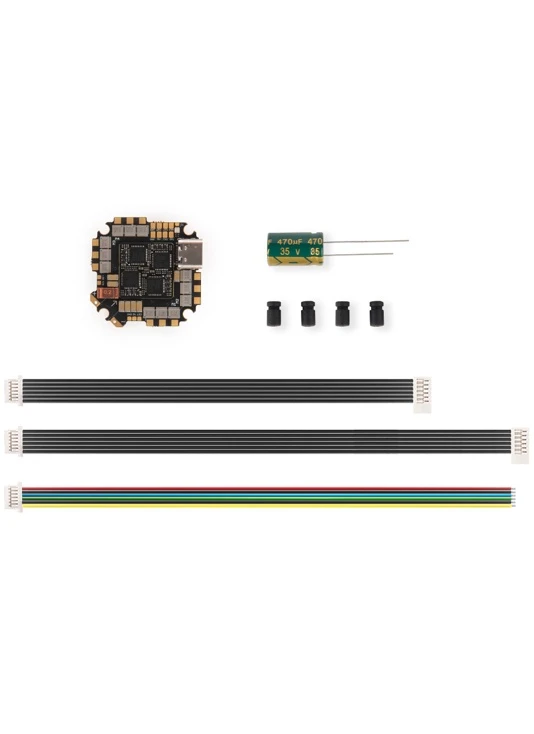

Includes:

1X KAKUTE G4 AIO 35A
1x Capacitor 35V 470µF
2X 6 Pin SH1.0- 8 Pin GHR1.25 Cable (DJI VTx)
1X 6 Pin SH1.0 Cable
4X M2 Anti-Vibration Silicone Grommet Insert
