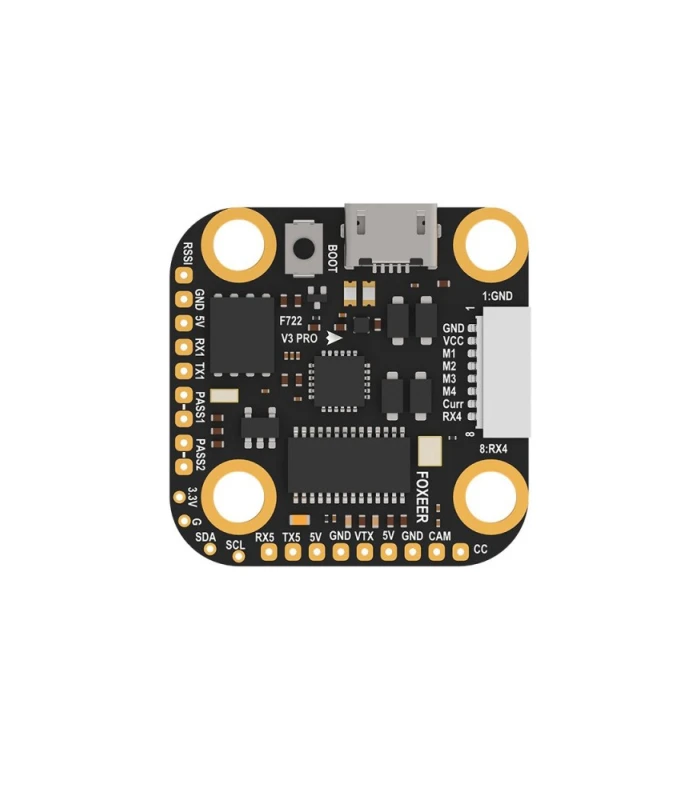

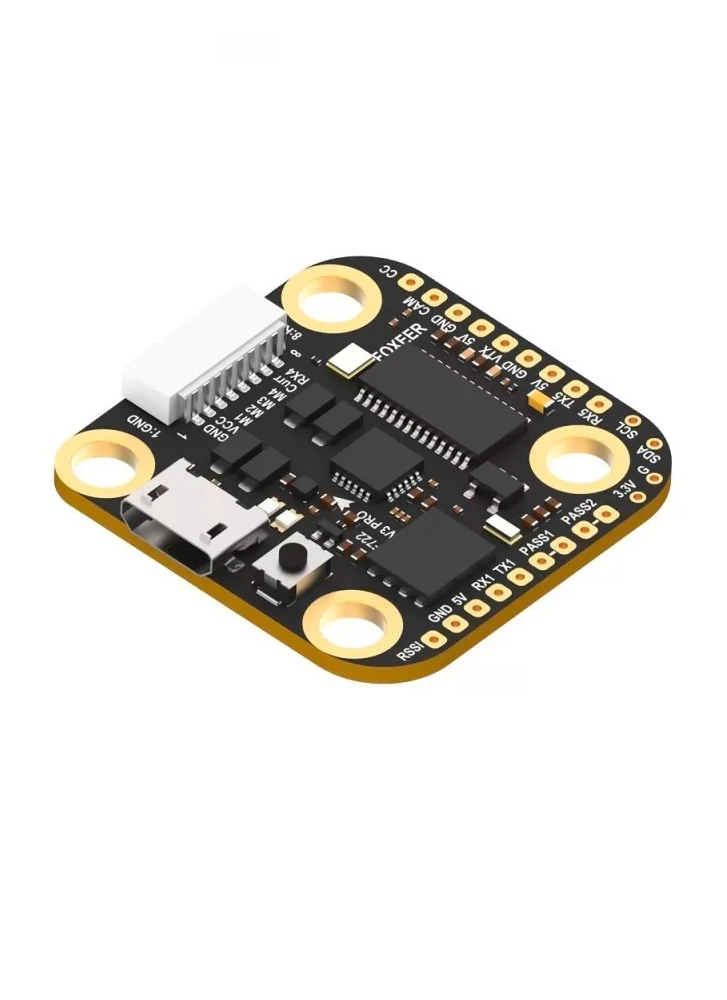

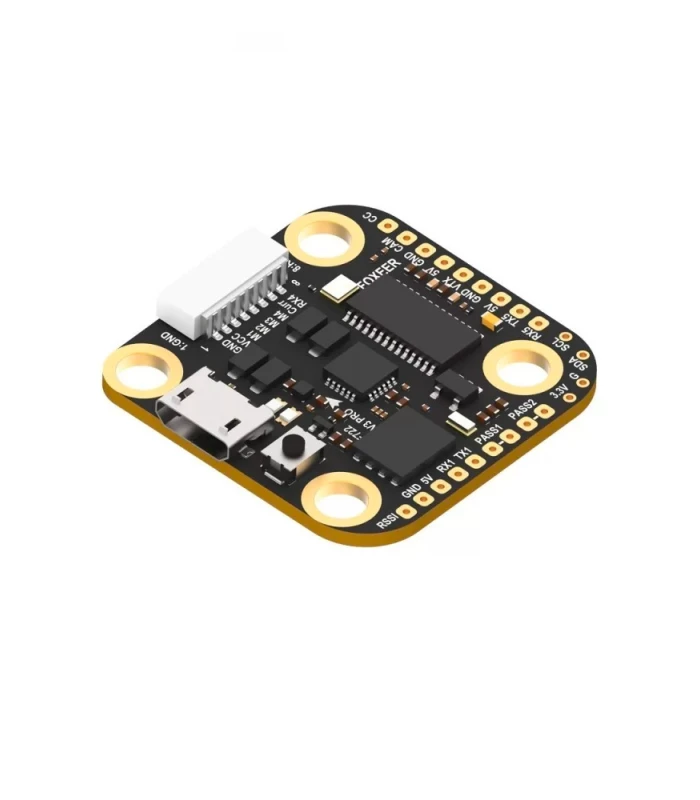

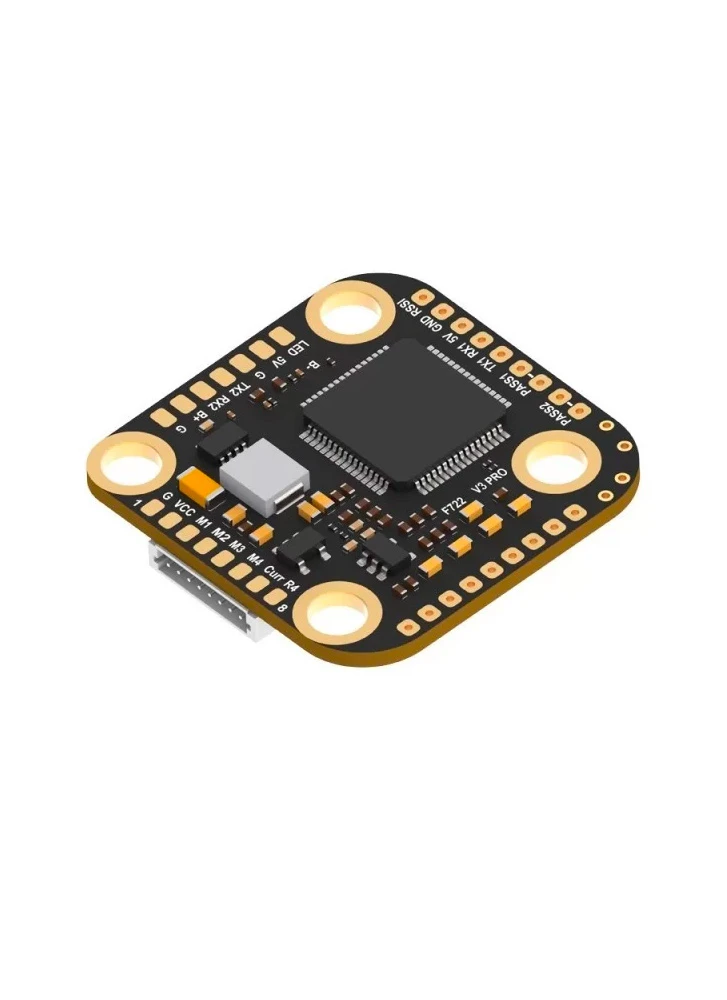

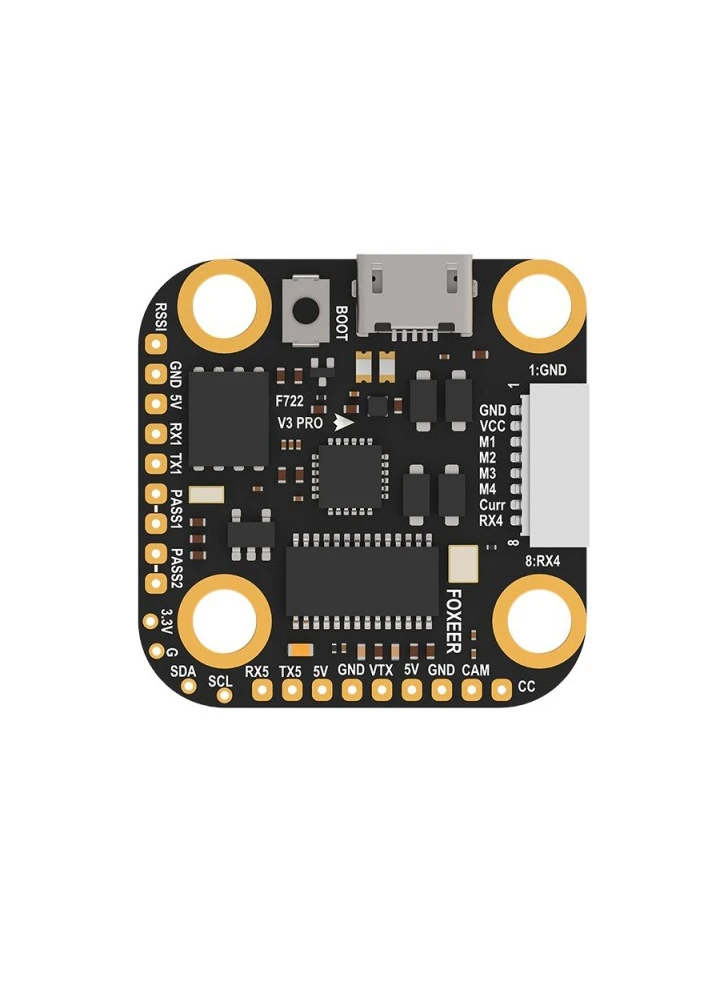

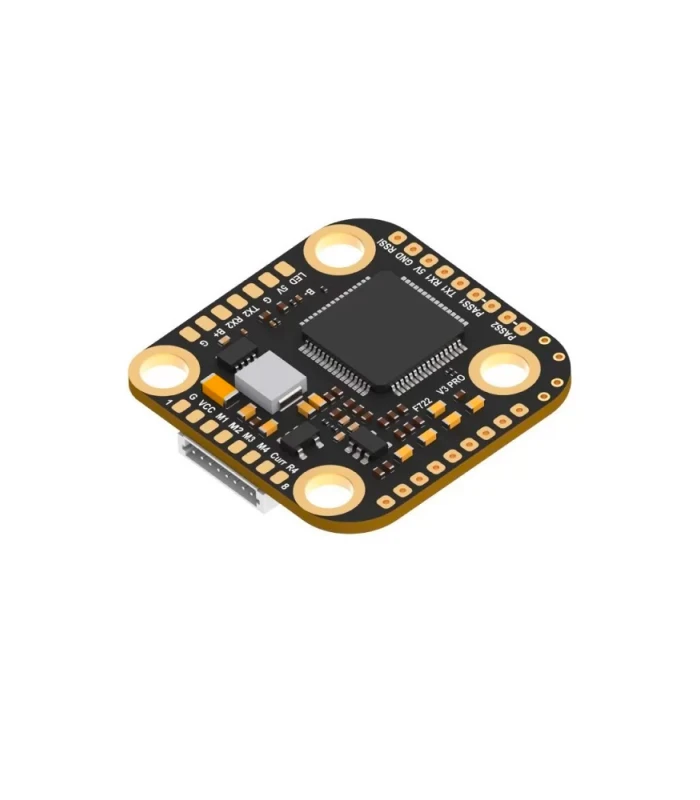

Foxeer Mini F722 V4 Pro Flight Controller (20×20)

Name: Foxeer Mini F722 V4 Pro Flight Controller (20×20) - Flying Tech
Brand: Foxeer
SKU: FC-MR1684
Price: 53.20 GBP
Availability: OutOfStock

£53.20 Inc. VAT

Foxeer F722 V4 Mini Flight Controller is a 20×20 flight controller. It can be used with both analog & digital FPV systems.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the Privacy policy

Compare

0 People watching this product now!

SKU: FC-MR1684 Categories: Racing Drone Flight Controllers, Electronics, Flight Controllers / Autopilots Tags: 2020, 20x20, F7, FC, Flight Controller

Description

This is the latest version of the Foxeer F722 Mini flight controller.

The Foxeer F722 V4 Mini Flight Controller is a 20×20 flight controller. It is equipped with an STM32F722RET6 CPU and ICM-42688-P GYRO. With support for 2-6S input, 4 UARTs and 5V/3A BEC you are well equipped with this FC for the connection of further peripherals. The FC also has support for both analog and digital FPV systems. The FC has an easy to follow and convenient pin layout that means installation is a straightforward affair. Another function of the FC is you can remote control the camera menu on your Foxeer cam by connecting to the OSD pin without the need for any set-up. Finally, the FC supports a PASS function, which allows you to easily wire up your quad when using Crossfire.

Specification

CPU STM32F722RET6
Power Supply 2~6S Lipo (6.5V~30V)
BEC Output DC5V/3A
OSD BF OSD
Black Box 16M Flash Memory
UART 4 Set
ESC Telemetry RX4
Buzzer YES
Smart Audio YES
LED 1 Set 2812 LED
USB Micro USB
Fireware FOXEERF722V4
Size 28.5*28.5mm
Mounting Hole 20X20mm, Φ4mm
Weight(g) 4.4g
Working Temperature -20℃ ~ +55℃
Working Humidity 20～95%
Storage Temperature -20℃ ~ +70℃
Package Includes 1*FC, 4*Rubbers Columns

Included:

1x Flight Controller – MR1684
4x Rubber Mounting Columns
