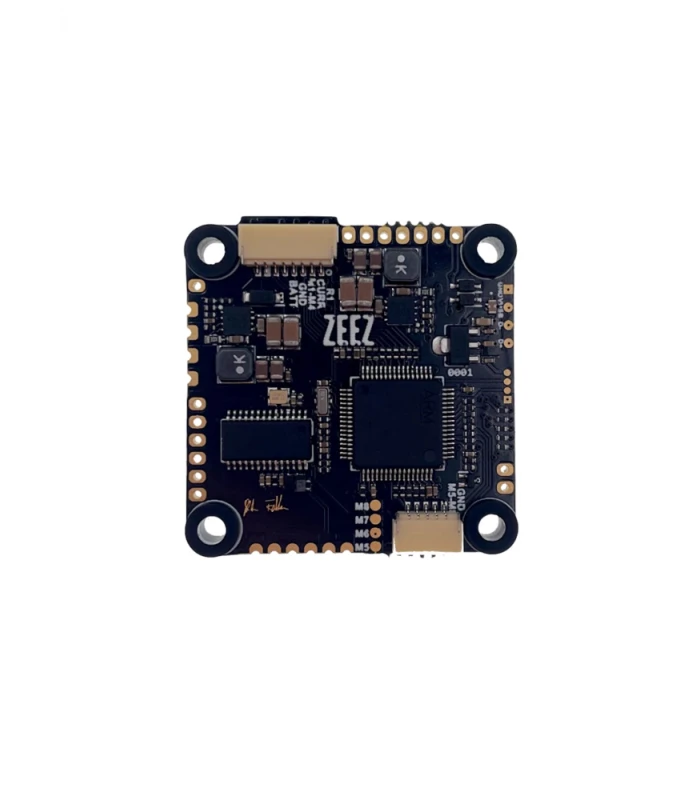

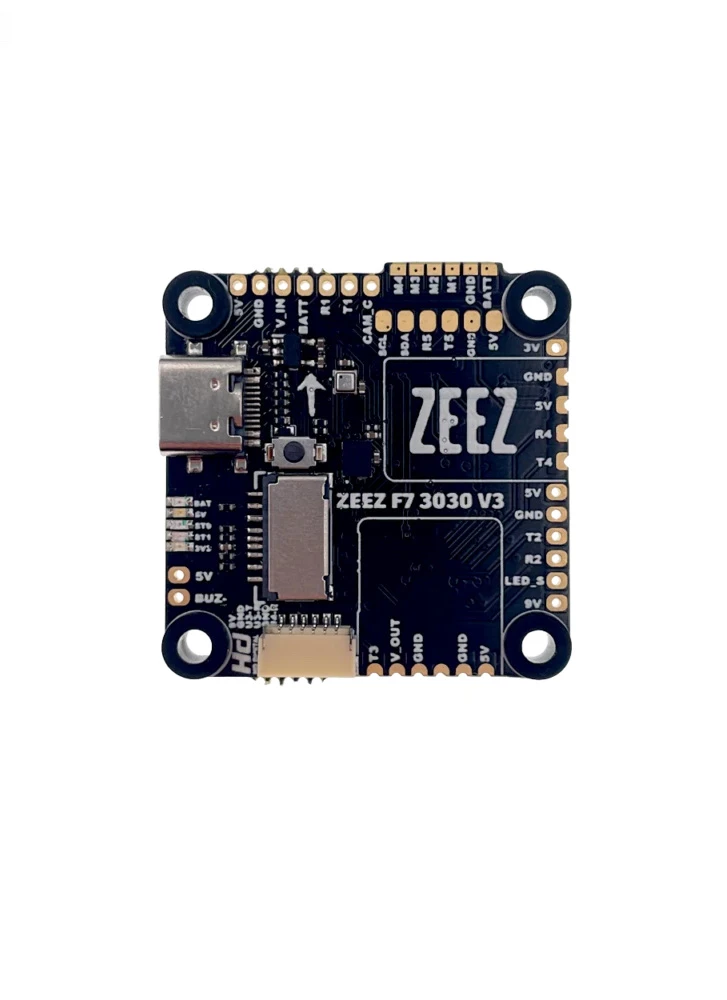

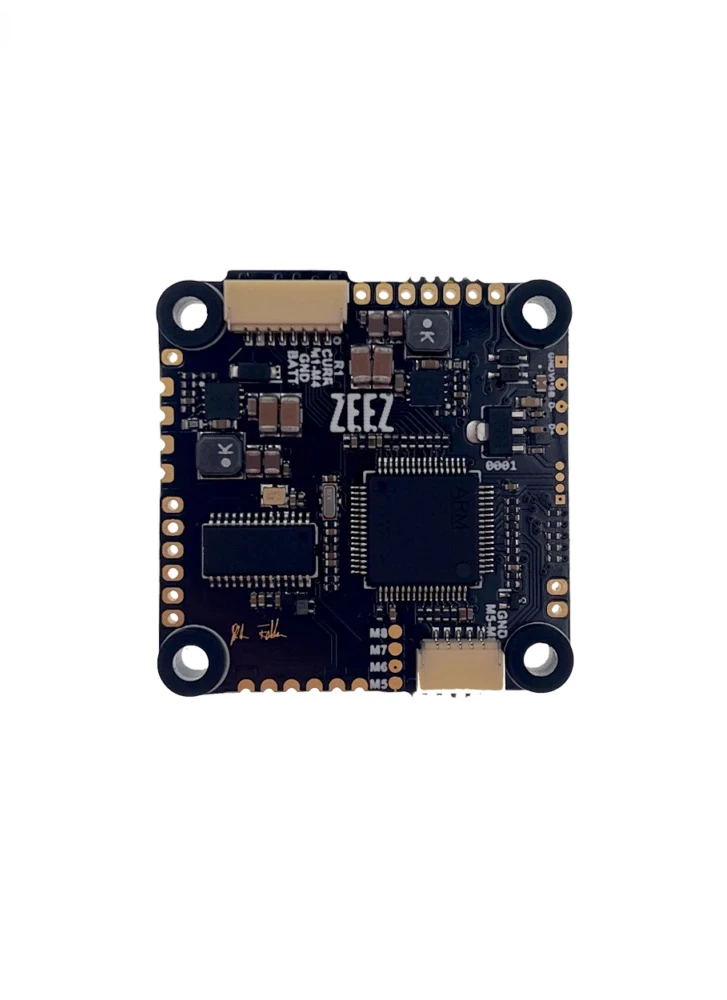

Zeez F7 3030 Flight Controller V3 Compatible with DJI HD FPV

Name: Zeez F7 3030 Flight Controller V3 Compatible with DJI HD FPV - Flying Tech
Brand: Zeez
SKU: FC-ZEEZF73030
Price: 53.50 GBP
Availability: InStock

£53.50 Inc. VAT

This 30×30 FC has been designed with integration for the TBS Crossfire Nano Rx and Unify Nano32 VTX.

Only 5 left in stock

Compare

0 People watching this product now!

SKU: FC-ZEEZF73030 Categories: Racing Drone Flight Controllers, Electronics, Flight Controllers / Autopilots Tags: 3030, DJI, F7, FC, Flight Controller

Description

The ZEEZ F7 V3 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug and play configuration and 5V@3A regulator to power all the peripheral.

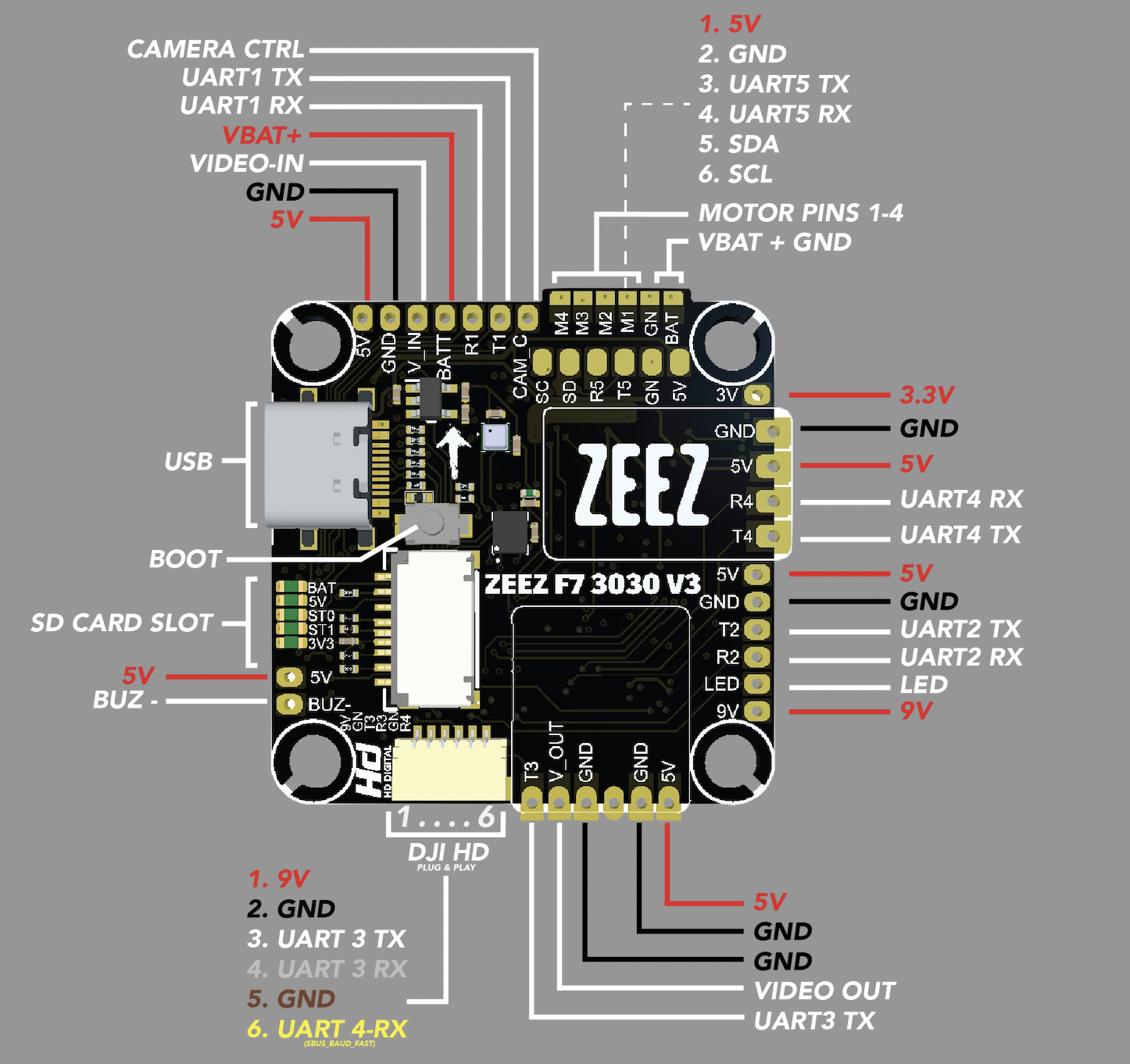

It uses a powerful F7 processor along with top-of-the-line hardware: ICM42688P Gyro, BMP388 Barometer, with a separate power rail for cleanest data. The ZEEZ F7 V3 3030 comes in a standard 30×30 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. We have added a connector for a 2nd ESC to make building X8’s as easy as possible. There are 5 UARTS available as well as, I2C port, SD CARD for Blackbox data record, an OSD chip for analog video.

Zeez F7 3030 Flight Controller V3 Compatible with DJI HD FPV 1

30 X 30

MOUNTING HOLES

3S-6S

BATTERY INPUT

5V-9V

BEC 3A CONTINUOUS

STM32F722

MICRO CONTROLLER

ICM42688P

GYRO/ACC

BMP388

BAROMETER

HD PLUG

DJI AND CADDX VISTA COMPATIBLE

X8

8 MOTOR COMPATIBLE

2nd ESC PLUG

FOR AN EASY X8 BUILD

5 UARTS

AVAILABLE

SD CARD

MAX 8GB (SD and SD HC Supported)

TBS

PAD’S FOR NANO RX & UNIFY PRO 32

Specification

Mounting holes: 30.5×30.5mm
LiPo Power input: 3S-6S
8 Motor output
BEC 5V-3A / 9V-3A
STM32F722 MCU (216MHz max frequency)
ICM42688P/ACC for smooth performance
BMP388 Barometer
OSD chip Onboard
5 available UARTs / I2C bus
LC Filter for 5V VTX and CAM
HD Plug for DJI Air Unit or Caddx Vista
USB Type C connector
Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano

Included:

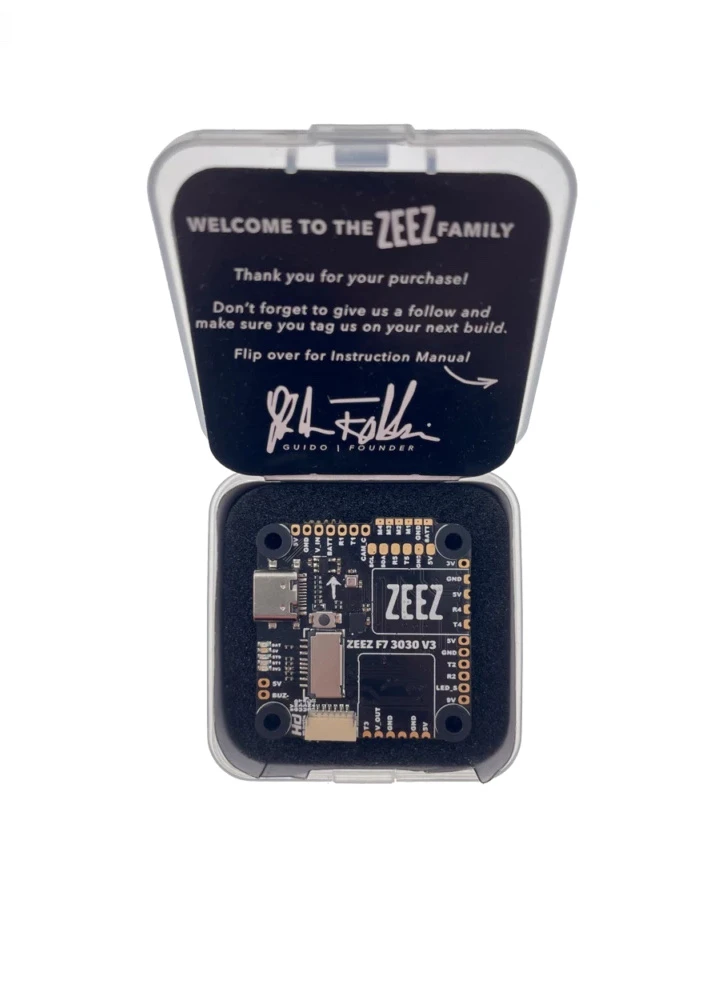

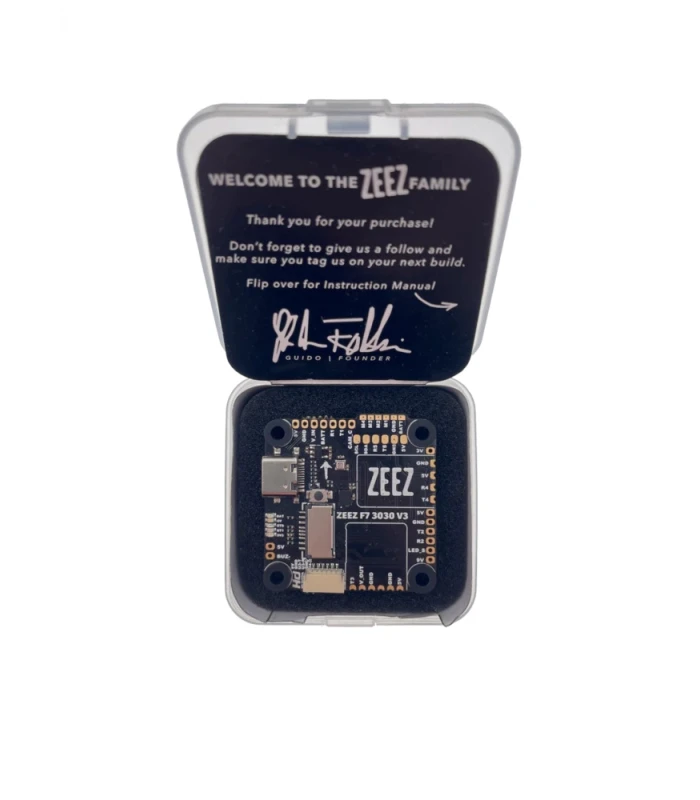

(1X) Zeez F7 V3 3030 Flight Controller
4X) Aluminum Standoff
(4X) Aluminum Nut

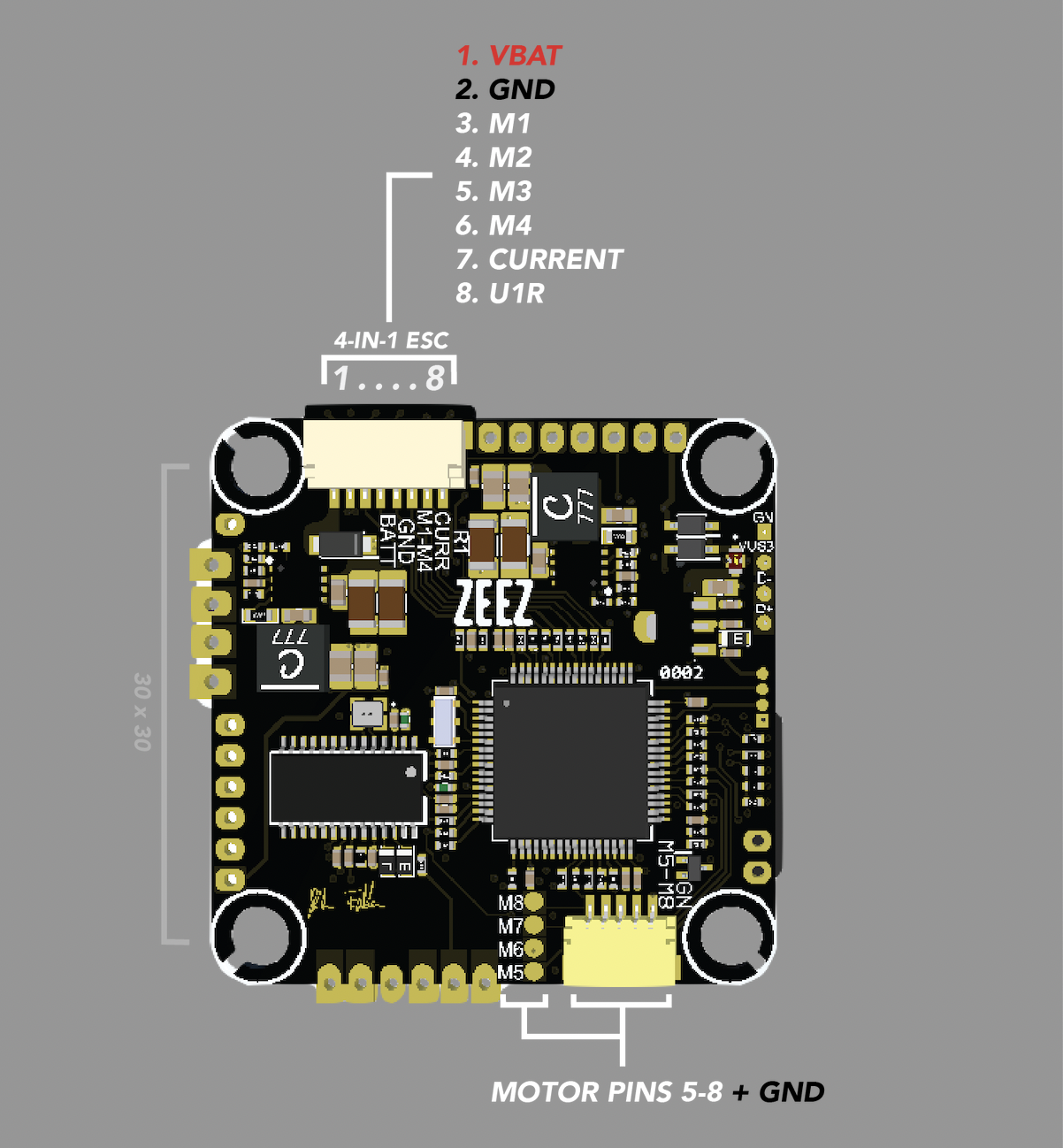

(1X) ESC to Flight Controller 8 Pin to 8 Pin JST SH 1.00mm connector
(1X) ESC to Flight Controller 8 Pin to Free wires (with JST SH crimp)
JST SH 1.00mm connector
(1X) JST SH 8 Pin Plastic Housing
(1X) JST SH 10 Pin Plastic Housing
(2X) 2.00mm Header Pin for VTX connection
(2X) 2.54mm Header Pin for Receiver connection
(1X) JST 6 pin to AirUnit Connector
