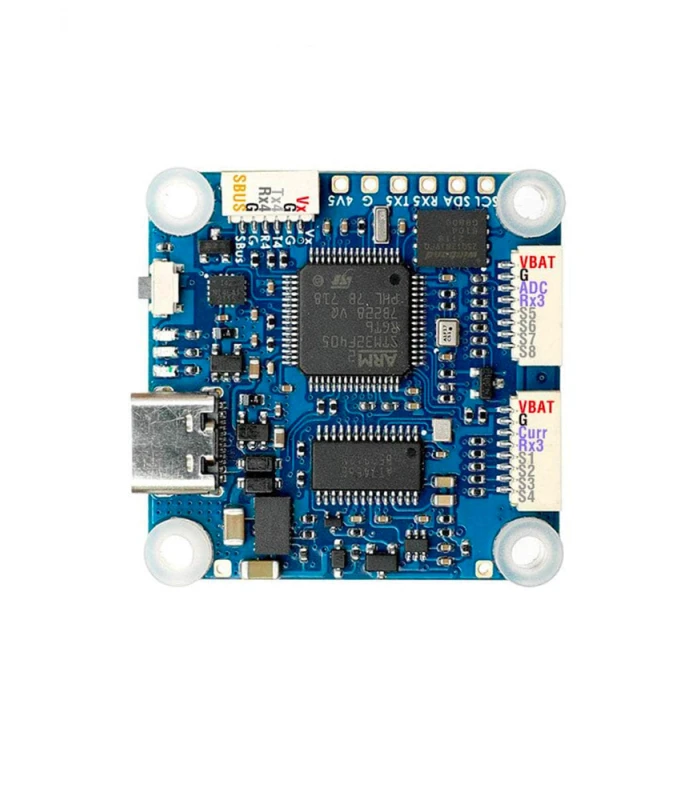

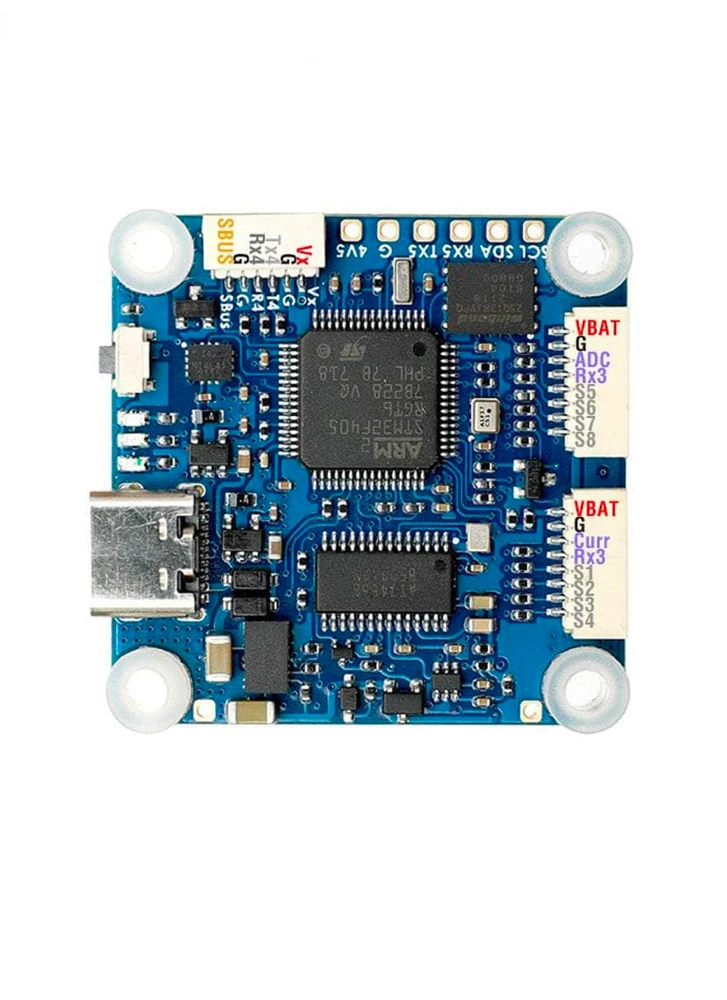

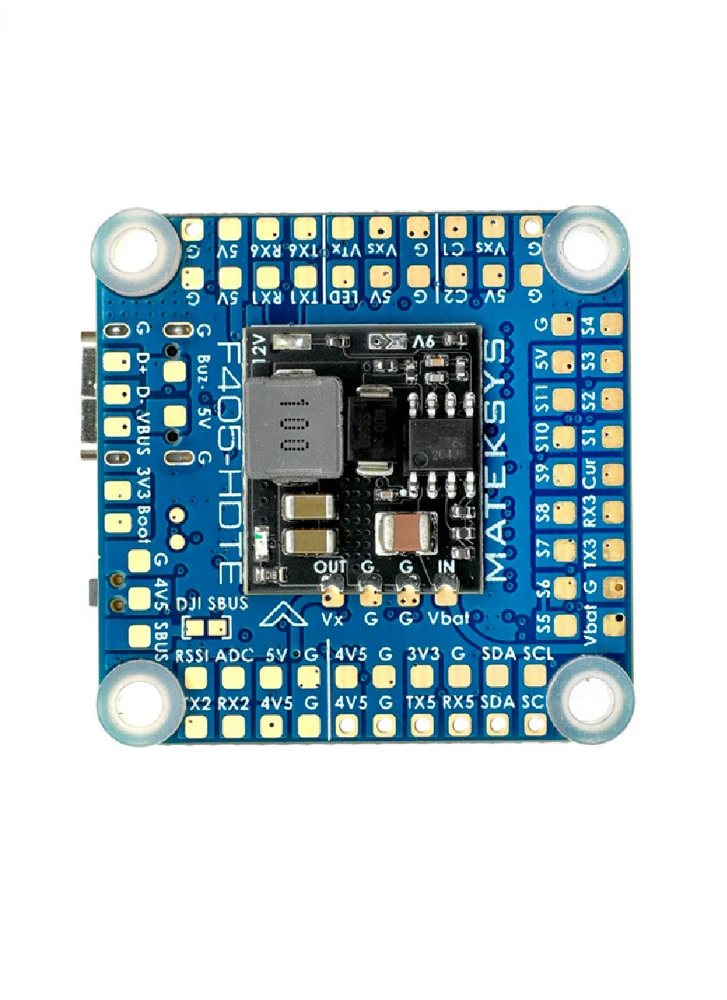

Matek F405-HDTE 30×30 Flight Controller (DJI FPV Compatible)

Name: Matek F405-HDTE 30x30 Flight Controller (DJI FPV Compatible) - Flying Tech
Brand: Matek Systems
SKU: FC-F405HDTE
Price: 58.90 GBP
Availability: InStock

£58.90 Inc. VAT

Another feature rich offering from Matek in the 30×30 class. Loaded with features for digital and analog builds.

Only 1 left in stock

Compare

0 People watching this product now!

SKU: FC-F405HDTE Categories: Racing Drone Flight Controllers, Electronics, Flight Controllers / Autopilots Tags: 30x30, Ardupilot, FC, Flight Controller, H7, iNav

Description

FLIGHT CONTROLLER F405-HDTE

STM32F405RGT6, ICM42688-P, SPL06, OSD, 6x UARTs, 1x I2C, 12x PWM outputs, Dual BEC, 3-12S LiPo Input

Another feature rich offering from Matek in the 30×30 class. Loaded with features for digital and analog builds. This FC uses the 3rd generation ICM42688-P IMU, provides 6 UARTS, a barometer, OSD and support for analog or digital FPV systems – for DJI HD (Caddx Vista / DJI Air Unit) there is a direct plug connection. It can be used for both quadcopters and octocopters as it features two 4in1 ESC 8 pin connectors for ESC signals 1-8. It also has scope for a further 3 servo output using software mixers. The Matek F405 HDTE FC is a versatile controller, being compatible with Betaflight, Emuflight, INAV, and Ardupilot firmwares. Finally, the FC has a very wide input voltage range of 9-60V DC.

Features

STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
InvenSense the 3rd generation IMU ICM42688-P
9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX
8motors+3servos in INAV/BF multirotor mixer.
SH1.0_8pin connector for PnP with 2x 4in1 ESC
SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
USB pin breakout for connecting to external USB adapter

Specification

MCU: STM32F405RGT6
IMU: ICM42688-P
OSD: AT7456E, DJI OSD
Baro: SPL06-001 (I2C)
Blackbox: 16M-byte Flash memory
6x UARTs, 1x Softserial_Tx option
12x PWM outputs (8x Dshot)
1x I2C
4x ADC (VBAT, Current, RSSI, Airspeed)
2x PINIO
2x SH1.0_8pin connector for 4in1 ESC
1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
9~16V( VTX’s) output ON/OFF switchable
Dual analogue camera signal switchable

Power

Input: 9~60V (3~12S LiPo)
BEC: 5V 1.5A
BEC: Vx, 9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware

ArduPilot: MatekF405-TE
INAV: MATEKF405TE
BetaFlight: MATEKF405TE
In the box
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 36 x 36 x 5 mm
Weight: 7g

Included:

1x FC F405-HDTE
6x Silicon grommets M4 to M3

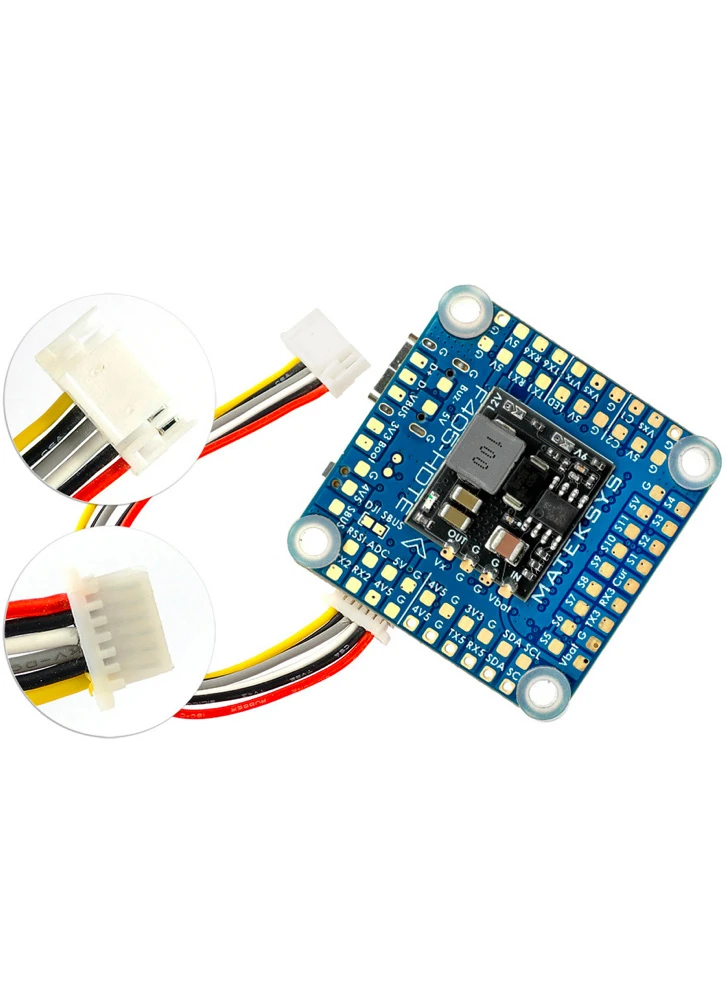

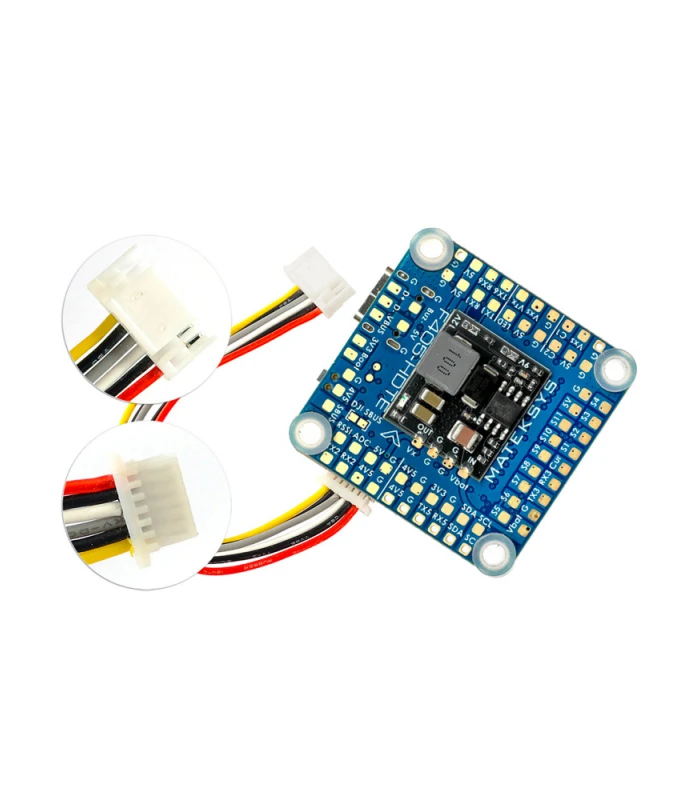

1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit
