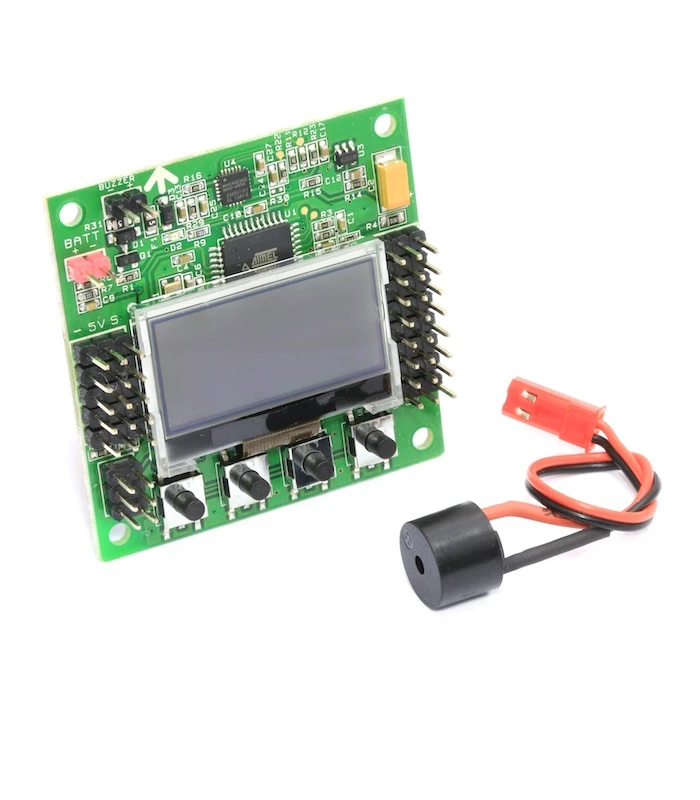

KK2.1.5 Multirotor LCD Flight Control Board

£44.99 Inc. VAT

The KK can be setup without a computer thanks to its built in LCD and simple press buttons.

In stock

0 People watching this product now!
Description

The next evolution of the rotor revolution is here!! The KK2.1.5 is packing new found power with updated sensors, memory and header pins.

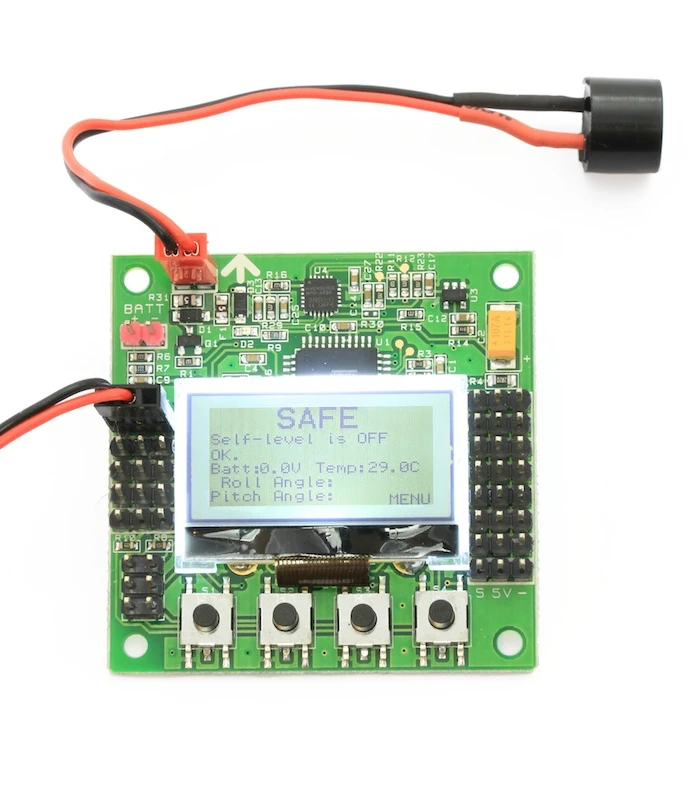

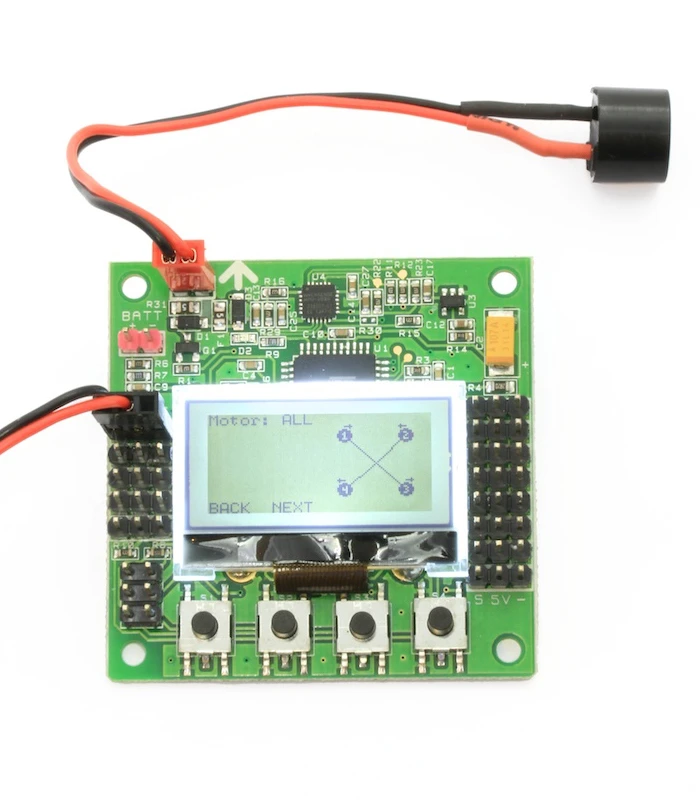

The KK2.1.5 is next big evolution of the first generation KK flight control boards. The KK2.1.5 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The LCD screen and built in software makes install and setup easier than ever. A host of multi-rotor craft types are pre-installed, simply select your craft type, check motor layout/propeller direction, calibrate yourย ESCs and radio and youโ€™re ready to go! All of which is done with easy to follow on screen prompts!

The original KK gyro system has been updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK2.1.5 is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory. An additional polarity protected header has been added for voltage detection, so no need for on-board soldering. A handy piezo buzzer is also included for audio warning when activating and deactivating the board.

The KK2.1.5 added polarity protection to the voltage sense header and a fuse protected buzzer outputs, in case something is accidentally plugged in incorrectly. The voltage sense line has been updated for better accuracy. The board is clearly labeled and the voltage sense line color has been changed to red for easy identification, making installation and connections a snap.

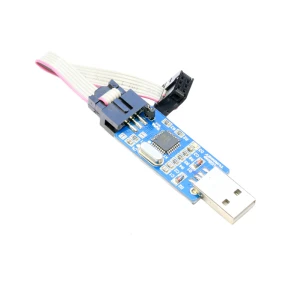

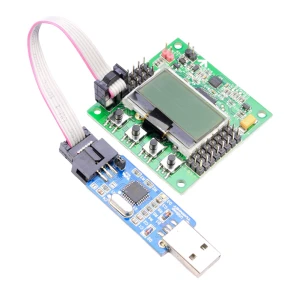

If youโ€™re new to multi-rotor flight or have been unsure about how to setup a KK board then the KK2.1.5 was built for you. The 6 Pin USBasp AVR programming interface ensures future software updates will be quick and easy.

Specification
  • Size:ย 50.5mm x 50.5mm x 12mm
  • Weight:ย 21 gramย (Inc Piezo buzzer)
  • Input Voltage:ย 5V (from voltage regulator UBEC)
  • IC:ย Atmega644 PA
  • Gyro/Acc:ย 6050MPU InvenSense Inc.
  • Auto-level:ย Yes
  • AVR interface: Standard 6 pin.
  • Signal from Receiver:ย 1520us (5 channels)
  • Signal toย ESC:ย 1520us
Downloads
Manual (pdf, 466KB)
