Sequre SQESC 14200 & 14200 Pro Brushless 200A ESC 5-14S BLHeli_32 / AM32

Price range: £105.00 through £129.90 Inc. VAT

The Sequre 14200 series delivers pro-level brushless power for your most demanding builds. Choose your version: the Pro comes pre-soldered with an adjustable BEC.

Version

ESC Firmware

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Speed Controllers (ESCs), Electronics, Speed Controllers (ESCs), Fixed Wing ESCs, Single ESCs, Planes & Wings, Plane Electronics Tags: BEC, BLHeli_32, Dshot1200, ESC, Speed Controller

Description

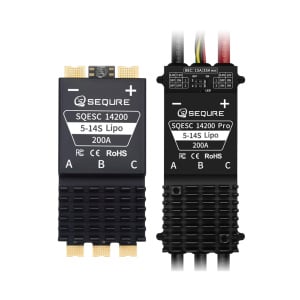

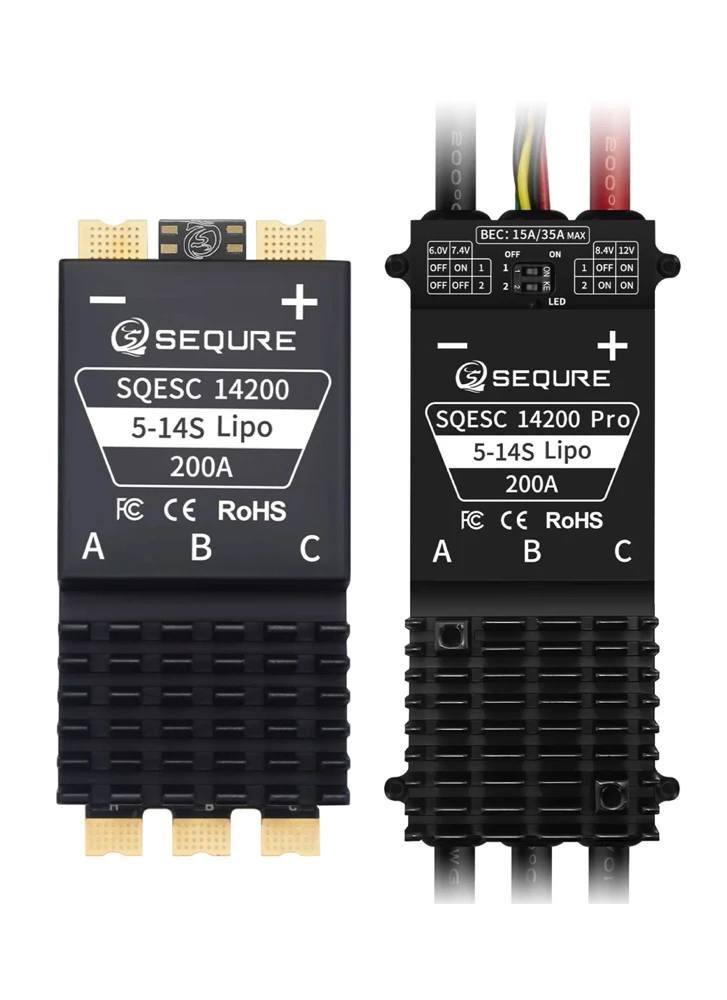

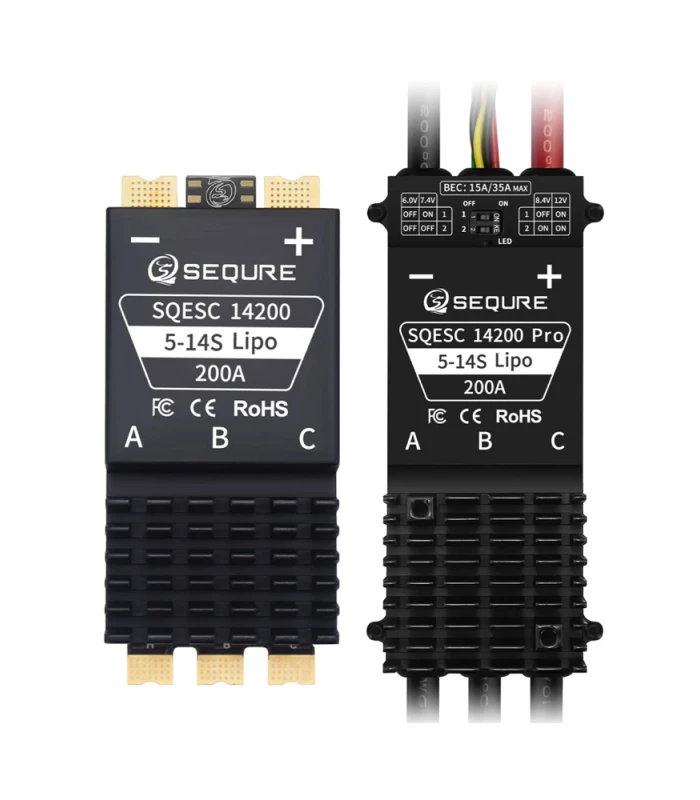

The Sequre SQESC 14200 and 14200 Pro are high-performance 200A brushless ESCs designed for demanding applications. Supporting 5–14S input, these ESCs deliver smooth, responsive power with advanced BLHeli_32 or AM32 firmware options, ensuring precise throttle control and fast response whether on water, land, or in the air.

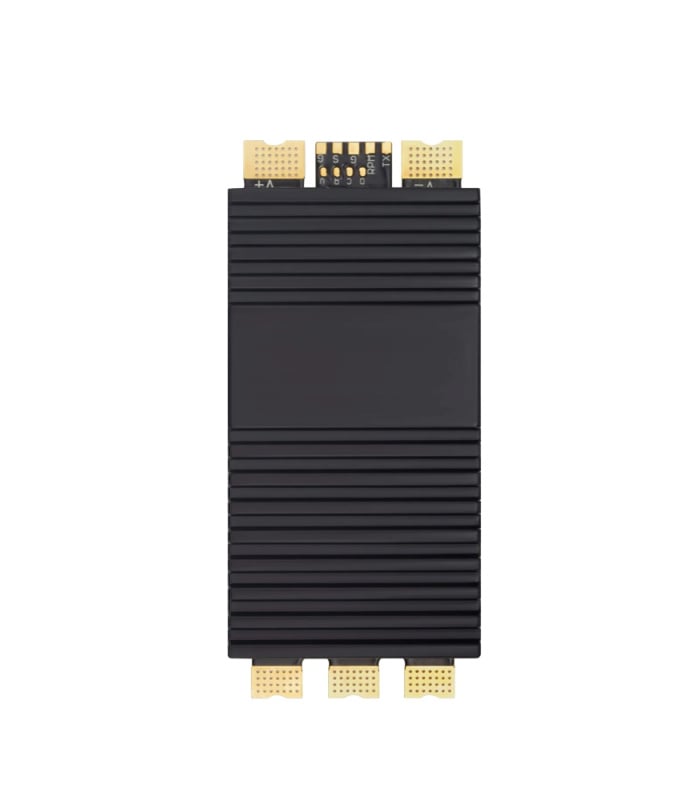

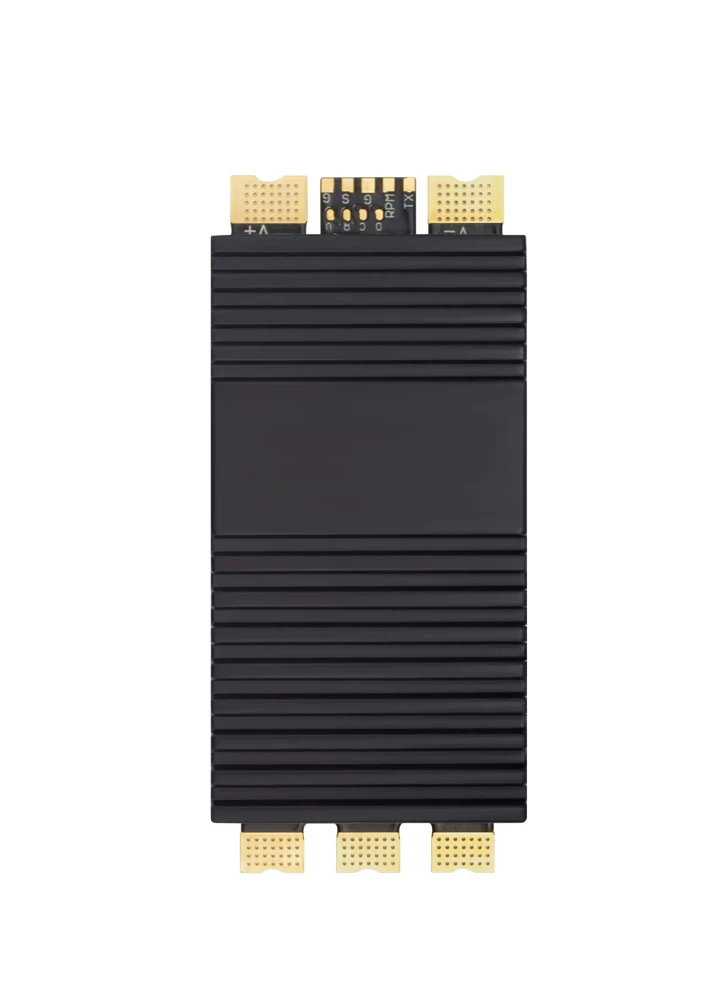

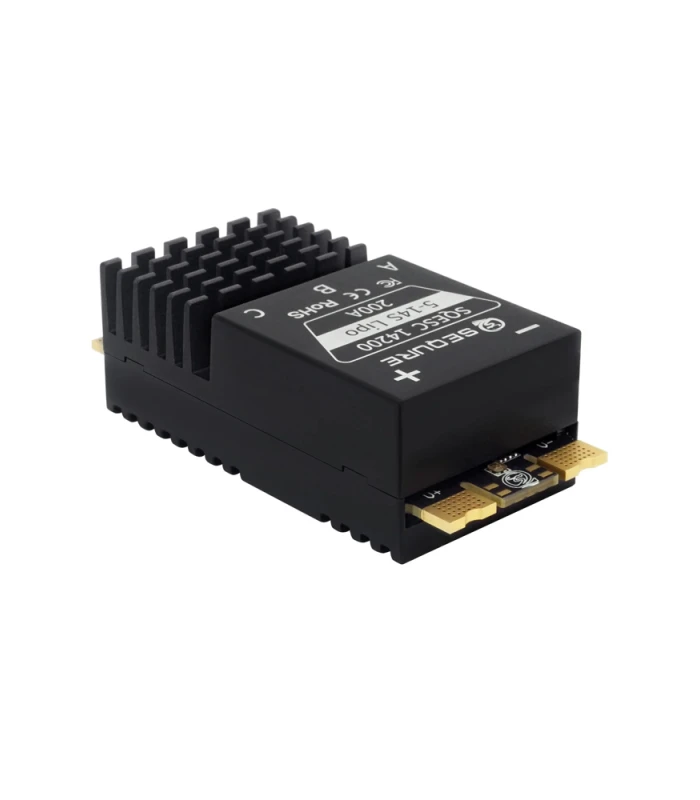

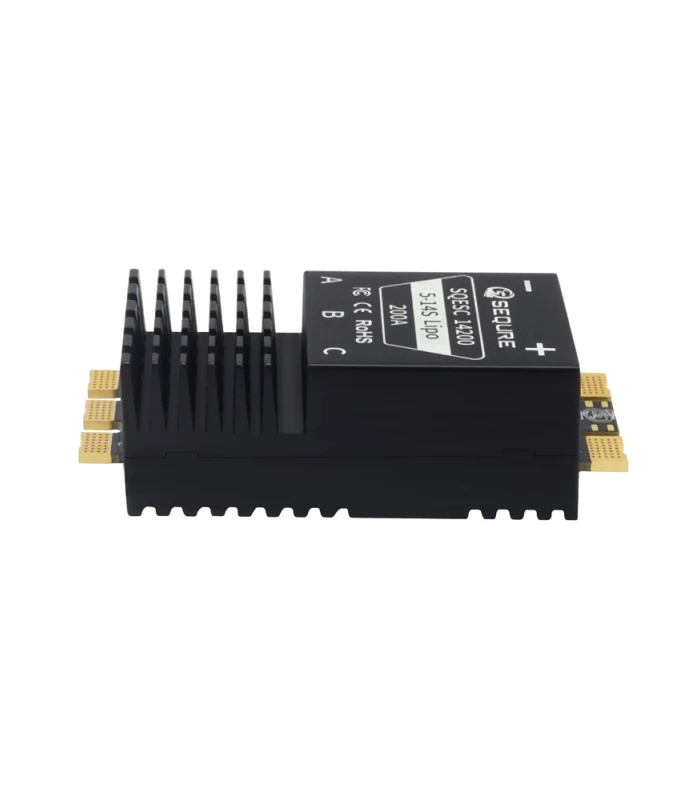

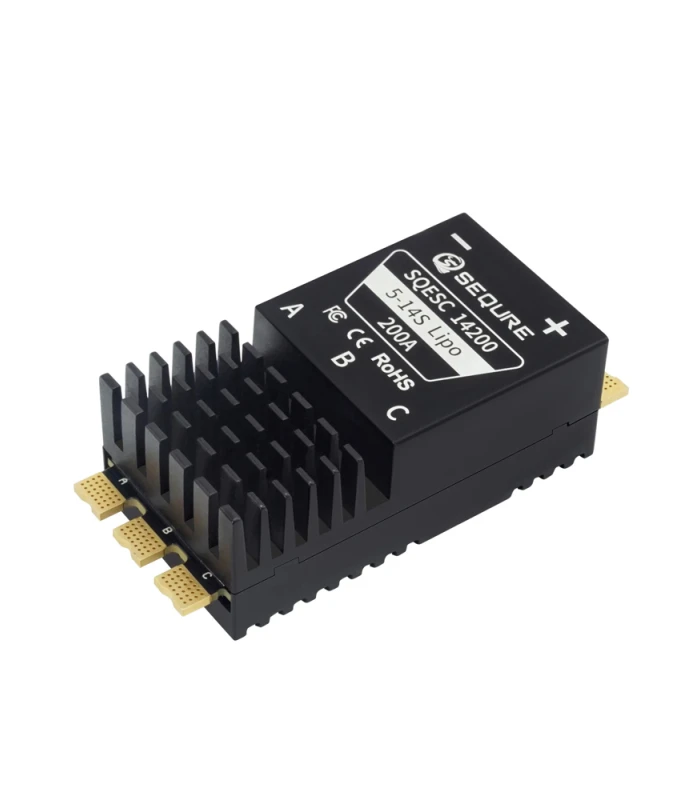

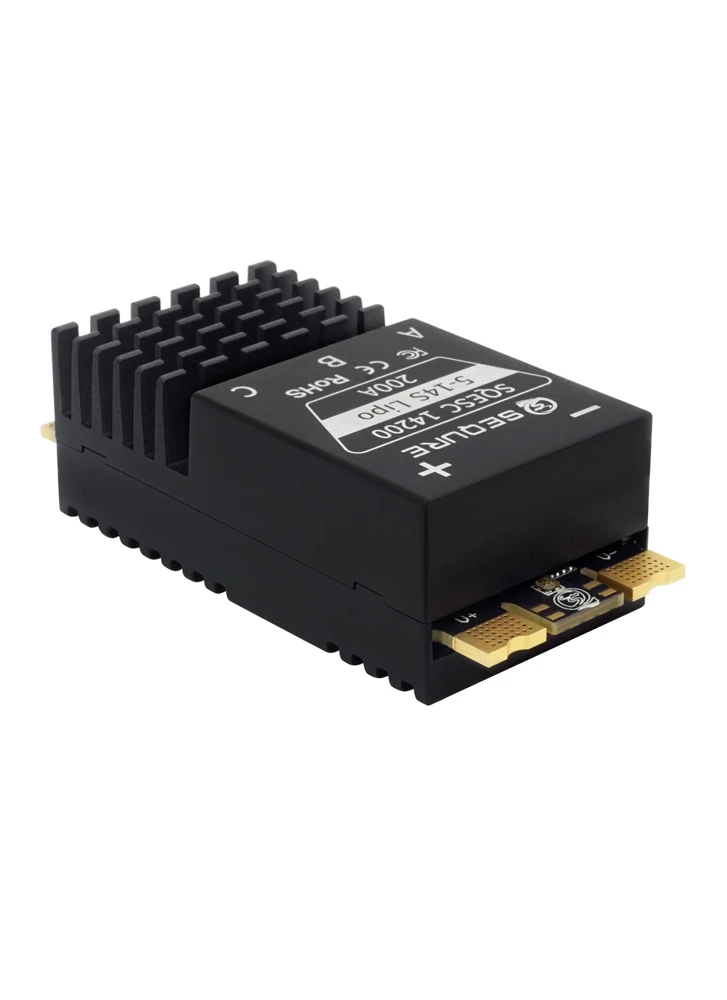

Both versions feature a 6061 aluminium alloy casing with an integrated heatsink design for excellent heat dissipation and durability. The Pro version adds an active cooling fan for enhanced thermal management during high-current use, maintaining stability under sustained heavy loads. It also comes with power and motor wires pre-soldered for faster installation, while the standard 14200 version offers large, clean pads ready for your preferred soldering layout.

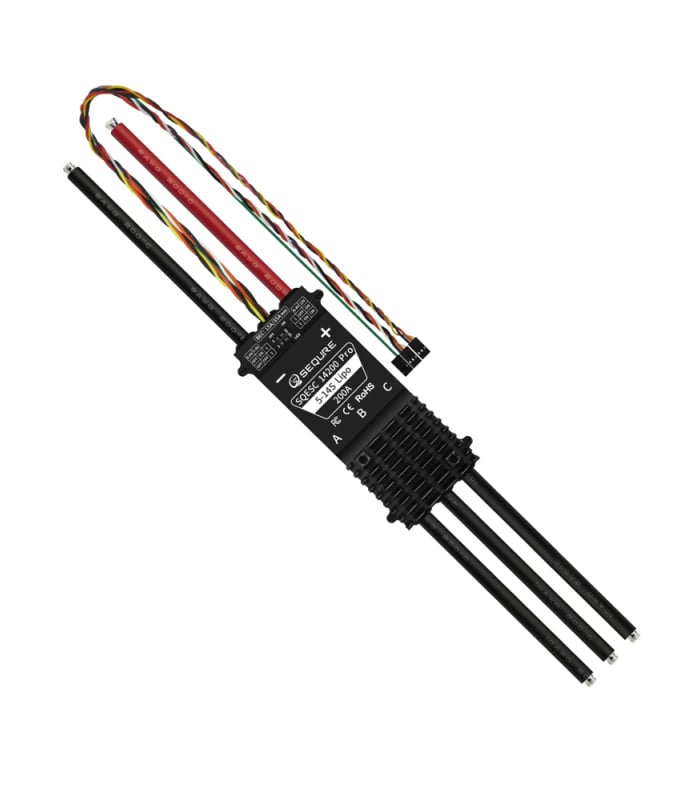

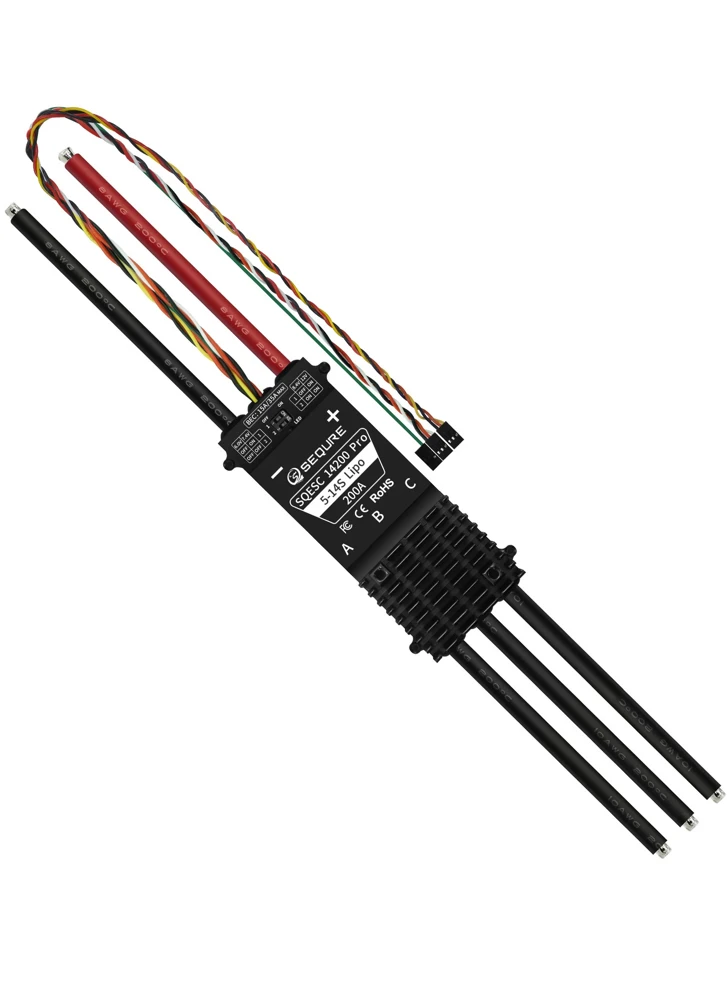

Exclusive to the Pro version, an integrated BEC with DIP switch control allows selection between 6V, 7.4V, 8.4V, or 12V output, providing 15A continuous (35A peak) to power servos, video systems, lighting, or onboard electronics directly, simplifying wiring in your build. Both versions include casing slots for cable ties, making it easy to secure the ESC in tight spaces or vibration-prone environments.

With support for bidirectional DShot and telemetry, these ESCs provide real-time RPM feedback and efficient motor braking, allowing advanced tuning and performance monitoring (ESC programmer required – here).

Whether you’re building a long-range cruiser, a powerful FPV rig, a high-performance RC boat, or a custom electric skateboard, the Sequre 14200 and 14200 Pro ESCs deliver reliable, high-current performance to meet your most demanding needs.

BLHeli_32 Notice:

We would like to inform customers about recent changes affecting the availability of BLHeli_32 firmware. As of 2024, the development and licensing of BLHeli_32 have been discontinued, and official support channels, including firmware updates, are no longer accessible.

How This Affects You:

Future firmware updates for BLHeli_32 ESCs will no longer be provided.
ESCs with factory-installed BLHeli_32 may still function but without ongoing support or new features.

Sequre’s Solution:
To assist customers, Sequre has developed its own version of BLHeli_32 firmware. This version allows users to continue configuring their BLHeli_32 ESCs with full functionality. You can download Sequre’s firmware directly from their website to maintain and update your ESCs hassle-free.

Looking Ahead with AM32 Firmware:
We also offer Sequre ESCs pre-flashed with AM32 firmware. AM32 is a modern, open-source alternative that is actively maintained and offers the same high-level features with continued updates.

Specification

Model Name	SQESC 14200	SQESC 14200 Pro
Processor	STM32G071
Input Voltage	DC 18V-59V(5-14S Lipo)
Continuous Current (Good Heat Dissipation)	200A
Maximum current (Good Heat Dissipation)	350A
Support Firmware	BLHeli_32，AM32，ESCape32，Optional
Signal Protocol	Dshot(All), PWM, Oneshot, Multishot, etc.
RPM Specialized Signal	BLHeli_32（NO），AM32（YES），ESCape32（YES）
Programming Parameter Adjustment	Support
Throttle Calibration	Support
Timing Angle Setting	Support
Current Detection	Support
Telemetry Signal	Support
Motor Steering Settings	Support
RGB LED Color Lights	Support
FAN	NO	YES
BEC	NO	BEC：6V/7.4V/8.4V/12V, 15A Continuous current 35A peak current. FAN：5V 0.5A continuous current
Power and Motor Cables	NO	Power Cable(8AWG silicone wire 160mm) Motor Cable(10AWG silicone wire 160mm)
Product Size	85.53826.5mm (LWH)	964638mm(LWH, not including wire)

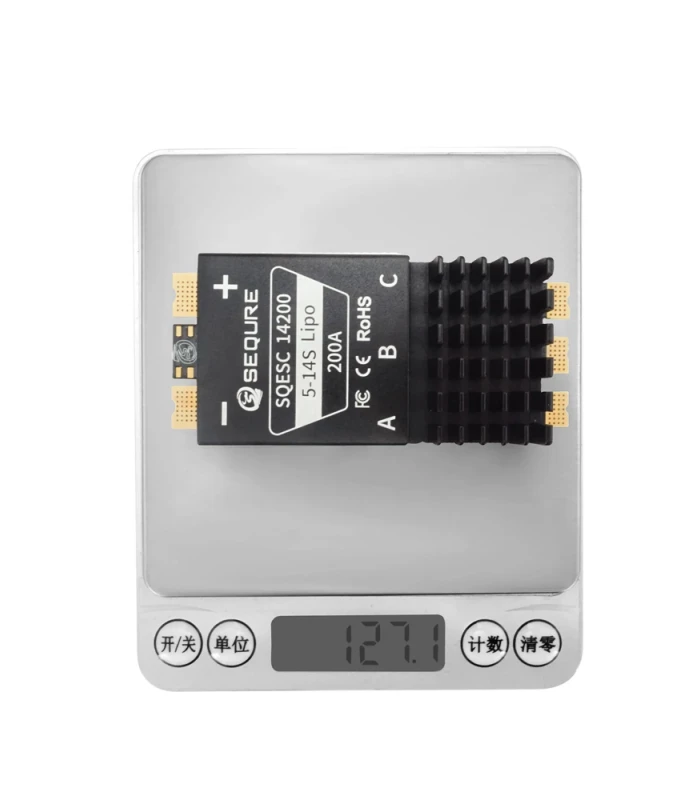

Product Weight	127g	293g(including wire)
Application Scenarios	Multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc

Included:

14200（AM32）/ 14200（BLHeli_32):

14200 ESC×1
300mm Twisted Pair Cable×2
Casing Pipe(black and red)×6
4*250mm Black Tie Straps×1

14200 Pro（AM32）/14200 Pro（BLHeli_32):

14200 Pro ESC×1
5V Fan×1
4*250mm Black Tie Straps×2
M3*14 Hexagonal Screws×4
M3*6 Hexagonal Screws×6
Transparent Heat Shrinkable Sleeve×4
H2 Allen Key×1

Downloads

Manual (pdf, 1327KB)

Download

BLHeliSuite32 (zip, 10616KB)

Download

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
