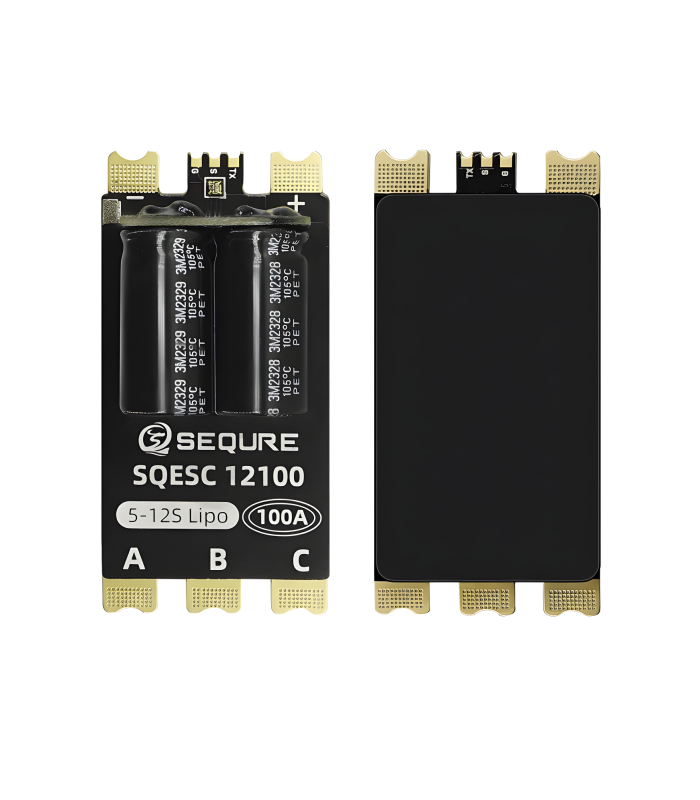

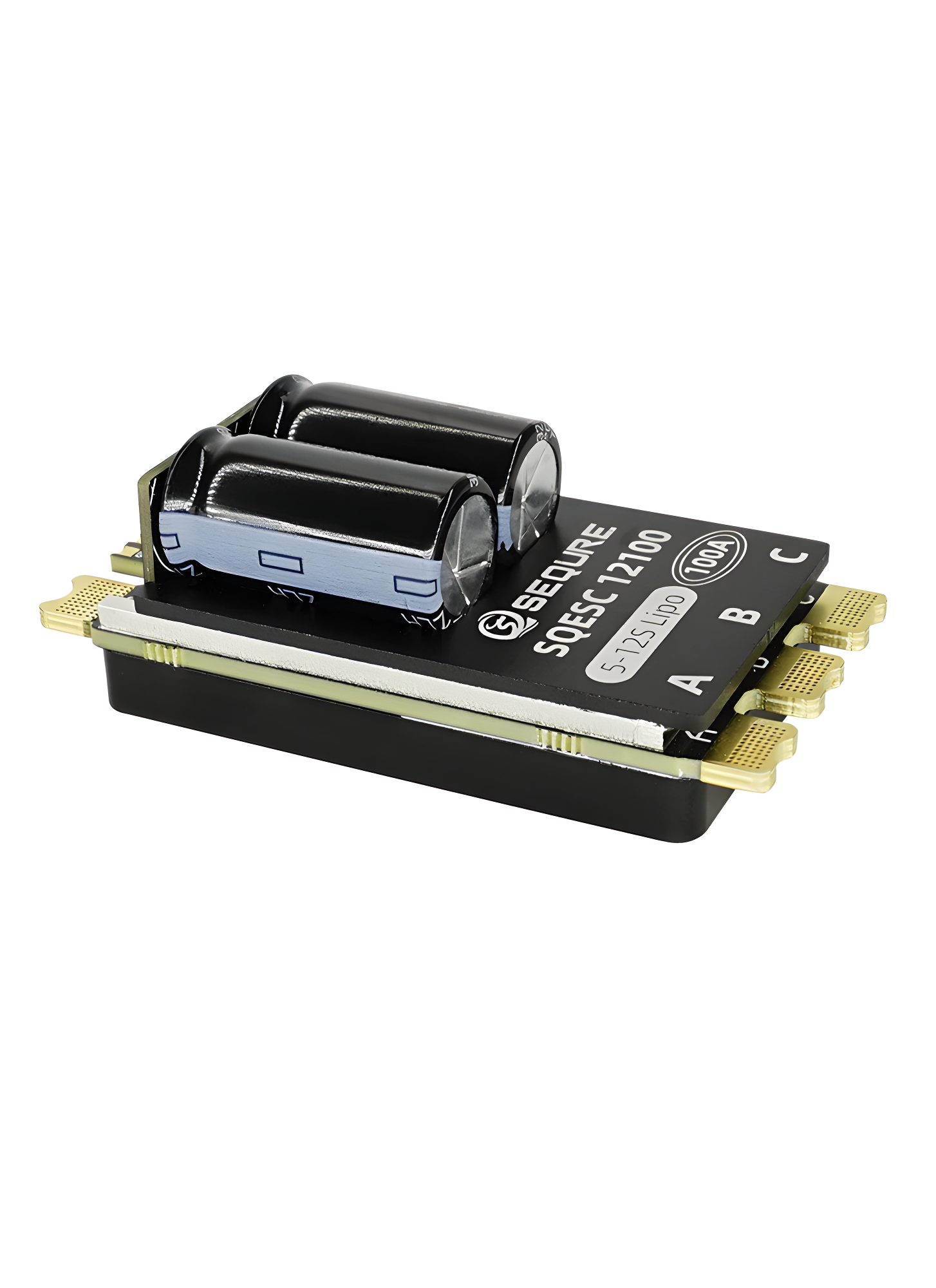

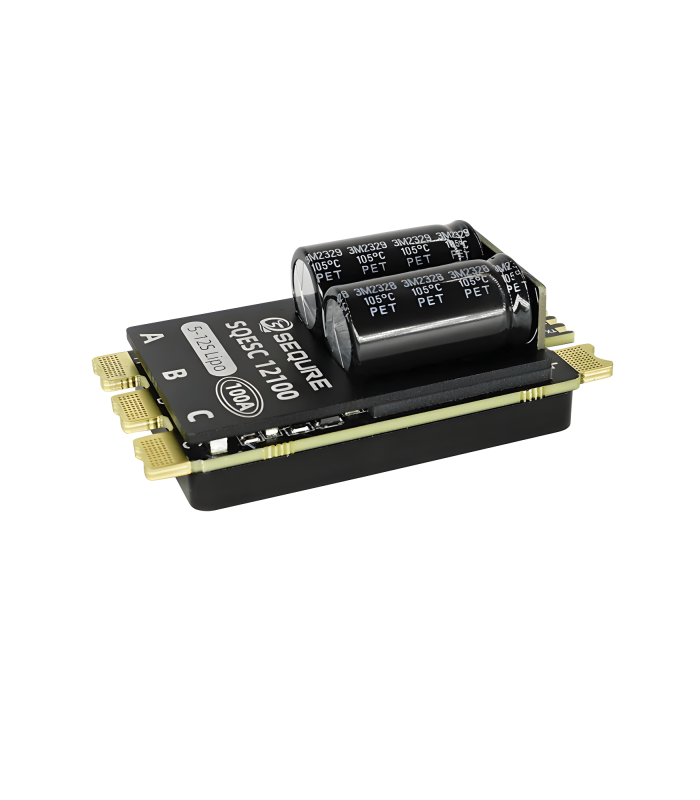

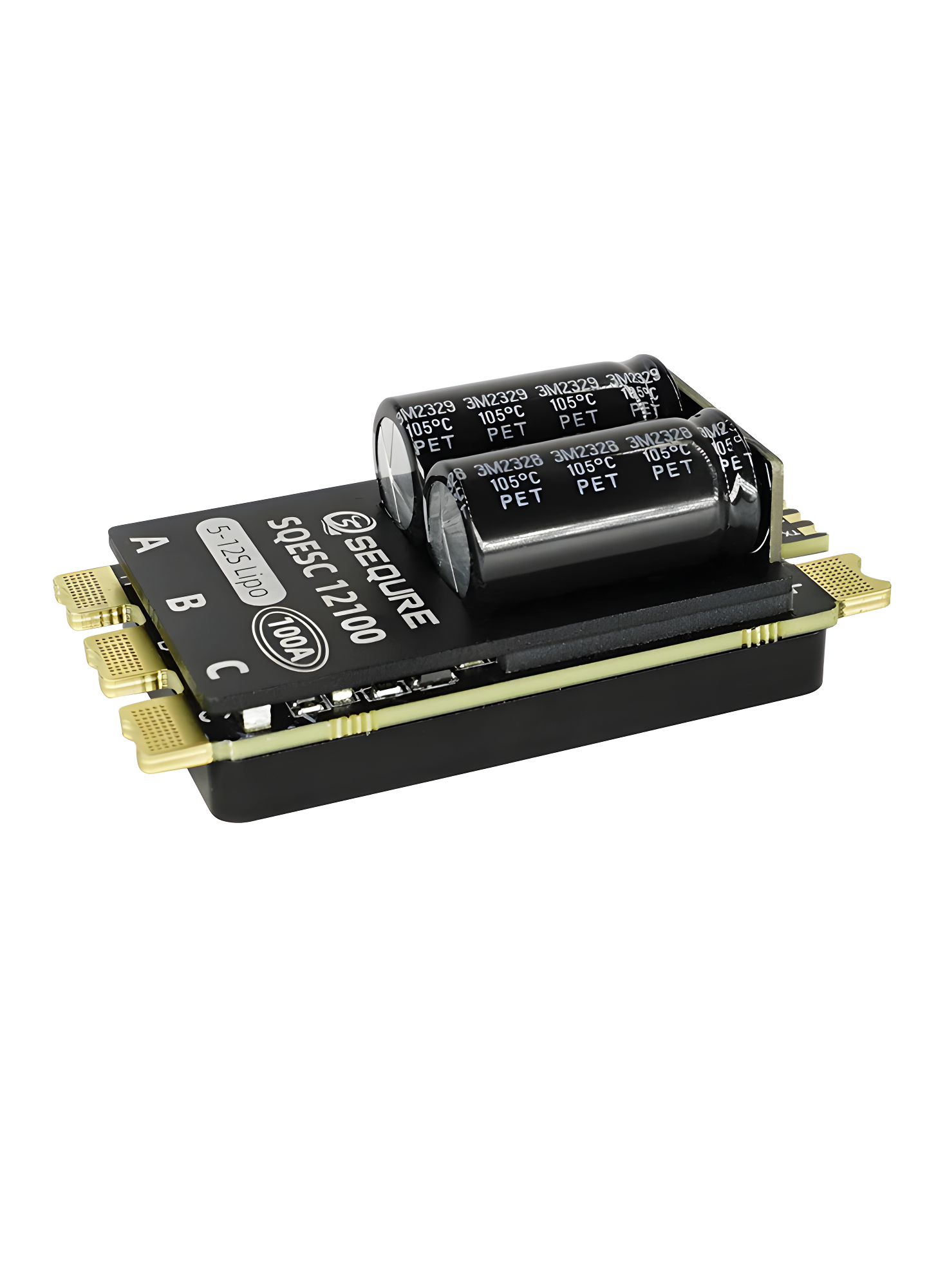

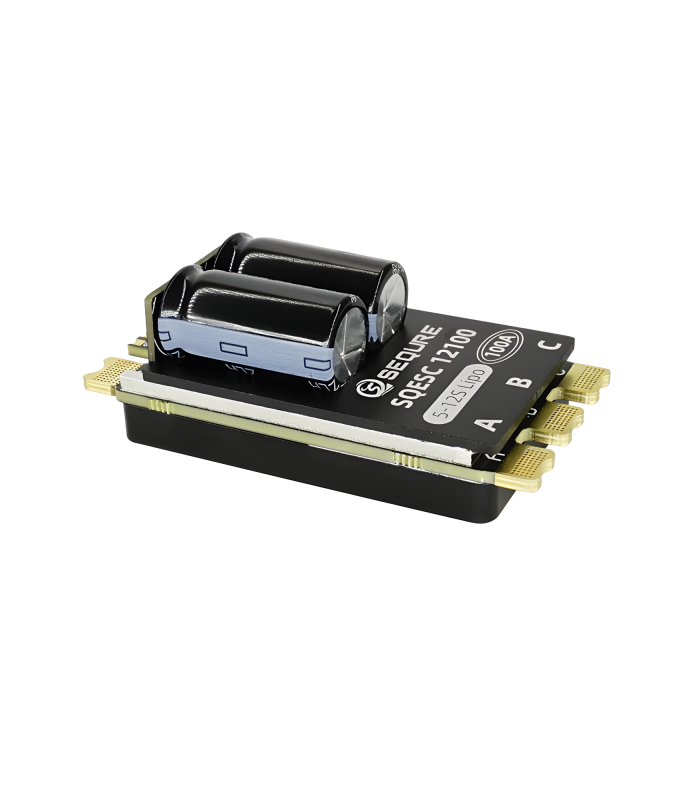

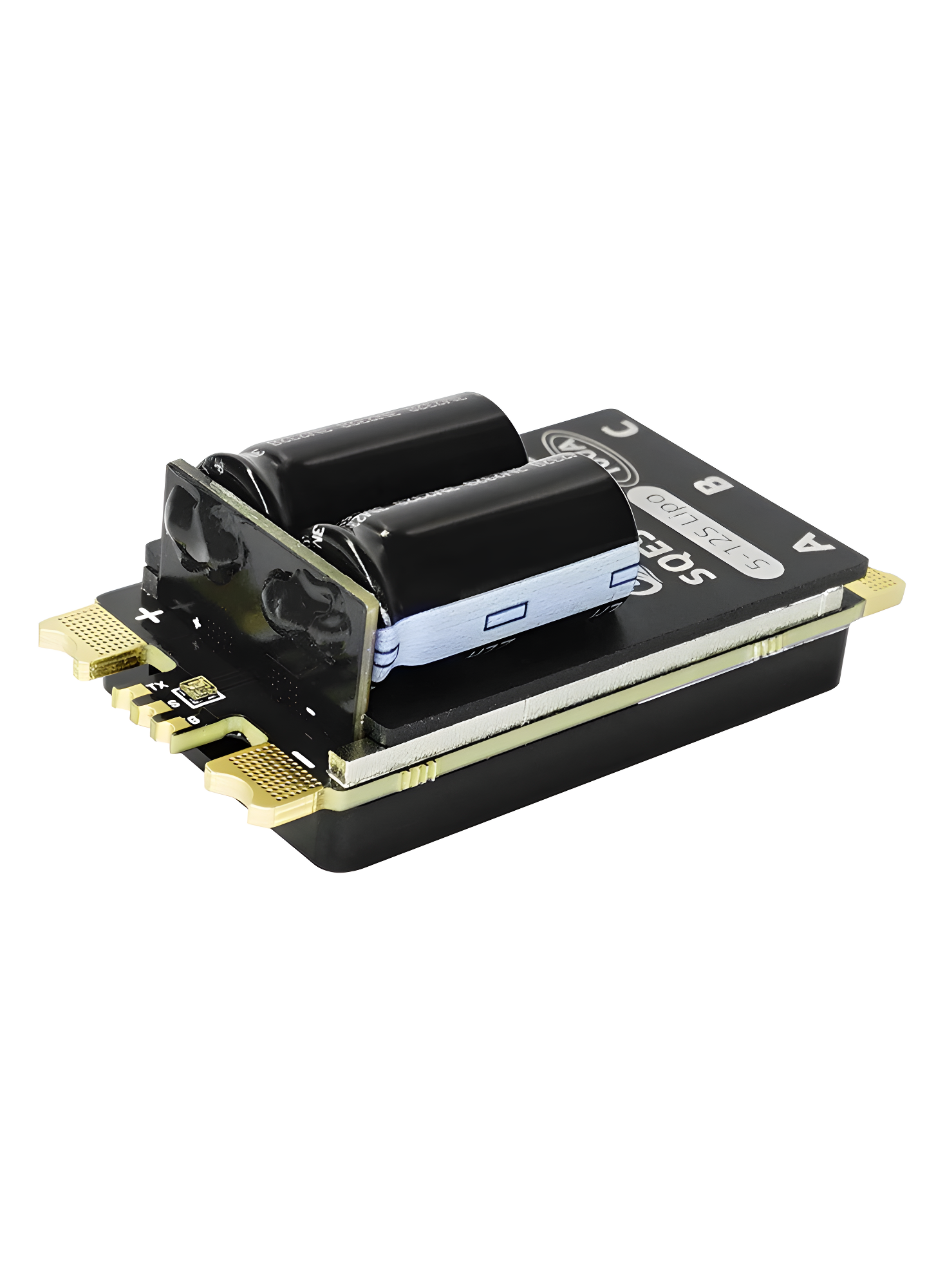

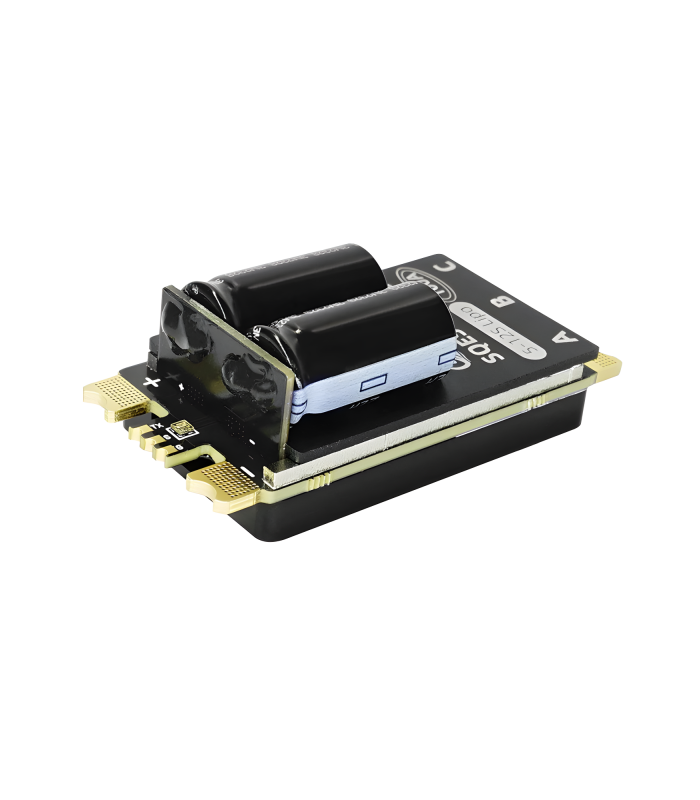

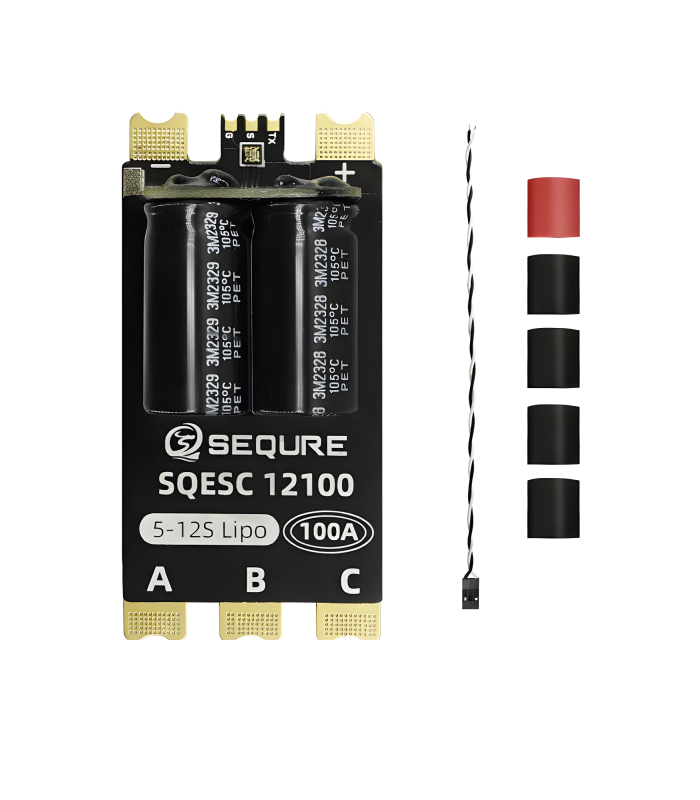

Sequre SQESC 12100 Brushless 100A ESC 5-12S

£49.90 Inc. VAT

Rated for 100A continuous / 180A burst and 5-12S input voltage. Choice of BL32 / AM32 firmware.

0 People watching this product now!
Description

BLHeli_32 Notice – click here to read more.

Sequre is a brand well known in the hobby world for making innovative hobby tools like smart soldering irons and screwdrivers. They are now expanding their offering with component electronics.

This SQESC 12100 is a powerful brushless speed controller (ESC) which makes use of the latest in drone ESC technology. This ESC isnโ€™t just for drones though. Itโ€™s universal to all RC models, be that fixed-wing aircraft, cars, boats and so on.ย

The ESC is rated for 100A continuous / 180A burst current. It supports a wide voltage input, 5-12S LiPo (18-50V). The ESC runs BLHeli_32 / AM32 firmware (select as required), allowing it to be configured to meet your needs. For example setup relating to: ESC brake, motor timing, direction, throttle calibration, current detection and other settings can be adjusted (ESC programmer required โ€“ here).

Features:

  • Utilises 32-bit high-performance processor STM32G071
  • Supports working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency
  • Works with all Dshot signals.ย  Also supports signal protocols such as PWM, Oneshot and Multishot.
  • Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
  • Features multiple protections such as low voltage protection, temperature protection, locked rotor protection and current protection.

SEQURE 12100 Brushless Electric Speed Controller InfoBanner

BLHeli_32 Notice:



We would like to inform customers about recent changes affecting the availability of BLHeli_32 firmware. As of 2024, the development and licensing of BLHeli_32 have been discontinued, and official support channels, including firmware updates, are no longer accessible.

How This Affects You:

  • Future firmware updates for BLHeli_32 ESCs will no longer be provided.
  • ESCs with factory-installed BLHeli_32 may still function but without ongoing support or new features.

Sequreโ€™s Solution:
To assist customers, Sequre has developed its own version of BLHeli_32 firmware. This version allows users to continue configuring their BLHeli_32 ESCs with full functionality. You can download Sequreโ€™s firmware directly from their website to maintain and update your ESCs hassle-free.

Looking Ahead with AM32 Firmware:
We also offer Sequre ESCs pre-flashed with AM32 firmware. AM32 is a modern, open-source alternative that is actively maintained and offers the same high-level features with continued updates.

Specification
  • Processor: STM32G071
  • Input voltage: DC 18V-50.4V๏ผˆ5-12S Lipo๏ผ‰
  • Continuous current (good heat dissipation): 100A
  • Maximum current ย (good heat dissipation): 180A
  • Support firmware:ย BLHeli_32๏ผŒAM32
  • Signal protocol:ย Dshot (All), PWM, Oneshot, Multishot, etc.
  • Programming parameter adjustment: Support
  • Throttle calibration:ย Support
  • Timing angle setting:ย Support
  • Current detection:ย Support
  • Telemetry signal:ย Support
  • Motor steering settings:ย Support
  • RGB LED color lights:ย Support
  • BEC (if any): NO
  • Size: 65x32x22.5mm
  • Weight: 61.8g
  • Application scenarios:ย FPV racing drones, multi-axis drones, fixed-wingย ย UAV, model ships, climbing vehicles, model cars, etc.
Downloads
Manual (jpg, 988KB)
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.ย

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying โ€œCineliftersโ€.ย

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an โ€œAIO flight controllerโ€ (a type of flight controller with integrated PDB) for power supply.
