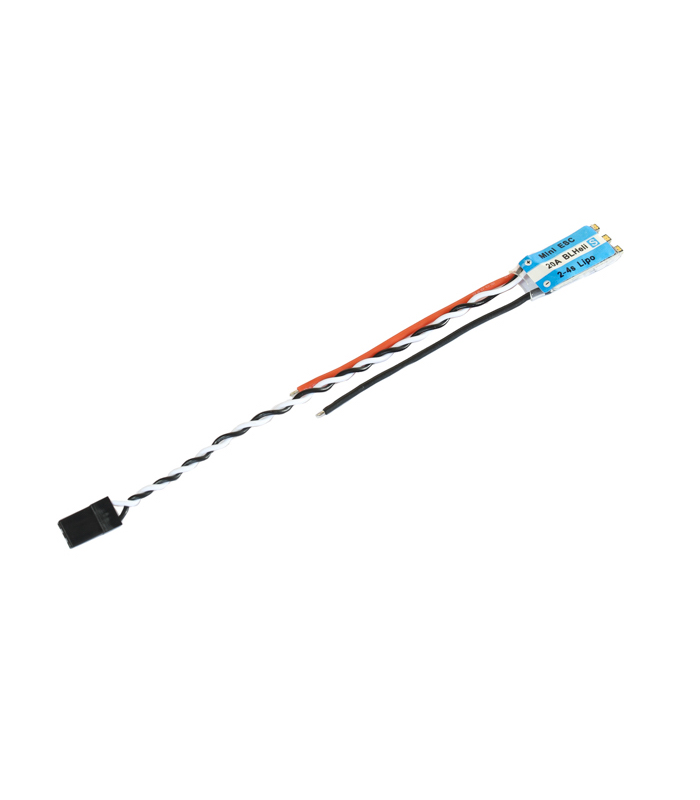

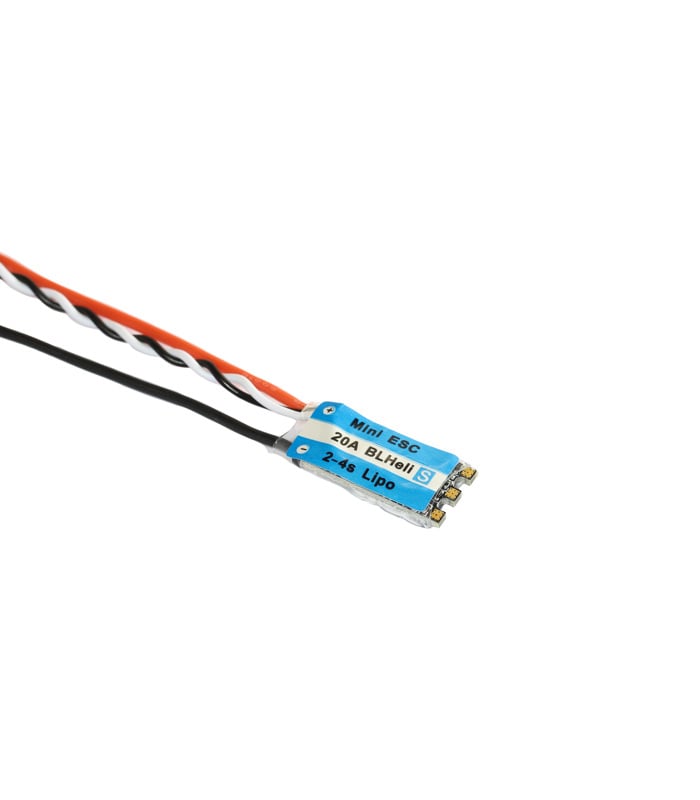

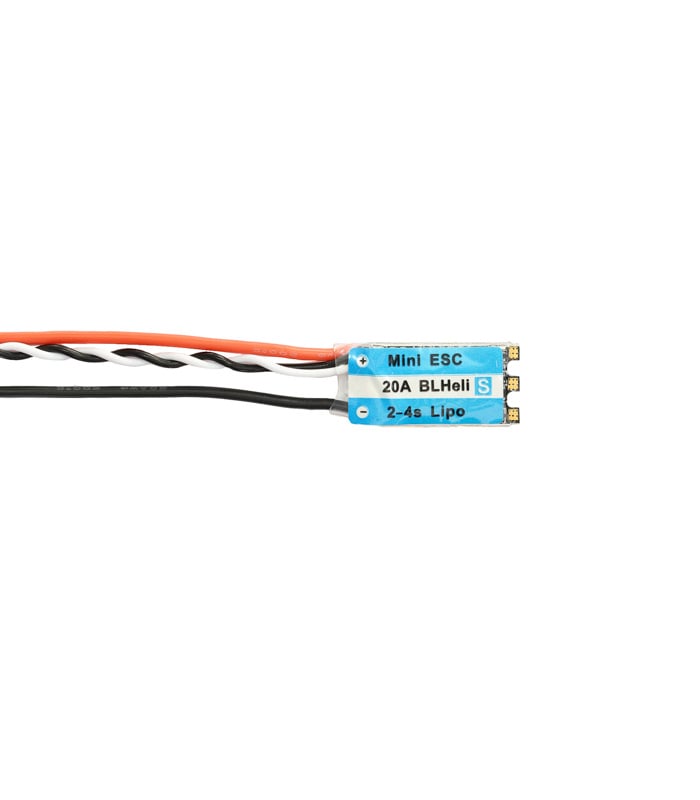

Racing Drone 20A 2-4S Mini BLHeli-S OPTO ESC

£7.90 Inc. VAT

These affordable ESCs are perfect for those building their first racing drone.

In stock

0 People watching this product now!
Description

These affordable ESCs are perfect for those building their first racing drone. It is rated at 20amps, supports 2-4S LiPo batteries, weighs just 7.9g and measures a tiny 27x12mm, meaning it can be installed with room to spare on a 250 FPV racing quad. They also follow the latest trend of having solder pads rather than pre-attached wires, which makes the soldering much easier.

With these ESCs you can take advantage of the BLHeli_S. They come with BLHeliS firmware pre-flashed and support DShot300 or DShot600. The ESCs utilise a high-performance Silabs EFM8BB21 50MHz microprocessor for smooth response and high-resolution throttle steps, making them ideal for racing drones. Firmware can be upgraded via the signal wire using a USB flash tool. Finally, the ESC is of the OPTO type (no BEC), which helps to eliminate radio interference between the motor and receiver.

Features:

  • Tiny form factor and low weight
  • Specially designed for multicopters, super fast throttle response
  • Powered by high performance EFM8BB21 MCU
  • BLHeli-S firmware/ Supports DSHOT, MULTISHOT, ONESHOT42, ONESHOT125
  • Supports Dshot 150,300 and 600
  • Fast throttle response โ€“ high 500Hz maximum refresh rateย compatible with all flight controllers
  • Twisted signal cable reducing the crosstalk during signal transfer
Specification
  • Continuous current:ย 20A
  • Peak Current(10s): 25A
  • BEC: NO
  • LiPo: 2-4S
  • Firmware:ย Blheli_S
  • Programming: Supported
  • Weight: 7.9g
  • Size: 27x12mm

Included:

  • 1xย 20A 2-4S Mini BLHeli-S ESC
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.ย

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying โ€œCineliftersโ€.ย

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an โ€œAIO flight controllerโ€ (a type of flight controller with integrated PDB) for power supply.
