Name: Flash Hobby Arthur / DYS ARIA Slim 40A 3-6S BLHeli32 3-6S ESC with LED - Flying Tech
Brand: DYS
SKU: ESC-ARIA40
Price: 26.40 GBP
Availability: InStock

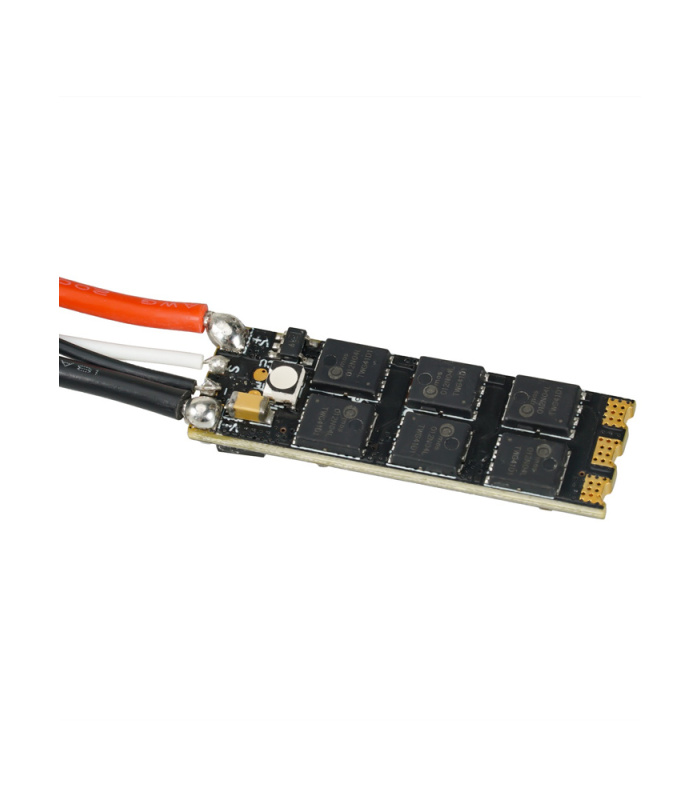

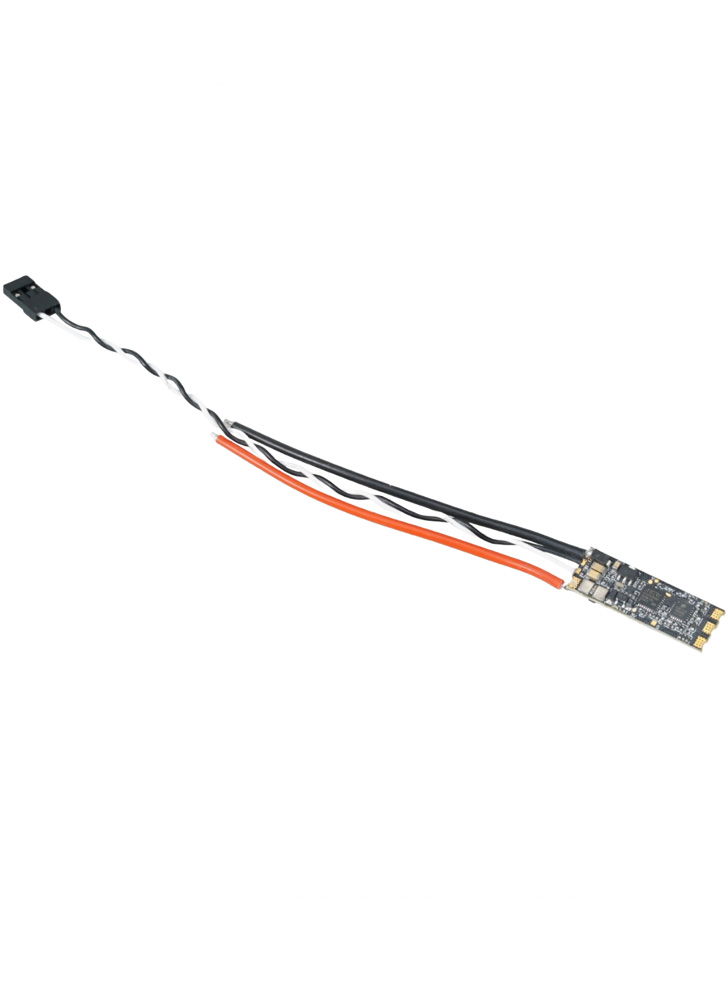

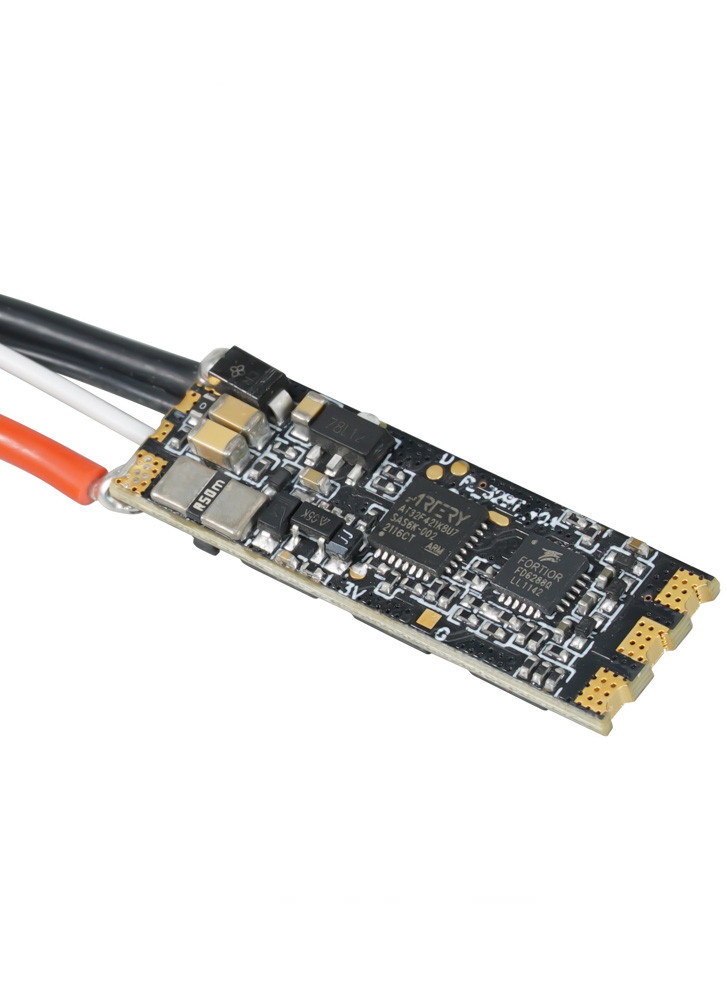

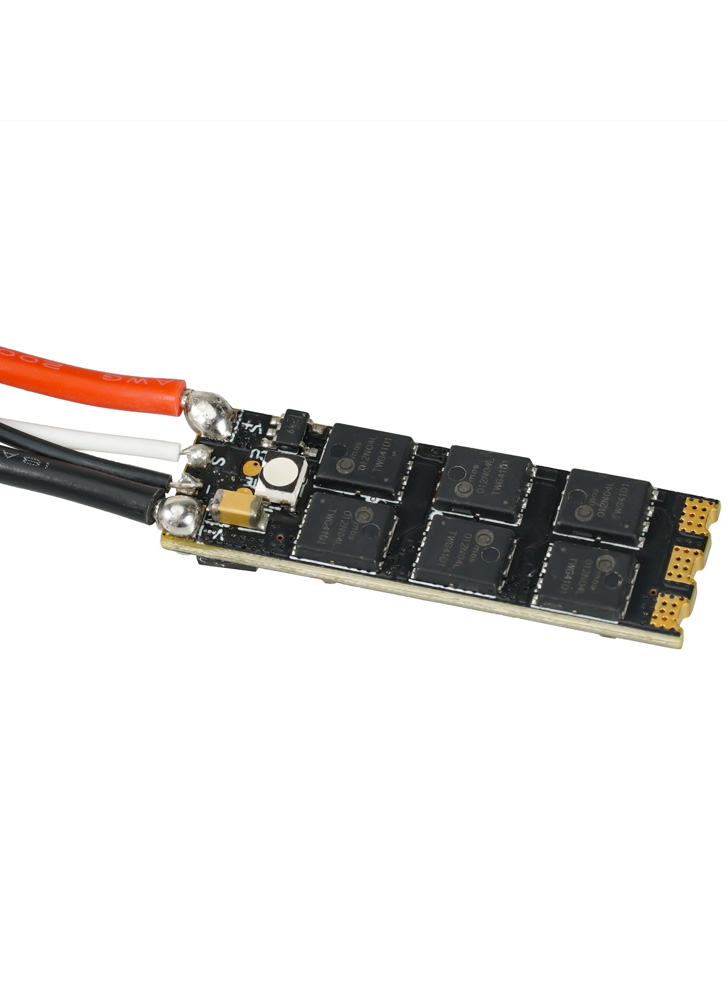

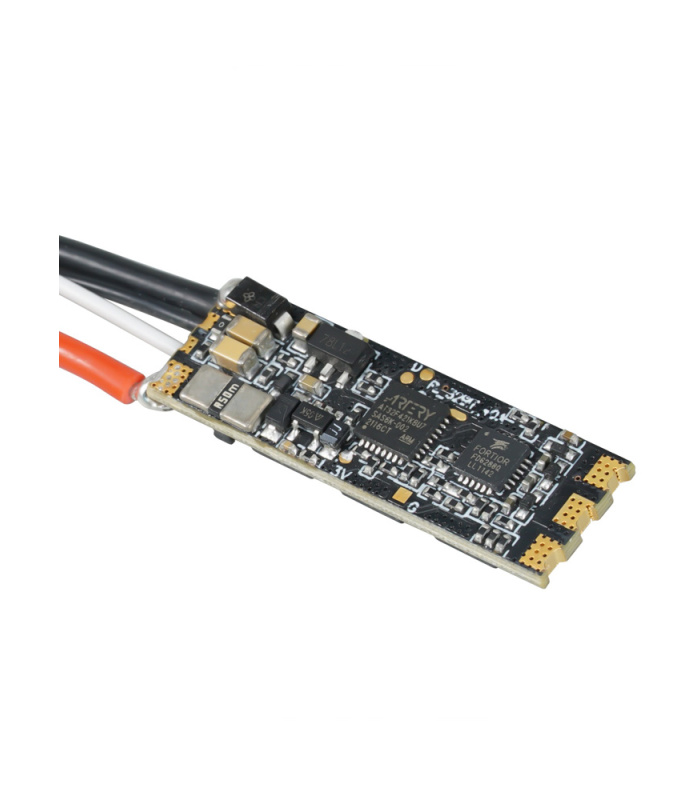

Flash Hobby Arthur / DYS ARIA Slim 40A 3-6S BLHeli32 3-6S ESC with LED

£26.40 Inc. VAT

The ESC is low profile and slim, saving weight and designed to fit neatly onto the arms of your racing drone.

Only 3 left in stock

0 People watching this product now!

Description

Please note: DYS Aria 40A is now branded FlashHobby Arthur 40A – this brand has taken over DYS

The DYS Aria series of Electronic Speed Controllers (ESC) have been designed specifically for FPV racing, they support high currents while maintaining a small footprint and weight.

This 40A Slim ESC features a high-speed ARM Cortex MCU STM32F051 48MHz microprocessor to provide a quick, smooth response to all your throttle commands. It also runs the latest Blheli_32 firmware with support for multiple protocol including 500HZ PWM, Oneshot 125, Oneshot 42, Multishot and Dshot 150/300/600/1200.

The ESC is low profile and compact in size, saving weight and designed to fit neatly onto the arms of your racing drone.

Features:

With 32bit ARM Cortex MCU STM32F051 48MHz microprocessor, throttle 2048 resolution ratio, strong anti-interference capacity.
Built-in sensor provides information on temperature, output power, output current etc., also programmable for protection.
Support Blheli_32 firmware, can use the signal wire for online upgrade the firmware or change the configuration.
Current Meter to help show the current indication on the OSD.
With USB linker can program the throttle setting like support positive and negative, two-way mode, FPV 3D mode, motor speed, braking, PWM frequency, inlet angle speed setting, onboard RGB LED for customize colour, Beep etc.
It uses the self-adaption control system, can go automatic with all kinds of motors in the market. It currently supports up to 500HZ PWM, oneshot 125, oneshot 42, Multishot and Dshot 150/300/600/1200.
With special optimization the motor can have a smoother throttle curve, faster response, great power, and highly support the multi-axis, fixed-wing and helicopter.
The twisted-pair signal wire can lower the crosstalk, which will lead to a more stable flight.
MCU hardware, Driver circuit, Mosfet come with double voltage protection.
Mosfets have an Aluminium HeatSink installed to further aid cooling and improve efficiency
Solder Pads for motor wires

Specification

MPU: 32bits ARM Cortex MCU STM32F051 48MHZ
Throttle resolution: 2048
Firmware: BLHeli_32
Supports 500HZ PWM, Oneshot125, Oneshot42, Multishot, Dshot150/300/600/1200
Con. current: 40A
Burst current(A)>10s: 50A
Input voltage: 3-6S Lipo
BEC: NO
Size: 34.5×11.5×5.5mm
Weight: 3.5

Included:

1x DYS ARIA 40A ESC

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
