Flycolor X-Cross HV3 5-12S BLHeli32 ESC 60/80/120/160A

£54.90 – £105.90 Inc. VAT

The X-Cross HV3 ESC series is for power hungry installations – X Class drones, commercial users.

Amp Rating

Clear

Frequently Bought Together

ESC USB Linker Programmer Flash Tool for BLHeli BL-S/BL-32

ESC USB Linker Programmer to configure and update BLHeli-S & BLHeli 32 ESCs.

Add for £11.99 Inc. VAT

Add to compare

0 People watching this product now!

SKU: N/A Categories: Fixed Wing ESCs, Electronics, Speed Controllers (ESCs), Single ESCs, Plane Electronics, Speed Controllers (ESCs) Tags: ESC, High Amp ESC, Speed Controller, X Class

Description

BLHeli_32 Notice – click here to read more.

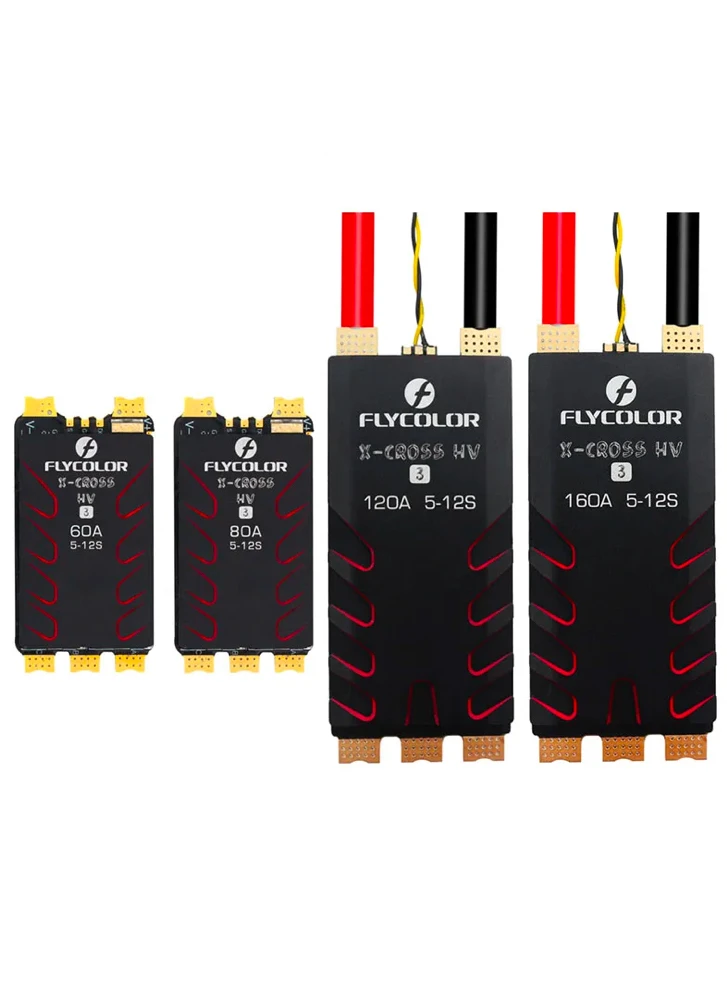

The X-Cross HV3 5-12S ESC by Flycolor features an ARM 32-bit Cortex MCU, a quality MOSFETs, BLHeli_32 firmware, telemetry and more! This ESC is available in four different versions to suit different power applications – please select as required: 60A / 80A / 120A / 160A.

Features:

ARM 32-bit Cortex MCU, frequency up to 48MHz
High quality MOSFET with high performance and low ESR
5S to 2S LPo, suitable for X Class frame drone
BL Heli_32 firmware
Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multishot.
The input signal is automatically detected by the ESC upon power-up
Small size, lightweight, suitable for the drone with narrow arms
Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal transmission and makes flight more stable
Aluminium heatsink – 120A/160A versions have heatsink both to front and back.

Model	HV3-60A	HV3-80A	HV3-120A	HV3-160A
Battery	5-12S	5-12S	5-12S	5-12S
Con. Current	60A	80A	120A	160A
Burst Current (10S)	80A	100A	150A	180A
BEC	NO	NO	NO	NO
Weight	25.5g	25.5g	132g	132g
Size	55x28x10mm	55x28x10mm	84x34x21mm	82x34x21mm

BLHeli_32 Notice:

We would like to inform customers about recent changes affecting the availability of BLHeli_32 firmware. As of 2024, the development and licensing of BLHeli_32 have been discontinued, and official support channels, including firmware updates, are no longer accessible.

How This Affects You:

Future firmware updates for BLHeli_32 ESCs will no longer be provided.
ESCs with factory-installed BLHeli_32 may still function but without ongoing support or new features.

Solution:
To assist customers, Flycolor has developed its own version of BLHeli_32 firmware and configurator. This version allows users to continue configuring their BLHeli_32 ESCs with full functionality. You can download it here.

Compatible ESC Programmer Tool

Downloads

Manual (pdf, 1336KB)

Download

BLHeliSuite32 (zip, 3199KB)

Download

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
