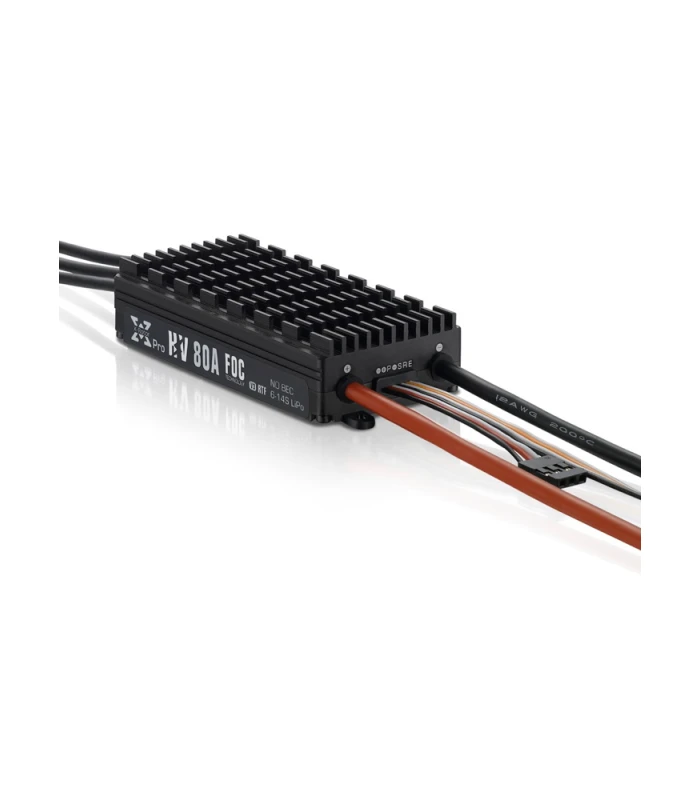

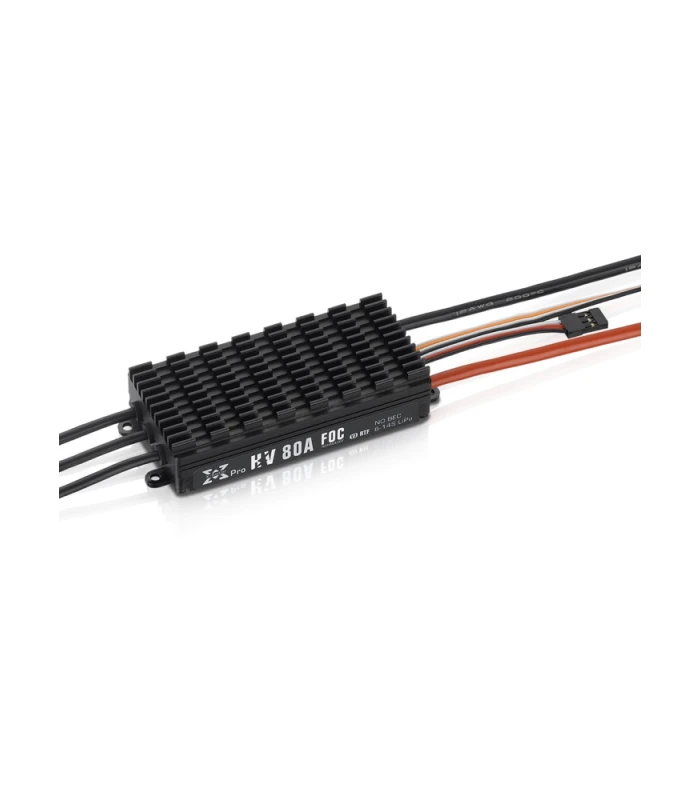

Hobbywing XRotor Pro 80A V3 6-14S OPTO Multirotor ESC

£89.95 Inc. VAT

This 80A ESC is suited to large industrial application multirotors.

In stock

0 People watching this product now!
Description

The Hobbywing X-Rotor Pro series ESC deliver class leading performance in terms of efficiency and reliability, making them our first choice ESC for professional applications. This particular Pro version is suited to large industrial application multirotors. It’s rated at 80amps (100amp burst) and supports 6S to 14S (22.2v – 51.8v) operation.

As with all of the X-Rotor ESCs, the 80A V3 has been designed specifically for multirotor use. With their special core program tuned for multirotors, the ESCs have been optimised for compatibility with disc type outrunner brushless motors, which are commonly used on large multirotors. A unique feature of the series is the Driving Efficiency Optimization (DEO) function. This significantly improves throttle linearity and driving efficiency, by automatically braking and quickly reducing the motor speed when decreasing the throttle amount. The effect is increased manoeuvrabilityย and stability of your multi-rotor, with the bonus of improved efficiency too.ย The high performance of the drive chip is enhanced further by the use of extra low-resistance MOSFETs that also allow high currents to be held stable for longer.

The ESCs come with long power and signal wires as standard, which means they can be installed without extensions on even the largest of frames.

HW 80A 1HW 80A 2HW 80A 3HW 80A 4HW 80A 5HW 80A 6

XRP80AV3

Specification
  • Output: Continuous 80A, Burst 100A up to 10 seconds
  • Input Voltage: 6-14cells lithium battery
  • BEC: NO BEC
  • Drive mode: BLDC
  • Throttle Signal Frequency: 50-500Hz
  • Operating Pulse Width 1100-1940ย ฮผs (Cannot be Programmed )
  • Parameter Programming Features: Automatic angle (High / medium)
  • Red Black cable length: 140mm (12AWG)
  • Signal cable length: 400mm (14AWG)

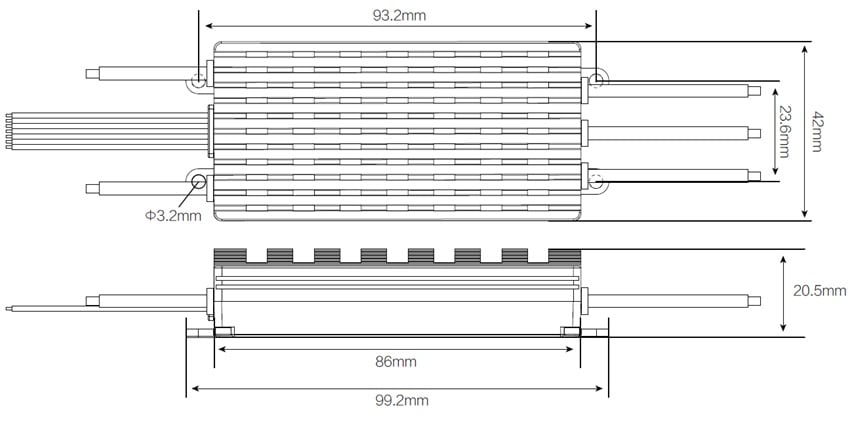

  • Size: 86ย x 42ย x 20.5mm
  • Weight: 118g

Included:

  • 1 xย Hobbywing XRotor 80A Pro V3 ESC (OPTO)
  • 1 xย English Manual
Downloads
Manual (pdf, 472KB)
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.ย

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying โ€œCineliftersโ€.ย

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an โ€œAIO flight controllerโ€ (a type of flight controller with integrated PDB) for power supply.
