DYS XSD BLHeli_S Dshot 300/600 ESC 7A 12A 20A & 30A

£11.90 – £13.90 Inc. VAT

Take advantage of the latest BLHeli_S development with these DYS ESCs.

Amp Rating

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Single ESCs, Electronics, Speed Controllers (ESCs) Tags: 20A, 30A, BLHeli, BLHeli_S, ESC, Speed Controller

Description

Please note: XSD12A is now branded FlashHobby – this brand has taken over DYS.

Take advantage of the latest BLHeli_S development with these DShot capable ESCs. The DYS XSD series speed controllers (ESC) have been designed for high-speed motors, which make them ideal for racing drones. The ESCs utilise a high-performance Silads EFM8BB21 microprocessor for smooth response and high-resolution throttle steps. They also come with BLHeliS firmware pre-flashed and support DShot300 or DShot600. Firmware can be upgraded by signal wire using USB Linker.

The 30A versions include a plastic case to protect the ESC against prop strikes and all of the ESCs have solder pads which make it easy to quickly swap out motors during field repairs!

Features:

Utilizes high-performance EFM8BB2 50MHz MCU
12 FET Design
High-current burst rating
High-Resolution Throttle steps
Supports Dshot600, Dshot300 – faster than Oneshot
Dshot ESCs don’t require an ESC calibration
Firmware upgradable via signal wire (works with USB Linker for XM series)
Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)

Specification

12A DYS XSD12A

Processor: Silabs EFM8BB21
Battery: (2-3S Lipo)
Current Rating: 12amp
BEC: No (OPTO)
Signal frequency: 20-500Hz
Firmware: BLHeli_S (bootloader and formware)
Supports 1-2ms signal, Dshot600/Dshot300
BLHeli_S does Damped Light only
Size: 15.4×11.5x4mm
Weight: 1.2g

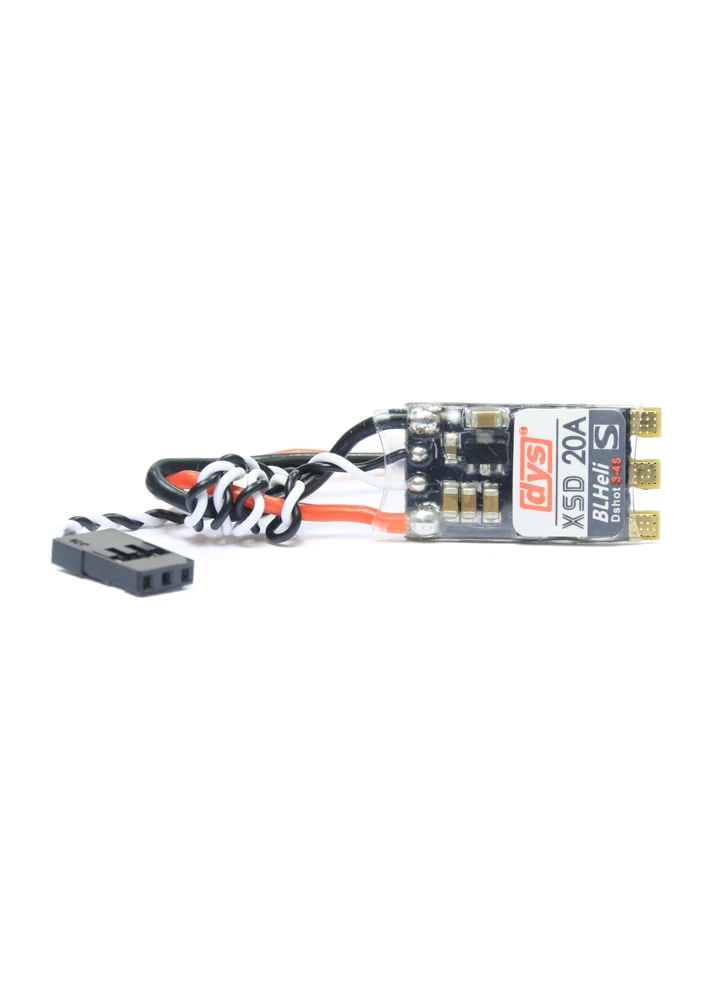

20A DYS XSD20A

Processor: Silabs EFM8BB21
Battery: 12.6-16.8V (3-4S Lipo)
Current Rating: 20amp
BEC: No (OPTO)
Signal frequency: 20-500Hz
Firmware: BLHeli_S (bootloader and formware)
Supports 1-2ms signal, Dshot600/Dshot300
BLHeli_S does Damped Light only
Size: 24×14.4×4.5mm
Weight: 4.3g

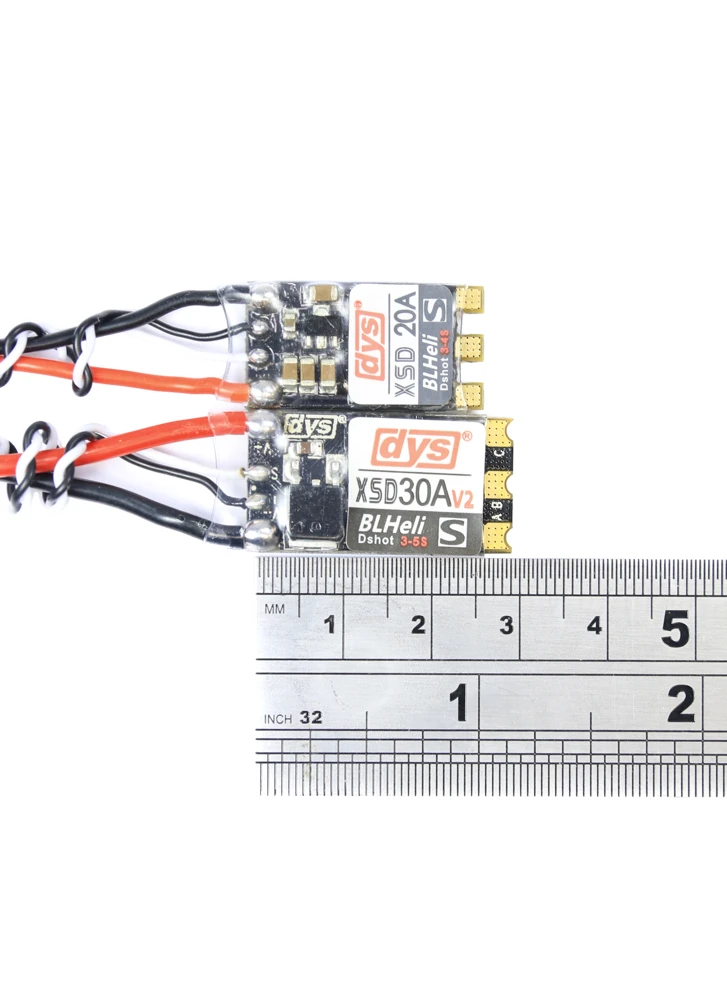

30A DYS XSD30A V2

Processor: Silabs EFM8BB21
Battery: 3-5S Lipo
Current Rating: 30amp
BEC: No (OPTO)
Signal frequency: 20-500Hz
Firmware: BLHeli_S (bootloader and formware)
Supports 1-2ms signal, Dshot600/Dshot300
BLHeli_S does Damped Light only
Size: 45×16.5×5.8mm
Weight: 7.5g

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
