Holybro Tekko32 F4 45A ESC (AM32) Dshot 1200

£17.90 – £69.90 Inc. VAT

With most new ESCs being the 4in1 type, it’s nice to see Holybro develop this individual ESC for users who prefer that.

Version

Clear

Compare

0 People watching this product now!

SKU: N/A Categories: Single ESCs, Electronics, Speed Controllers (ESCs), Plane Electronics, Speed Controllers (ESCs) Tags: AM32, AM32_Firmware, ESC, Speed Controller, Tekko32

Description

Since support for BLHeli32 has ended, this ESC is now flashed with AM32_Firmware.

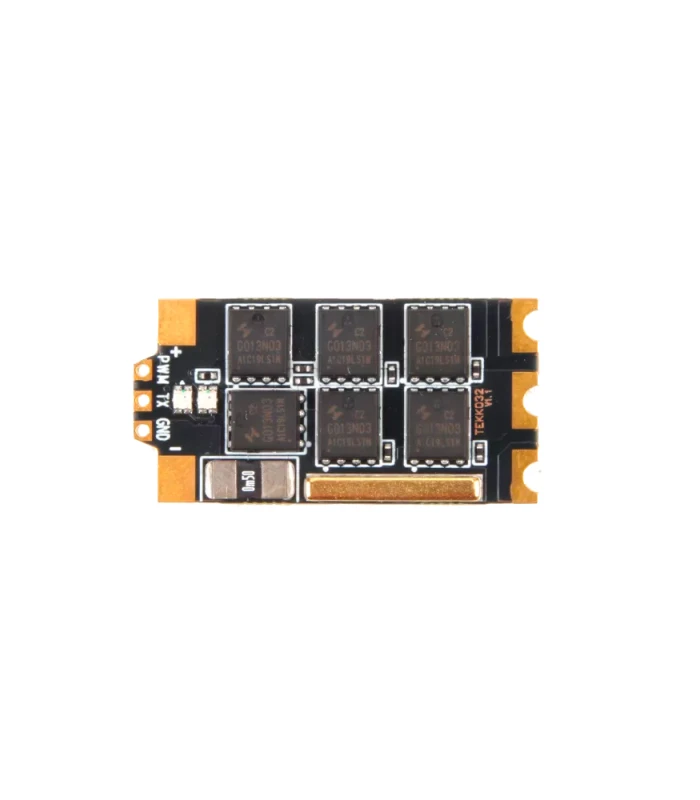

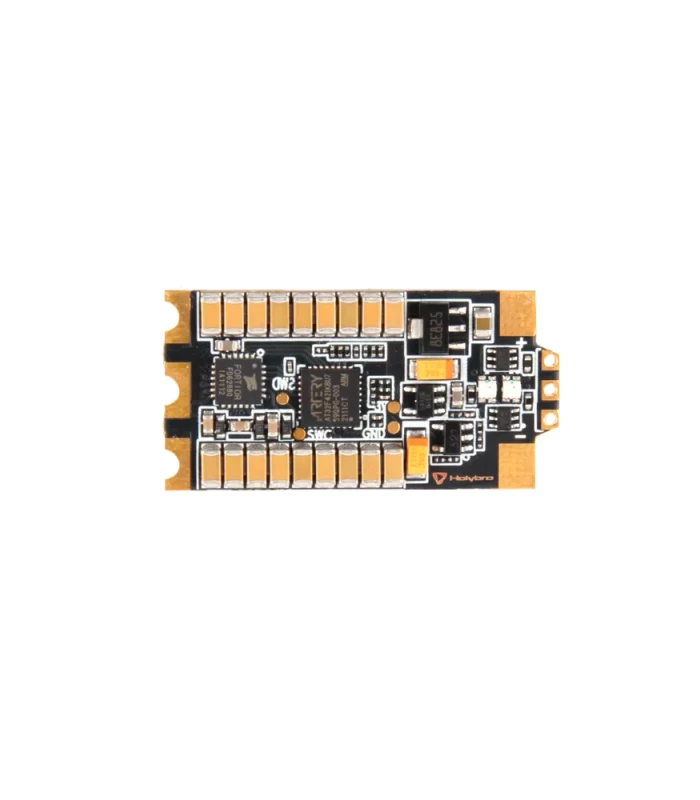

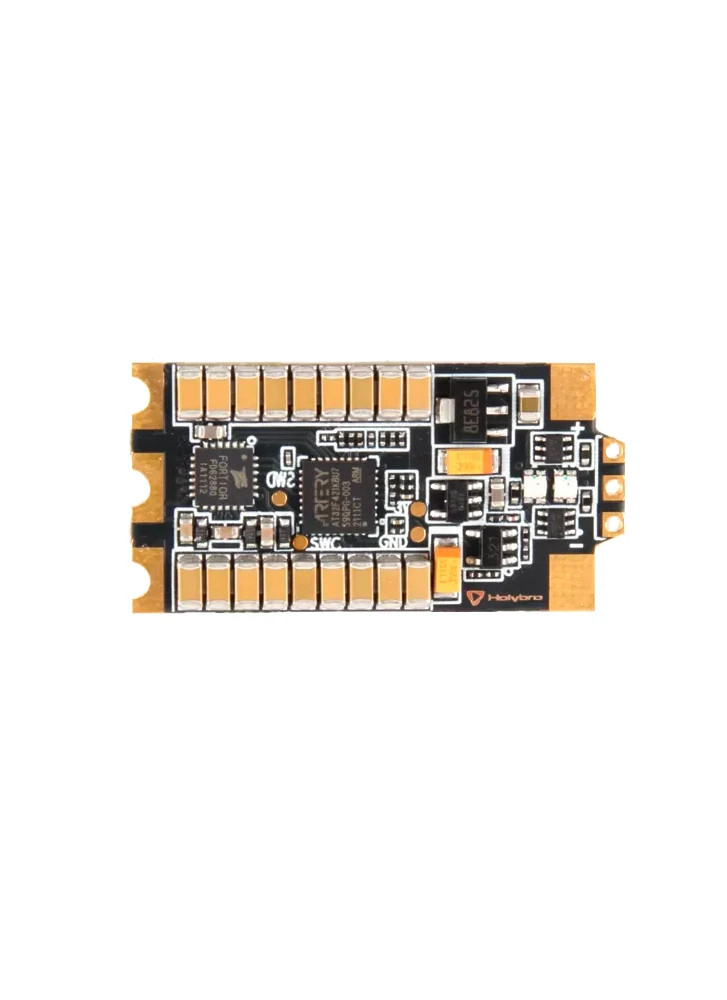

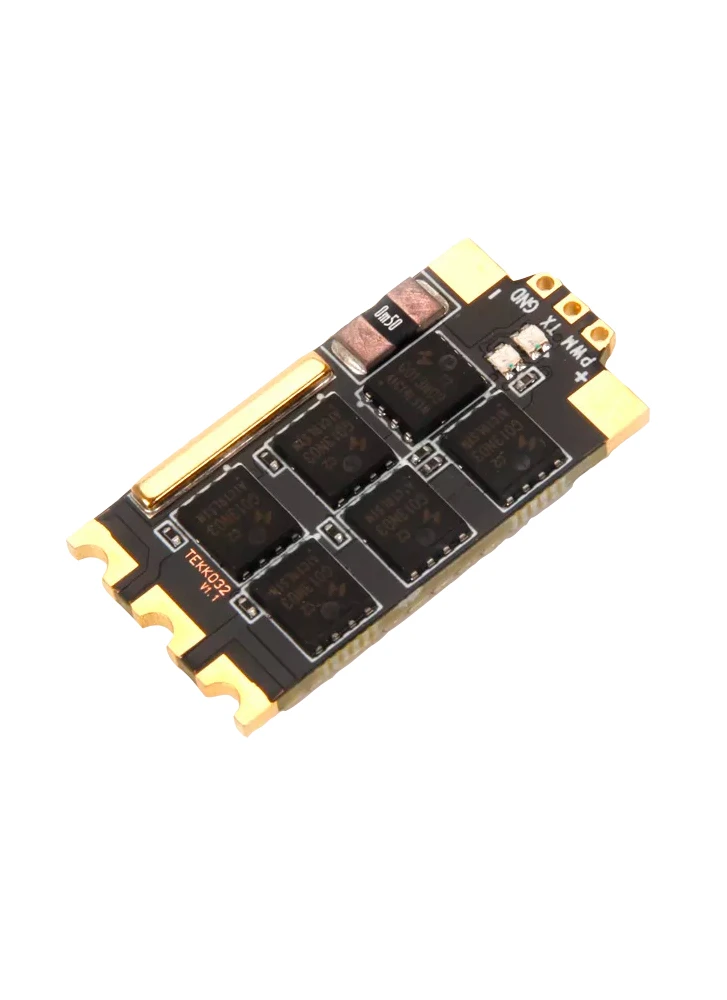

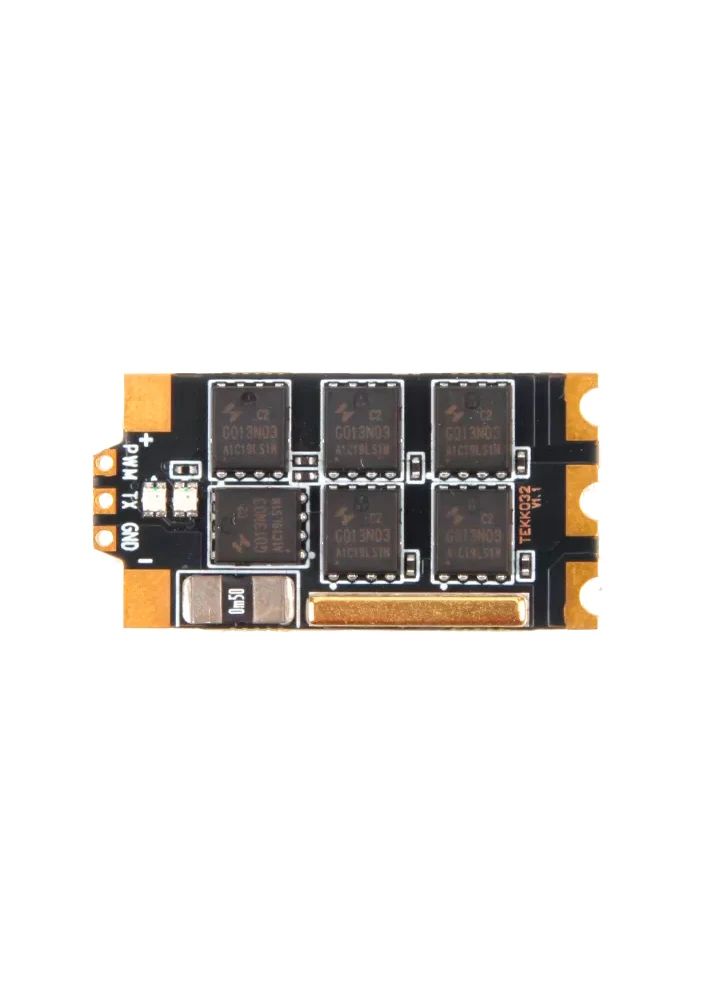

The Holybro Tekko32 F4 45A ESC is the latest AM32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU, which delivers tons of headroom for processing power, ensuring smooth and fast response. The ESC is also capable of both voltage and current monitoring, as well as offering customisation of the brake on stop force. Despite its tiny footprint this is a really powerful ESC. It supports up to 45A continuous.

We sell these ESCs individually and as a set of four. All come with 16 AWG silicone wires for power, and 24 AWG wires for signal, signal ground and ESC telemetry.

Features:

F4 MCU with AM32 firmware Dshot1200 up to 32kHz
PWM up to 48k
Small size & low weight
Auto Timing Feature
On-Board RGB LED
Build in Current sensor
Smooth Response

Reference LinkAM32 ESC Firmware Overview
AM32 ESC Configurator

Specification

F4 MCU with AM32 firmware Dshot1200 up to 32kHz
Current rating: 45A
Supports Lipo 2-6S
Ext. cap recommended for 6s (330uf 35v for 6s usage.)
Size: 17×3 x 34×3 x 4.5 mm

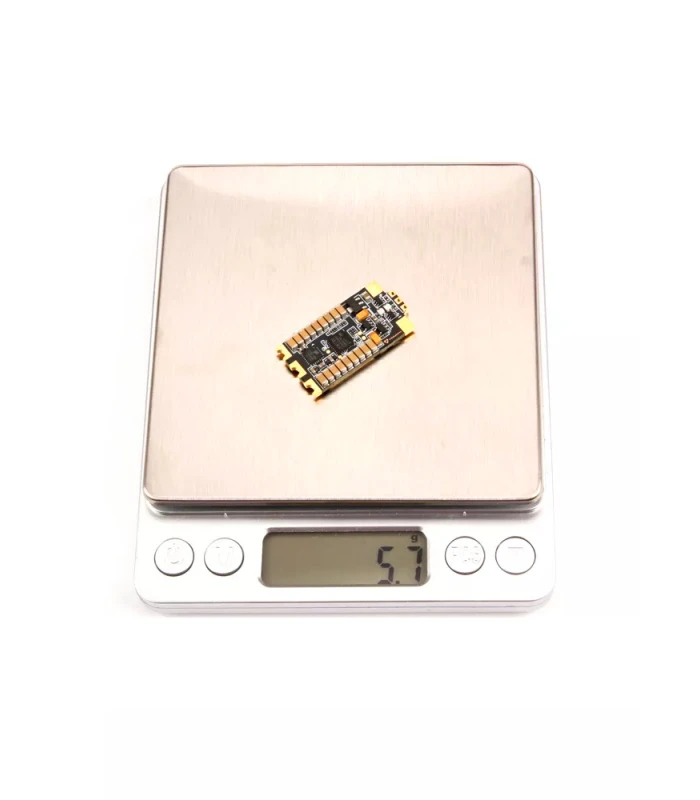

Weight: 5.8g (1pcs)

Downloads

Manual (pdf, 212KB)

Download

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
