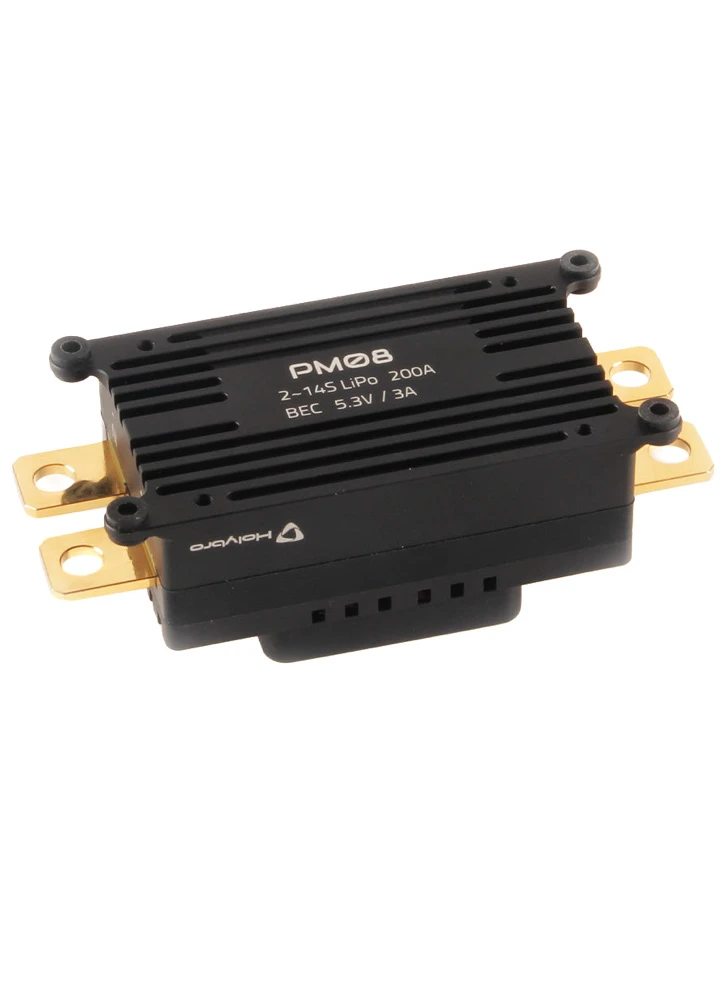

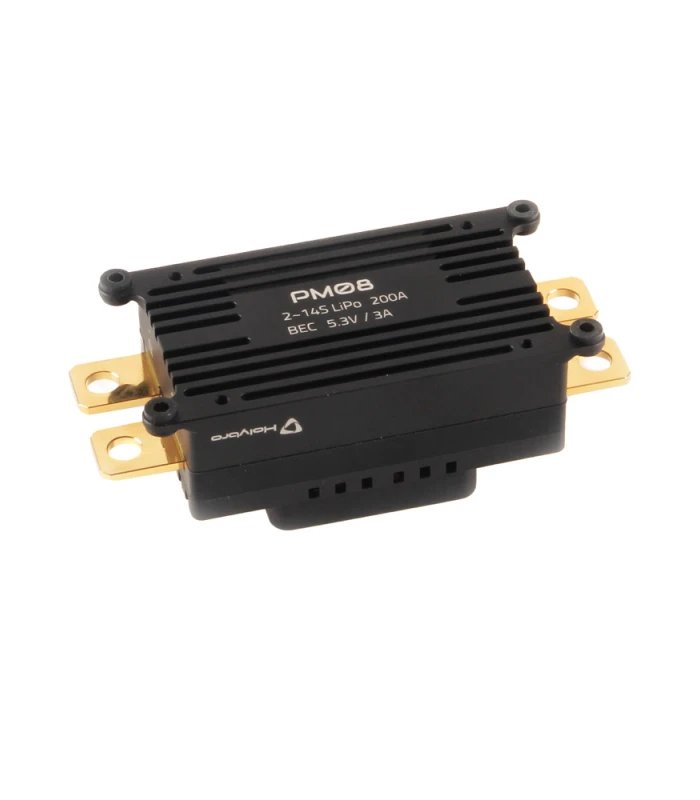

Holybro PM08 Analog Power Module (14S, 200A)

Name: Holybro PM08 Analog Power Module (14S, 200A) - Flying Tech
Brand: Holybro
SKU: FC-15021
Price: 109.90 GBP
Availability: OutOfStock

£109.90 Inc. VAT

PM08 has been designed to meet the demands of power hungry multi-rotors. Rated for 14S input and 200amps continuous current.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the Privacy policy

Compare

0 People watching this product now!

SKU: FC-15021 Categories: Power Modules, Electronics, Flight Controller Accessories, Sensors Tags: BEC, Current Sensor, Pixhawk 6C, PM, Power, Power Module, UBEC

Description

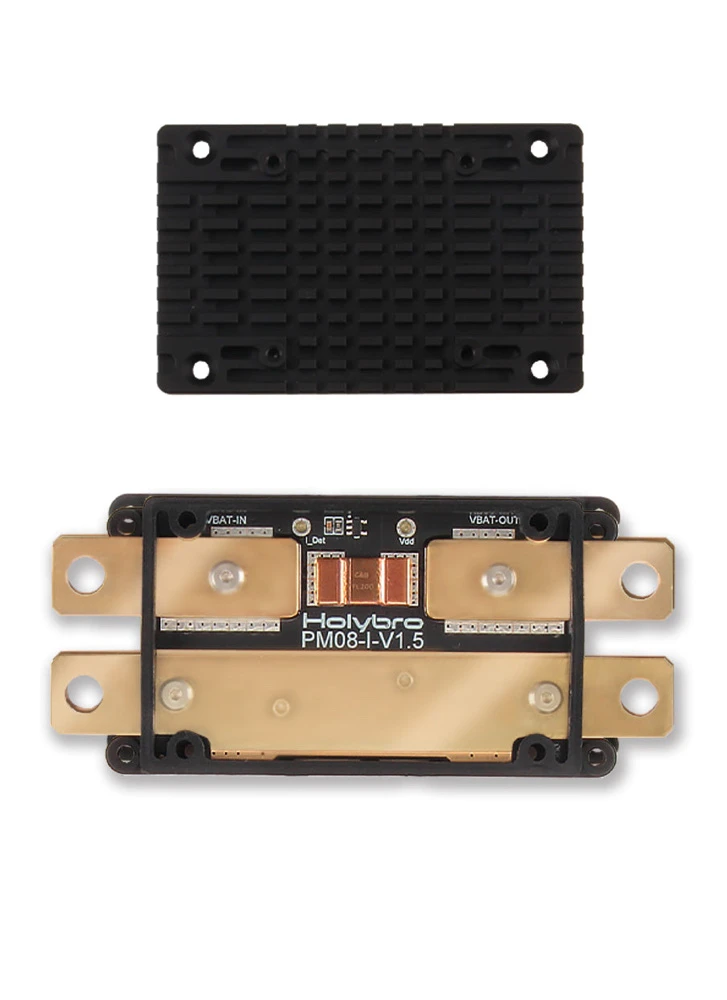

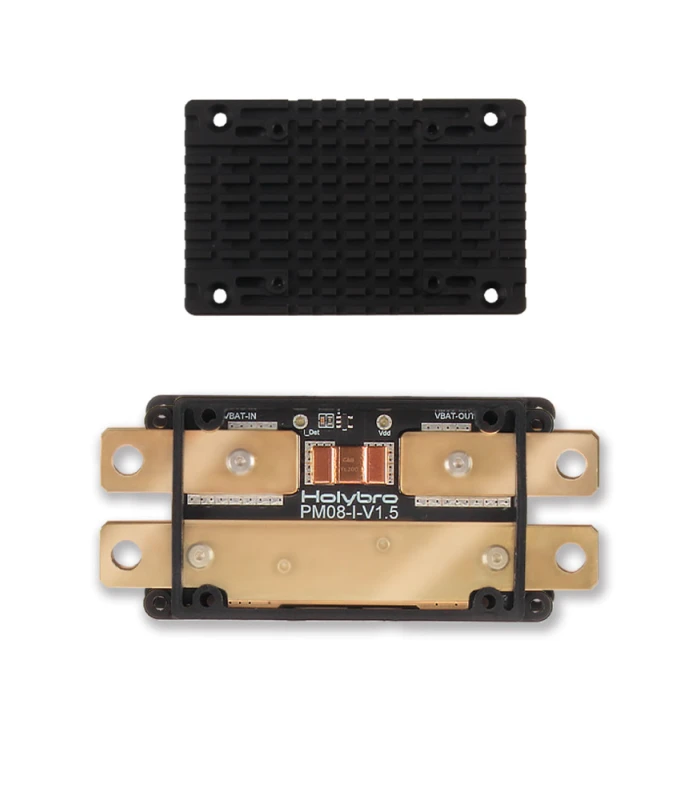

This PM08 Power Module supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable to the autopilot.

This power module is designed for vehicle with high power requirement. It comes housed in a aluminium heat sink case with fan, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.

Features

Support 2S – 14S Battery
200A Cont. Current Rating
Easy to Setup
Aluminium Case for Heat dissipation

Ports:

Please Note:

This analog power module is not compatible Pixhawk 5X/6X. Please use a digital power module that end with a “D” for the 5X/6X series (PM02D 120A).
Wire & connector sold separately

PM08 3D CAD File Download

Wiring sets for PM08 HERE

Specification

Input Voltage: 2S-14S
PCB Cont. Current Rating: 200A
PCB Burst Current Rating: 1000A (<1 Sec @25C)
Max Current Sensing: 237.6A
Output: DC 5.1-5.3V & 3A Max
Voltage Divider: 18.182
Amperes per Volt: 72
Dimensions: 101x45x26mm
Mounting hole: 79mmx38.1mm

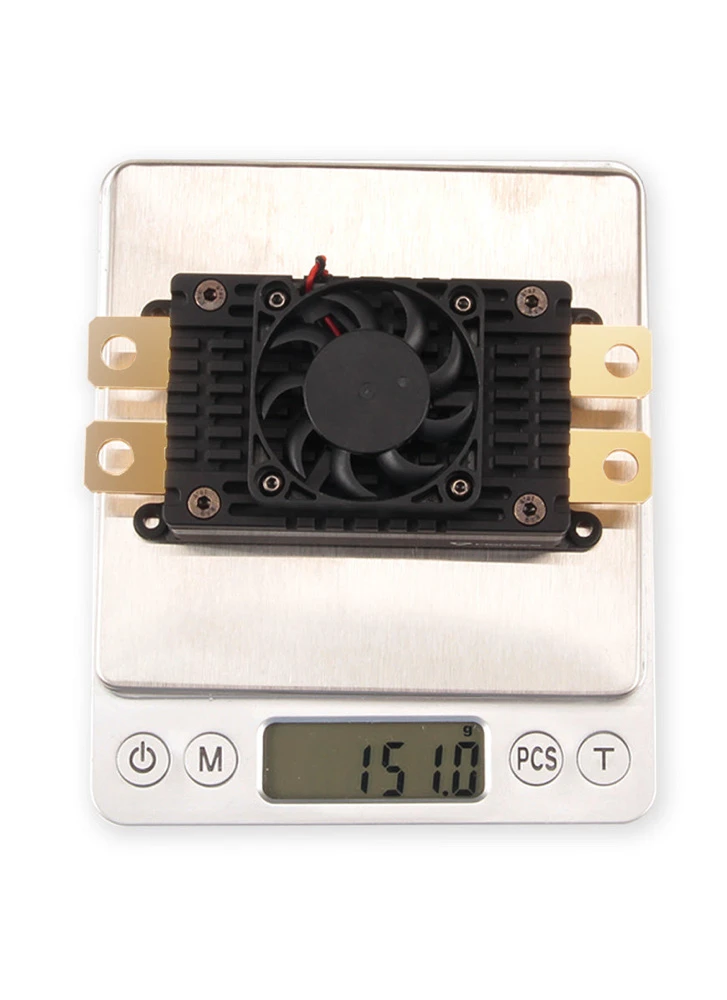

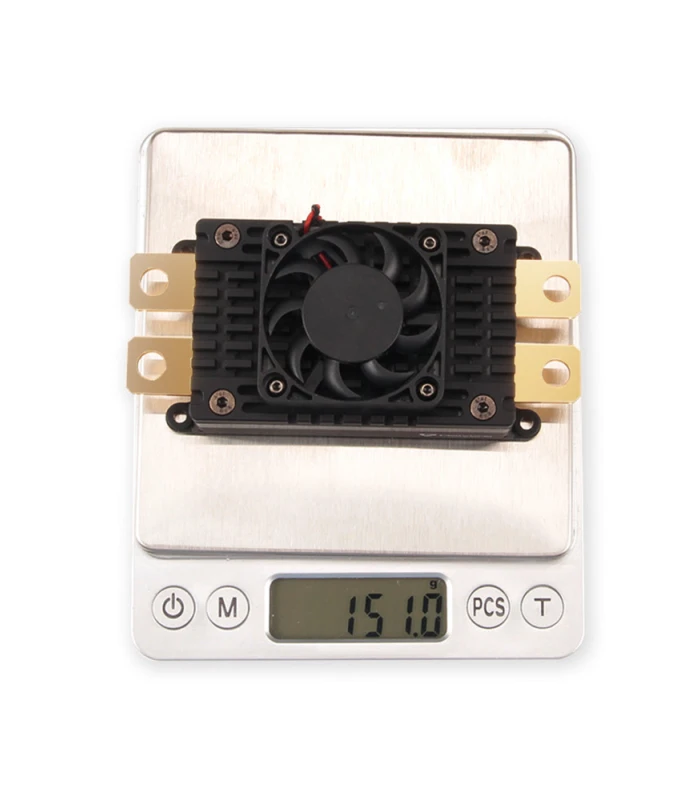

Weight: 151g

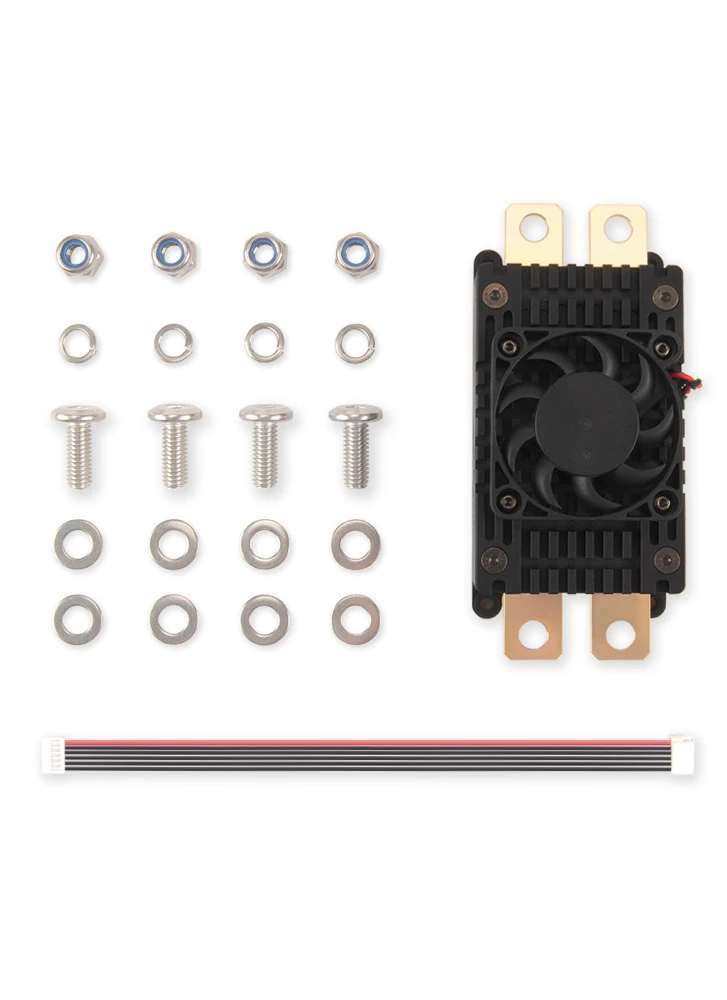

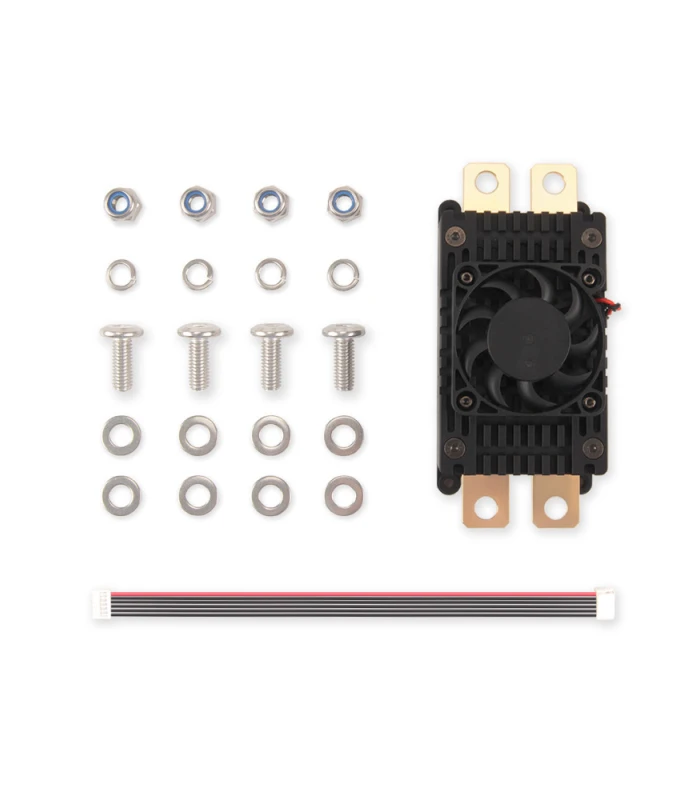

Included:

1x PM08 Power Module
1x 40x40mm Fan
1x JST GH 6 Position Connector 15 cm
4x Sets of Screws, Washers, and Nuts
