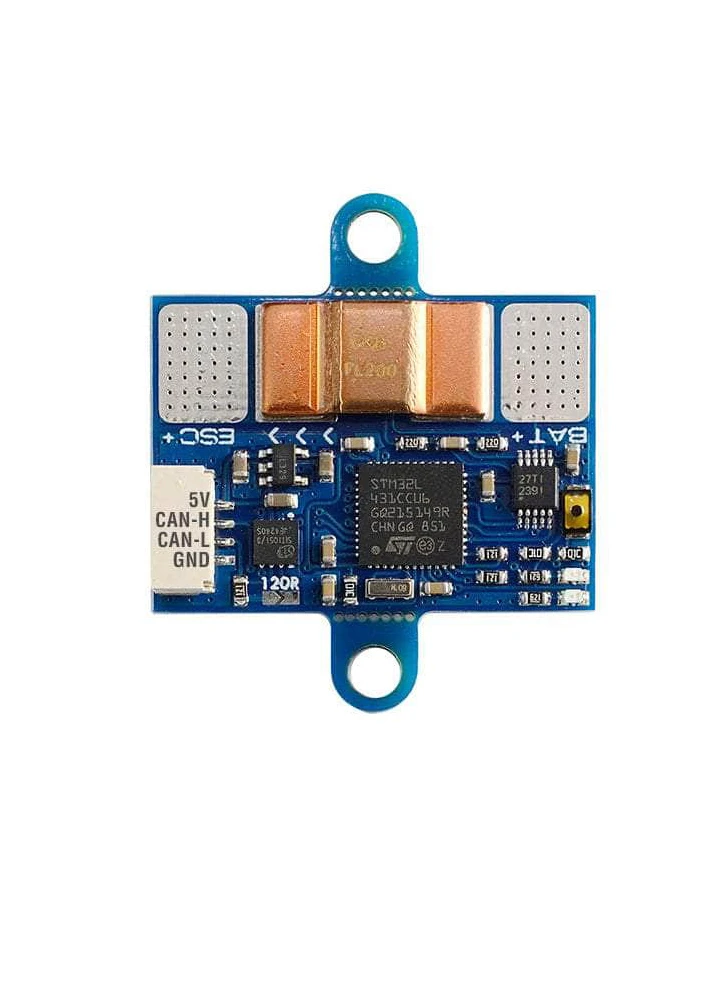

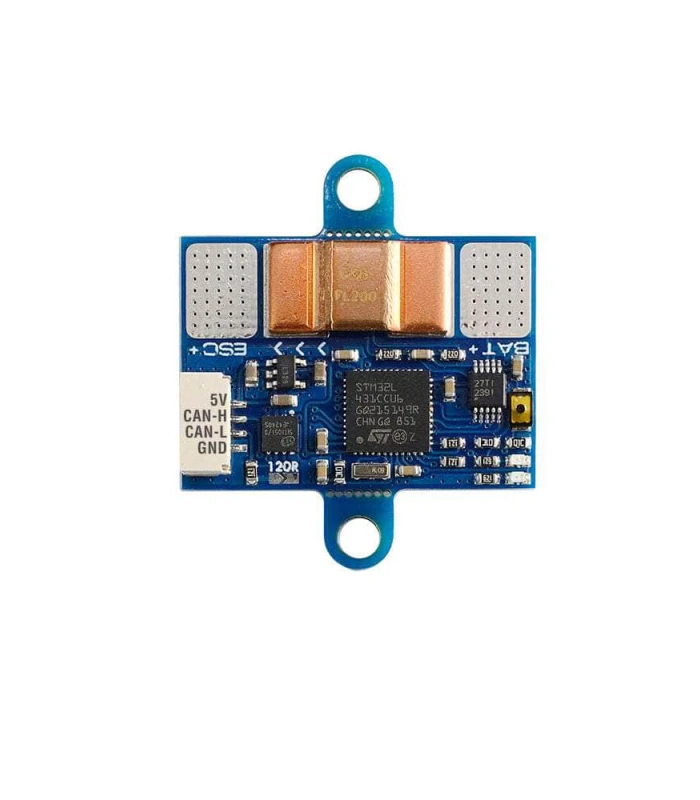

Matek AP_Periph CAN-L4-BM Digital Power Monitor

Name: Matek AP_Periph CAN-L4-BM Digital Power Monitor - Flying Tech
Brand: Matek Systems
SKU: FC-SEN-CAN-L4-BM
Price: 28.90 GBP
Availability: InStock

£28.90 Inc. VAT

Ultra-precise digital power monitor. FC connection via DroneCAN protocol.

In stock

Compare

0 People watching this product now!

SKU: FC-SEN-CAN-L4-BM Categories: Sensors, Electronics, Flight Controller Accessories, Power Modules Tags: Current Sensor, DroneCAN, Power Monitor, Sensor, UAVCAN, Voltage

Description

Matek’s CAN-L4-BM is an ultra-precise digital power monitor based on TI INA239 firmware and ArduPilot AP_Periph. It features a low-power resistant path of 200μΩ, providing high efficiency in power consumption. No calibration is required and DroneCAN protocol offers convenient current & bus voltage readouts.

Any flight controller that supports the DroneCAN protocol will be able to easily get accurate current and voltage readings via CAN.

Specification

MCU: STM32L431xC, 256KB Flash
INA239 85-V, 16-Bit, High-Precision Power monitor IC With SPI Interface
Battery Voltage sense input: 0~85V
Current Sense Range: 0~204.8A
Load current on current sensing resistor: 150A(Continuous), 204.8A(Burst)
Voltage accuracy: ± 0.1%
Current accuracy: ± 2%
Interface: CAN, DroneCAN Protocol, U-ART2, spare, DFU, -ST debug, SWCLK & SWDIO
LED: Blue, (Fast blinking, Booting), Blue, (Slow blinking, working) Red, (3.3V indicator)
Power supply for CAN-L4-BM board: 4.5~5.5V @5V pad/pin
Power consumption: 10mA
Operating Temperatures: -40~85 °C
Board Size: 30mm x 22mm x 3mm.
Weight: 4g
3D file: CAN-L4-BM_STEP.zip
Firmware: ArduPilot AP_Periph MatekL431-BattMon
Update: via DroneCAN GUI Tool
Parameters: CAN_P1_DRIVER = 1 if attached to CAN bus1 port or CAN_P2_DRIVER = 1 if attached to CAN bus2 port, BATTx_MONITOR = 8 (DroneCAN-BatteryInfo)

Tips

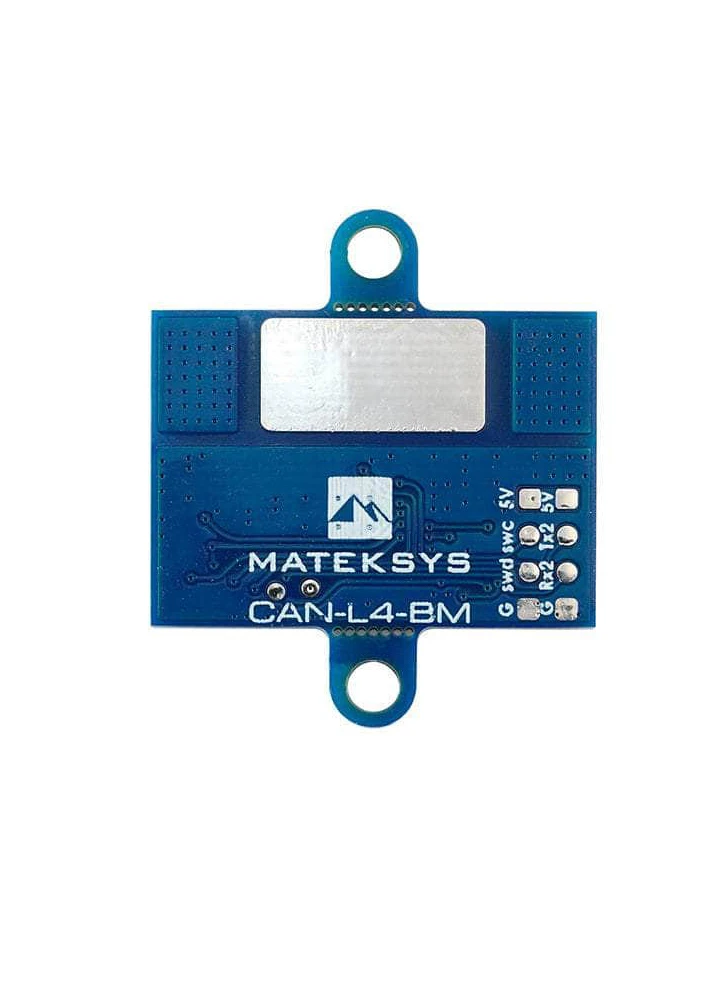

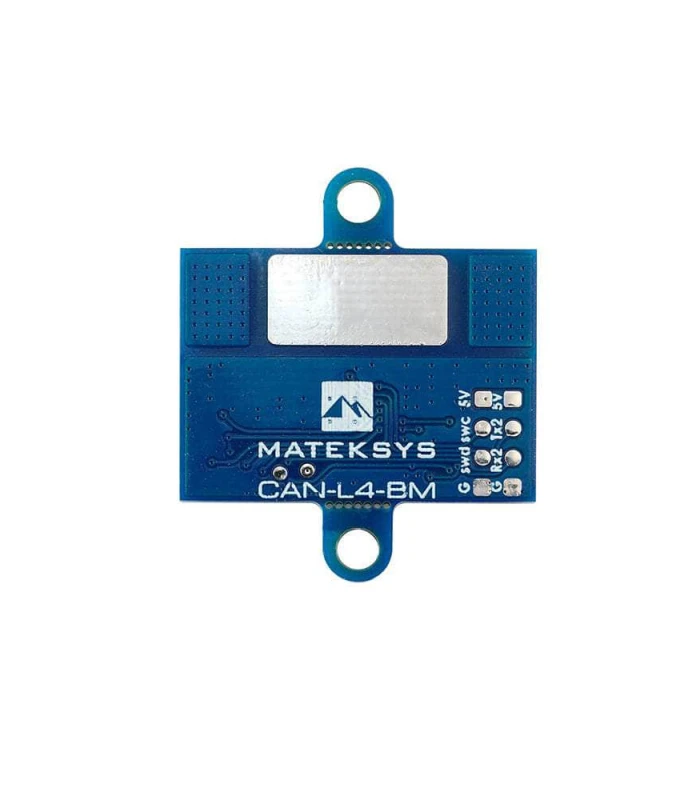

The big pad on the bottom side is a dead pad. No any circuit network on it.
Solder the positive wires as close as possible to both sides of the current sensing resistor.
2 ears for mounting can be cut off if you don’t need it.
If the CAN wires are too long, bridge the “120R” jumper.

Included

1x Matek AP_Periph CAN-L4-BM Digital Power Monitor

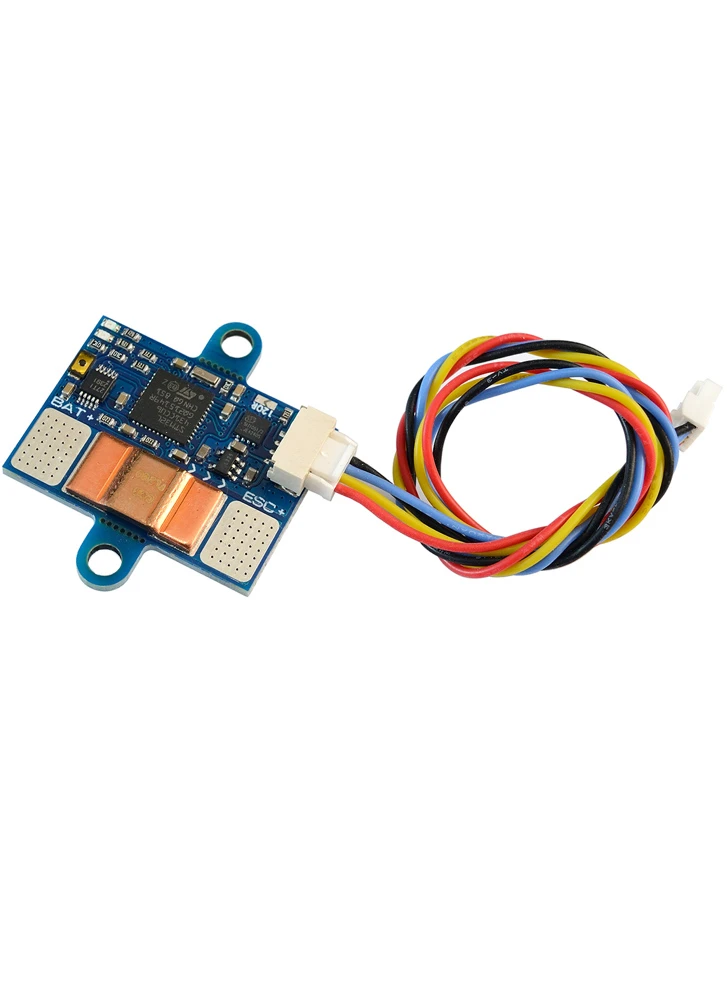

1x JST-GH-4P to JST-GH-4P 20cm silicon wire
