Holybro PM02 V3 Power Module for Pix32, Pixhawk & Durandal

Holybro XT60 Power Module (PM02 V3) for Pix32, Pixhawk, Pixhawk 4, Pixhawk Mini & Durandal

Click to enlarge

Holybro XT60 Power Module (PM02 V3) for Pix32, Pixhawk, Pixhawk 4, Pixhawk Mini & Durandal

Name: Holybro XT60 Power Module (PM02 V3) for Pix32, Pixhawk, Pixhawk 4, Pixhawk Mini & Durandal - Flying Tech
Brand: Holybro
SKU: FC-PM02-V3
Price: 24.00 GBP
Availability: InStock

£24.00 Inc. VAT

The Power Module is compatible with the Holybro Pixhawk Series.

In stock

Add to compare

0 People watching this product now!

SKU: FC-PM02-V3 Categories: Power Modules, Electronics, Flight Controller Accessories, Pixhawk & APM Accessories Tags: Durandal, PM, Power Module

Description

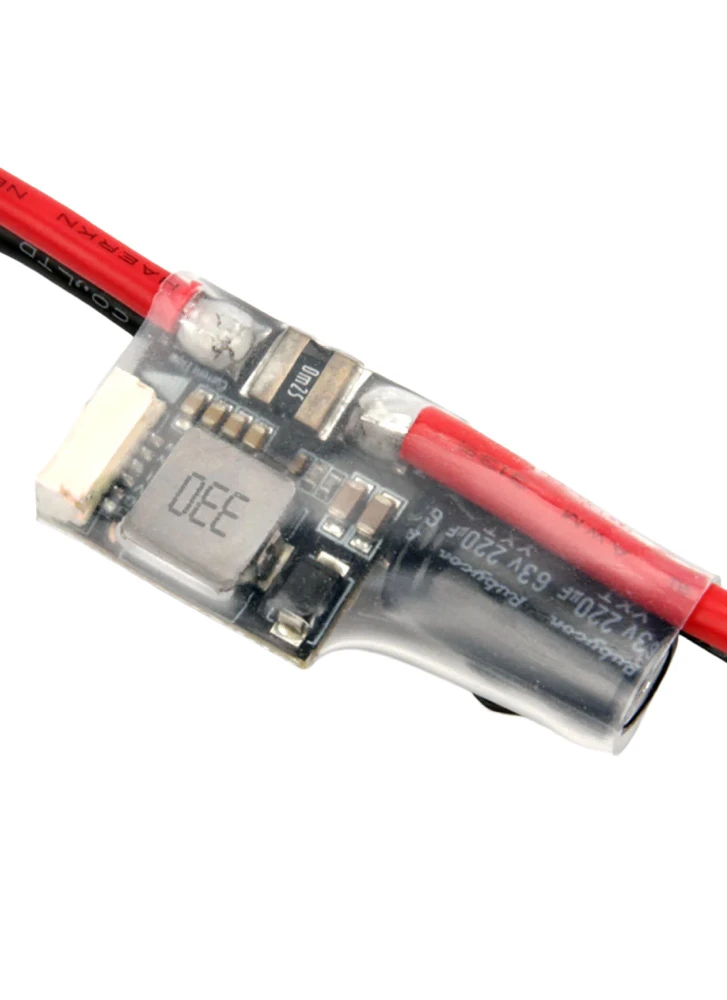

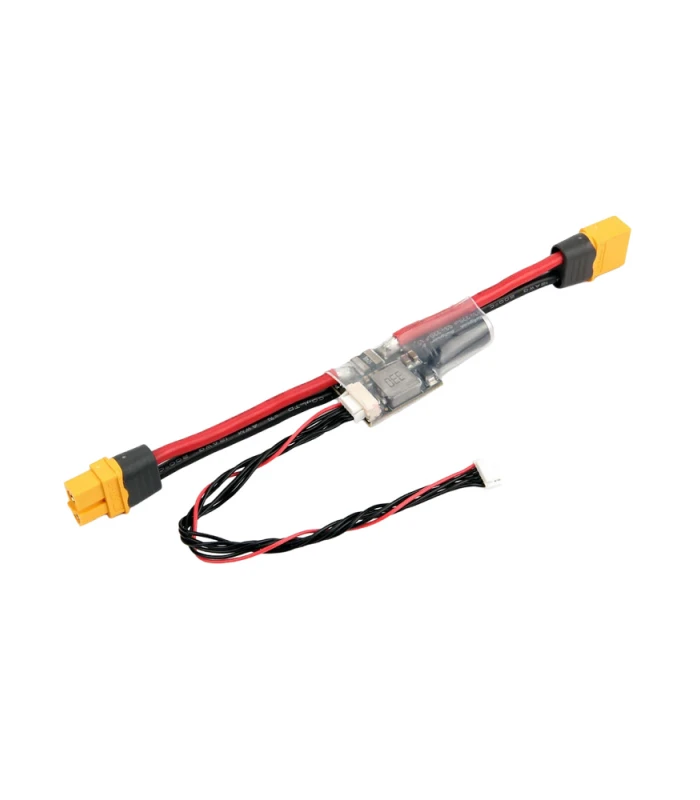

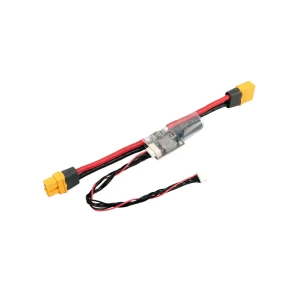

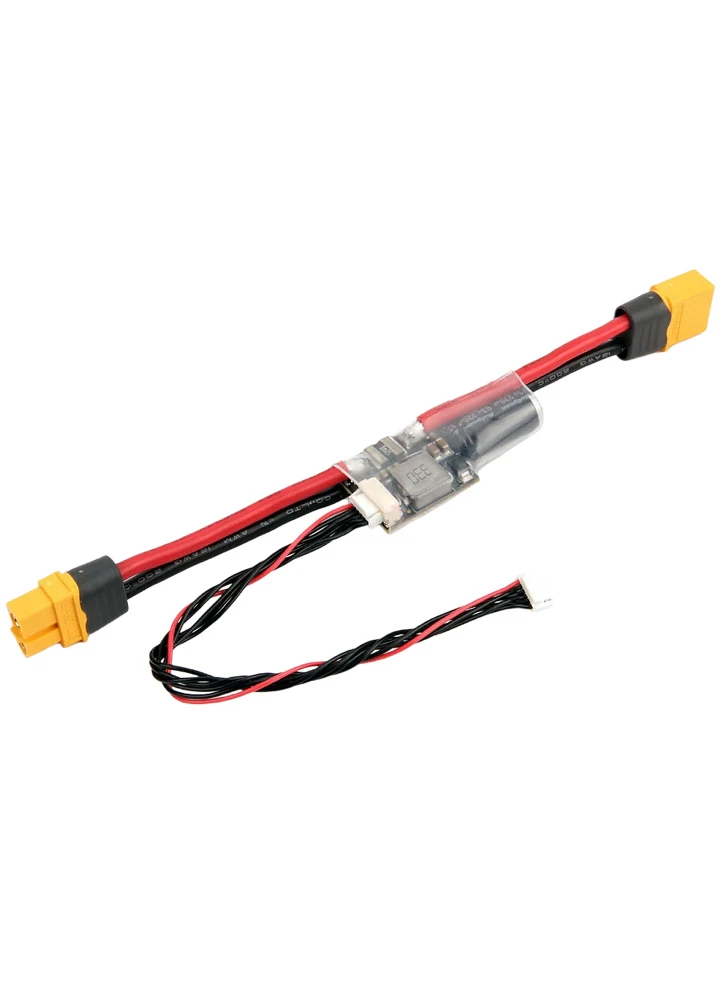

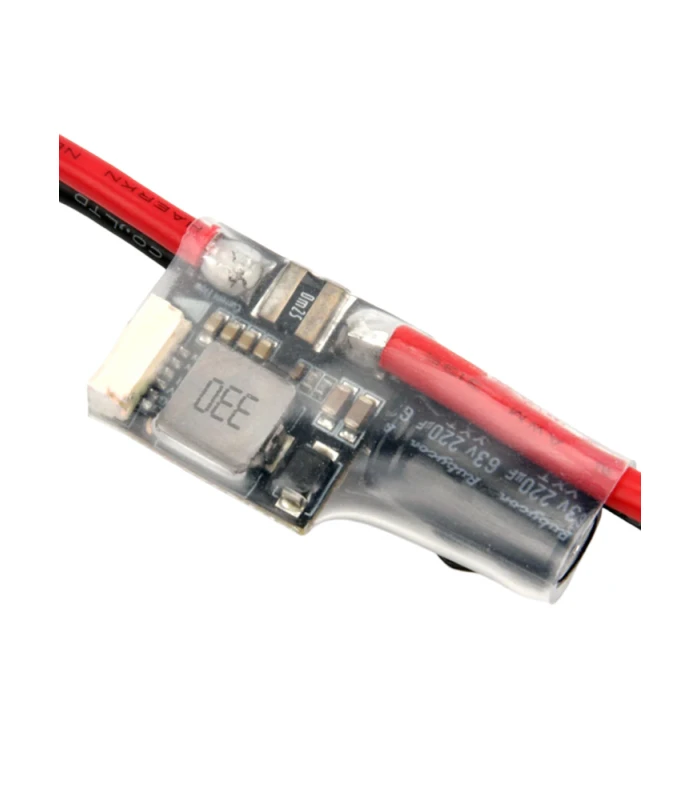

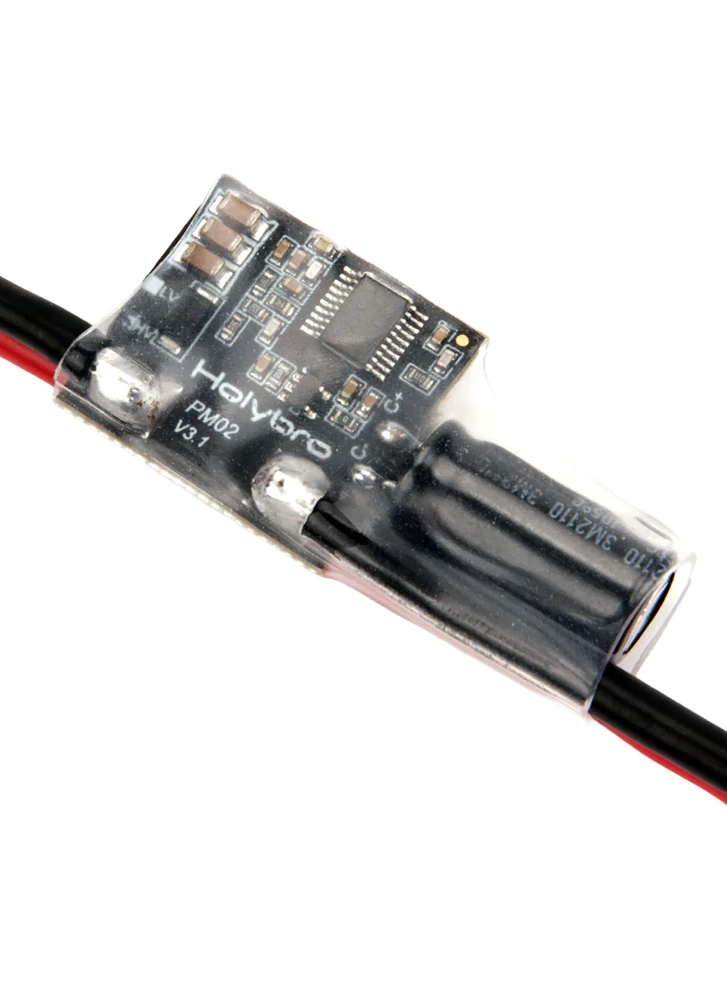

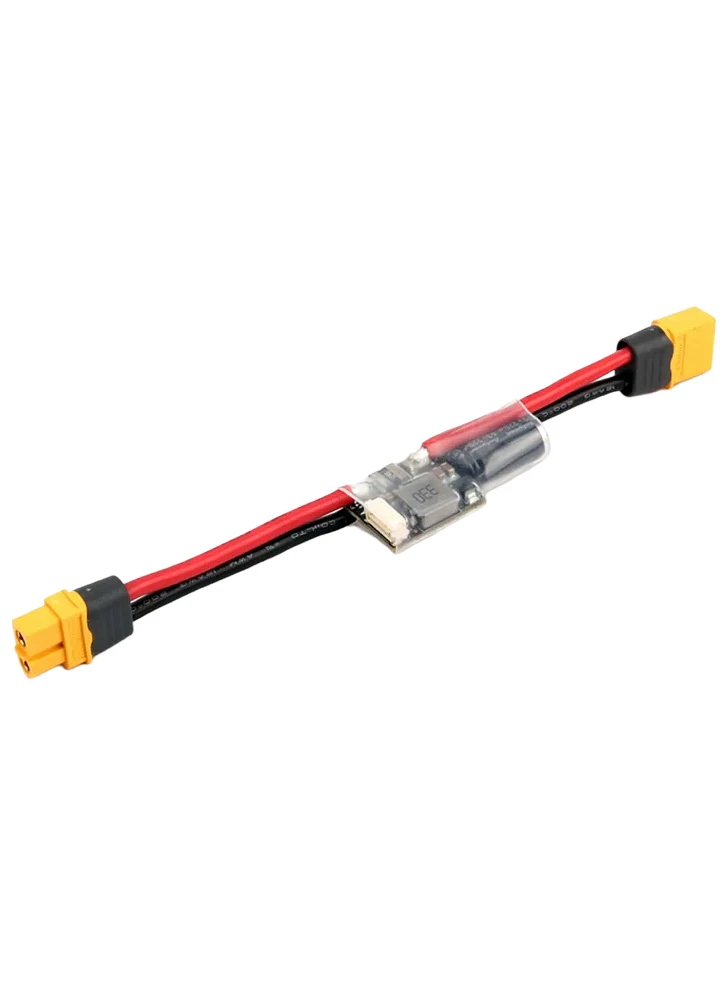

Holybro’s PM02 V3 Power Module is a simple way of providing your Holybro Flight Controller with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

The Power Module is compatible with various flight controllers including the APM, Pix32, Pixhawk, Pixhawk Mini, Pixhawk 4 and Durandal. The module is designed to power the flight controller itself and accessories like GPS & RC receiver, it is not designed to power servos so use your aircraft’s own ESC/BEC for that.

Features:

Max input voltage: 60V
Max current sensing: 120A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.2V and 3A max
6-pos Molex cable plugs directly to APM/Pix32’s ‘PM’ connector
6-pos GH cable plugs directly to Pixhawk4 / Pixhawk4 mini / Durandal ‘PM’ connector

The PM07 is compatible with 2-12S LiPo and is rated at 120amps.

Specification

Max input voltage: 60V
Max current sensing: 120A
Supports 12S battery
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.2V and 3A max
Weight: 20g

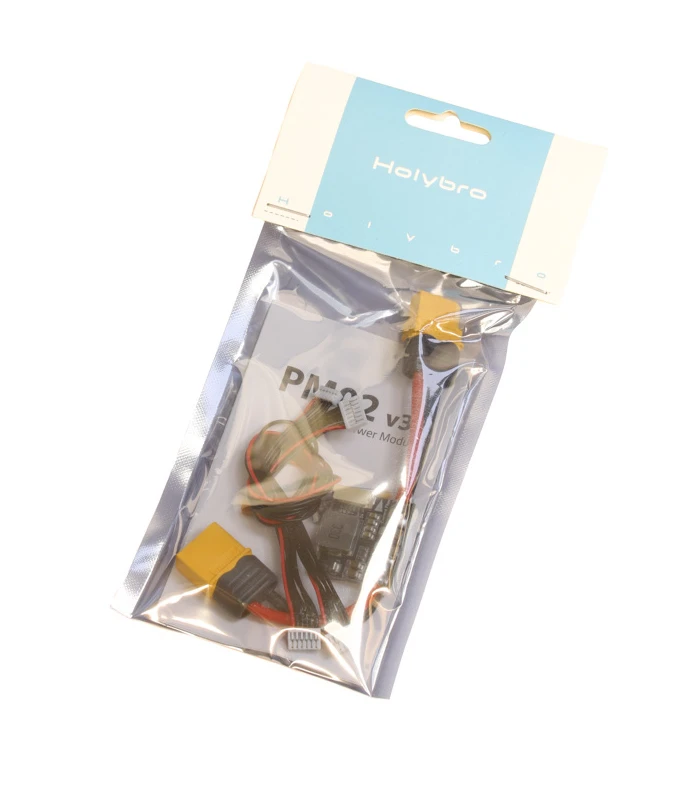

Included:

1x PM02 V3 Module
1x 6pin MLX cable
1x 6pin GH cable
