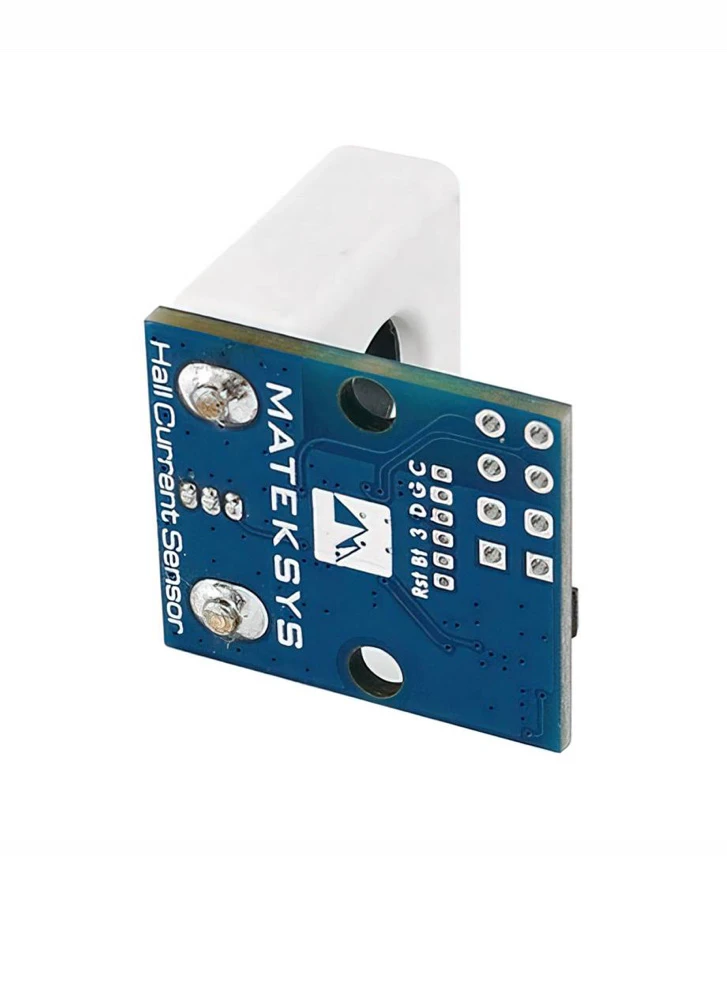

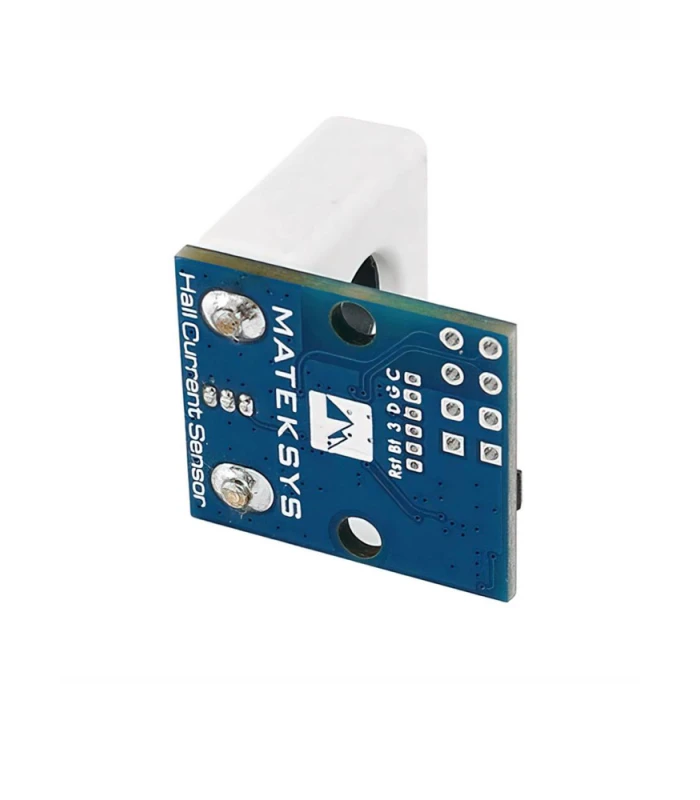

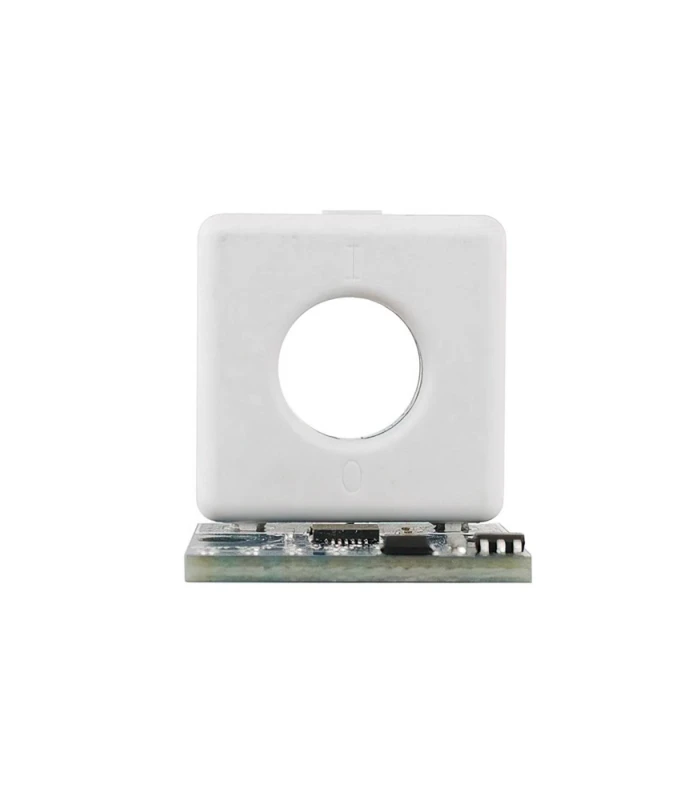

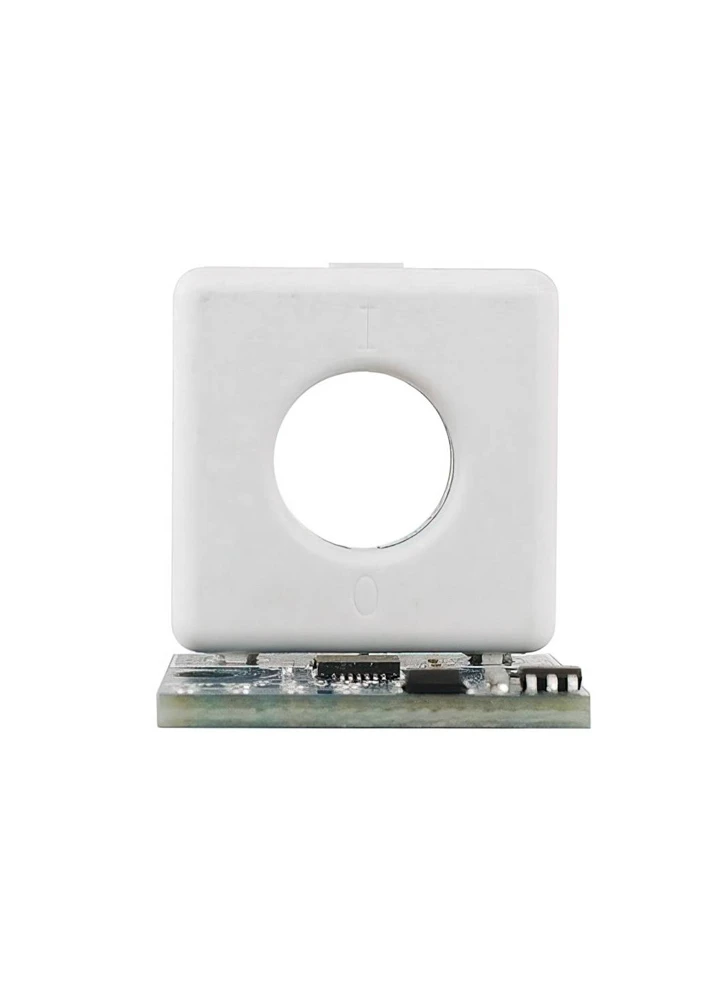

Matek Hall Effect Current Sensor – 150A

Name: Matek Hall Effect Current Sensor - 150A - Flying Tech
Brand: Matek Systems
SKU: FC-SEN-MTHALL150A
Price: 19.00 GBP
Availability: InStock

£19.00 Inc. VAT

Hall Effect Current Sensor, rated to 150A.

In stock

Compare

0 People watching this product now!

SKU: FC-SEN-MTHALL150A Categories: Sensors, Electronics, Flight Controller Accessories, Betaflight Accessories, Power Modules Tags: Amps, Current, Hall Sensor, Sensor

Description

The MATEKSYS Hall Effect Current Sensor is a 150A sensor with factory calibrated offset and sensitivity.

Features

No voltage drop and heat on current sensor components
Offset and Sensitivity are calibrated in factory
0~150A DC Continuous current rating
17ma Power Consumption
Hall effect current sensor

Specification

VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50
Voltage offset error at zero current: +-10mV
Continuous current rating: 0~150A DC
Operating Temperatures: -30~80 °C
Current Output Voltage Error: 5%
Power Consumption: 17mA
Dimensions: 23x20x23mm
Weight: 7g

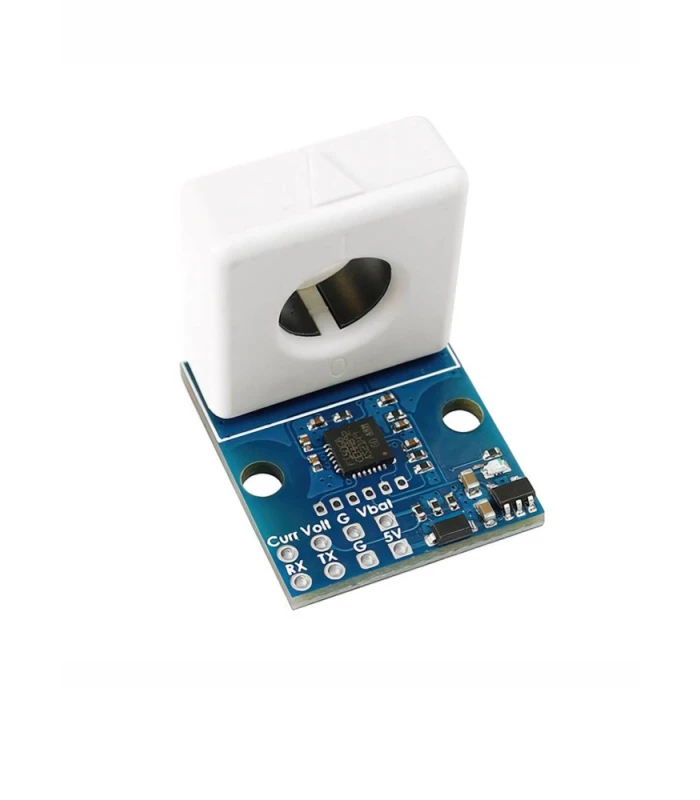

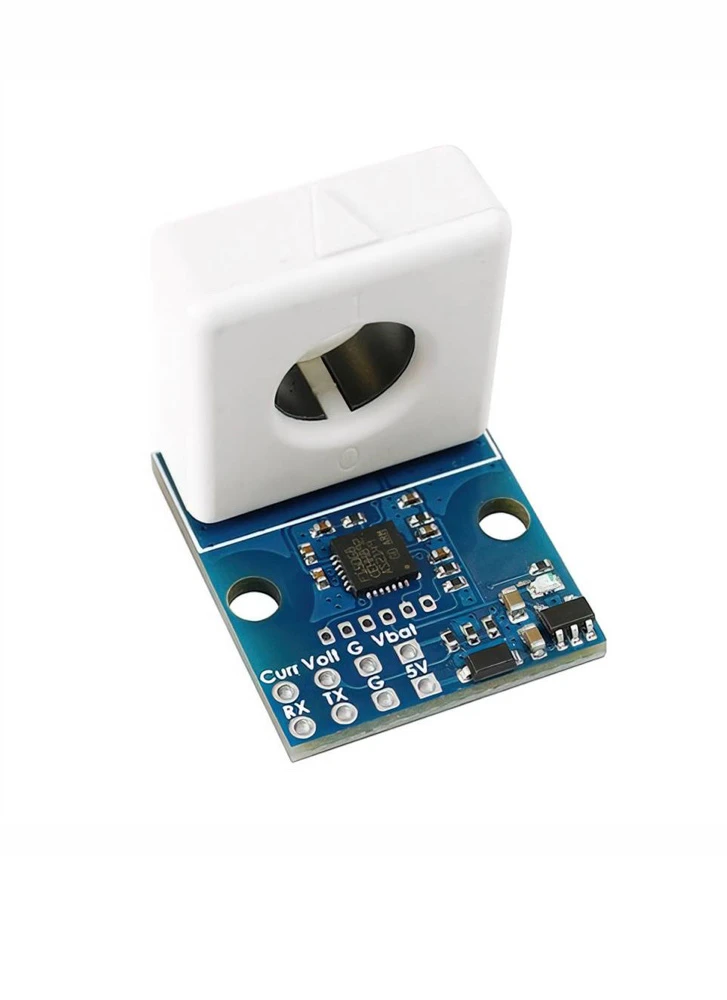

SOLDERING PADS

5V: power supply for HCS-150A board, support 4~13V IN, 17mA
TX/RX: for firmware update and configure (to be supported)
Vbat: for voltage sense, support 0~69V IN
Current: Current signal, 0~3.3V out
Volt: = 1/21 Vbat, 0~3.3V out
G: GND

IMPORTANT NOTES

Mount Hall sensor far from iron and magnetic materials.

Links

Step File: HCS-150A_step.zip

Included:

1x MATEKSYS Hall Effect Current Sensor – 150A

Q&A

Questions and answers of the customers

Hello, is there a datasheet available for this device? Thank you.

0 votes

Q Hello, is there a datasheet available for this device? Thank you. answer now

A Hi, for this product we only have the information that is posted on the 'Specification' tab.
