Holybro PM03D Power Module / Power Distribution Board

£49.90 Inc. VAT

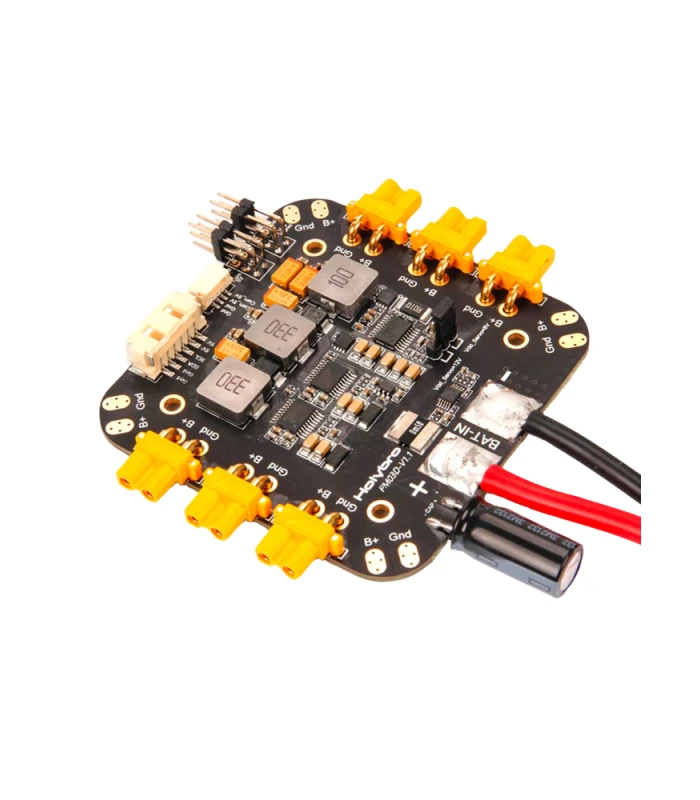

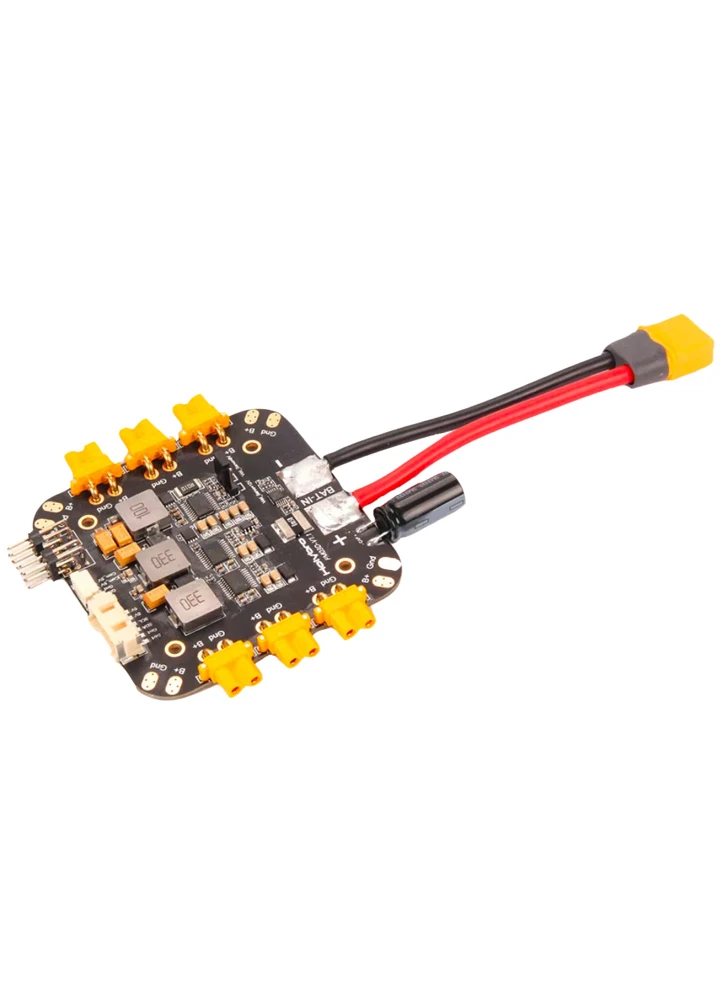

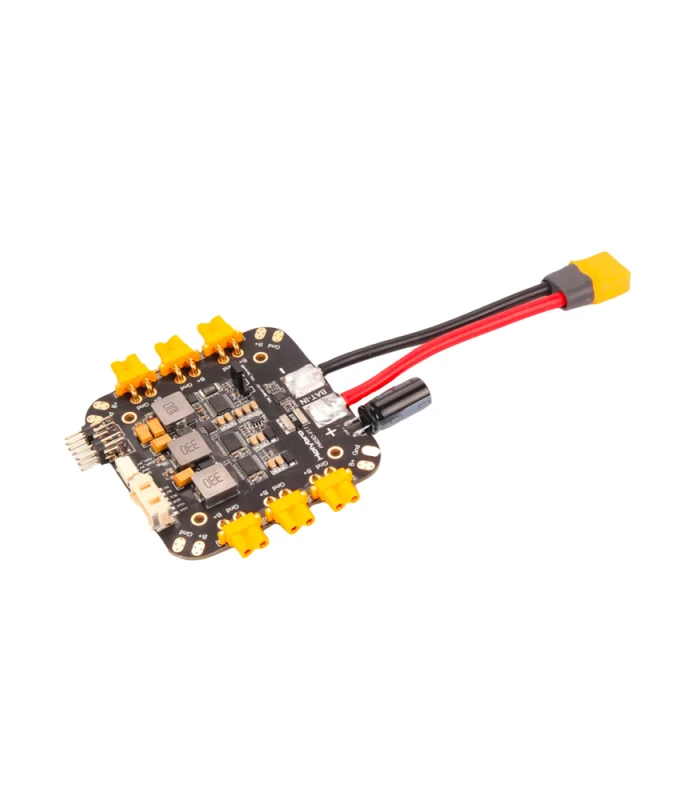

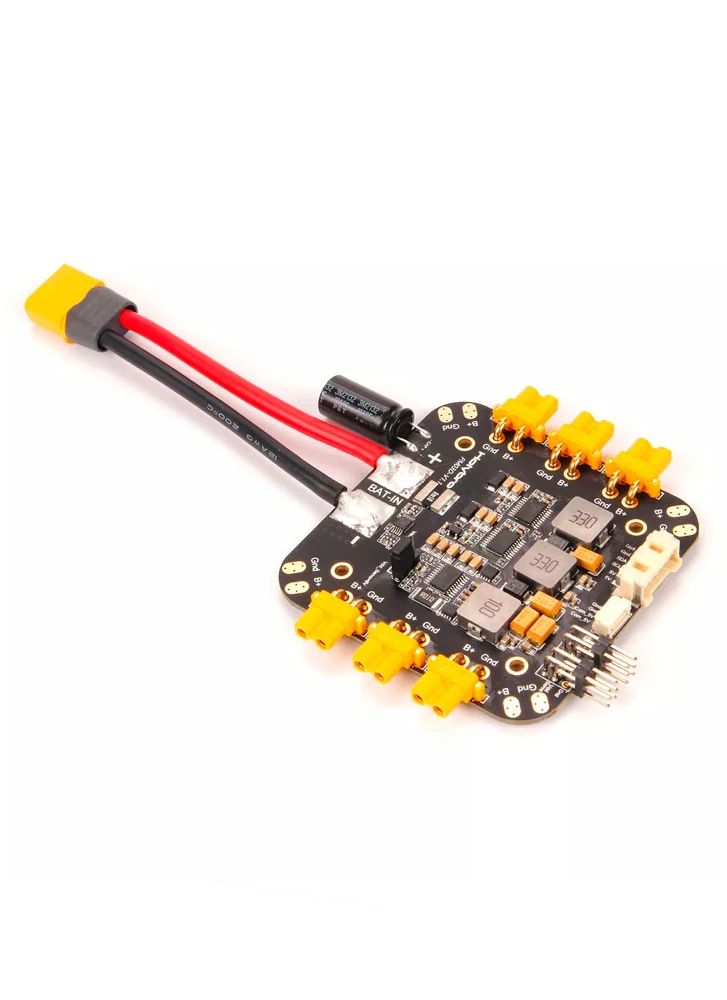

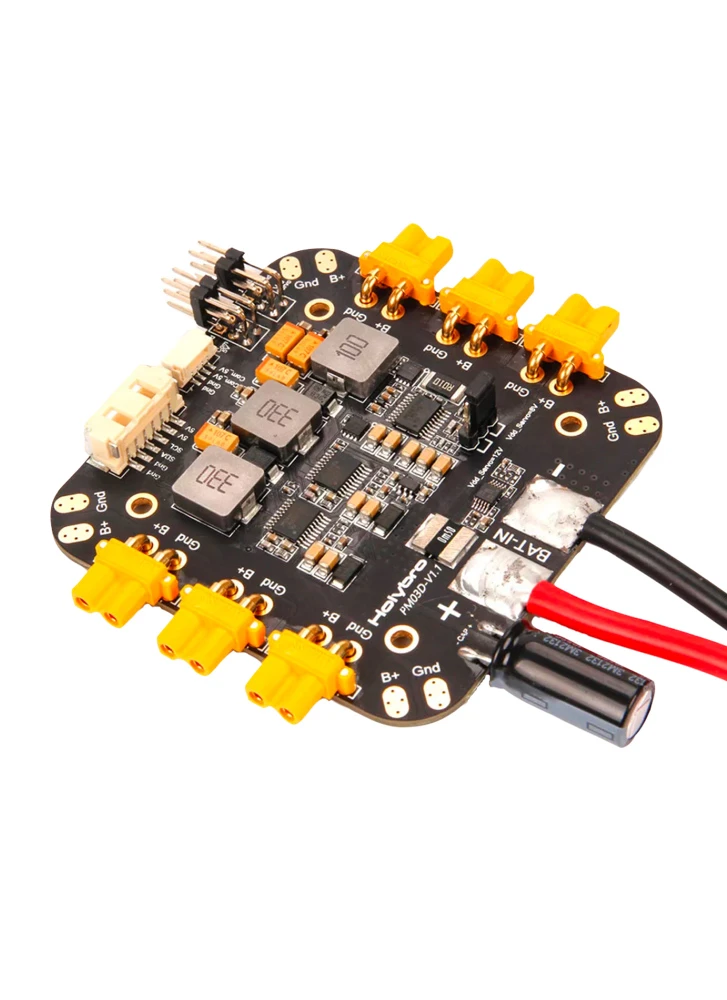

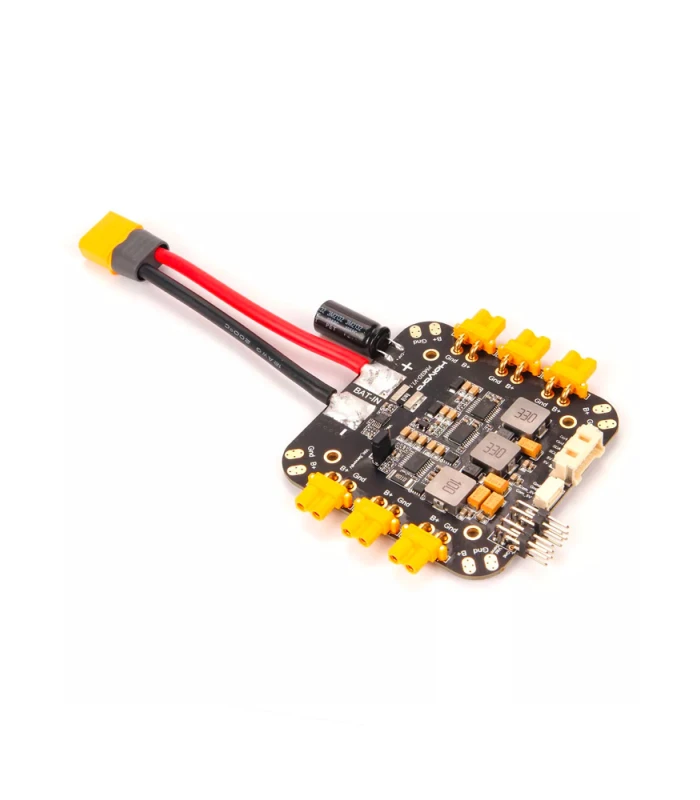

PM03D is a power module for controllers such as the Pixhawk 5X / 6X. It also serves as a power distribution board.

In stock

0 People watching this product now!
Description

PM03D provides a regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible withย flight controllersย that useย I2C power monitor such as the Pixhawk 5X and up.ย It is designed for multi-rotors like the X500 V2. It has both XT30 & XT60 connectors pre-installed for motor-ESCs and battery connections, as well as two 5V BECs and a selectable 8V/12V outputย to suit different kinds of peripheral devices.

Please Note:ย This PM is not compatible with flight controller that uses analog PM such as the Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.

Features:

  • Plug & play, no additional setup required for QGroundcontrol & Mission Planner
  • XT-30 connectors and solder pads for easy motor ESC connection
  • Onboard voltage regulators: two 5.2V & one selectable 8V/12V
  • 5V/A ports for powering companion computer or peripheral device
  • Selectable 8V or 12V triple row pin header for powering peripheral device

PM03D Wiring

Specification
  • Maximum input voltage: 6S battery
  • Rated current: 60A
  • Max current: 120A (<60 Sec)
  • Max current sensing: 164A
  • Connections
    • XT-60 for battery
    • XT-30 for motor & peripheral device (battery voltage
    • Solder pads in each corner (battery voltage)
    • CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
    • JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
    • 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
    • 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
  • Dimension: 84*78*12mm (excluding wires)
  • Mounting: 45*45mm
  • Weight: 59g

The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

Included:

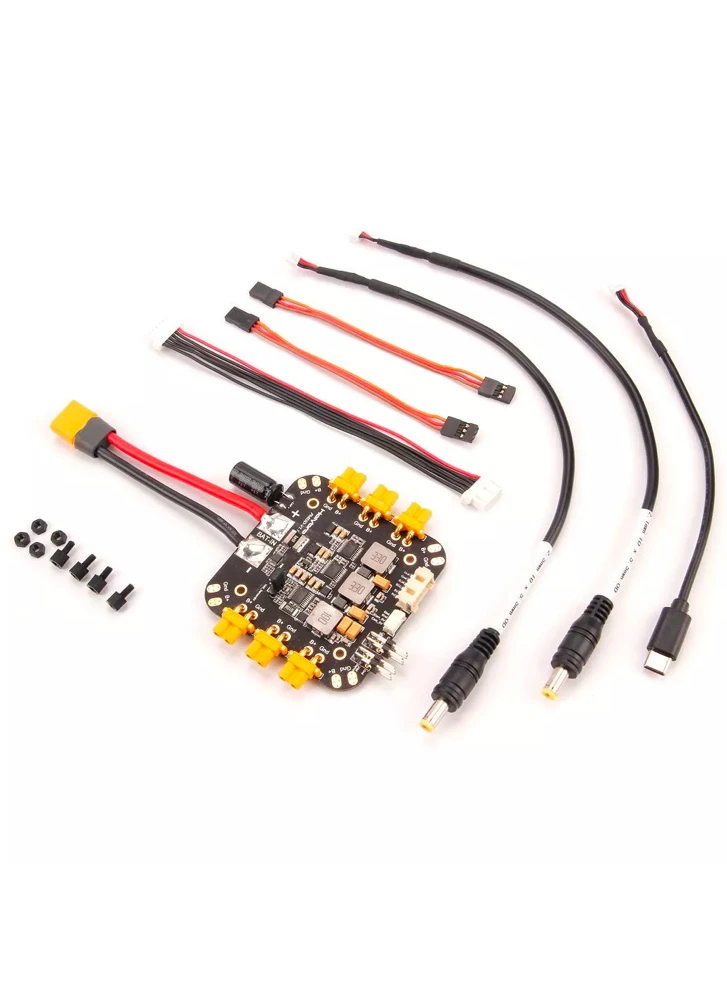

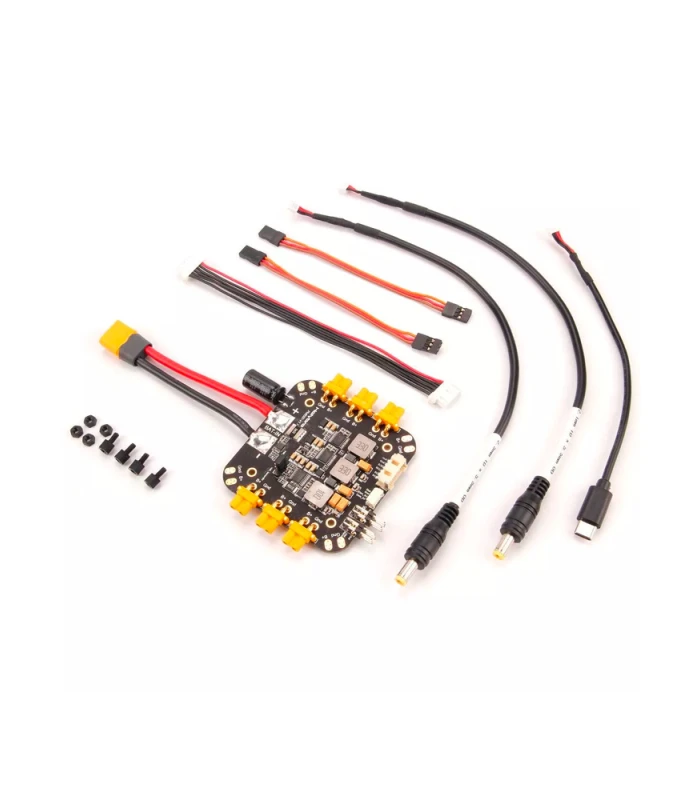

  • 1xย PM06 board
  • 1xย 80mm XT60 connector wireย (pre-soldered)
  • 1xย Electrolytic capacitor: 220uF 63V (pre-soldered)
  • 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)
  • 4pin JST GH to USB Type C
  • 4pin JST GH to barrel plug (2.1*5.5mm)
  • 4pin JST GH to barrel plug (2.5*5.5mm)
  • 4pin Pin Dupont Cable (2pc)
  • Nylon standoffs & nuts
