Holybro PM08D-CAN Power Module 14S 200A

£84.90 Inc. VAT

This version of Holybro’s PM08 power module uses DroneCan Communication Protocol.

Version

Clear

Compare

0 People watching this product now!

SKU: N/A Categories: Power Modules, Electronics, Flight Controller Accessories, Sensors Tags: BEC, Current Sensor, DroneCAN, PM, Power, Power Module, UAVCAN, UBEC

Description

This PM08D-CAN Power Module supply provides regulated 5.3V to flight controller from the battery while providing current consumption and battery voltage measurements to the Flight controller. This power module connects to compatible controllers via DroneCan Communication Protocol.

This Power Module has two 5.3V power output port with independent circuits, BEC IC and circuitry that can provide redundant power to the flight controller.

This power module is designed for vehicle with high power requirements. It comes housed in a aluminum heat sink case, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.

What is DroneCan: DroneCAN is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification and multiple open implementations. More info here.

Feature

Supports 2-14S & 200A Cont, 400A Burst
DroneCAN Communication Protocol
Small & Compact Design
Two 5V Output with Independent BEC IC and Circuitry

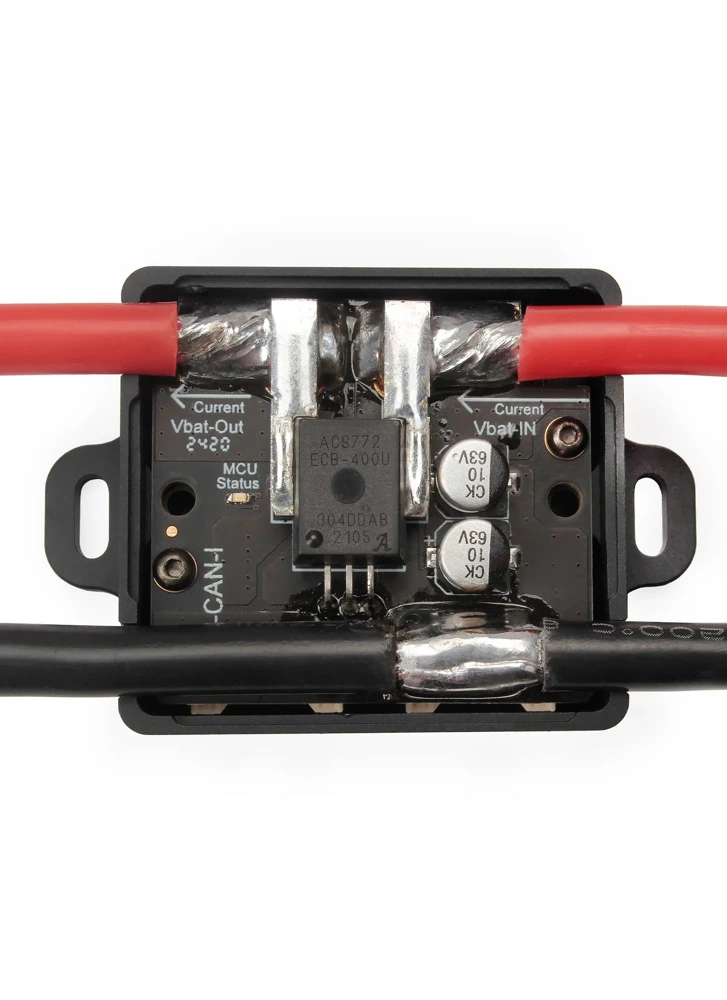

Separated Sensor and BEC Board to Minimize Electrical Noise Interference
Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
High Accuracy Temperature Sensor for Temperature Monitor

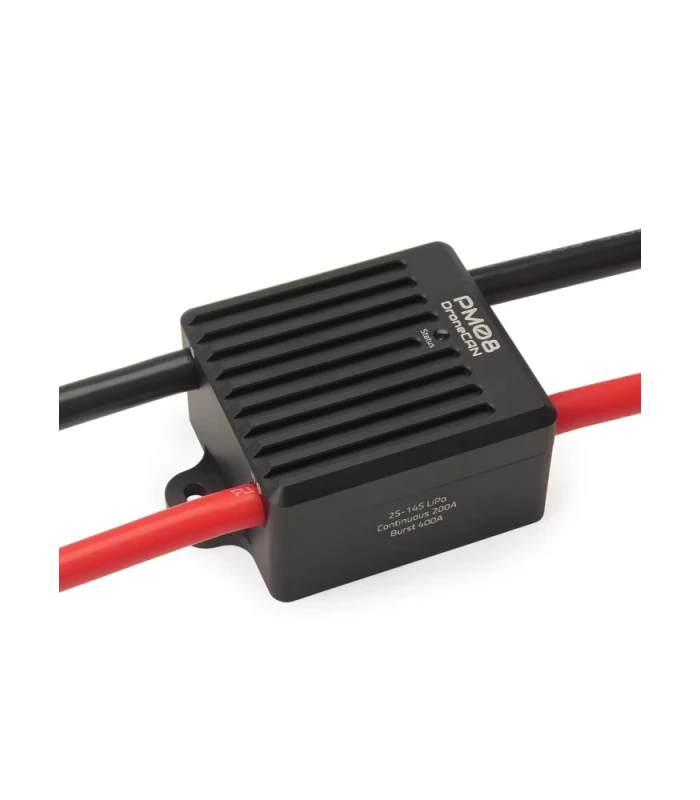

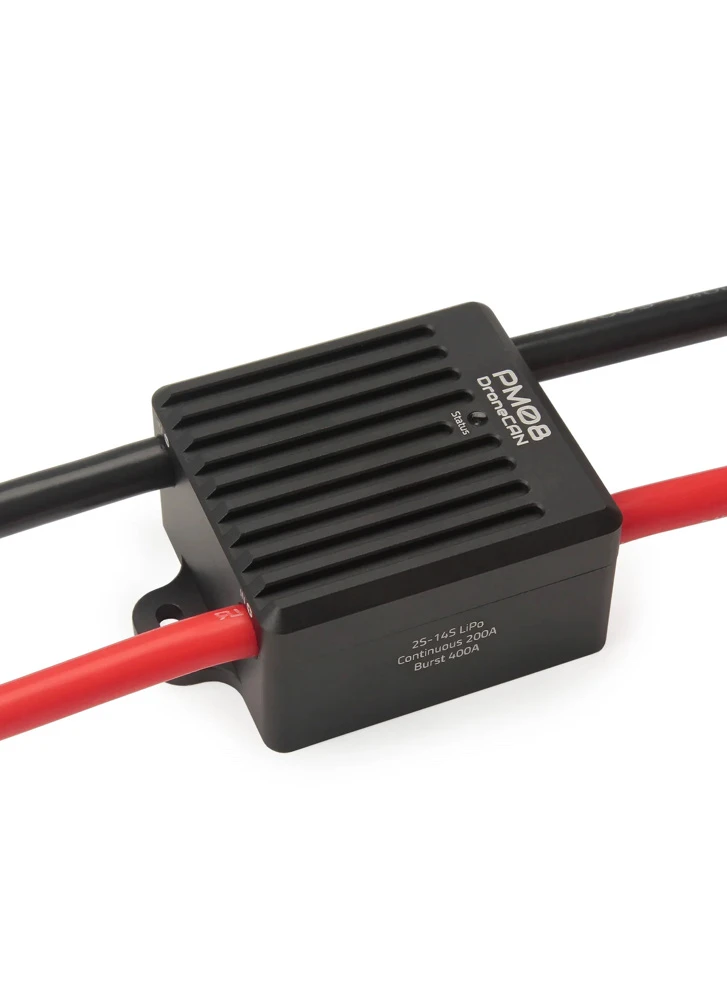

High-Efficiency Aluminum Heat Dissipation Shell

Pin out

Status LED

Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected

Interface Type

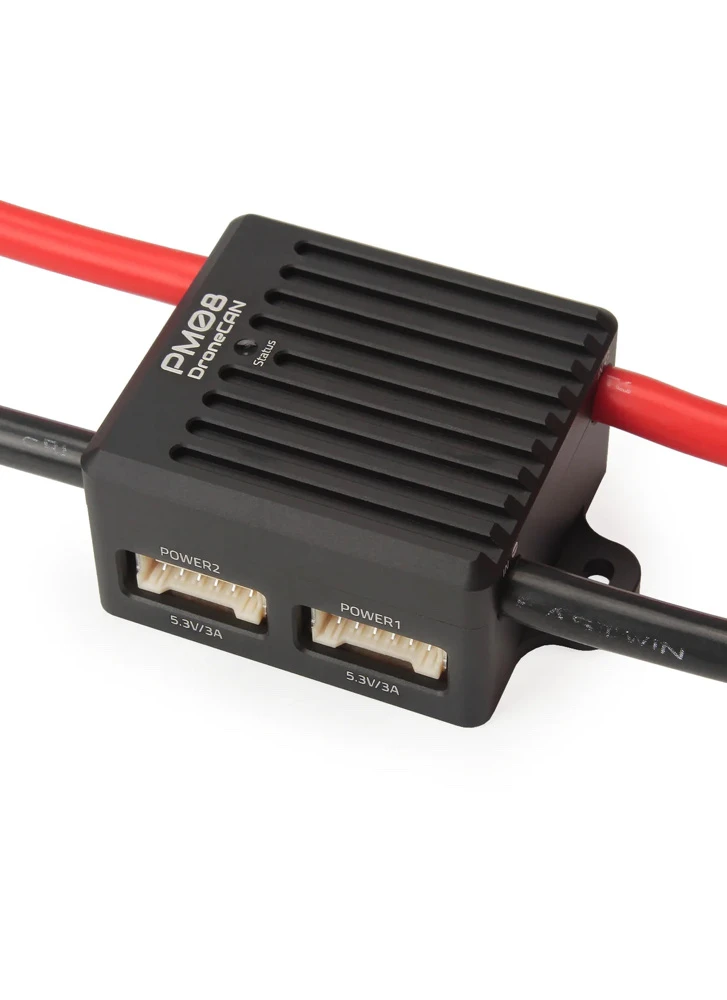

Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
Battery IN/OUT Option (select version as required):
- XT90 Connectors
- Tinned Wires
- XT90 & Ring Terminals

Reference Links

Specification

Processor：STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
Burst current
- 400A @ 25℃ 1 sec
- 1000A @ 25℃ < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃
Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature :-25℃~105℃
Firmware upgrade: Support
Calibration: Support

Mechanical Spec

Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
