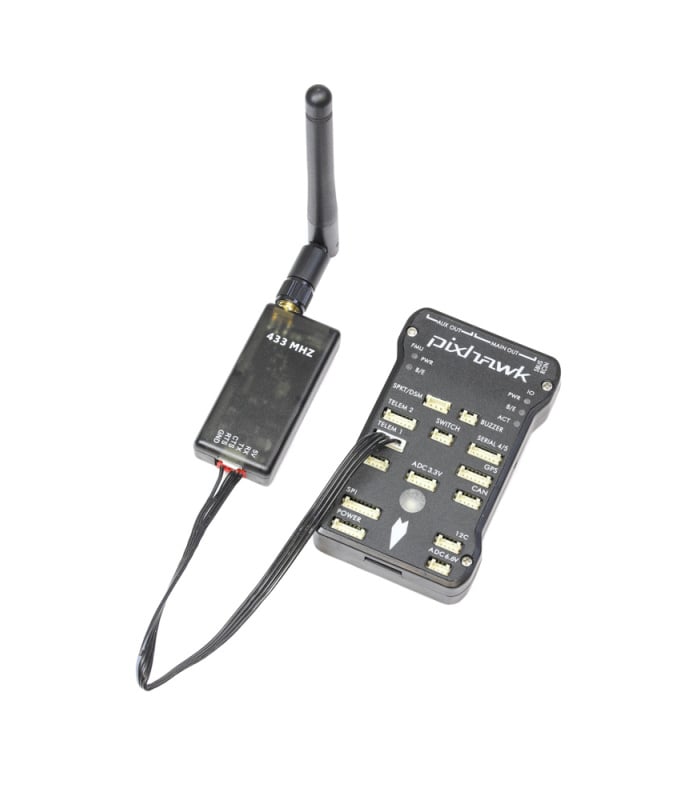

APM Pixhawk Radio Telemetry Kit V2 433MHz 100mW / 500mW

£39.00 – £49.99 Inc. VAT

A choice of SiK Telemetry modules to wirelessly link flight controllers such as the Pixhawk with a ground station.

Version

Frequency

Clear

Compare

0 People watching this product now!

SKU: N/A Categories: Telemetry, Electronics, Flight Controller Accessories, Pixhawk & APM Accessories Tags: 433Mhz, APM, Arducopter, Pixhawk, Telemetry

Description

This Telemetry radio set allows you to link to a flight controller such as the APM or Multiwii AIO via a USB equipped device such as a computer, laptop or tablet supporting a USB connection (OTG). The Radio set not only lets you see live data such as live GPS position overlaid on a map (if the flight controller has the GPS option) to system voltage, heading, waypoint navagation even artificial horizon and so much more, using open source MAVlink based ground station software (See the ArduCopter screenshot). You can even fly your aircraft with a joystick via your computer and update settings live! Or just use it for your DIY projects that needs a wireless Serial interface. This kit offers a great low price, longer range (approx one mile with supplied antennas) and superior performance. The system utilizes the UK legal 433Mhz band and provides a full-duplex link using HopeRF’s HM-TRP modules running custom, open source, firmware.

The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and configuration of system parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through the 3DR Radio configurator and AT commands.

Interface to the module is via standard 5V-tolerant TTL serial / FT232 USB serial.

We sell 433Mhz / 915Mhz versions: 433Mhz is for the UK and most of Europe. 915Mhz for USA, Canada, Australia & New Zealand – please select as appropriate for your region.

IMPORTANT: This telemetry module runs firmware V1.9 – do not update using QGroundControl as it will automatically install V2.0 which breaks the module.

Ground Stations:

Mission Planner: Platform Windows, Mac OS X
QGroundControl: Platform Windows, Mac OS X, Linux, Android and iOS
Mission Maker for ArduPilot (a.k.a. “DroidPlanner 3” / “Tower”) Platform: Android Phones and Tablets

Mission Maker Ground Station Android App

Features:

433Mhz / 915Mhz frequency band
Receiver sensitivity to -117 dBm
Transmit power up to 20dBm (100mW)
Air data rates up to 250kbps
Range of approx 1 mile with supplied antennas / range of several kilometers with a small omni antenna
Can be used with a bi-directional amplifier for even more range
MAVLink protocol framing and status reporting
Frequency hopping spread spectrum (FHSS)
Adaptive time division multiplexing (TDM)
Configurable duty cycle
Built in error correcting code (can correct up to 25% data bit errors)
Open source firmware
AT commands for radio configuration
RT commands for remote radio configuration
Adaptive flow control when used with APM
Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.

Specification

Band: 433MHz/915MHz
Antenna connectors: RP-SMA connector
Output power: 100mW (20dBm), adjustable between 1-20dBm / 500mW
Sensitivity: -117dBm sensitivity
Interface: Standard TTL UART
Connection status: LED indicators
TX Weight: 5g (15g with antenna)

Includes:

Radio Telemetry base station (USB Connection)
Telemetry Transceiver (Pin Header)
Lead set x1
Antenna x 2

Frequency regulations vary by country, so consult your local airspace authority to find out which frequency is legal in your area.
