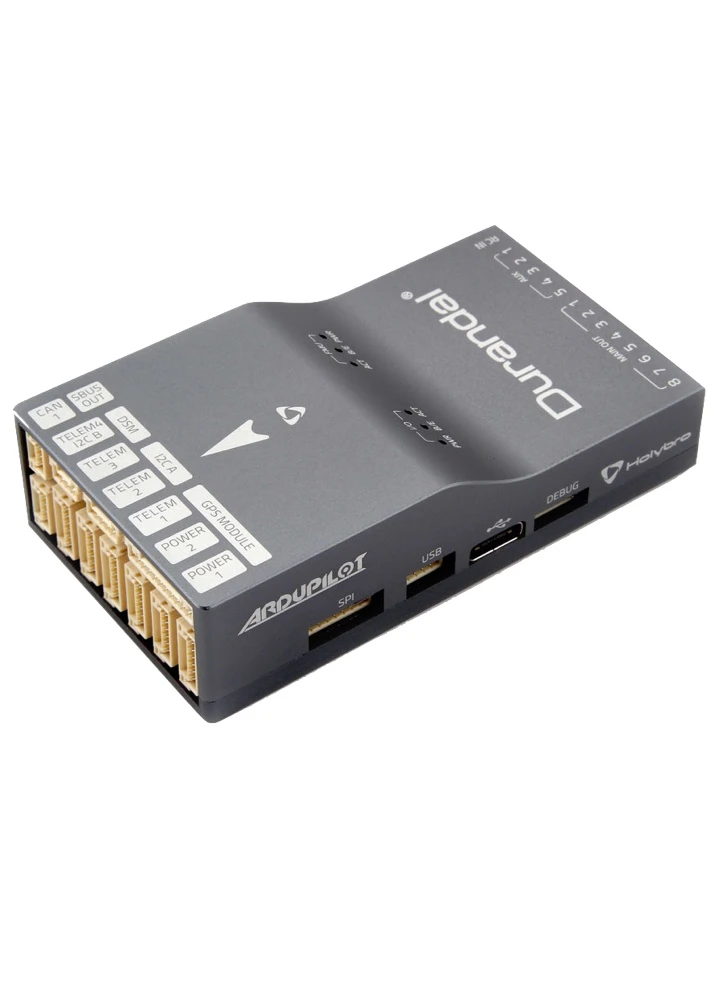

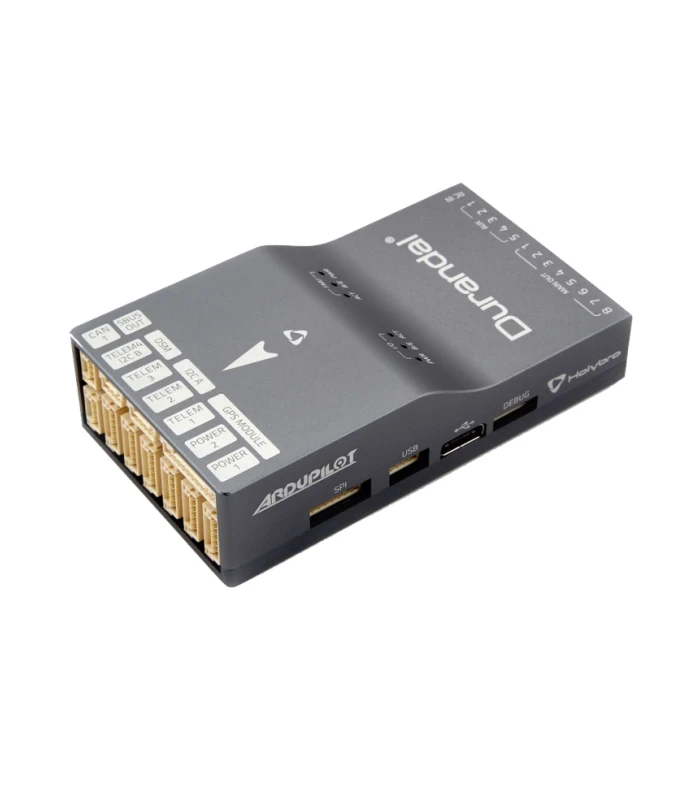

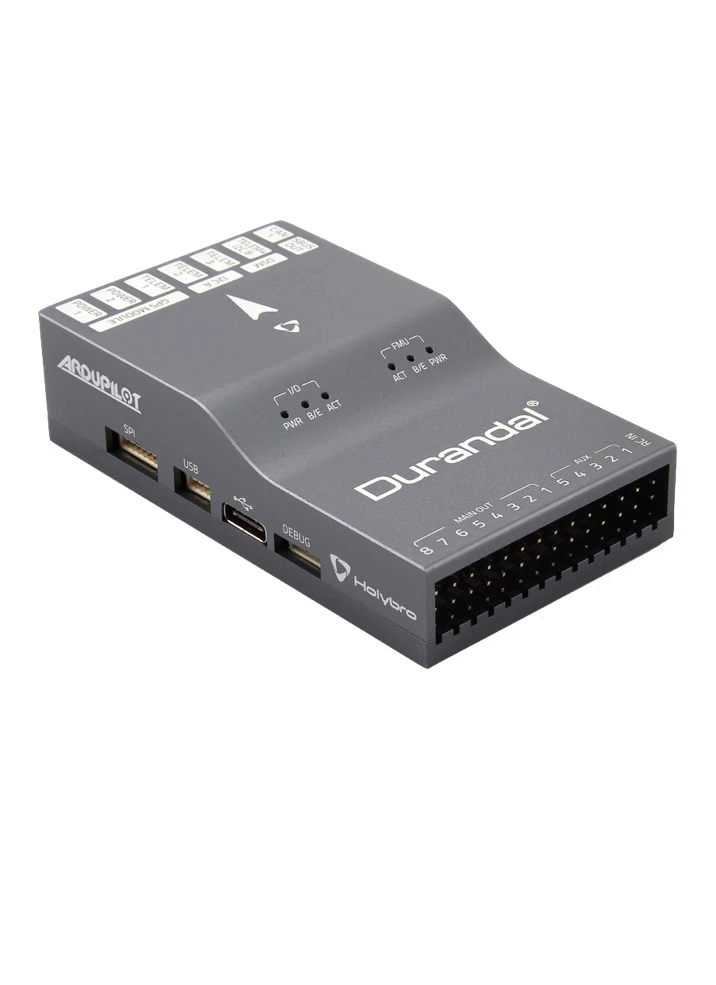

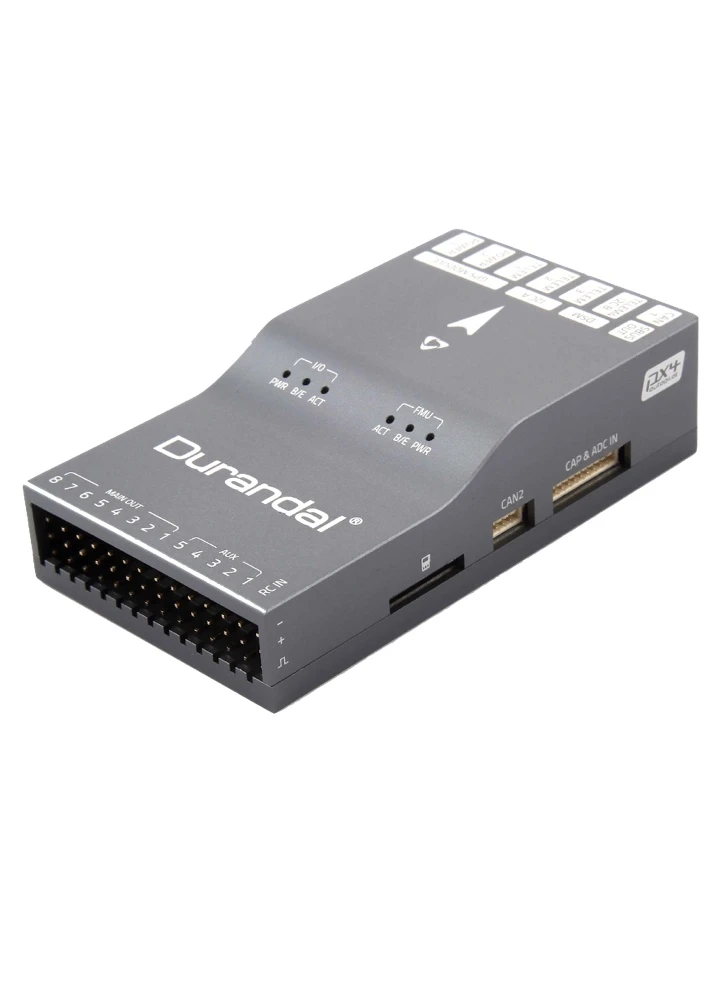

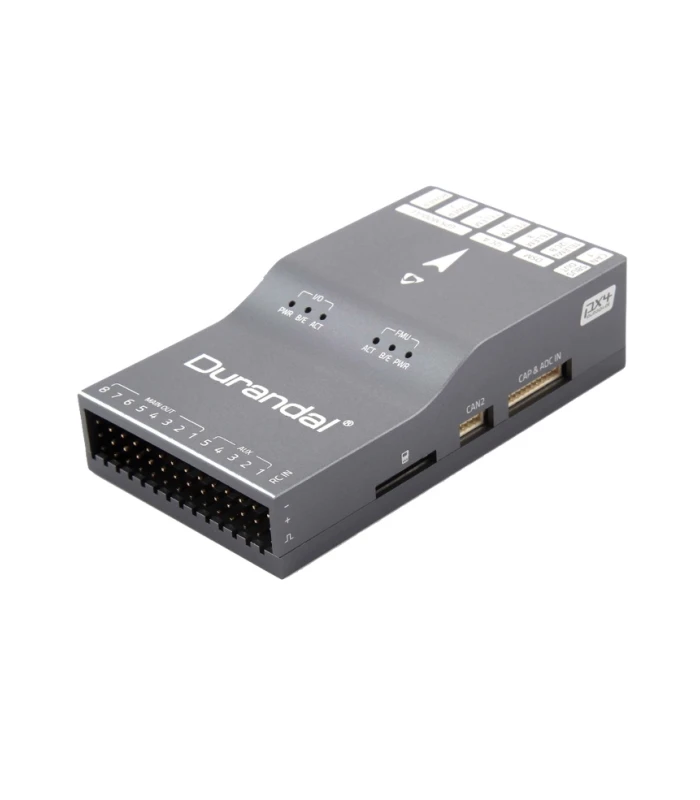

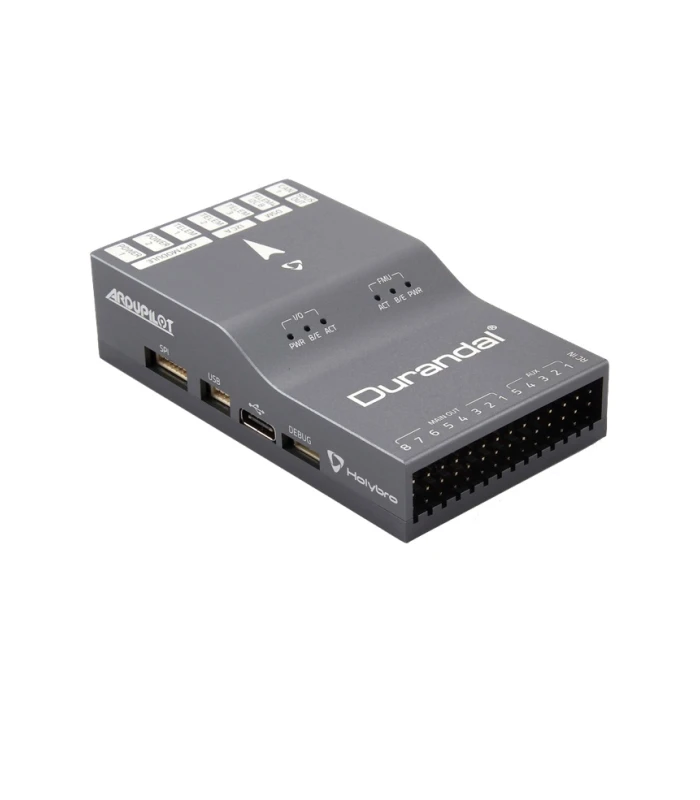

Holybro Durandal H7 Flight Controller Autopilot

Name: Holybro Durandal H7 Flight Controller Autopilot - Flying Tech
Brand: Holybro
SKU: FC-11039
Price: 214.90 GBP
Availability: InStock

£214.90 Inc. VAT

Durandal features a built-in vibration isolation system. Compatible with PX4 and Ardupilot.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: FC-11039 Categories: Autopilots, Electronics, Flight Controllers / Autopilots Tags: Ardupilot, Autopilot, FC, Flight Controller, PX4

Description

Durandal is the latest update to the successful family of Holybro autopilots. It features the STM32H743 microprocessor, the latest advanced processor technology from STMicroelectronics®, plus sensor technology from Bosch® and InvenSense®, and a ChibiOS real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle. Durandal’s microcontroller now has 2 MB of Flash memory and 1 MB of RAM. It comes with built-in vibration isolation system and integrated IMU heater for sensors temperature control.

Durandal is pre-installed with PX4, and also supported by other flight stacks such as Ardupilot.

Features:

High performance H7 Processor with clock speed up to 480 MHz
Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®
Built-in Vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
2 power ports & 5 general purpose serial ports
Two Power ports for redundancy

Specification

Main FMU Processor: STM32H743

32 Bit Arm ® Cortex®-M7, 480MHz, 2MB memory, 1MB RAM

IO Processor: STM32F100

32 Bit Arm ® Cortex®-M3, 24MHz, 8KB SRAM

Sensors

Main accelerometer / gyroscope: InvenSense ICM20689
Redundancy accelerometer / gyroscope: Bosch BMI088
Barometer: MS5611
Magnetometer: IST8310
GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310

Power

Operating power: 4.9~5.5V (6v max input)
USB Input: 4.75~5.25V
High-power servo rail, up to 36V (servo rail does not power the autopilot)
Dual voltage and current monitor inputs

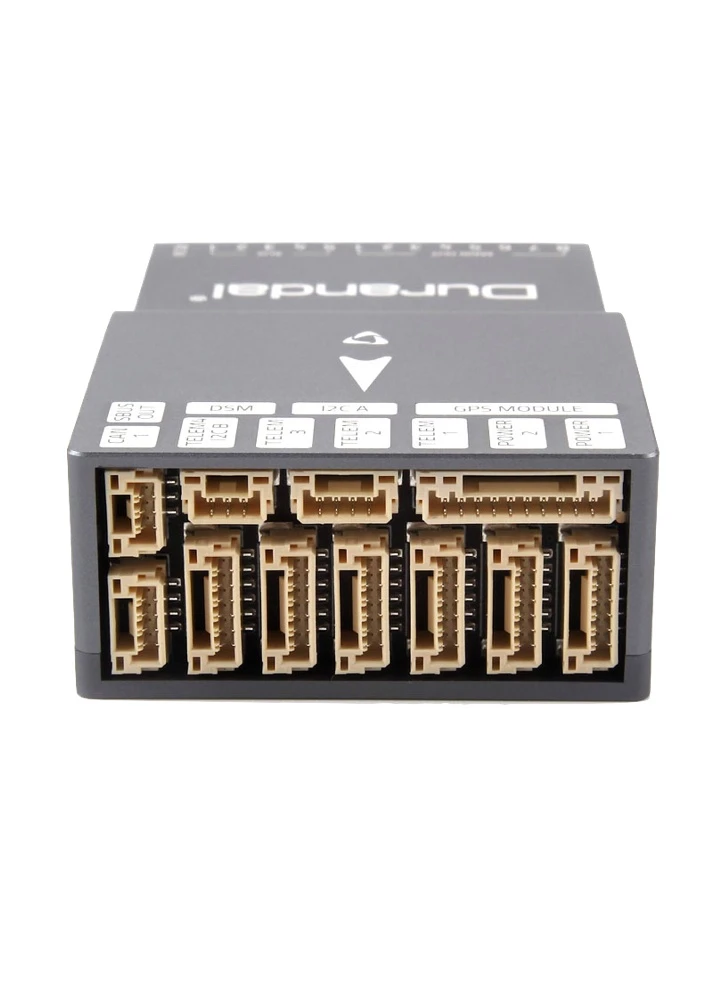

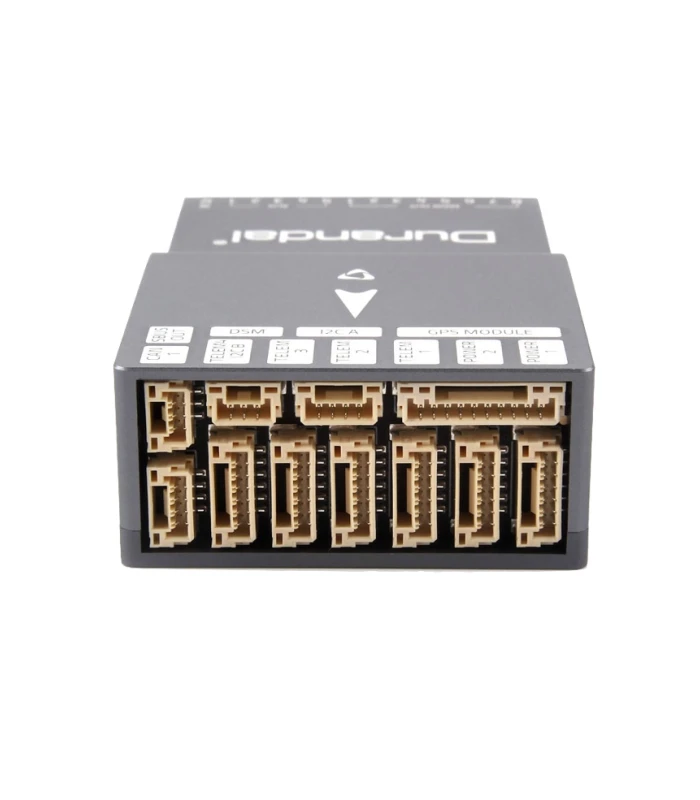

Interfaces

8-13 PWM servo outputs (8 from IO, 5 from FMU)
6 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for Spektrum / DSM
Dedicated R/C input for CPPM and S.Bus
Dedicated S.Bus servo output and analog / PWM RSSI input
5 general purpose serial ports
- 3 with full flow control
- 1 with separate 1.5A current limit
3 I2C ports
4 SPI buses
- 1 internal high speed SPI sensor bus with 4 chip selects and 6 DRDYs
- 1 internal low noise SPI bus dedicated for XXX
- Barometer with 2 chip selects, no DRDYs
- 1 internal SPI bus dedicated for FRAM
- Supports temperature control located on sensor module
- 1 external SPI buses
Up to 2 CANBuses for dual CAN
- Each CANBus has individual silent controls or ESC RX-MUX control
Analog inputs for voltage / current of 2 batteries
2 additional analog inputs

Other

Weight: 68.8g
Builtin IMU heater for temperature stability
Dimensions: 80mm x 45mm x 20.5mm
Operating temperature: -40 ~ 85°c

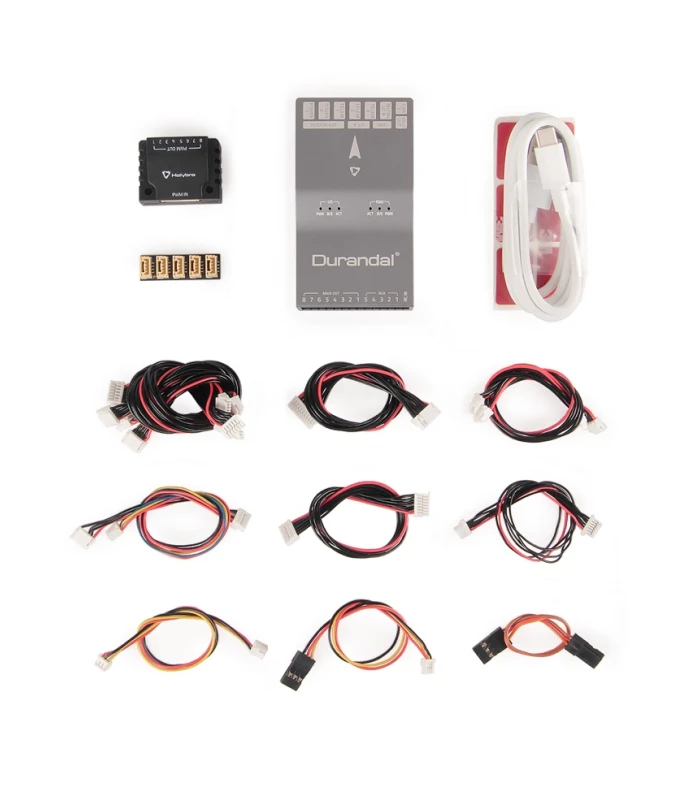

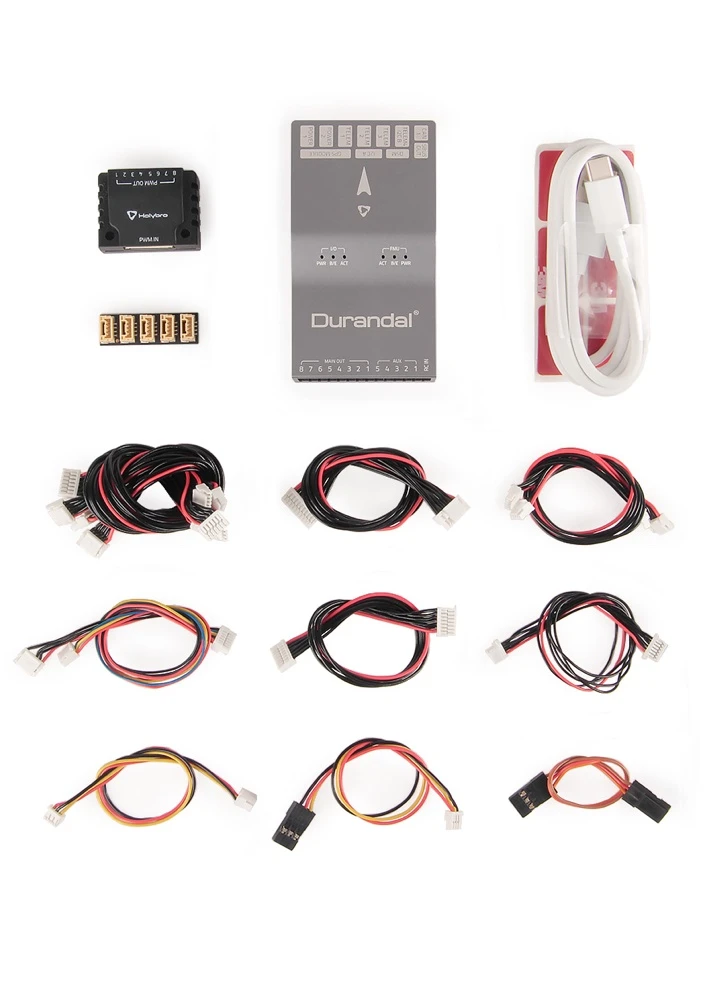

Included:

Durandal x1
I2C splitter Board x1
6 to 6 pin cable (power) x5
4 to 4 pin cable (CAN) x2
10 to 10 pin cable (CAP&ADC) x2
7 to 7 pin cable(SPI) x1
“Y”6 to 4 pin & 4 pin cable x1
DSMX receiver cable x1
PPM/SBUS out cable x1
XSR receiver cable x1
SBUS receiver cable x1
USB (type-c)cable x1
Foam Set x1
