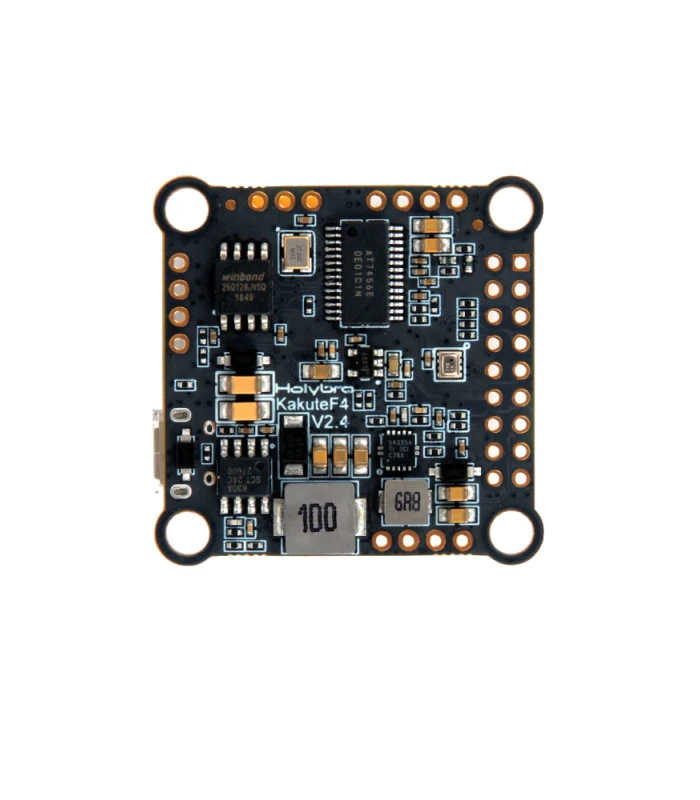

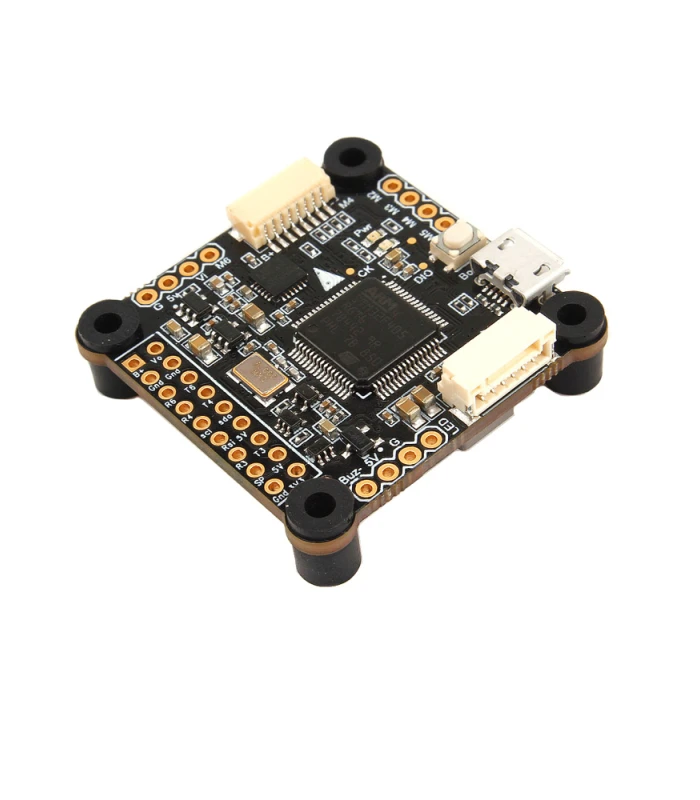

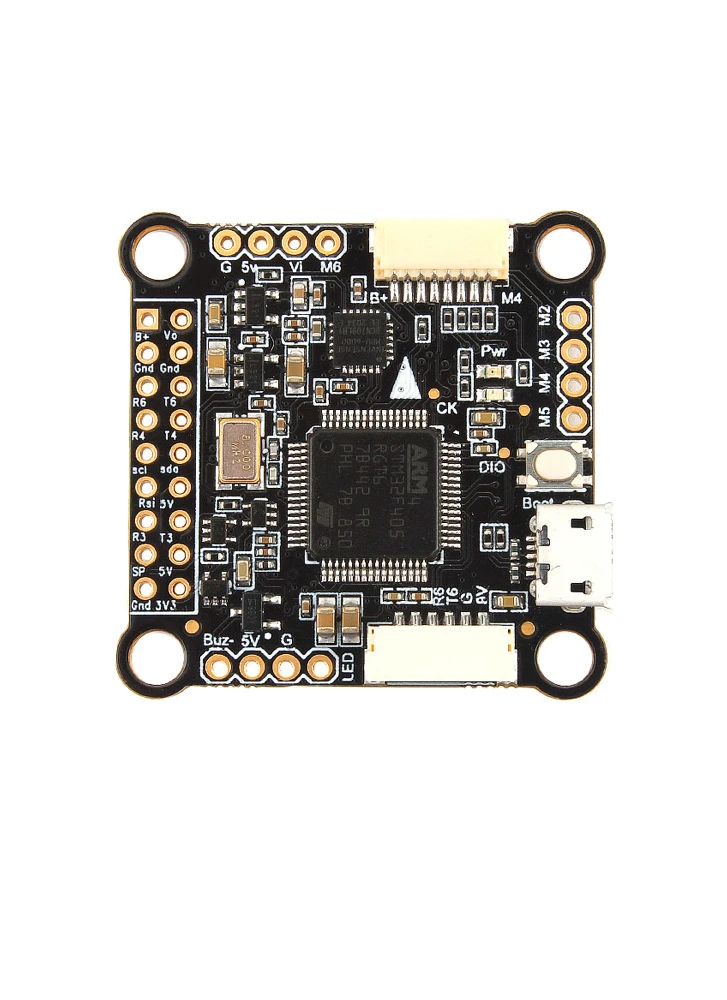

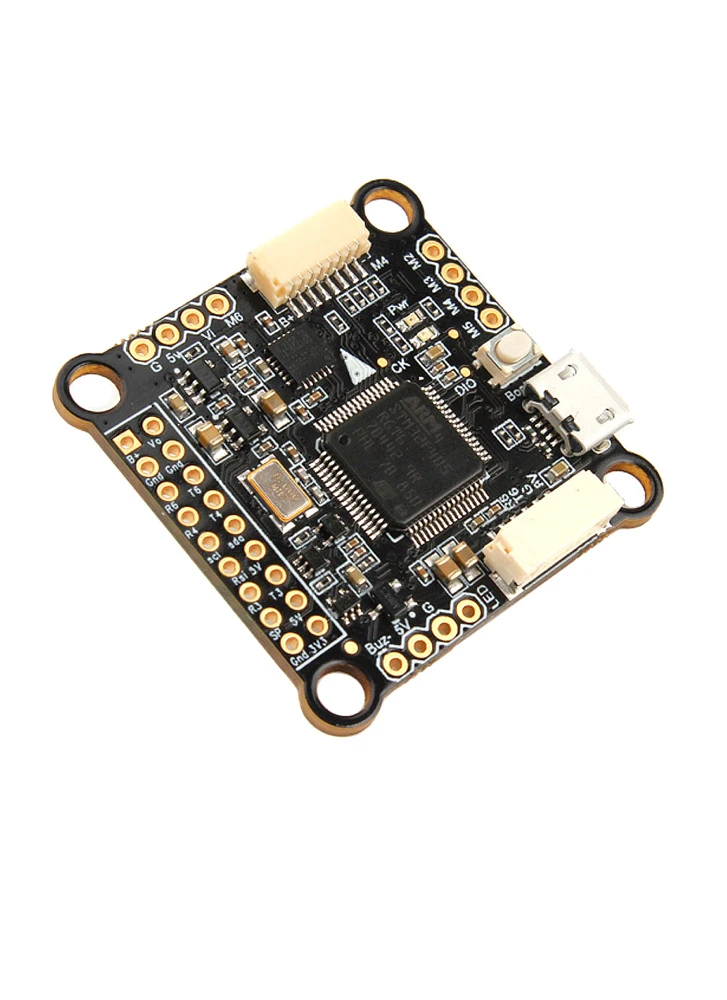

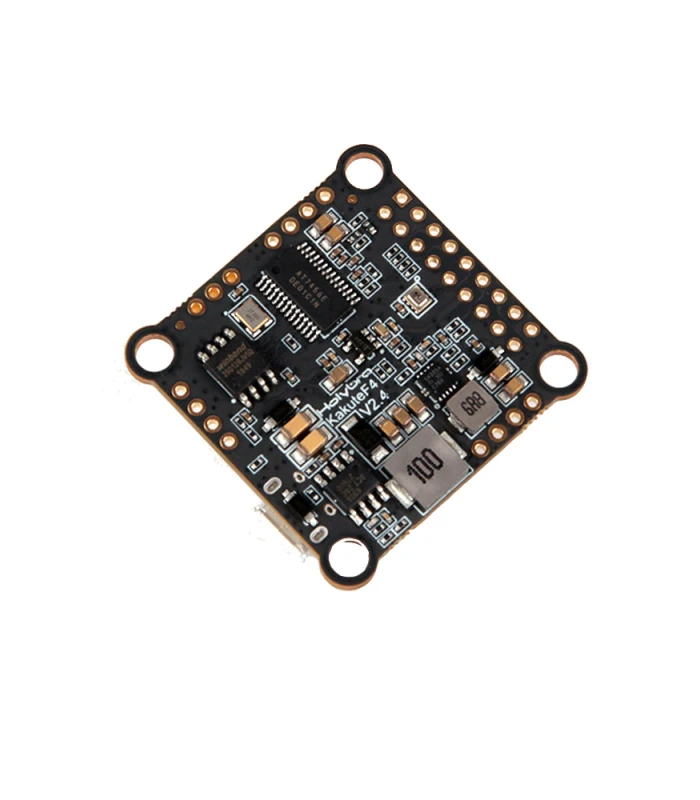

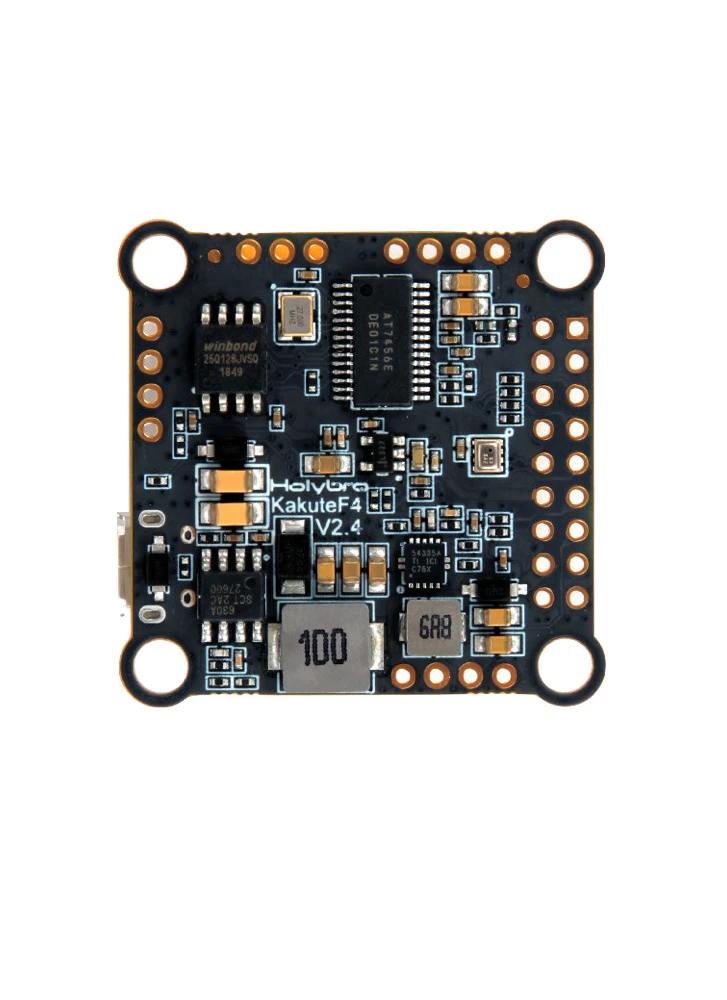

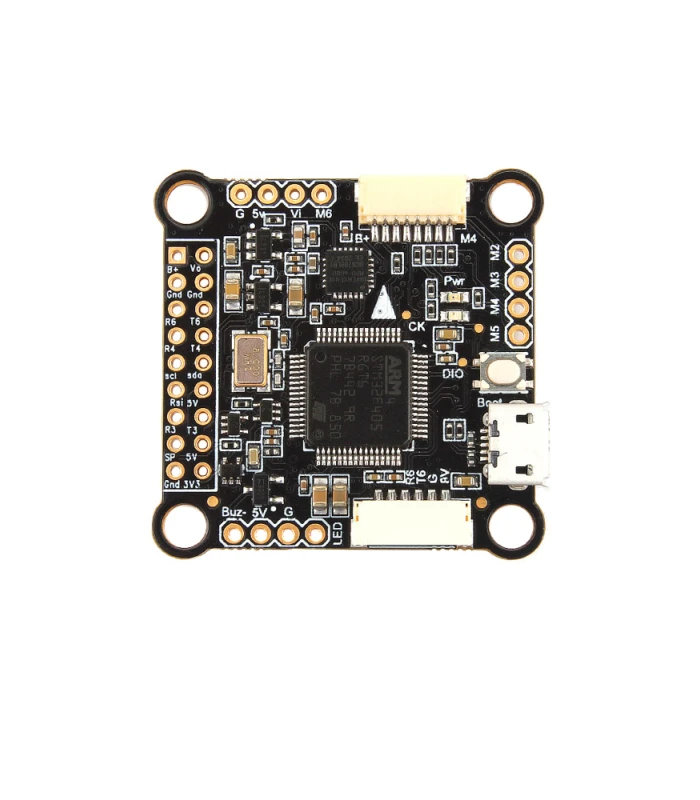

Holybro Kakute F4 V2.4 Flight Controller

£39.90 Inc. VAT

This F4 FC is feature rich, including barometer and plug-and-play connector for the DJI O3 HD.

Only 3 left in stock

0 People watching this product now!
Description

The Holybro Kakute F4 V2.4ย is the next generation of this popular flight controller.

The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.

At the heart of this flight controller is the powerful F4 STM32F405RGT6 32-bit processor for extra processing speed and the low noise MPU6000 (SPI) IMU gyro/accelerometer which outputs sensor readings at 32Khz. There is an onboard blackbox with 128MB Dataflash chip for all your data logging needs and a barometer sensor to unlock altitude hold mode. Input voltage is 2S-8S.ย The FC also has a filtered voltage output of 5V 2A and 3.3V 200mA to power peripherals such as GPS, RX, FPV camera or LED strips. There is also a regulatorย that outputs 9Vย 3A for the DJI VTX.ย ย There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.

The FC supports Betaflight (pre-loaded)/ Cleanflightย and it has dedicated bootloader button which makes firmware flashing a breeze. It also supports BLHeli pass through for easy ESC upgrade and configuration.ย The OSD interface is highly customizable and can be setup and fine tuned to your personal requirements.

Kakute F4 V2.4 Banner

Specification
  • MCU –ย STM32F405
  • IMU – MPU6000
  • Barometer – BMP280
  • OSD – AT7456E
  • 5x UARTs (1,3,4,4,6,7)
  • 128 Mbit Dataflash chip
  • Battery input voltage: 2S-8S
  • BEC 9V/3A – Optimized for DJI O3 Air unit
  • BEC 5V/2A
  • 7x PWM Outputs (6 Motor Output, 1 LED)
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
  • Mounting – 30 x 30mm, ฮฆ4mm hole with M3 Grommets
  • Dimension –ย 37x37mm
  • Weight โ€“ 7g
  • JST-SH1.0_8pin port (For 4in1 ESCs)
  • JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

Included:

  • 1xย  Kakute F4 V2
  • 4xย  Anti-Vibration Silicone Grommet Insert *4
  • 1xย  JSTย SHย 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
  • 1xย  JSTย SH 6pin 100mm cable(for Caddx HD Systems)
  • 1xย  JSTย SH 8pin 100mm cable(for ESCs)
Downloads
Manual (pdf, 1946KB)
