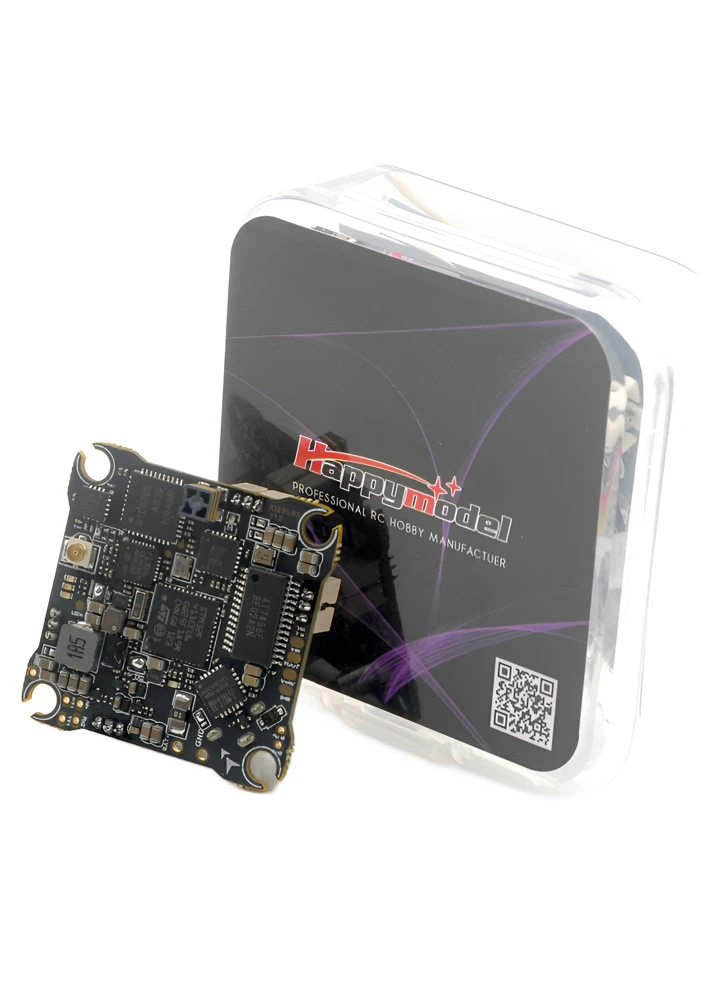

Happymodel X12 ExpressLRS ELRS F4 12A 5-in-1 AIO FC 1-2S
£61.75 Inc. VAT
Ultra-compact 5-in-1 AIO combining F4 FC, 12A ESC, ExpressLRS receiver, 5.8GHz VTX, and OSD—perfect for 1–2S Tiny Whoop and Toothpick builds.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.

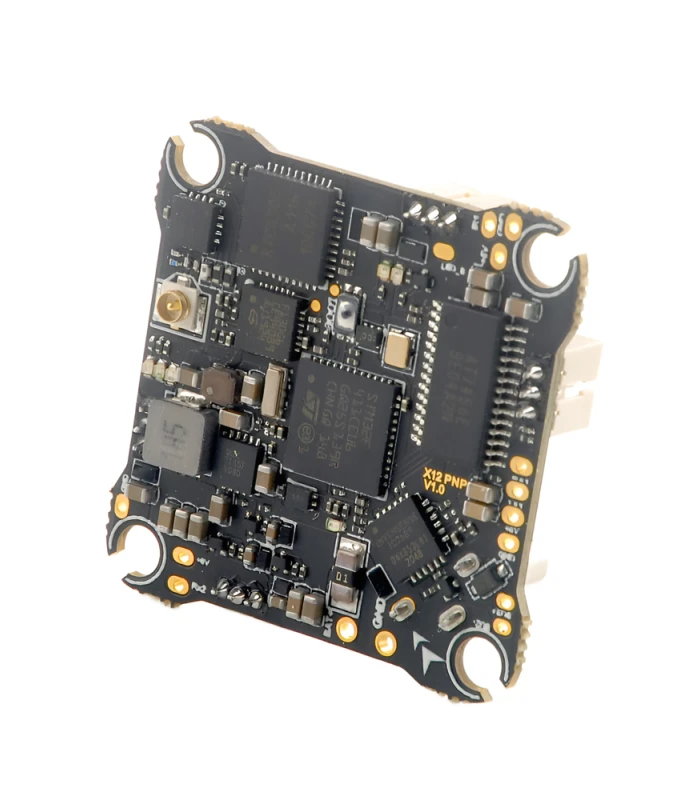

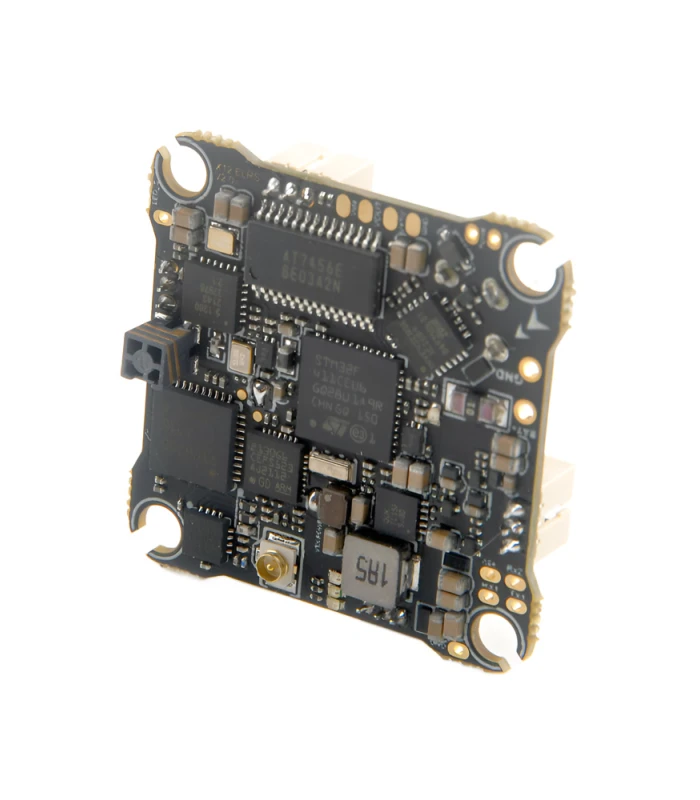

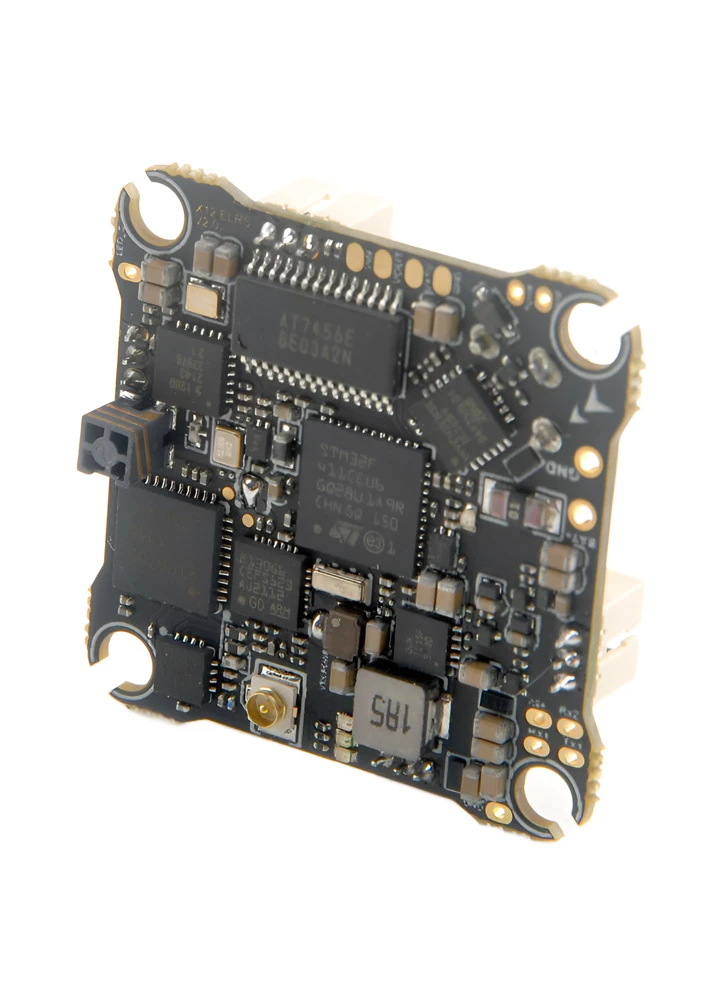

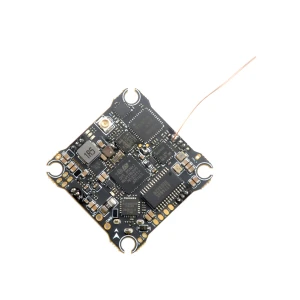

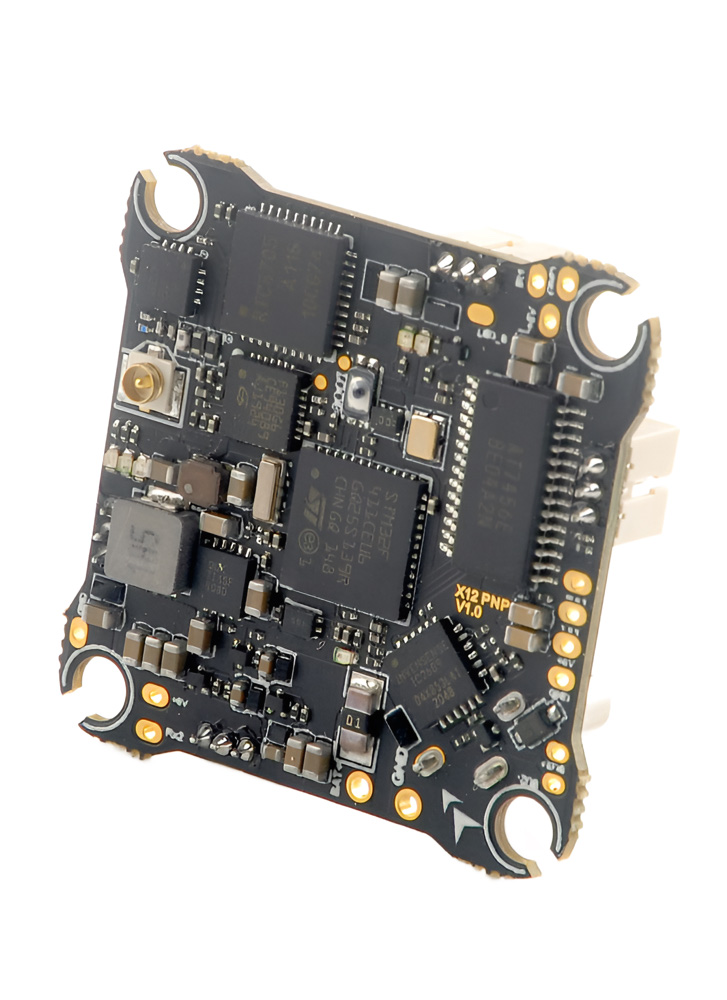

The Happymodel X12 ExpressLRS F4 12A 5-in-1 AIO is a compact all-in-one flight controller designed for high-performance 1-2S builds, including Tiny Whoops and Toothpick quads. It combines a powerful F4 flight controller, 12A 4-in-1 ESC (BLHeli_S), 2.4GHz ExpressLRS SPI receiver, 5.8GHz 40CH VTX (25–400mW), and Betaflight OSD—all on a 25.5×25.5mm whoop-style board.

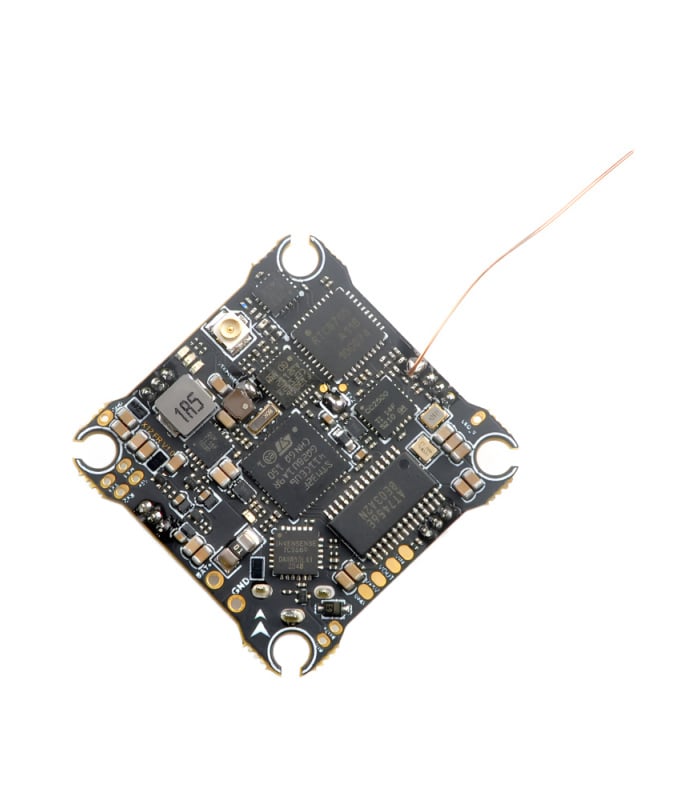

The integrated SPI-based ExpressLRS receiver uses the SX1280 RF chip for reliable long-range control with low latency and supports up to 500Hz packet rate. The built-in ESCs support DShot and Bluejay firmware, and the onboard VTX is SmartAudio-ready for full control via Betaflight.
Ideal for lightweight race or freestyle setups, the X12 delivers solid performance in an ultra-compact package.
Features:
- All-in-one design: FC, ESC, ELRS receiver, VTX, and OSD on a single board
- STM32F411 MCU with 100MHz and 512KB flash
- ICM20689 gyro (SPI) for low-noise, high-speed IMU performance
- Built-in 12A (15A peak) 4-in-1 BLHeli_S ESC supporting DShot and Bluejay
- Onboard SPI ExpressLRS 2.4GHz receiver with SX1280 chip
- Supports ELRS packet rates up to 500Hz
- Integrated 5.8GHz 40CH VTX with switchable power: 25mW / 100mW / 200mW / 400mW
- Betaflight OSD via SPI
- SmartAudio VTX control
- Compact 25.5×25.5mm whoop-style mounting pattern
- Compatible with 1S–2S LiPo / LiHV batteries
- Lightweight and ideal for Tiny Whoop racing or Toothpick freestyle builds
Note: Do not allow the antenna plug to touch the Motor soldering pins, as it may burn the ESC.
FC Specifications:
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: ICM20689(SPI connection)
- Original whoop size compatible (25.5mm x 25.5mm mounting)
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G VTX 0mw~400mw
4in1 Specifications:
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support Bluejay firmware
- When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ELRS receiver Specifications:
- Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- RF Frequency: 2.4GHzAntenna : SMD antenna
- Telemetry output Power: <12dBmReceiver protocol: SPI ExpressLRSCould bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module(need to flash the same version ELRS firmware)
Onboard 5.8GHz VTX:
- Output power: 25mw~400mw switchable
- Frequency: 40CH
- Input voltage: 3.3V 5.5V
- Current consumption: 300mA(type)
- Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready

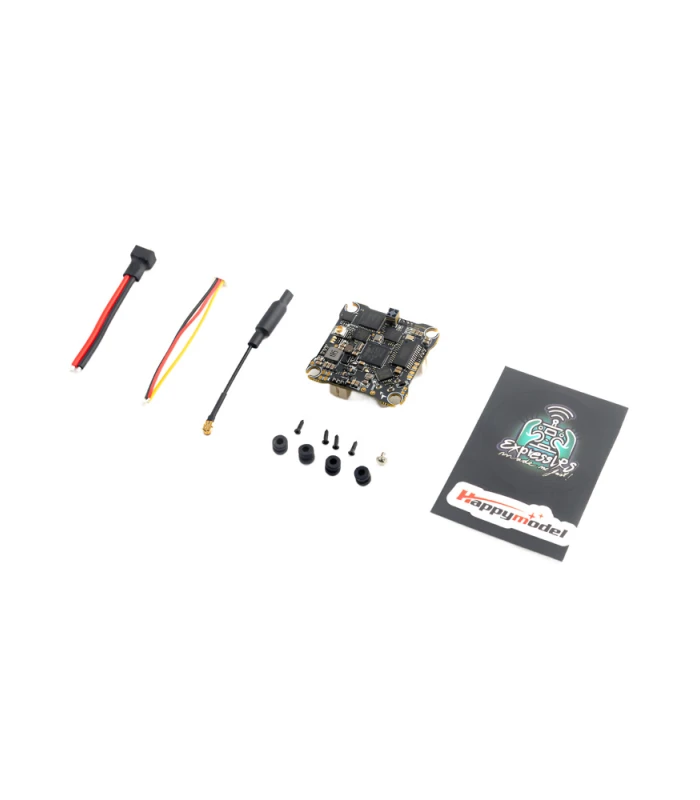

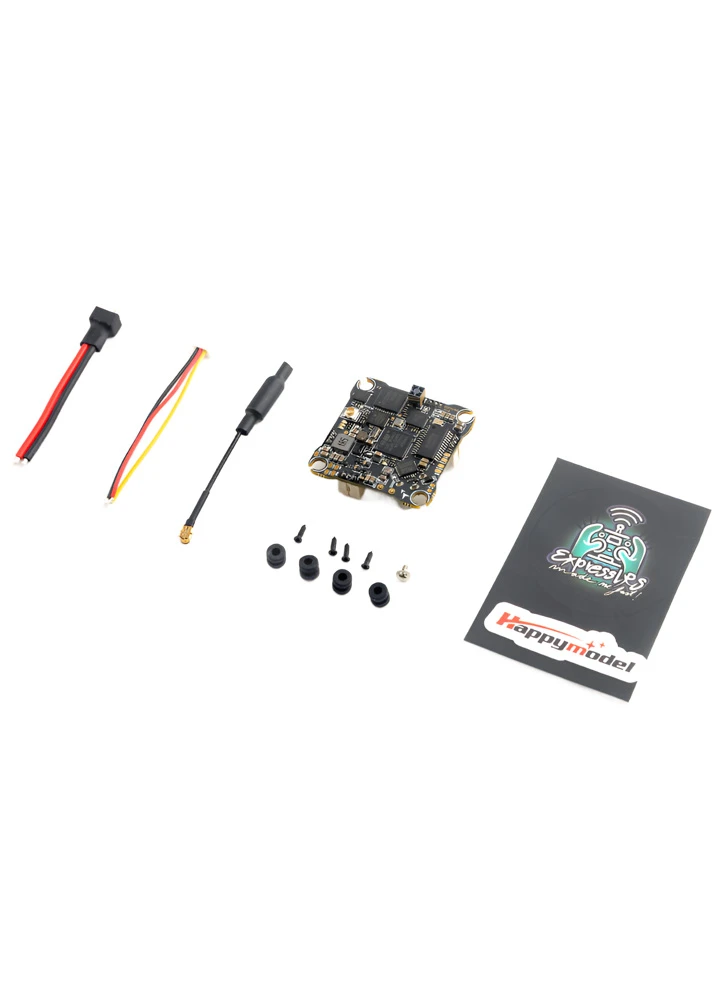

Included:

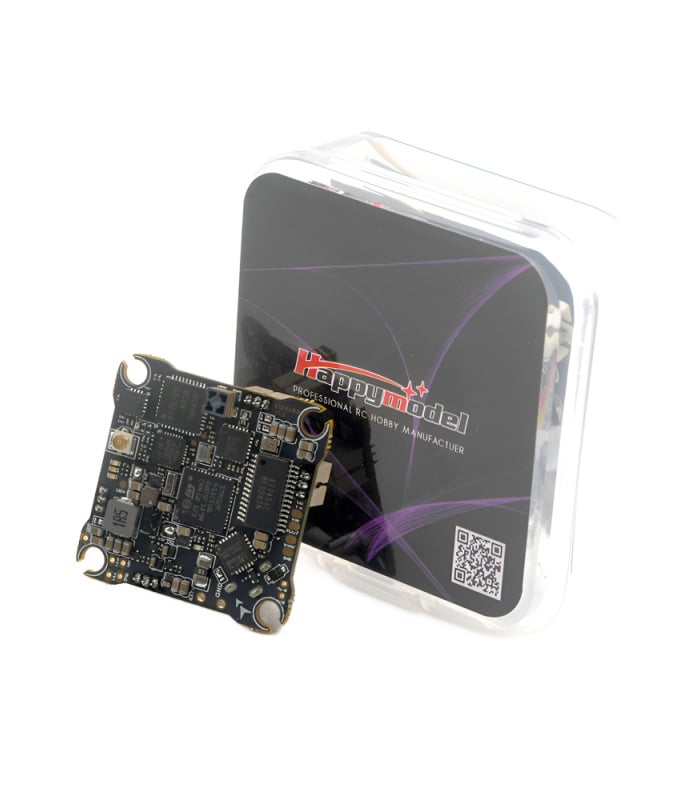

- Happymodel ELRS X12 F4 5in1 AIO
- Accessories
