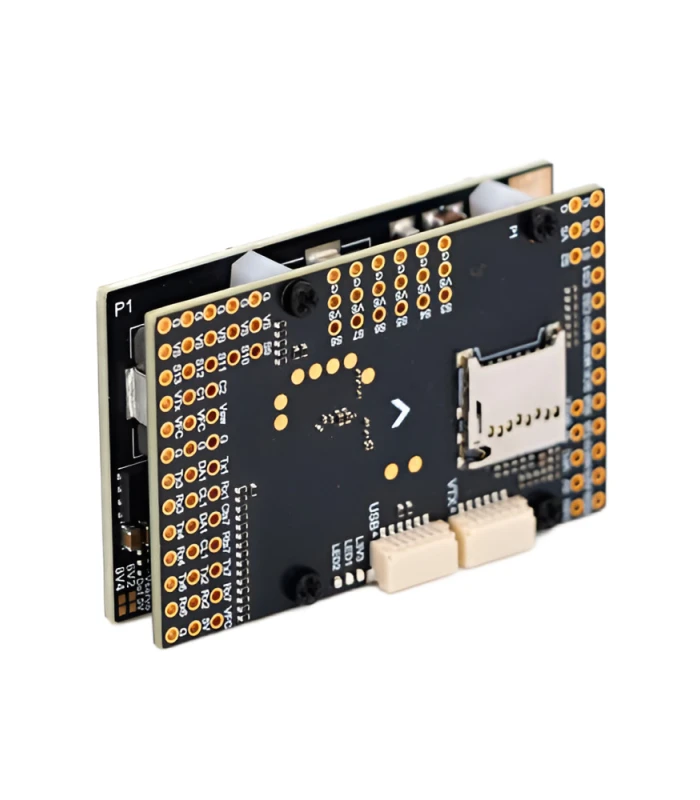

TBS Lucid H7 Wing Flight Controller 3-12S
£67.90 Inc. VAT
High-performance fixed-wing and VTOL flight controller with H7 processor, dual gyros, and extensive connectivity.
In stock|Next shipping: 16/03/2026
The TBS Lucid H7 is a purpose-built flight controller for fixed-wing pilots who demand reliability, flexibility, and full software support. Designed around the powerful STM32H743 MCU, it runs at 480MHz with 2MB flash, providing ample performance for complex INAV or ArduPilot setups. Dual ICM42688 gyros add redundancy, while a DPS310 barometer ensures accurate altitude readings.
Supporting 3–12S input (8–50.4V) and offering a robust 8A continuous / 10A peak BEC, the Lucid H7 is equipped to handle high-power builds. It features 13 PWM outputs, 7 UARTs, dual I2C, CAN bus, and 6 ADC inputs for Vbat, current, RSSI, and airspeed. Analog FPV users benefit from dual camera switching, AT7456E OSD, and selectable 5V/9V/12V 5A video BEC, while digital pilots can plug straight into the DJI-style connector with SBUS and OSD passthrough.
The included PDB and accessories make integration straightforward, with a USB/buzzer extender, CAN & I2C cables, HD system cable, and capacitor supplied in the box. With ArduPilot support already available and INAV coming soon, the Lucid H7 is one of the most versatile wing controllers on the market today.
Notice: This flight controller is supplied with header pins unsoldered. Soldering is required before use.
SPECIFICATIONS:
- MCU: STM32H743VIH6, 480MHz, 2MB Flash
- Input voltage: 8V-50.4V (3-12S)
- Output power: 8A cont./10A peak BEC. 5V, 6V, 8.4V (selectable)
- Channels: 13x PWM (including LED)
- Gyro: ICM42688 x 2 (SPI1 & SPI4)
- Baro: DPS310 (I2C2)
- Peripherals: 7x UART, 2x I2C, 1x CAN
- Measurements: 6x ADC (Vbat, Current, CB2, CU2, RSSI, AirSpeed)
- High speed ports: MicroSD BlackBox, SPI3 on pin headers
- Analog FPV: Switchable dual camera inputs, AT7456E OSD, 5V/9V/12V support at 5A (selectable)
- Digital FPV: “DJI”-connector with SBUS and OSD communication
- Current sensor: 165A cont. / 240A peak
- FC BEC: 5V 3A cont. (for FC&peripherals)
- FPV BEC: 9V/12V 5A (selectable)
- Dimensions: 54 x 36 x 13 mm
TECH DETAILS:
- Battery Voltage Sensor: 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
- ADC VB2 voltage divider: 1K:20K
- ADC AirSpeed voltage divider: 20K:20K
- ArduPilot Target: TBS_LUCID_H7_WING
- INAV Target: TBA
- Betaflight Target: TBA

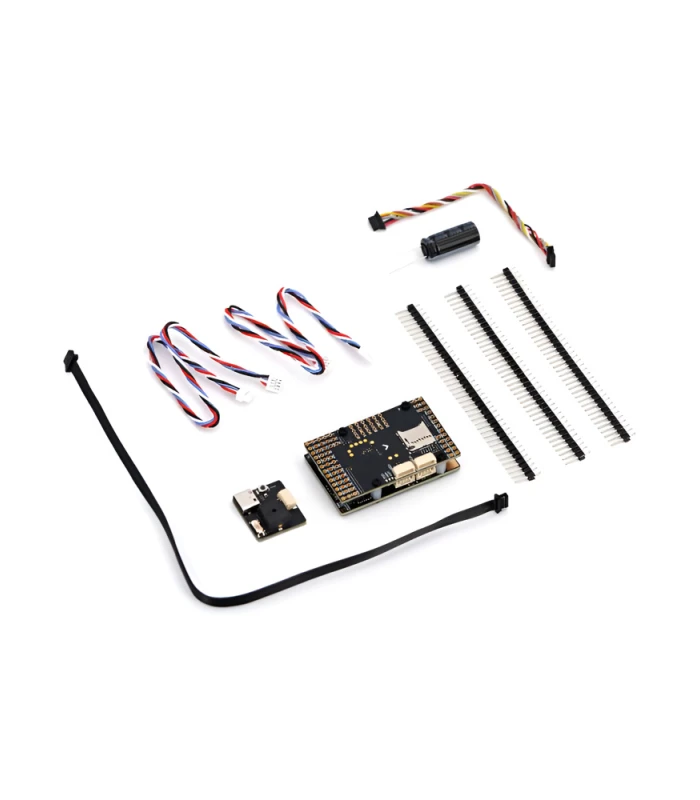

Included:

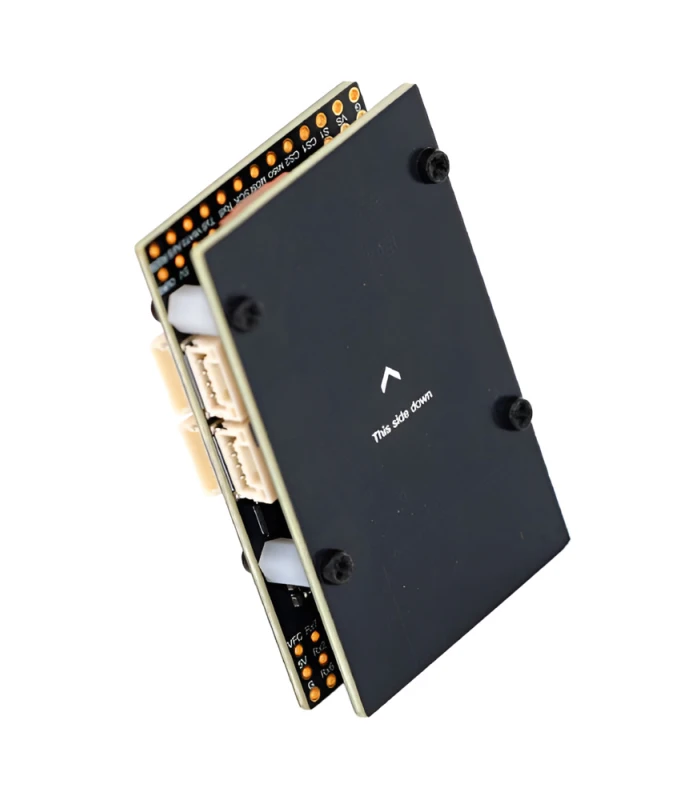

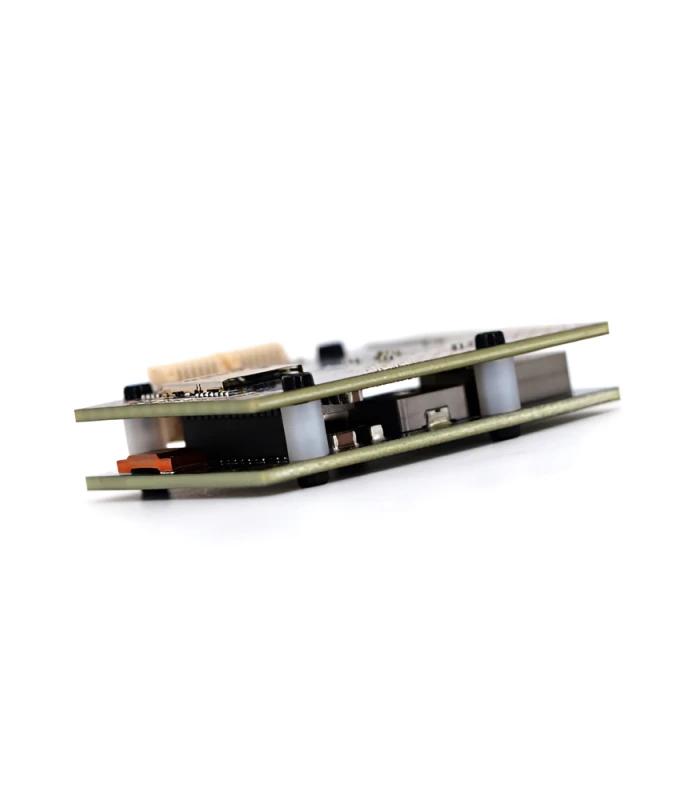

- 1x TBS Lucid H7 Wing FC & PDB (sandwiched boards)
- 1x USB(Type-C) / buzzer extender board
- 1x 10cm JST-SH-6P to JST-SH-6P cable for USB Extender
- 1x 25cm JST-SH-6P to JST-SH-6P cable foror HD Systems
- 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
- 1x 330uF 63V electrolytic capacitor
- 2.54 pin headers x 120 (unsoldered!)
