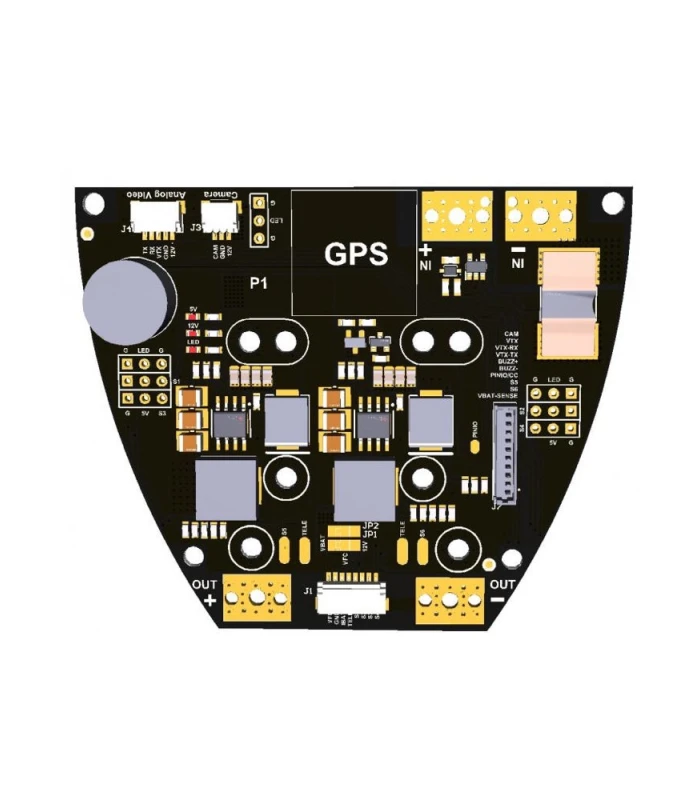

Name: TBS Lucid Wing PDB 14S Power and Servo Distribution Board - Flying Tech
Brand: TBS
SKU: PDB-TBS-WING-PDB
Price: 17.90 GBP
Availability: InStock

Description

There is no doubt that innovation and choice in quadcopter FC’s outpaces those of their wing counterparts. Yet, separate wing FC’s are necessary due to the limited wiring space, lack of current sensing, necessary voltage rails and more. There are flight controllers specifically for wings, but they create a tasty bundle of wire spaghetti in your wing, which can lead to reliability issues at worst, or are an eye sore at best.

Admittedly, this PDB is made predominantly for the TBS’s up coming wing, but it’s compatible with any wing that has up to 4 control servos and one or two motors. As such, it’s worth a consideration to clean up both your analog or digital builds and recycle one of the 20×20 or 30.5×30.5 FC’s you’ve surely got laying around.

Recommended FC: TBS Lucid 20×20 FC Freestyle or TBS Lucid H7 (not included)

Specification

Max input voltage: 60V (14S)
Voltage sensor: Depends on the FC voltage input
Current sensor: 200A burst, 90A continuous
Output voltages: 12V 4A (LED, FC, etc), 6V 4A (servos)
Recommended FC: TBS Lucid 20×20 FC Freestyle or TBS Lucid H7 (not included!)
Onboard supported peripherals:
- 20×20 and 30.5×30.5 iNav or ArduPilot FC
- BLHeli/AM32 ESC with telemetry
- TBS M10 GPS
- Analog camera (3 pin)
- Analog VTX (5pin)
- COB LEDs (12V)
Digital VTx, radio link and other peripherals via FC
Note: Voltage input to FC can be switched between VBat and 12V. In the case of 12V supply, a separate voltage divider is available to feed any ADC pin for vbat sensing.

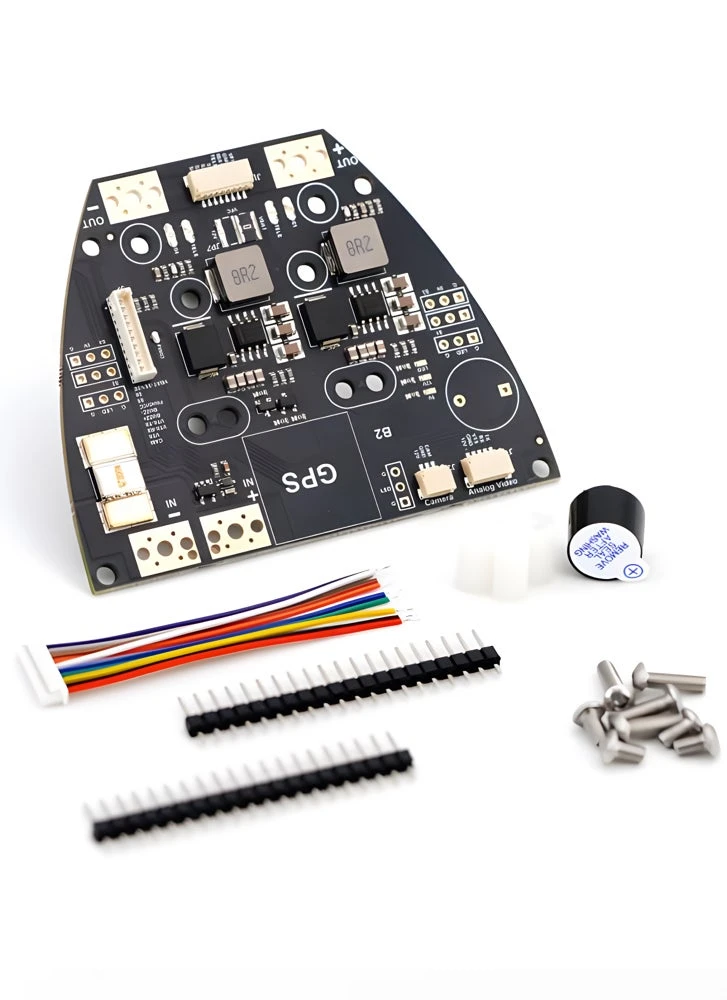

Included:

TBS Wing FC circuit board
Cables to connect FC peripherals to the PDB
Pin headers for servo plugs (2×20)
FC Mounting hardware:
- 4x M3x5mm screw
- 4x M3x10mm screw
- 4x M3 Nylon standoff 10mm
