Matek F405-VTOL Wing Flight Controller

Name: Matek F405-VTOL Wing Flight Controller - Flying Tech
Brand: Matek Systems
SKU: WFC-MTF405VTOL
Price: 69.90 GBP
Availability: InStock

£69.90 Inc. VAT

This FC is specially designed for VTOL (vertical take-off and landing) aircraft. It supports both INAV and Ardupilot.

Only 2 left in stock

Add to compare

0 People watching this product now!

SKU: WFC-MTF405VTOL Categories: Fixed Wing Autopilots, Electronics, Flight Controllers / Autopilots, Plane Flight Controllers, Planes & Wings, Plane Electronics, Airplane Gyros & Stabilizers Tags: FC, Flight Controller, VTOL

Description

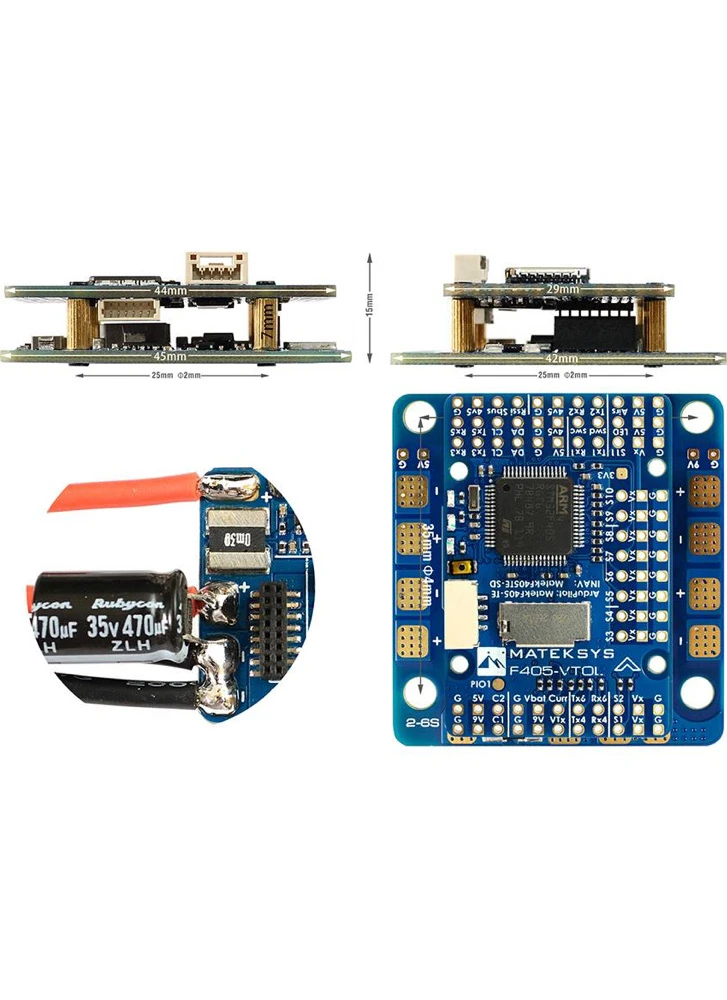

FLIGHT CONTROLLER F405-VTOL

STM32F405RGT6, ICM42688P, SPL06, OSD, VTOL PDB, 6xUARTs, 12x PWM,1xI2C

The Matek F405-VTOL Flight Controller is specially designed for VTOL (vertical take-off and landing) aircraft applications. It features a built in PDB that includes 5 separate motor/esc soldering points. With 12 PWM outputs in total, that leaves 6 outputs for servos or other PWM controlled devices. Furthermore the FC features a Barometer, BlackBox MicroSD, 6x UARTS, 4x ADC, 2x PINIO (Camera switch, P101 pad), 220A High-precision current sensor and a variety of onboard BECs for use with both servos and accessories. The FC is compatible with a wide voltage input 6.8-30V (2-6S LiPo). INAV and Ardupilot software are both supported. The board has both 25×25 and 35×35 mounting patterns and weighs 25g.

Features:

BEC VX 8A cont. 10A Peak for servos (5V,6V,7.2V option)
BEC 9V 2A, 12V option for Camera/VTX
2x PINIO (Camera switch, P101 pad)
25×25 and 35×35 mounting patterns
220A High-precision current sense
BEC 5V 2A for FC and peripherals
PDB for 5x individual ESC/Motors
6.8-30V DC IN (2-6S LiPo)
MCU STM32F405RGT6
Barometer SPL06-001
BlackBox MicroSD
12x PWM outputs
IMU ICM42688-P
OSD AT7456E
6x UARTS
4x ADC

Specification

Mounting: 25 x 25mm-Φ2mm, 35 x 35mm- Φ4mm
Built in inverter on UART2-RX for SBUS input
MCU: STM32F405RGT6, 168MHz , 1MB Flash
USB/Beep Extender with Type-C(USB2.0)
6x UARTs, 1x Softserial_Tx option(INAV)
4x ADC (VBAT, Current, RSSI, Airspeed)
Weight: 25g w/ USB/buzzer adapter
Switchable Dual Camera Input
1x spare PINIOOSD: AT7456E
Dimensions: 45 x 42 x 15mm
Blackbox: MicroSD card slot
12x PWM outputs
IMU: ICM42688-P
Baro: SPL06-001
1x I2C

FC Firmware

INAV: MATEKF405TE_SD (INAV 5.0 or newer)
ArduPilot: MatekF405-TE

PDB

Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
Support continuous load of up to 30A & peak of 50A on each ESC pad of Quadcopter
Support continuous load of up to 100A on ESC pad near the current sensor resistor
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
Sense resistor: 100A continuous, 220A peak
5x ESC power pads, total 100A continuous
Input voltage range: 6.8~30V (2~6S LiPo)

BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps

BEC 9V /12V output

For stable 9V/12V output, input voltage should > output voltage +1V
Designed for Video Transmitter, Camera, Gimbal ect
Continuous current: 2 Amps
12V option with Jumper pad

BEC Vx output

for stable Vx output, input voltage should > Vx voltage +1V
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, 10A Peak
Designed for Servos

BEC 3.3V output

Designed for Baro / Compass module and external 3.3V peripherals
Continuous current: 200mA
Linear Regulator

IMPORTANT NOTES

Board is shipped unsoldered.

Links

Firmware

Includes

1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
1x MATEKSYS F405-VTOL Flight Controller
1x Rubycon ZLH 35V 470uF capacitor

Downloads

Manual (pdf, 9894KB)

Download
