Holybro PM07 Power Module with 5V BEC for Pixhawk 4 FC 14S – 15008
£42.99 Inc. VAT

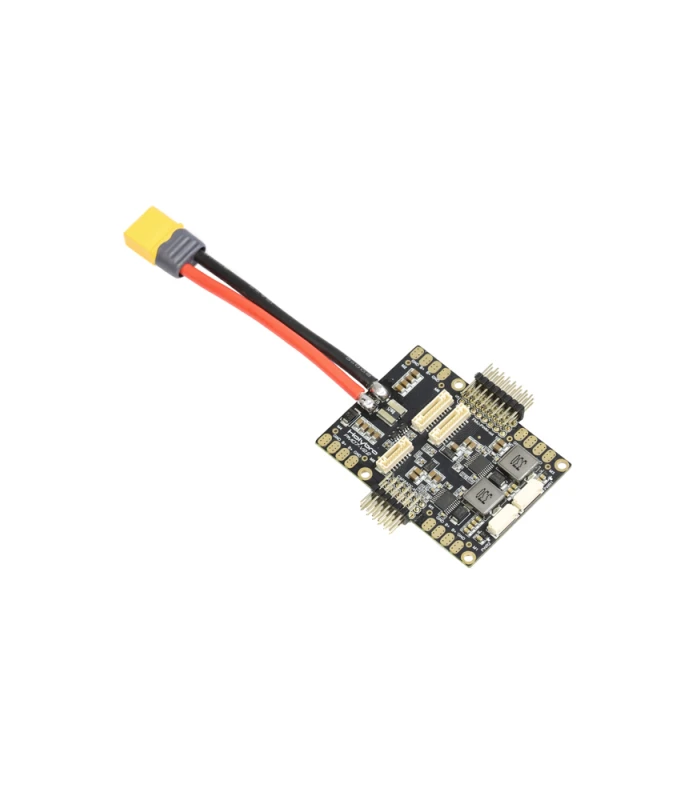

The PM07 is dual purpose. It works as a Power Module and Power Distribution Board for the Pixhawk 4 FC.
In stock
Unlike the original Pixhawk 1, which had its ESC Signal and Servo Connections on the FC itself, the Pixhawk 4 doesn’t so the PM07 Power Board is required.

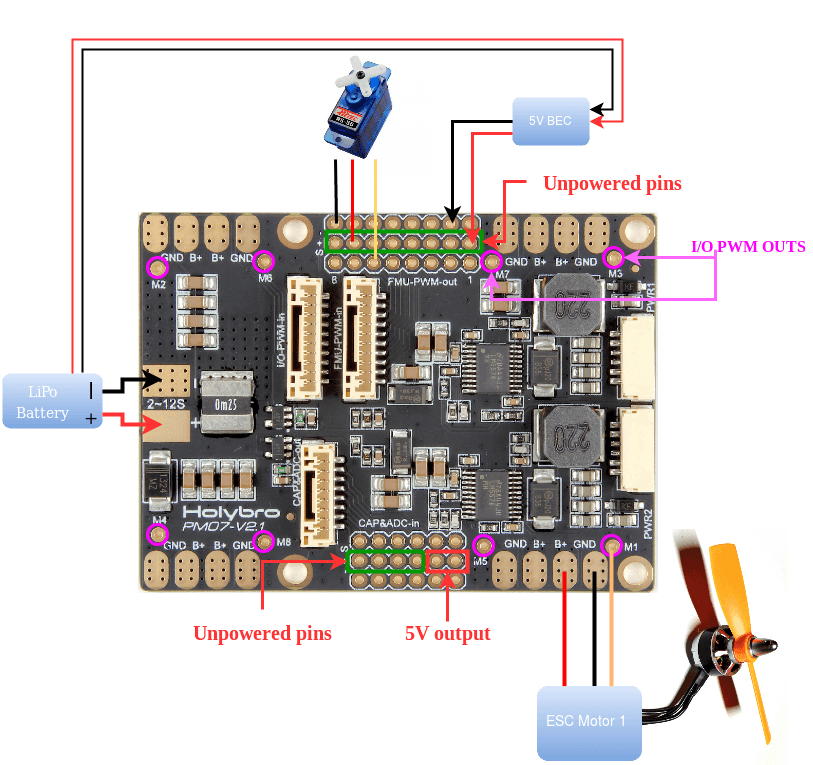

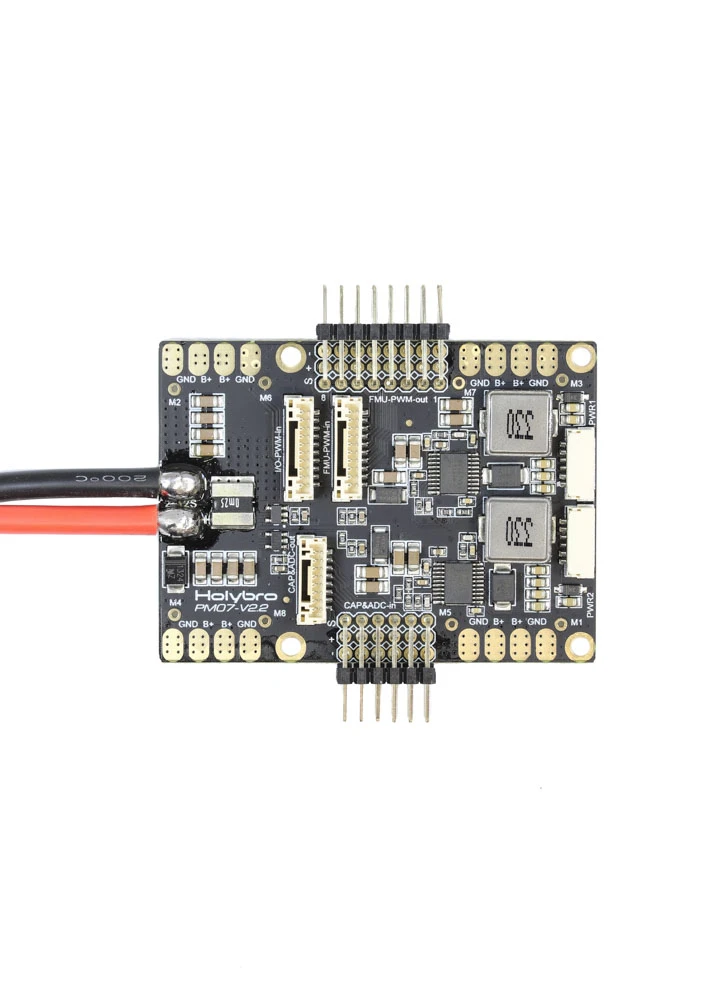

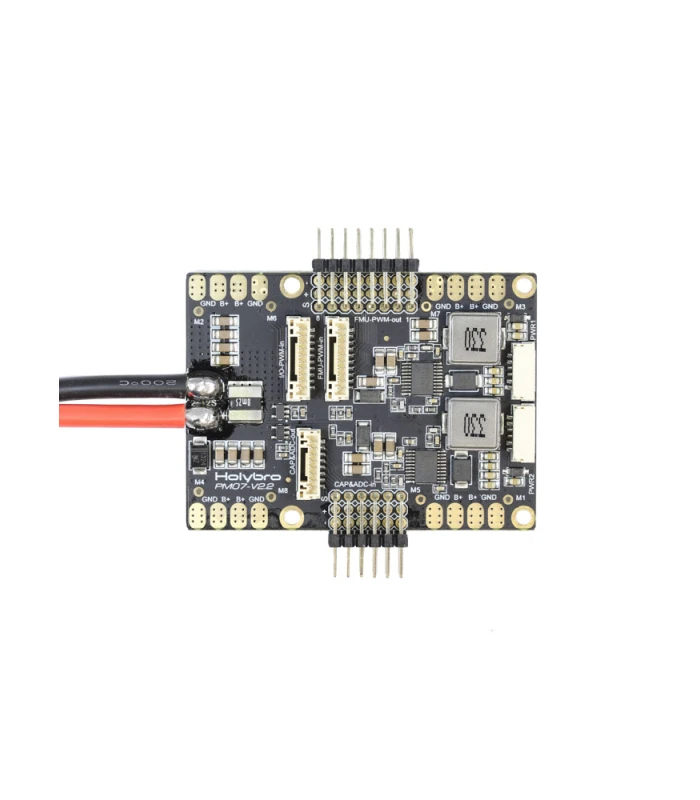

The PM07 Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board for the Pixhawk 4 FC. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery voltage and current draw.
The PM07 is compatible with 2-14S LiPo and is rated at 120amps.
Please Note:
- The PM07 12S version has been discontinued and replaced by the 14S version.
- The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
- This PM07 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
- Input voltage: 2S-14S
- PCB Cont. Current Rating: 90A
- PCB Burst Current Rating: 140A (<60 Sec)
- Output: DC 5.2V & 3A Max
- Voltage Divider: 18.182
- Amperes per Volt: 36.364
- Dimensions:68*50*10 mm
- Mounting Holes:45*45mm
- Weight: 43.8g

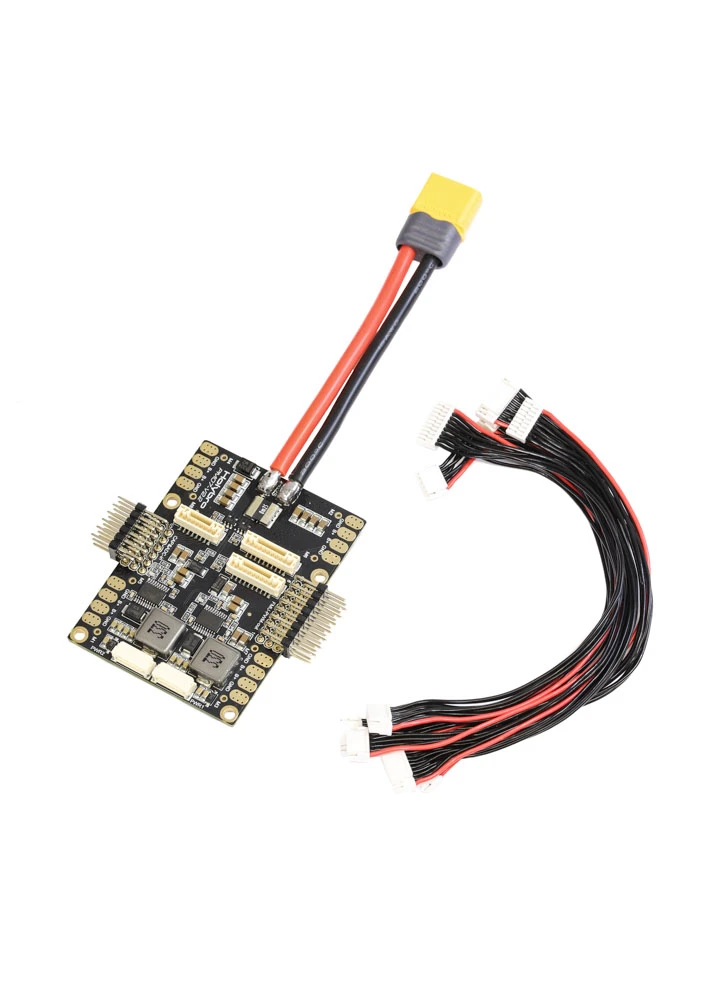

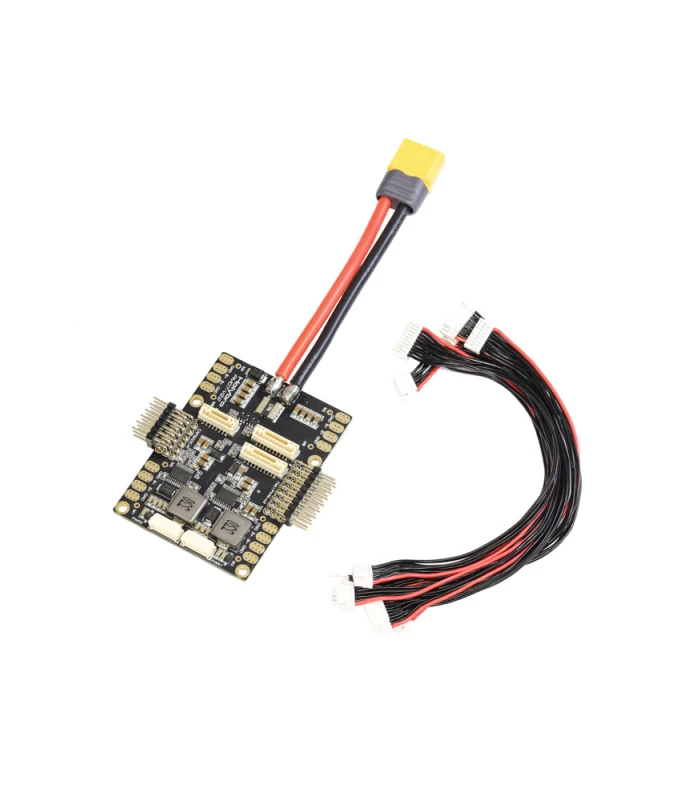

Included:
- 1x PM07 board
- 1x 80mm XT60 connector wire (installed)
- 1x Electrolytic capacito: 220uF 63V (installed)
- 2x JST GH 10P Cable
- 1x JST GH 8P Cable
- 2x JST GH 6P Cable
