Holybro Pixhawk 6X Rev 8 (ICM-45686) Autopilot Kit PX4 Flight Controller

Now shipping Pixhawk 6X REV 8. It has 3x ICM-45686 IMU with BalancedGyro™ Technology.

“The BalancedGyro technology by TDK is the first‑of‑its‑kind gyroscope MEMS architecture that enables supreme vibration rejection and temperature stability performance, an enhancement never seen before in a consumer gyroscope.”

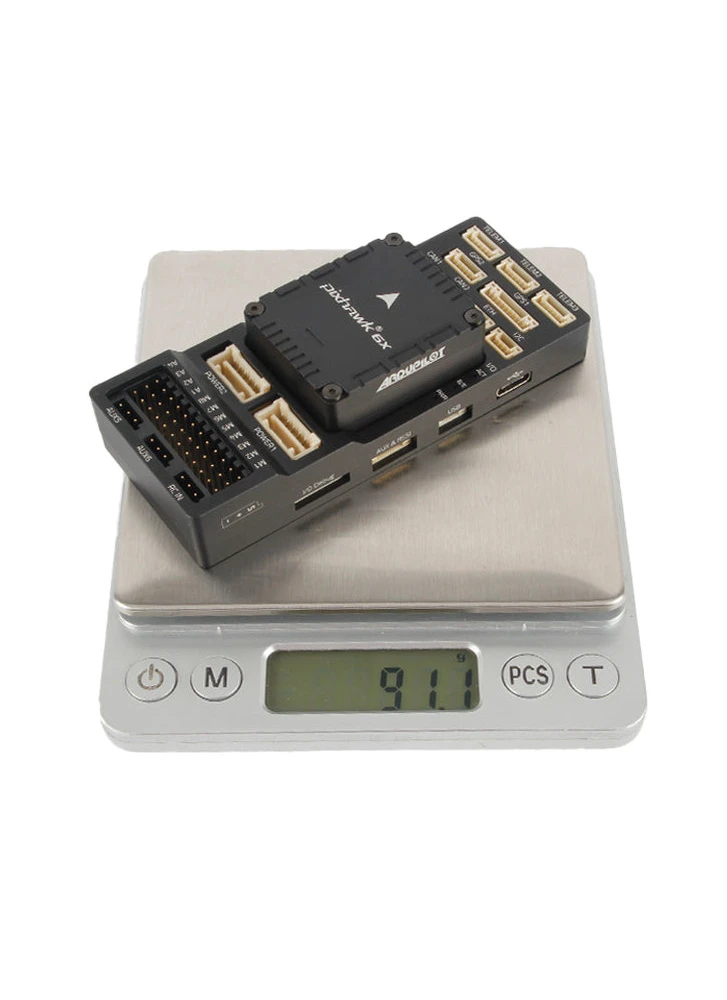

The standard baseboard has been updated to v2. See the List of Changes Between V1 and V2 for more detail. Recommended Accessory: Standard Baseboard Mounting Plate

Inside the Pixhawk®​ 6X, you can find an STMicroelectronics​® based STM32H753, paired with sensor technology from Bosch®​​, InvenSense®​,​ giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6X’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. The PX4 Autopilot takes advantage of the increased power and RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilisation. Triple redundant IMUs & double redundant barometer are on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability.

An independent LDO powers every sensor set with independent power control. An inbuilt vibration isolation System has been designed to filter out high-frequency vibration and reduce noise, helping to ensure accurate readings, allowing vehicles to reach better overall flight performances.

External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via Ethernet is now possible.

The Pixhawk®​ 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points:

• High performance STM32H753 Processor with clock speed up to 480 MHz

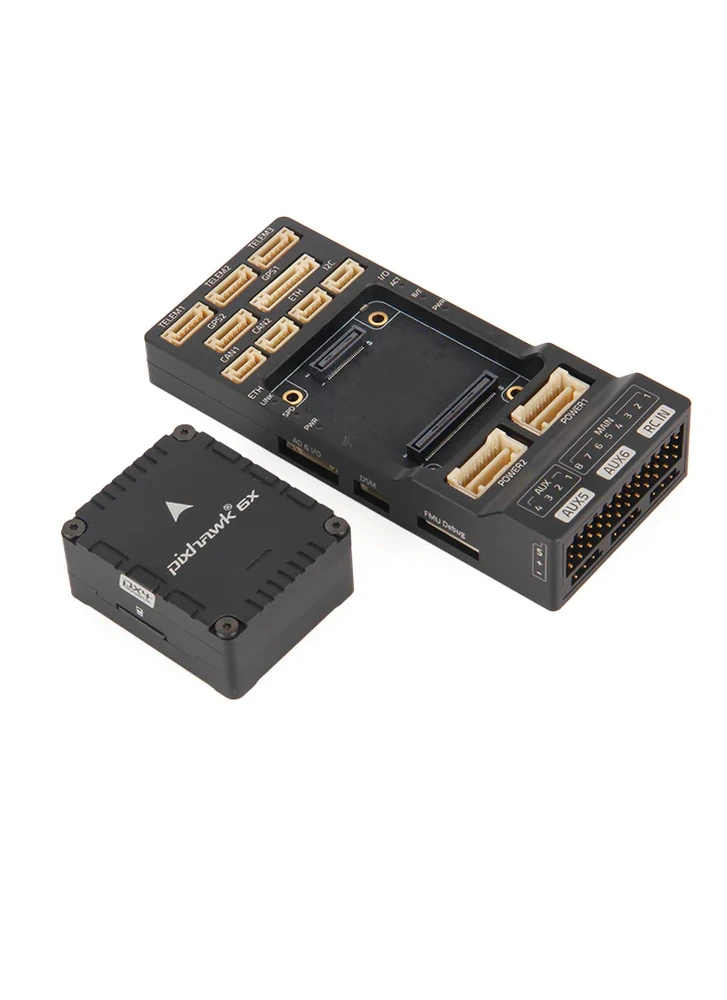

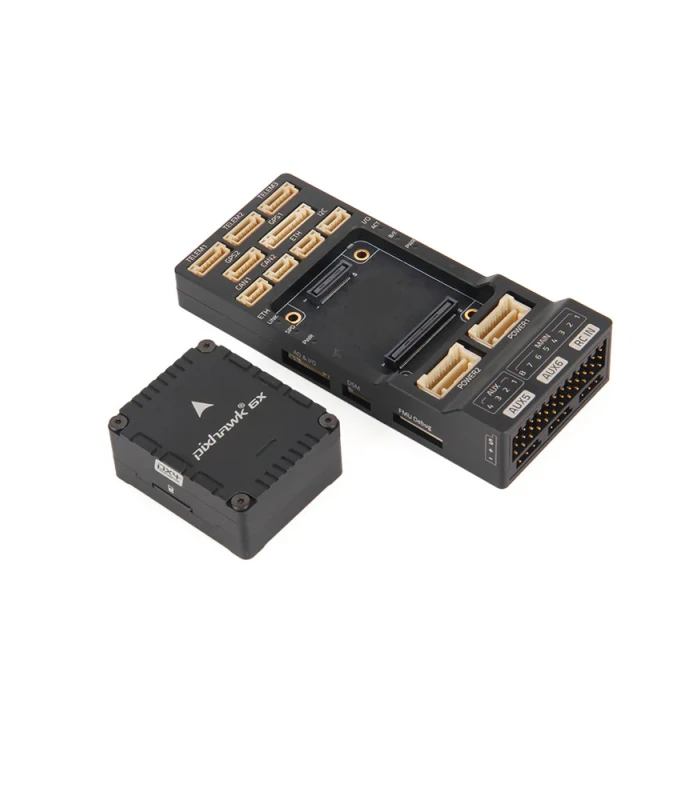

• Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk®​ Autopilot Bus connector.
• Redundancy: 3x ICM-45686 IMU sensors with BalancedGyro™ technology & 2x Barometer sensors on separate buses
• Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
• Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
• Ethernet interface for high-speed mission computer integration
• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

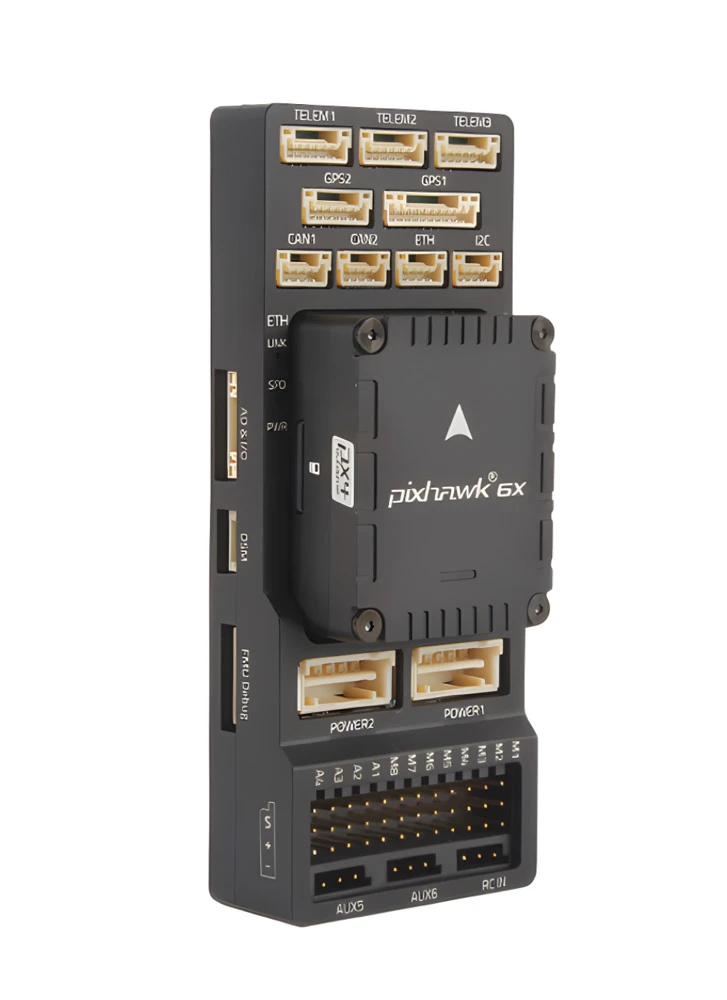

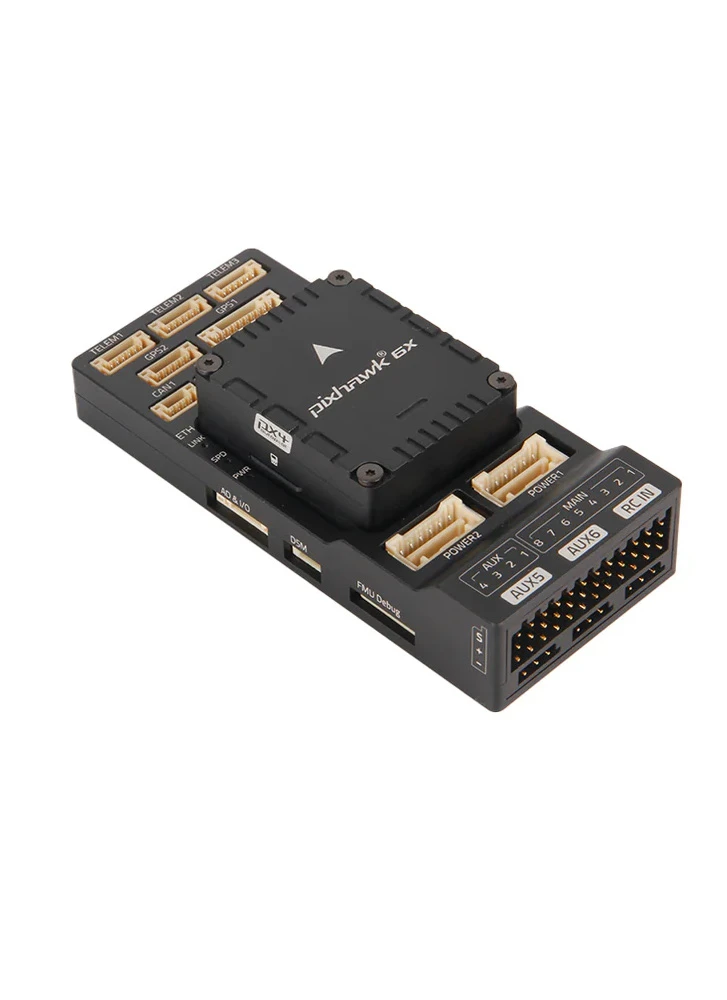

There are two versions of the Pixhawk 6X, Standard and Mini. The difference between them relates to their base boards. The Mini’s base board is more compact with fewer ports and uses breakout boards for the PWM connections.

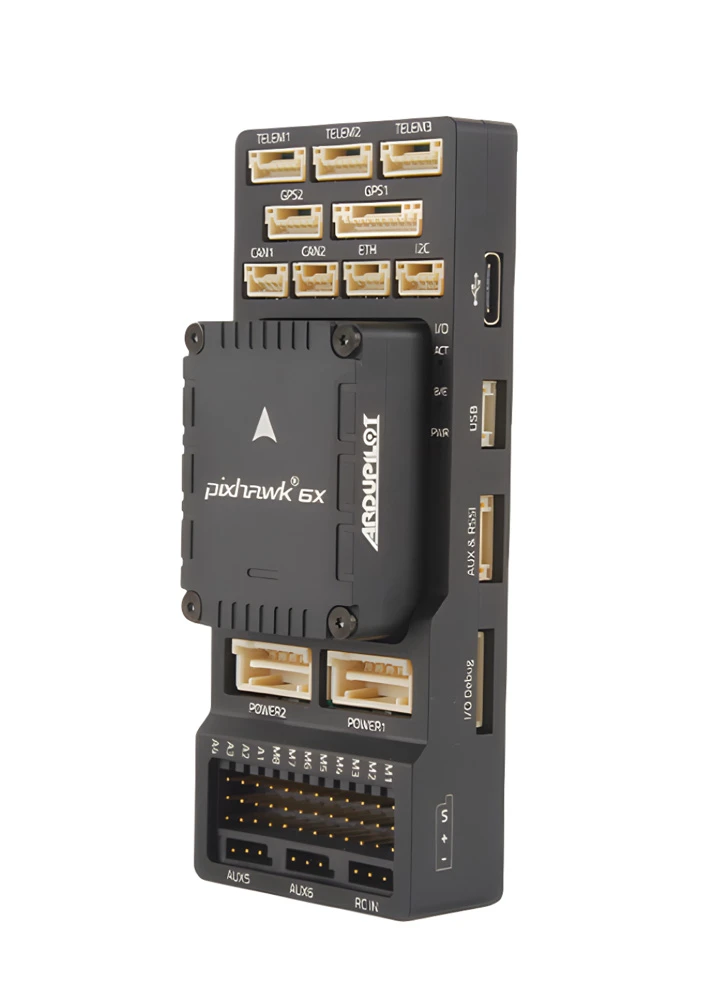

The Rev 8 Version is supported in the PX4 1.14.3 release or later, as well as the Ardupilot 4.5.0 stable release or later. It ships with PX4 firmware by default. User can also use Ardupilot firmware by flashing the firmware via Mission Planner or QGroundControl.

Guide:
Product Overview
Wiring Quick Start Guide

Product Detail:
Pixhawk6X_Dimensions
Pixhawk6X_Pinout / Mini Pinout
Pixhawk6X_Spec_Overview
PM02D_Power_Module_Manual
