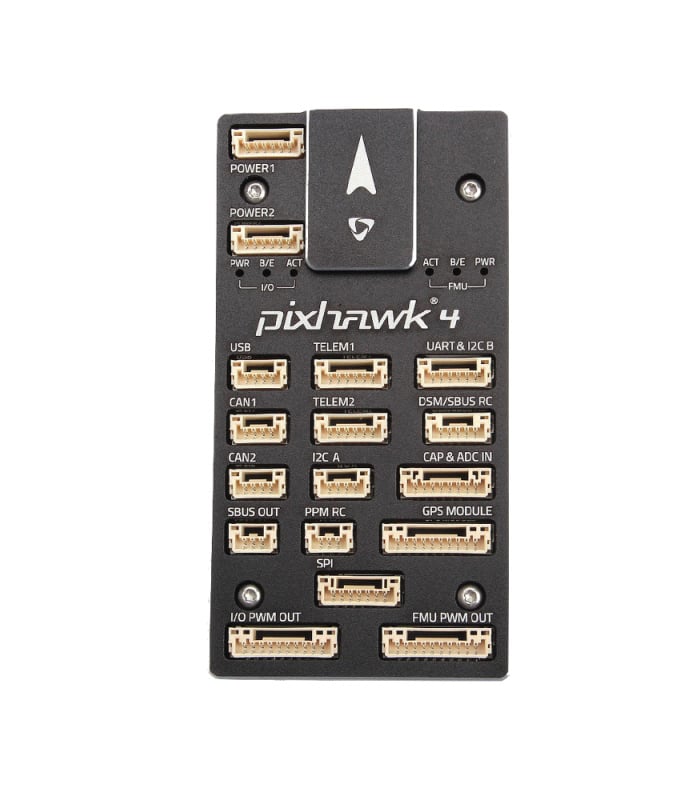

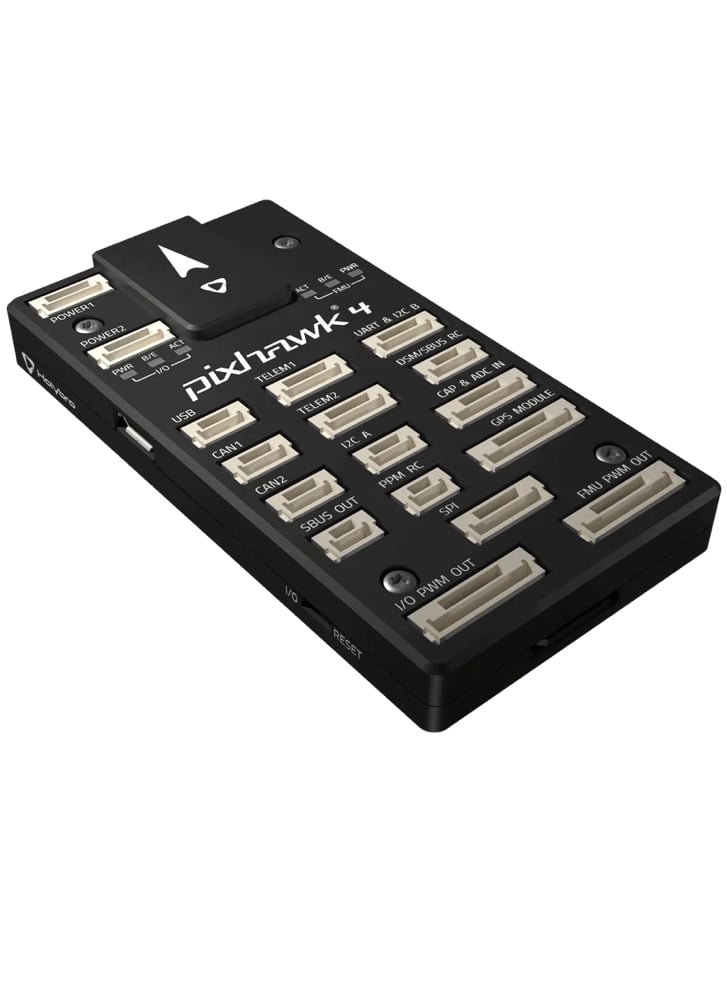

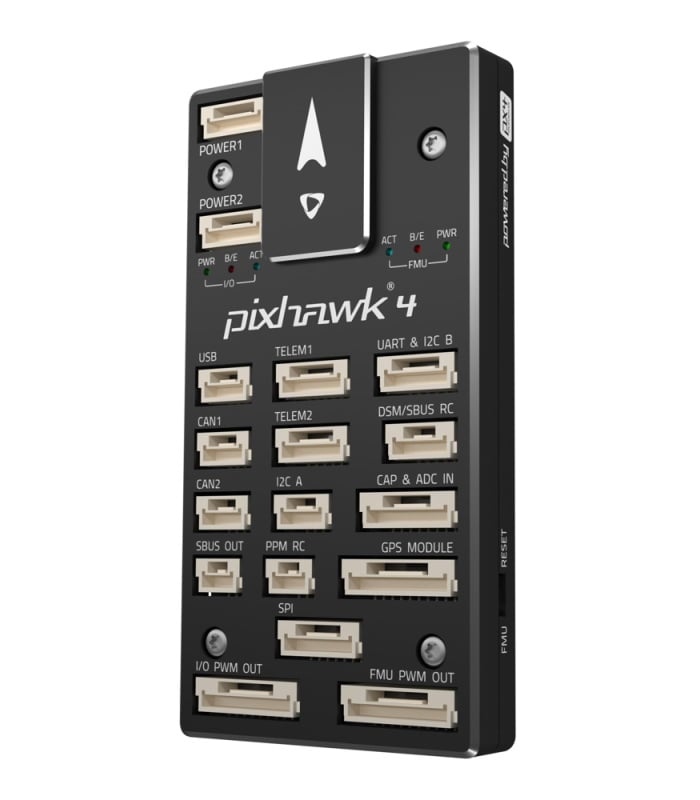

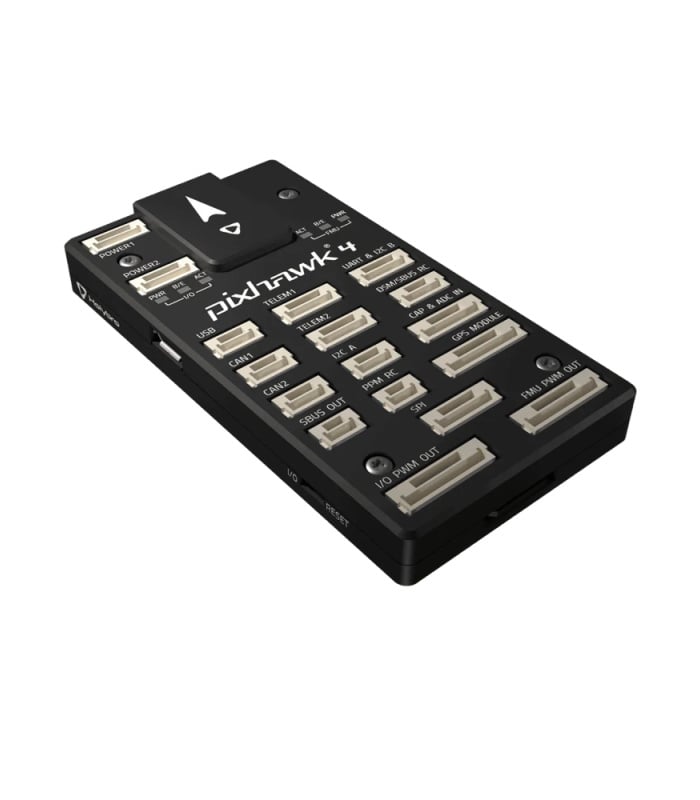

Holybro Pixhawk 4 Autopilot PX4 Flight Controller

£179.00£194.90 Inc. VAT

Pixhawk 4 is a very popular autopilot designed to run PX4 and ArduCopter firmware. It has been out of stock for a long while due to component shortages, but is now back in stock!

0 People watching this product now!
Description

Pixhawkโ€‹ยฎโ€‹ 4 features advanced processor technology from STMicroelectronicsโ€‹ยฎ,โ€‹ sensor technology from Boschยฎโ€‹โ€‹, InvenSenseยฎโ€‹,โ€‹ and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

The Pixhawk 4โ€™s microcontroller has a 2MB flash memory and 512KB RAM. With the increased power and RAM resources, developers can be more productive and efficient with their development work. More complex algorithms and models can be implemented on the autopilot.

High-performance, low-noise IMUs on board are designed for stabilization applications. Data-ready signals from all sensors are routed to separate interrupt and timer capture pins on the autopilot, permitting precise time-stamping of sensor data. Newly designed vibration isolations enables more accurate readings, allowing vehicles to reach better overall flight performances.

The two external SPI buses and six associated chip select lines allow to add additional sensors and SPI-interfaced payload. There are total of four I2C buses, two dedicated for external use and two grouped with serial ports for GPS/Compass modules.

The Pixhawk 4 autopilot development kit is perfect for commercial users and developers at research labs, startups, and for academics.

Note:
Downloads:

Groundstation:ย QGroundControlย – You can useย QGroundControlย to load firmware onto the Pixhawk 4,ย setup the vehicle, change different parameters, get real-time flight information and create and execute fully autonomous missions.

Specification
  • Main FMU Processor
    • STM32F765 – 32 Bit Arm ยฎ Cortexยฎ -M7, 216MHz, 2MB memory, 512KB RAM
  • IO Processor
    • STM32F103 – 32 Bit Armยฎ Cortexยฎ-M3, 72MHz, 64KB SRAM (Current)
    • STM32F100 – 32 Bit Arm ยฎ Cortexยฎ -M3, 24MHz, 8KB SRAM (Discontinued)
  • ย On-board sensors
    • Accel/Gyro: ICM-20689
    • Accel/Gyro: BMI055/ICM-20602
    • Mag: IST8310
    • Barometer: MS5611

Electrical Data

  • Power module output: 4.9~5.5V
  • Max input voltage: 6V
  • Max current sensing: 120A
  • USB Power Input: 4.75~5.25V
  • Servo Rail Input: 0~36V

Mechanical Data

  • Dimensions: 44x84x12mm
  • Weight(plastic case): 33.3g
  • Weight(aluminum case): 49g
Downloads
Quick Start Guide (pdf, 270KB)
Datasheet (pdf, 211KB)
Pinouts (pdf, 521KB)
