RadioLink Crossflight Mini Flight Controller Autopilot

£94.90 Inc. VAT

Theย Crossflight Miniย offers the same capabilities of the original Pixhawk, but in a mini form factor.

Only 4 left in stock

0 People watching this product now!
Description

Crossflight A

Theย RadioLinkย Crossflight replaces theย RadioLinkย Mini Pixhawk. The new versionย benefits from having more PWM output motor / servo channels, upย from 6 to 10.ย It also now features an integrated OSD (on screen display) module for FPV setups.

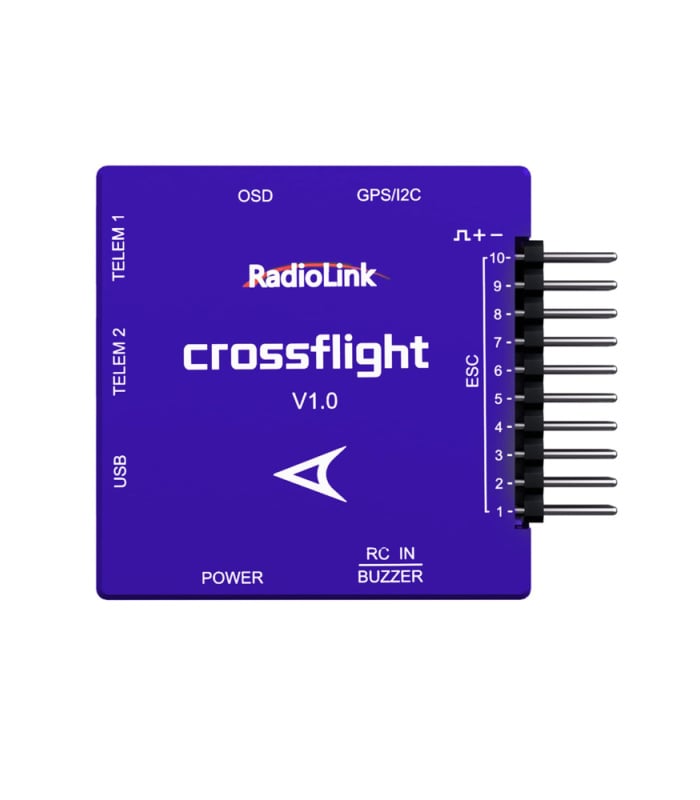

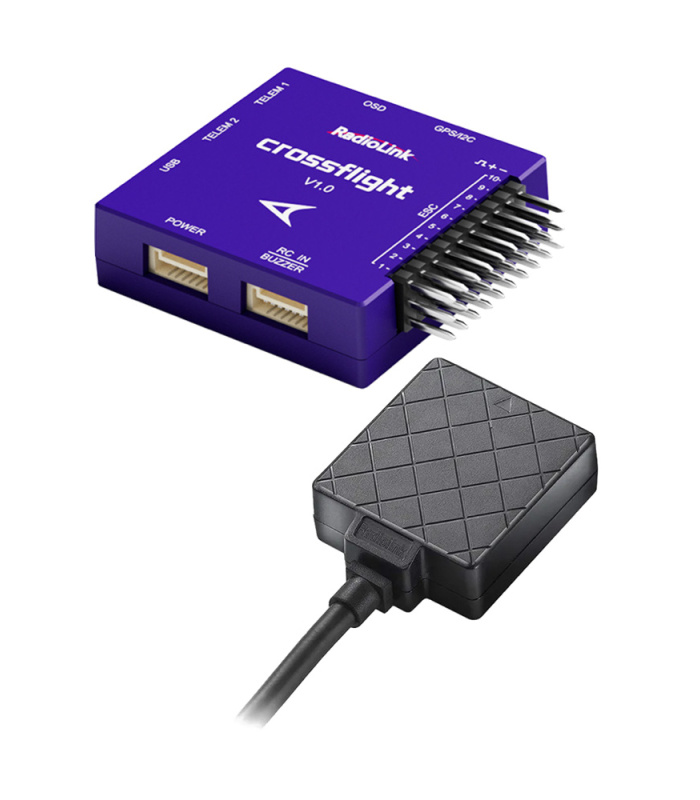

Theย Crossflight Mini Flight Controllerย offers the same capabilities of the original Pixhawk, but in a mini form factor. Its reduced size lends it to smaller models like racing drones, model boats and cars, so now even your tiniest RC model can benefit from a sophisticated GPS autopilot, offering cool functions like return to home and mission planning. Set up and operation is made simple using the industry leading “Mission Planner” software. The FC is supplied with a host of connection cables, buzzer / switch, adhesive pad and power module. You can also select the package that comes with the RadioLink TS100 GPS.

Please note – this FC isย not officially supported by ardupilot. It does however have a comprehensive manual – here.ย

Firmware:ย This RadioLink Crossflightย comes preflashed with a RadioLink-branded version of ArduCopter (Multicopter).ย Crossflight firmware can only be upgraded by using Radiolink Mission.ย Planner, howeverย parameters can be set usingย Radiolink Mission Planner,ย ArduPilotย Mission Plannerย and QGC Mission Planner.

  • RadioLink Firmwareย Here
  • RadioLink Mission Planner Downloadย Here
  • FAQs

Included:

Crossflight included

Crossflight BCrossflight CCrossflight DCrossflight ECrossflight F

Specification

Parameters:

  • Connector: JSTย GH1.25 Connector
  • PWM Output: 10 PWM Output
  • Mavlink UART:ย 2 (without CTSRTS)
  • USB Port:ย 1 (Type-C)
  • GPSย UART/I2C Port: 1
  • RC In Signal Input:ย PPM/SBUS
  • RSSI Output: Do not support
  • OSD Module: OSD Module Integrated
  • ESCย Protocol:ย PWM
  • DSHOTย Protocol:ย Do not support
  • ONESHOTย Protocol:ย Do not support
  • Neopixย Led: Support
  • Gripper Function: Support
  • RTK๏ผšSupport
  • USBย Voltage:ย 5Vยฑ0.3V
  • Servoย Voltage: Not applicable
  • Operating Temperature:ย -40~80โ„ƒ
  • Adaptable Models:ย 3-8 copter/Airplane/Helicopter/Car/Boat
  • Dimention:ย 39.7×39.7x13mm
  • Weight:ย 16.5g, 54g (when all the connect wires included)

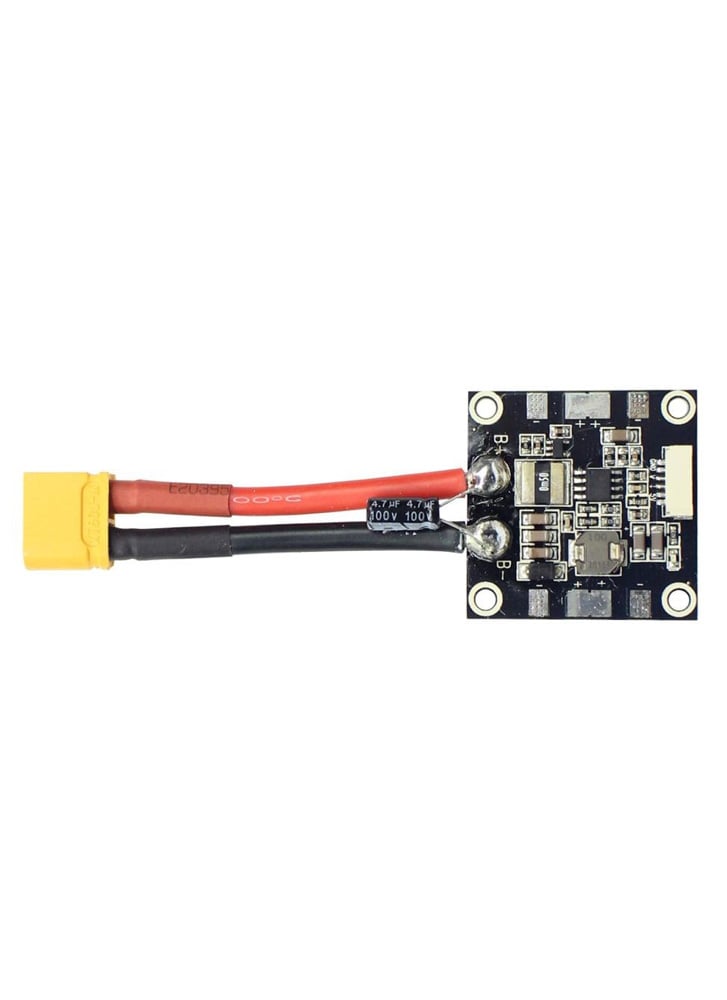

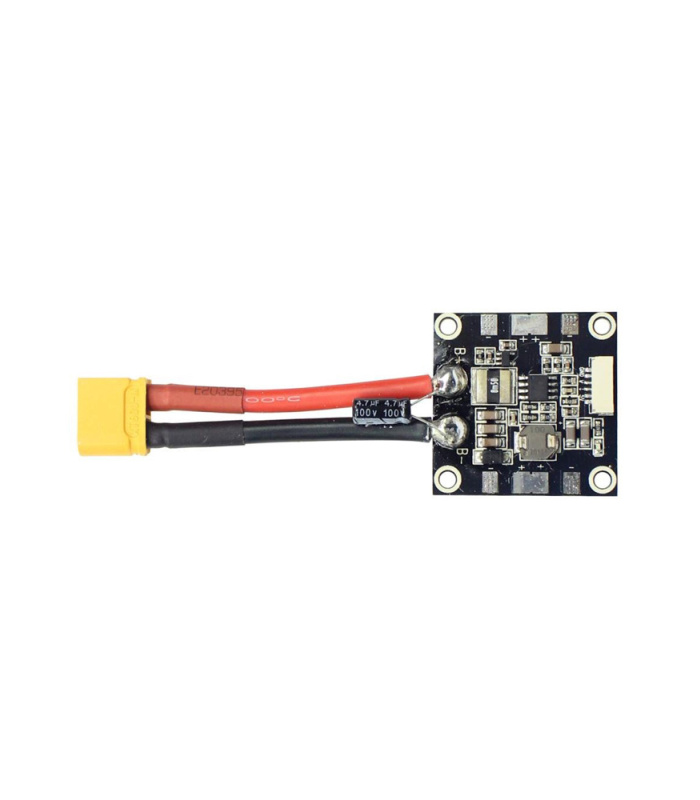

Power Moduleย Specifications:

  • Input Voltage: 2-12S
  • Input Current: 90A
  • Output Voltage: 5.1V
  • Output Current(BEC): 2.5A
  • Input Current(connect to one ESC only): 20A

Hardware Specification:

  • Processor:ย HC32F4A0PITB
  • Gyro:ย ICM42670
  • Compass:ย VCM5883
  • Barometer:ย LPS22HB
  • FRAM:ย Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes
Downloads
Multirotor Manual (pdf, 7044KB)
Helicopter Manual (pdf, 7758KB)
