Holybro Tekko32 F4 Mini 4-in-1 50A ESC BLheli_32 Dshot 1200

Name: Holybro Tekko32 F4 Mini 4-in-1 50A ESC BLheli_32 Dshot 1200 - Flying Tech
Brand: Holybro
SKU: ESC-HB-31155
Price: 69.90 GBP
Availability: InStock

£69.90 Inc. VAT

The Tekko32 F3 Mini is a 50A ESC with 20x20mm mounting holes from Holybro.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: ESC-HB-31155 Categories: 4 in 1 ESCs, Electronics, Speed Controllers (ESCs) Tags: 4-in-1, BLHeli_32, Dshot 1200, ESC, Speed Controller, Tekko32

Description

Edition, V1.4 – AM version here

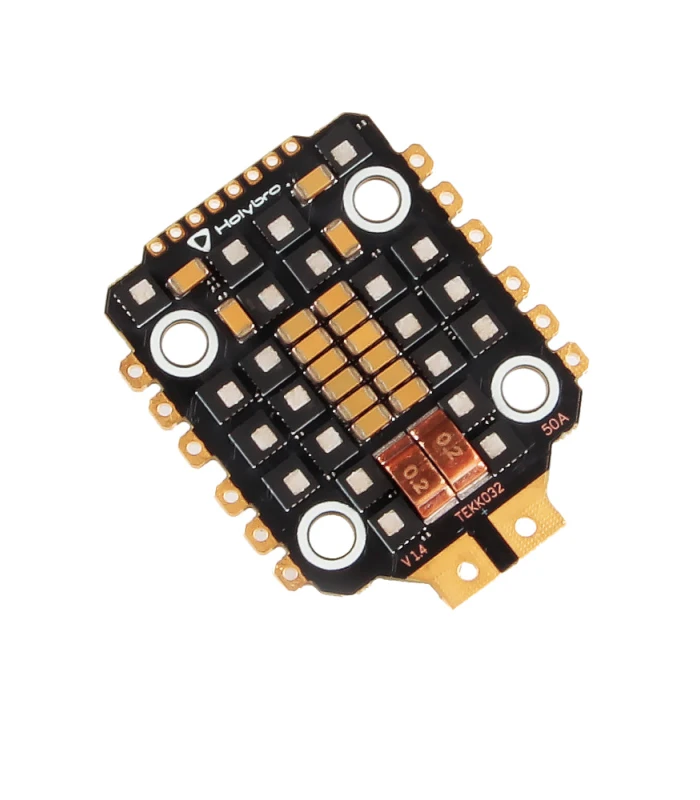

The Tekko32 F3 Mini is a 50A ESC with 20x20mm mounting holes from Holybro. It’s designed for smaller builds, but delivers big on performance. It’s a BLHeli-32 based ESC with a F4 MCU that delivers a smooth and fast response. It also boasts a true 50A per channel / 60A burst current rating and it is compatible with 4-6S LiPo; so who’s now planning a giant killing 6S micro drone build then? Being a Holybro ESC you can be confident of excellent reliability and low noise for a trouble free experience.

Summary specification: 4x 50A F4 BLHELI32 ESC in a 20×20 mounting pattern. Compatible with 4-6S LiPo.

Included with the ESC is an 8 pin JST-SH 1.0 connector which allows you to hook this ESC up to your FC, like for example the Kakute F7 Mini, for a very easily setup and neat stack.

Features:

All new High-quality MOSFETs with low internal resistance & heat generation. Also individual metal heatsink
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification

Continuous Current: 50A x4
Burst Current: 60A x4
Battery Supports: 4-6S
PWM Frequency: 16k to 96k
Supports DShot 150/300/600/1200/2400
Supports MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
BLHeli_32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
Dimension: 32 x 40 mm

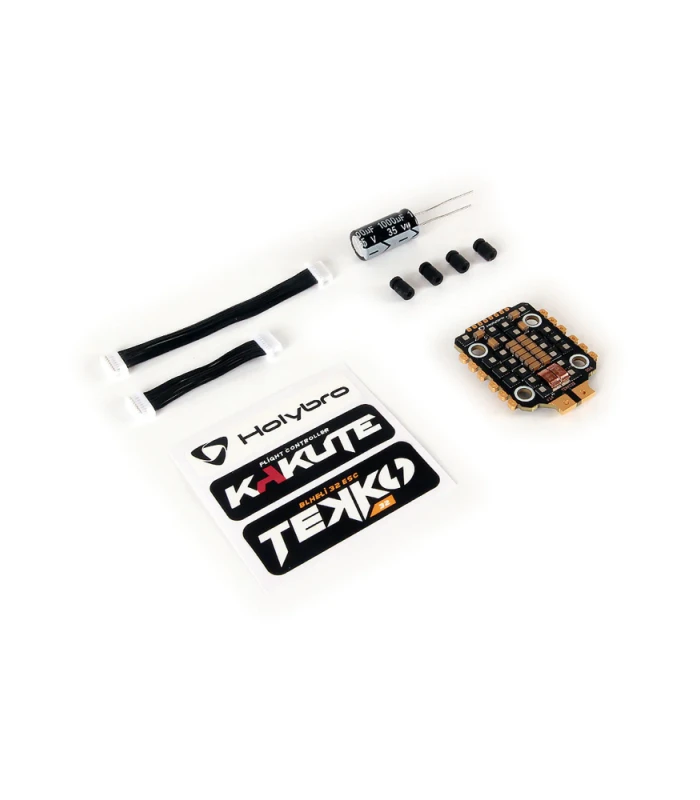

Included:

Tekko32 F4 4in1 mini 50A ESC x1
M2 Anti-Vibration Silicone Grommet Insert x4
M3 Anti-Vibration Silicone Grommet Insert x4
Electrolytic capacito: 1000uF 35v x1
8pin to 8pin 1mm pitch 65mm cable x1
8pin to 8pin 1mm pitch 25mm cable x1
