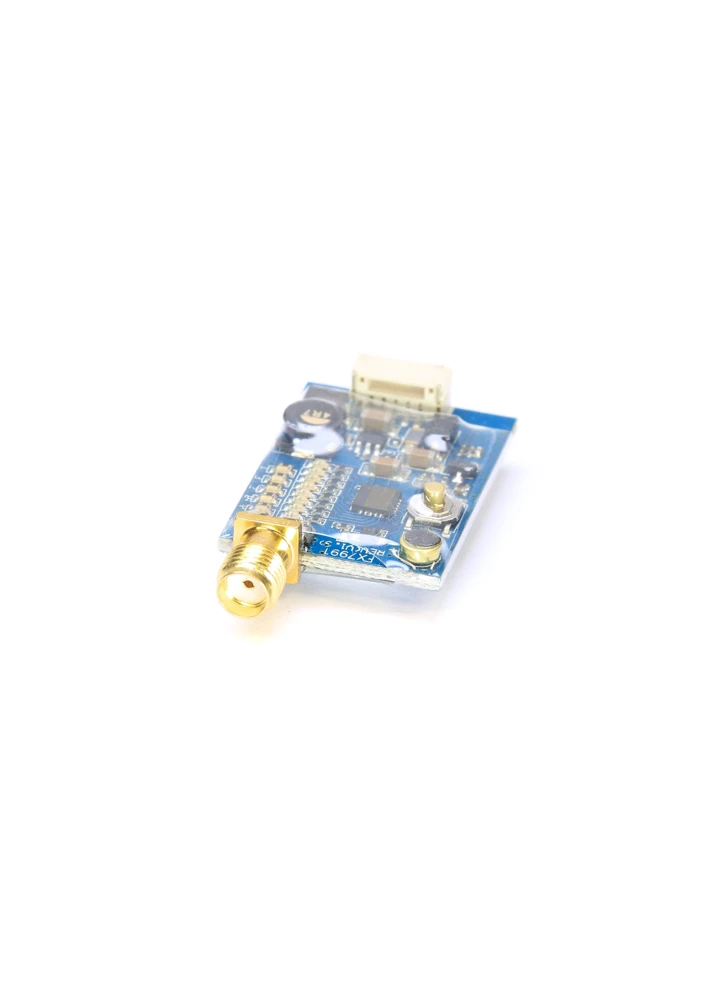

FXT FX795T-2 5.8Ghz 40CH FPV VTX 25mW to 200/600mW

FXT FX795T-2 5.8Ghz 40CH FPV VTX 25mW to 200/600mW - Image 3

FXT FX795T-2 5.8Ghz 40CH FPV VTX 25mW to 200/600mW - Image 4

FXT FX795T-2 5.8Ghz 40CH FPV VTX 25mW to 200/600mW

£30.00 Inc. VAT

Two versions of this transmitter: 25mW / 200mW and 25mW / 600mW – please select as required.

Transmitting Power (mW)

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: FPV Video Transmitters (VTXs), Analog FPV, FPV Tag: FPV

Description

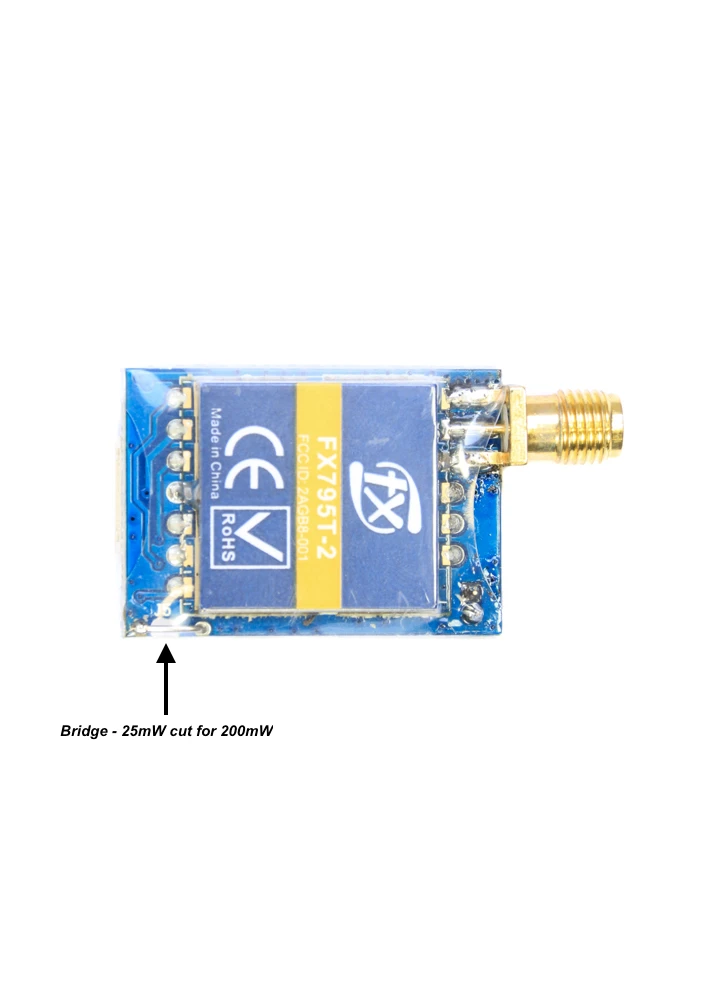

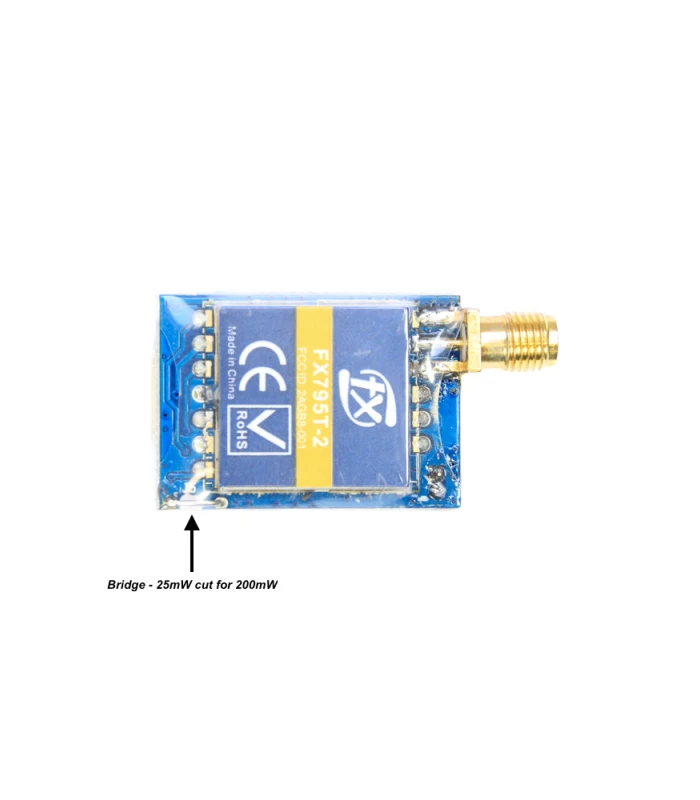

This FPV transmitter arrives outputting 25mW (the legal power output in the UK), but can be increased to a higher power output by cutting a solder jumper. We have two versions of this transmitter: the first option offers 25mW / 200mW and the other 25mW / 600mW – please select as required.

Features:

Upgradeable power output
Race Band Channels
40 channels, change with a button
Micro size and very light weight

Replacement VTX Cable

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

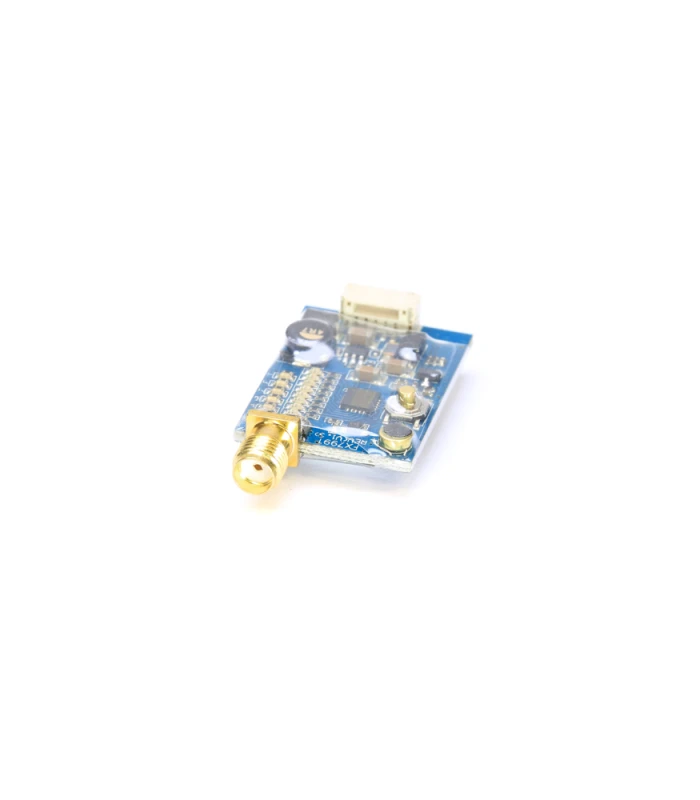

Antenna connector: SMA
Video Format: NTSC/PAL
Frequency Selection: Button
Output Impedance: 50 Ohm
Output Power:12~14dBM at low output, 22~24dBM at high output
Frequency Range: 5645 ~ 5945 Mhz
Channel: 40CH (Including Raceband)
Video Band Width: 8 MHz (except R Band, that is 37mhz apart)
Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p
Video Input Impedance: 70 Ohm
Audio Input Level: 0.8 ,2.0 Vp-p
Audio Input Impedance: 10K Ohm
Operating Voltage: 7 – 20V
Supply Current: 70mA / 200mA
Output Voltage (VOUT): 5V
Operating Temperature: -10~85 degrees

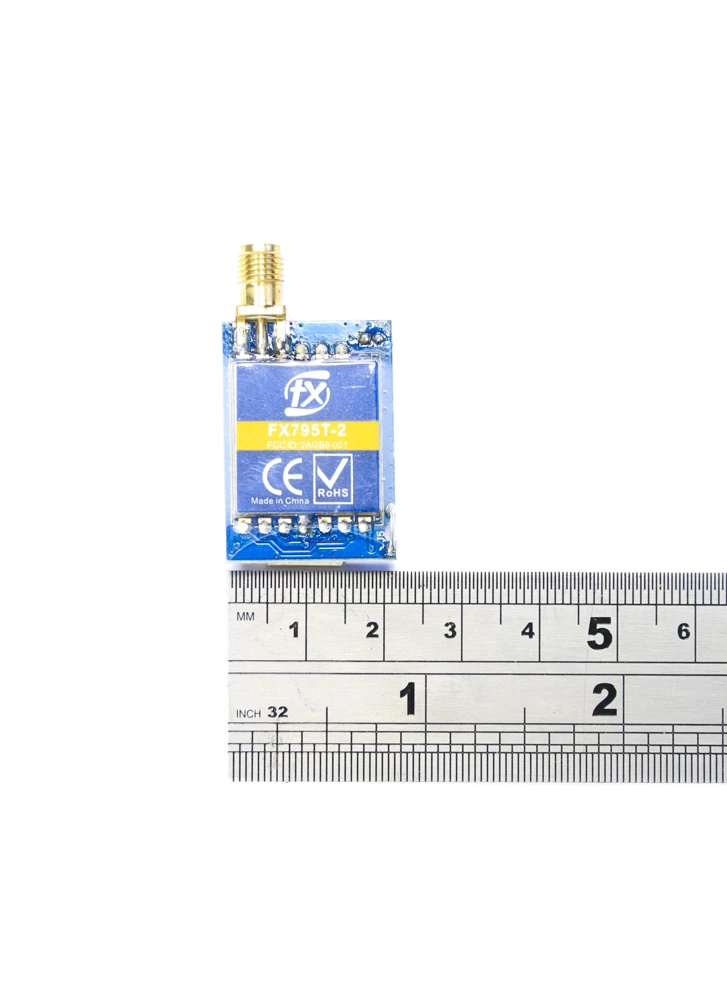

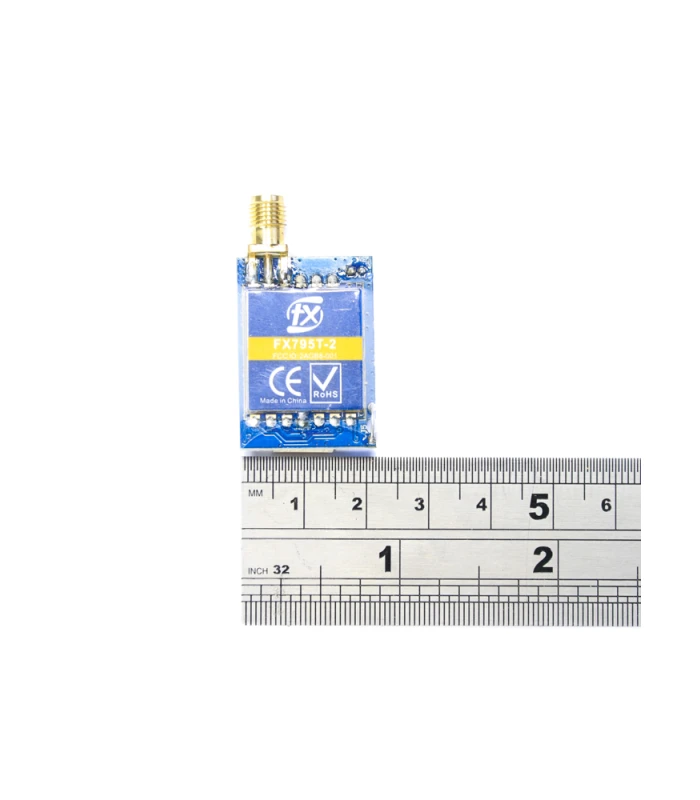

Dimension: 31mm x 20mm x 8mm
Weight: 8g (without antenna)

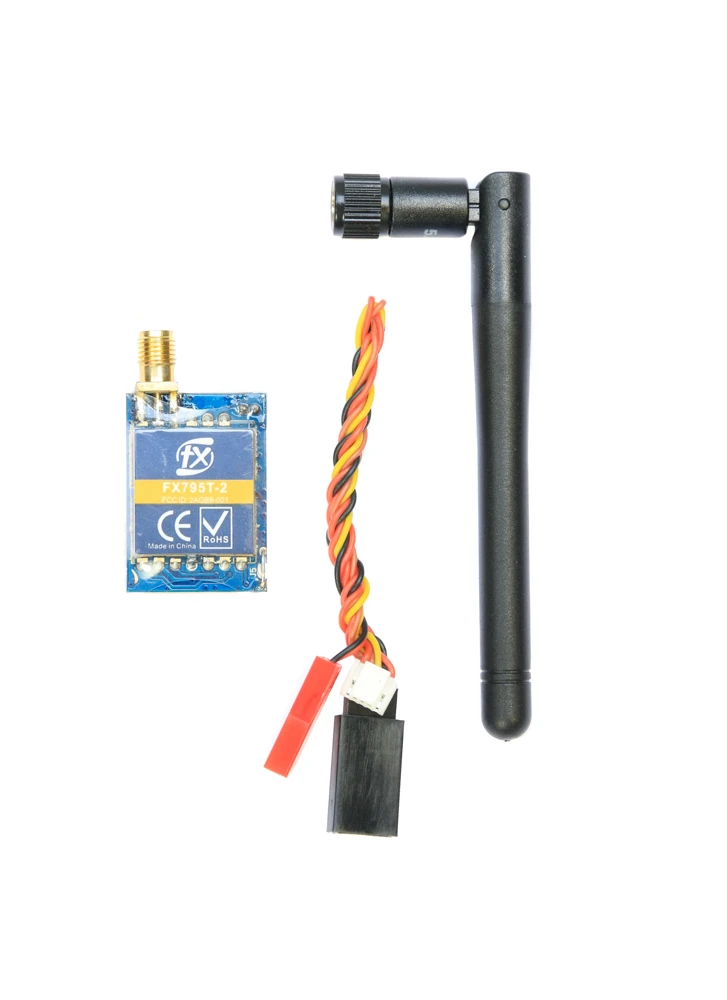

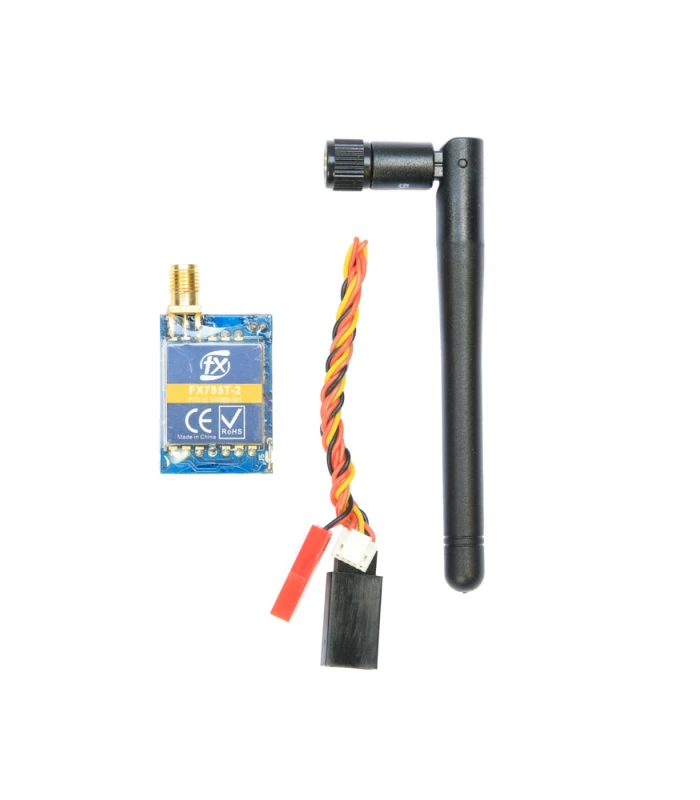

Included:

1x 25 / 200mW Variable Output FX795T
1 x Antenna
1x Video Cable
