The PandaRC VT5804 V3 is a transmitter for long range FPV or ground-based applications such as FPV RC cars & boats. It has an adjustable power output ranging from 25mW, right up to a massive 1000mW. This is really a great feature as it means you can use the transmitter legally without a licence in the UK and yet exploit its higher power offering for greater range when legal to do so. Changing channels is quick and easy thanks to the VT5804 having a channel selection button or the option of remote OSD control via the Tramp Protocol when used with a flight controller. The ability to change channels quickly really comes into its own for professional applications and at drone racing events, when lots of people are operating on the same channel.

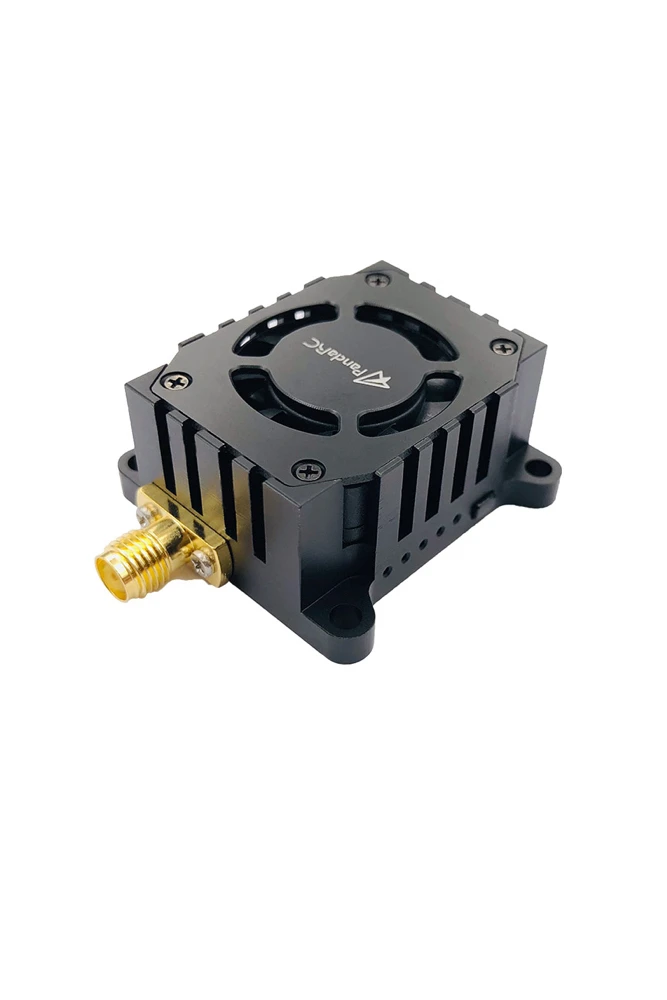

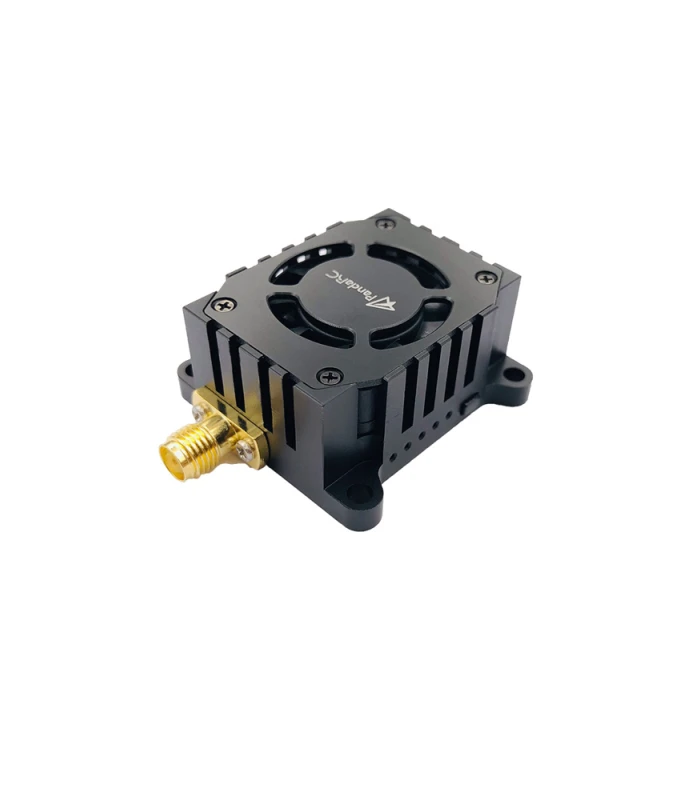

The VTX is easy to wire up as it can be powered straight from your flight battery without the need for a UBEC as it supports a wide input voltage (2-6S). The TX uses an RP-SMA connector. It’s also easy to install thanks to its sturdy aluminum case and 30×30 hole mounts.
Wide input voltage range and low power consumption: 7V-28V
Installation hole corresponds to 30×30 stacks.
Controllable through Tramp protocol.

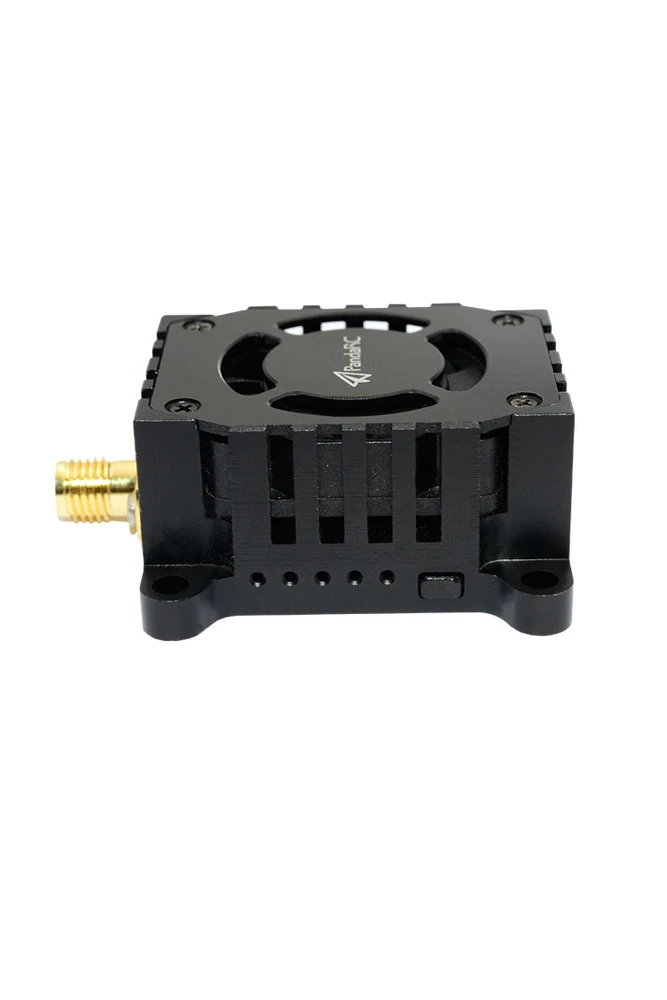

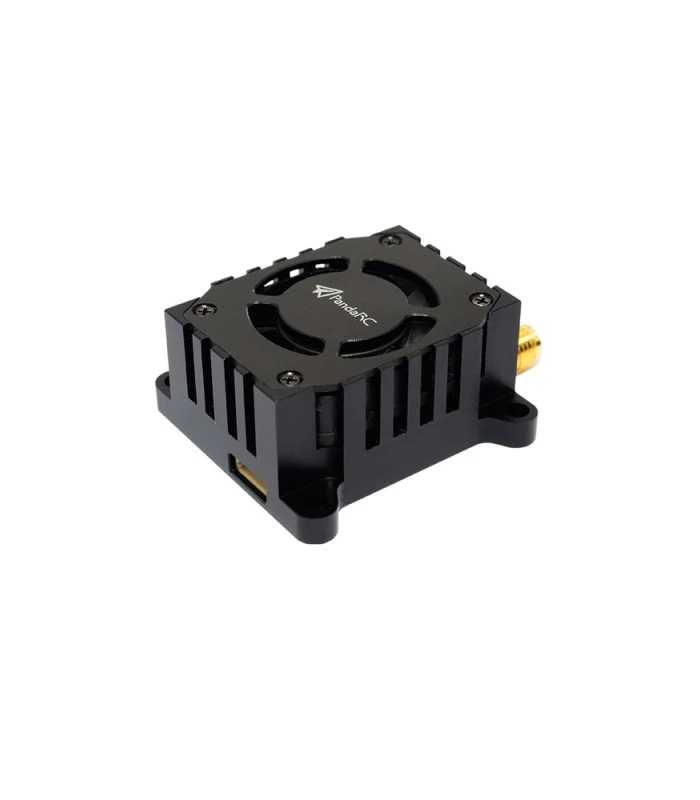

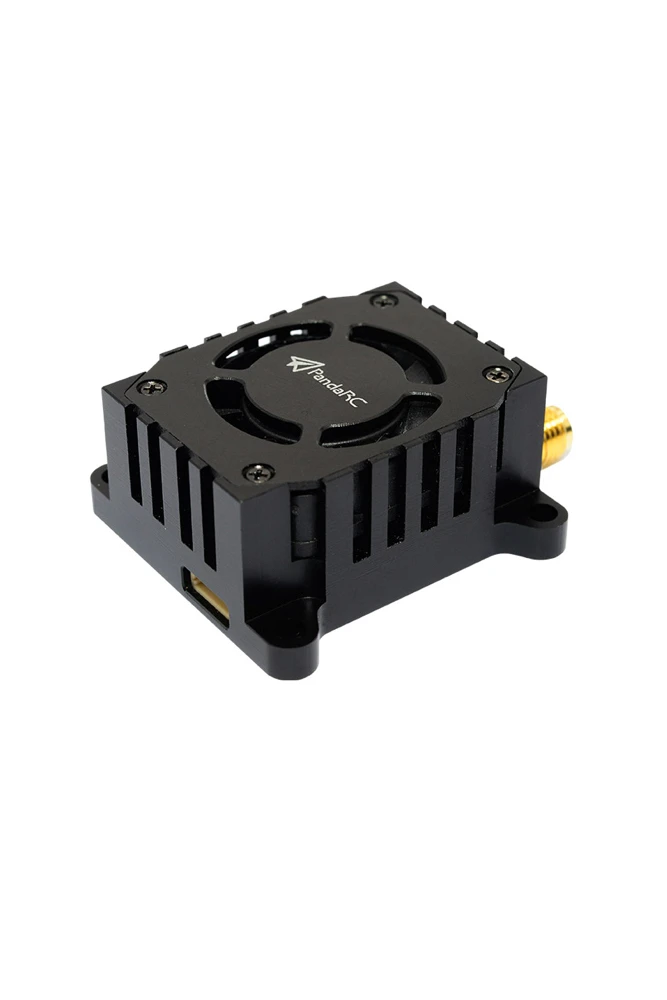

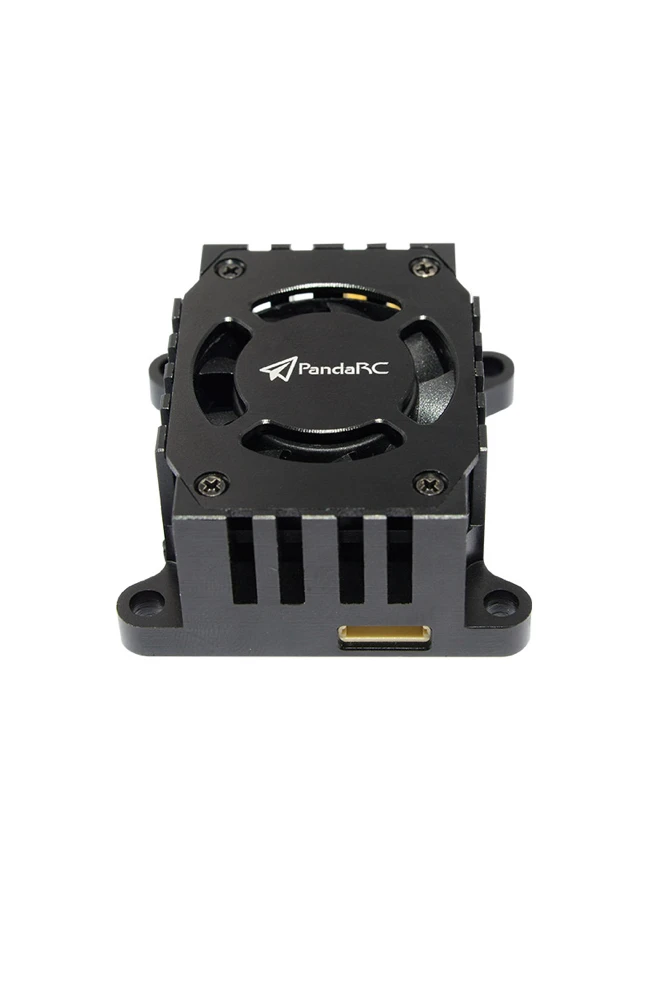

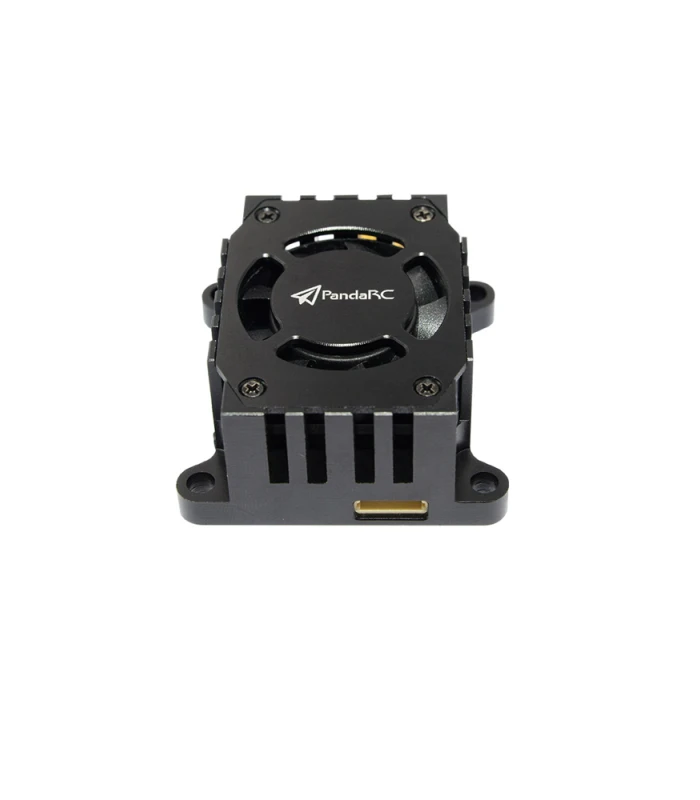

Aluminum housing with built in cooling fan
Output Power and Frequency Setting

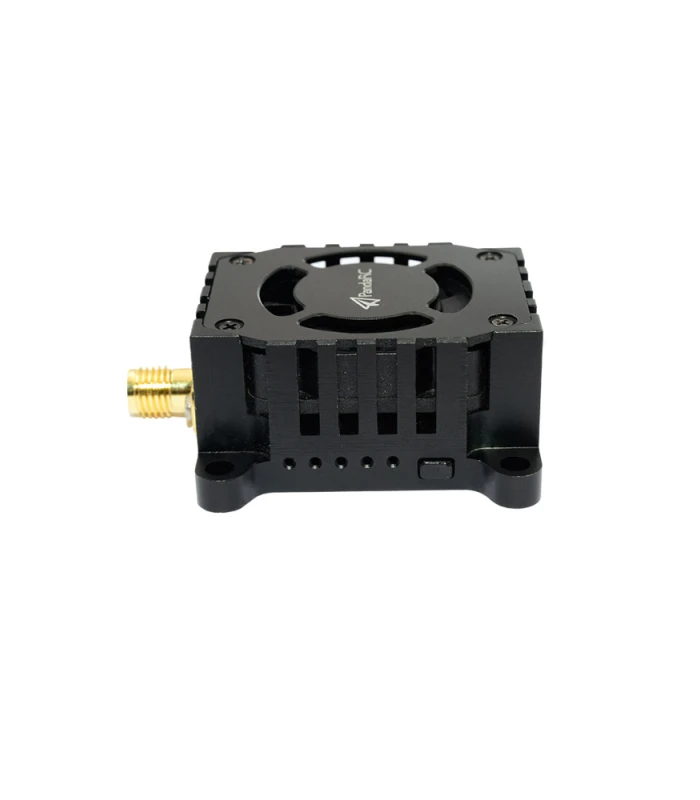

Through buttons on the VTX:
1. Long press the button for 6 Seconds: The power indicator led flash while other indicator leds are off, then short press would change the power 25mW/200mW/400mW/800mW/1000mW.
2. Short Press one time, it will change the Channel (CH1-CH8).
3. Long press for 3 seconds and then short press, will change the FR (A-F).
IMPORTANT: Do not turn the transmitter on before attaching the antenna, doing so will permanently damage the board!
Note: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Specification
Video Module: NTSC/PAL
Input Voltage: 7-28V, +12V/450mA@1000mW
Smart Audio: IRC-tramp
Connector: RP-SMA
Size: 36x36x5.5mm
Hole Size: 30.5mm x 30.5mm
Weight: <30g(without antenna)
Included:

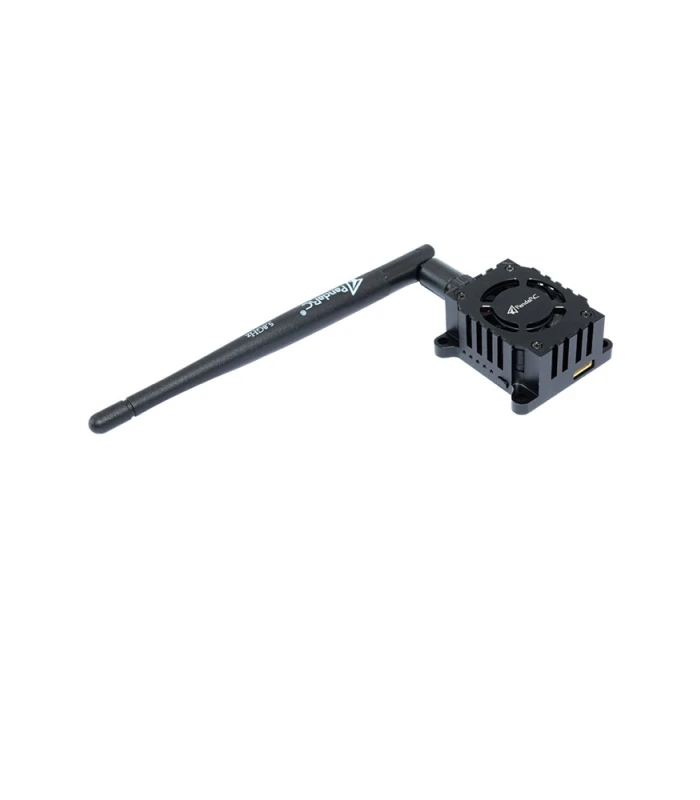

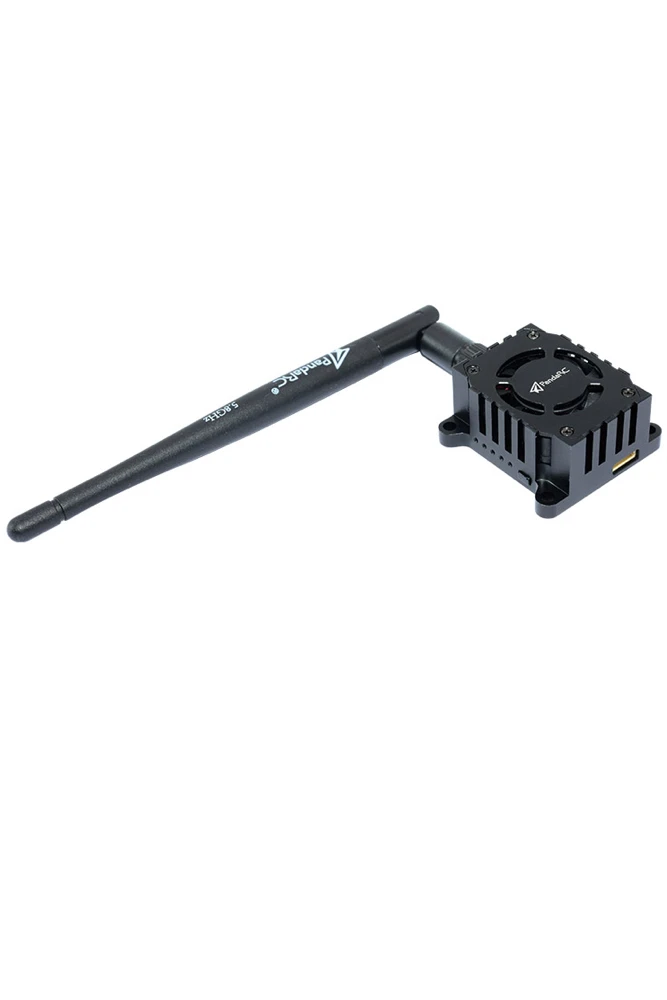

1 x PandaRC VT5804 V3 1W FPV Video Transmitter
1 x Antenna
