It seems most people are running FXT FPV transmitters on their racings quads at the moment, and no wonder why, we can’t fault them. They are super compact, lightweight, easy to use and feature packed.
Competition quads are getting increasingly smaller, but even where space is at a premium, you should be able to fit in one of the FXT FPV transmitters, they aren’t much bigger than a pound coin.
They are also easy to use thanks to their push channel/band selection button. As there’s not a fiddly dipswitch in sight, you’ll be able to flick between channels in seconds, which is really useful at race meets. What’s more, as they support a full range of channels, including RaceBand, you’ll always have the option to change to a different channel if interference becomes a problem.
Wiring couldn’t be easier, they are directly compatible with 3-4S LiPO and feature a handy 5volt regulator for powering a FPV camera, so no regulator required. Furthermore it utilises a locking cable, so there’s no chance of it coming out of place in flight.
Last but not least in terms of features, they also have an onboard microphone. This might sound like a pointless feature to many, but there are benefits to be had from being able to hear what the motors are doing (check out this blog post), indeed some of the top racers are using mics to go even faster.
Most importantly they are popular because they have proven reliable.
Models

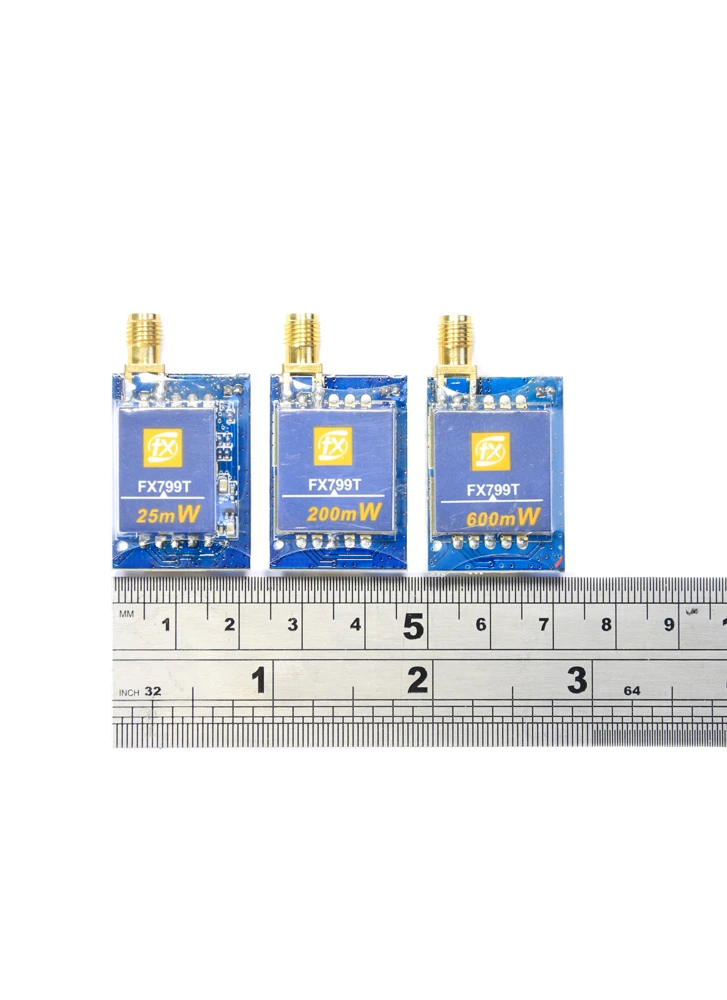

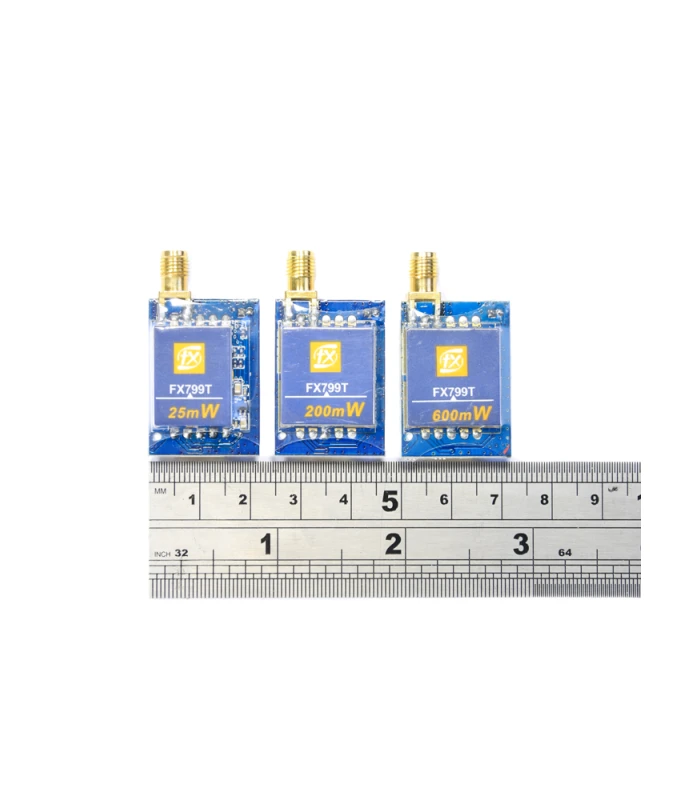

There are three transmitters within the FX799T series range, each with a different power output:

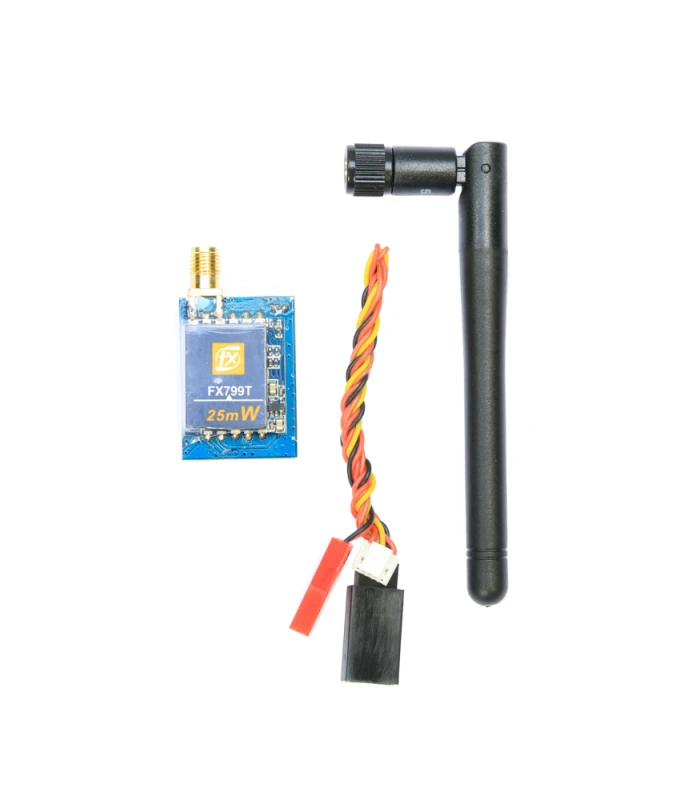

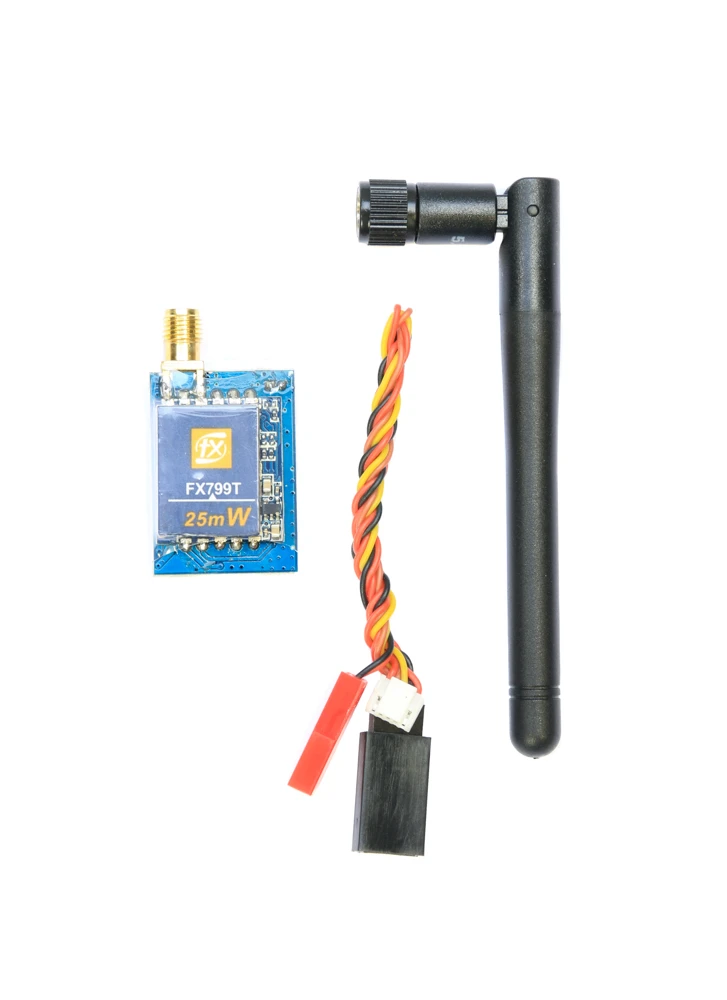

25mW FX799T: This is a UK legal transmitter, it’s 25mW power output and 27 channels are free to use in the UK without a license. Although you have probably seen more powerful FPV transmitters, don’t think it has a poor range because of its low power rating. With the stock antenna you can get 200m in open space. However, if you are using some circular polarised antennas, you can easily get >300m. Low power FPV transmitters are also really good for indoor environments, where high-powered transmitter often cause multipathing (poor signal quality caused by the signal being reflected by obstacles).
200mW FX799T: 200mW is a power output used by a lot of FPV mini quad racers. It’s enough to provide a decent range and reception and equally won’t kibosh everyone else’s fun, or eat into your battery life.
600mW FX799T: This transmitter certainly packs the power; 600mW is enough for 1km+ LOS long-range flights.
All of the transmitters operate across multiple frequencies and channel bands, including the newer ‘RaceBand’, making them compatible with most FPV gear on the market. Best still, there’s not a dipswitch in sight, it has a channel selection button and LED light display that makes changing channels a painless experience. The RED LED indicates the Channel frequency selection, the Blue LED indicates the Band selection.
All of the models come with a dipole antenna, but we recommend using the Skyzone circular polarised FPV antenna for better recption and increased range.

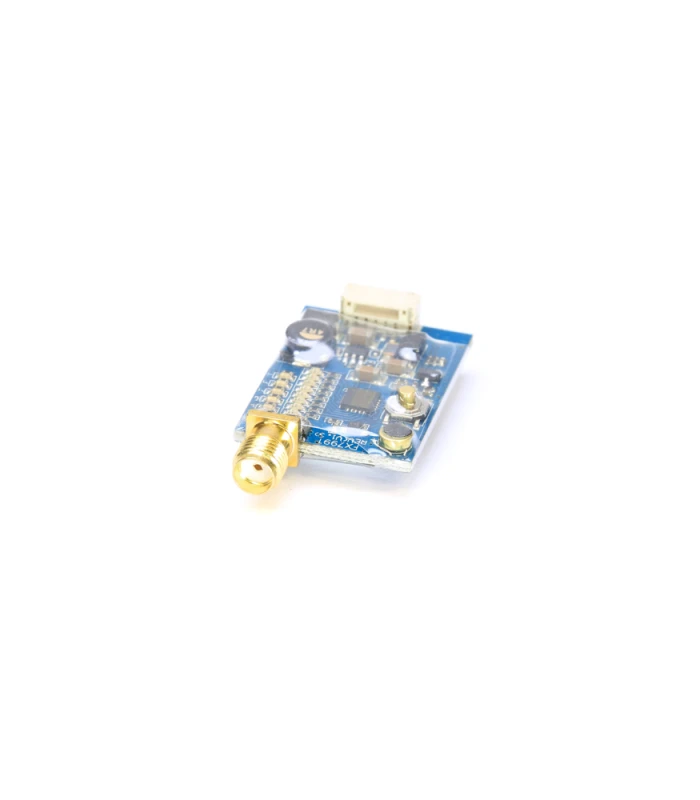

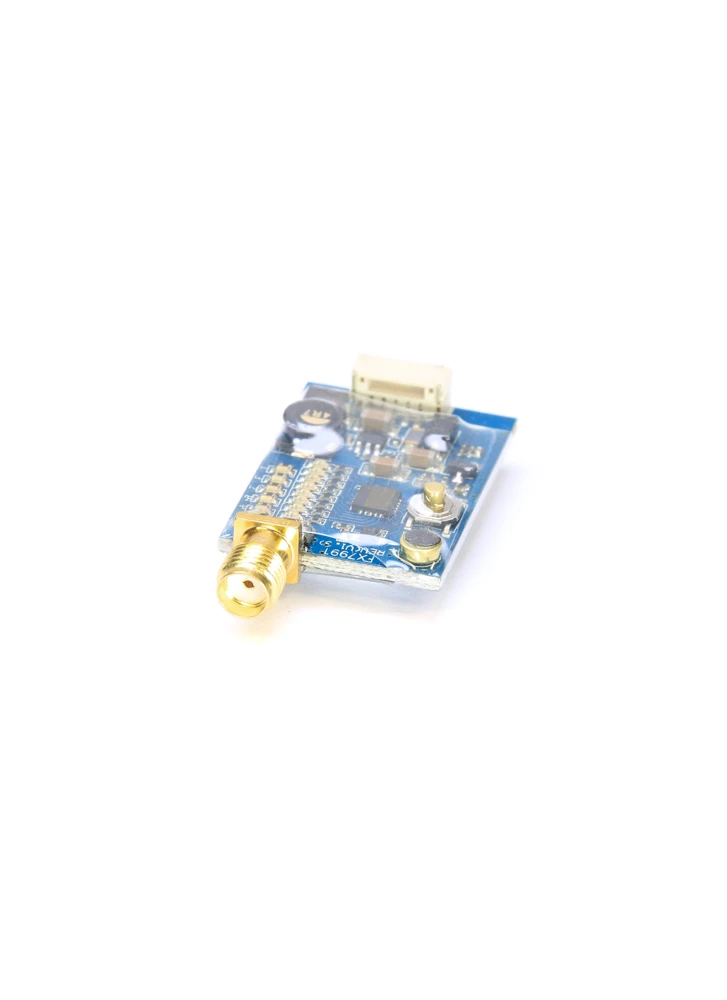

The FX799T VTXs come with a conventional straight-through SMA connector, if you need a 90-degree vetical SMA, choose the FX796T. Also available FX668T VTX with Pit Mode.
Replacment VTX Cable
Features:
- Micro size and very light weight
- 25 / 200 / 600 mW power options
- Standard SMA antenna connector compatible with ImmersionRC/Fatshark
- 40 Channels with RaceBand – Perfect for FPV racers
- 5V output for powering a FPV camera
- Flexible power input 7-20v (2s-4s input)
- Includes on board microphone
- Easy push-button channel selection with LED indicator
IMPORTANT: Do not turn the transmitter on before attaching the antenna, doing so will permanently damage the board!
Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
